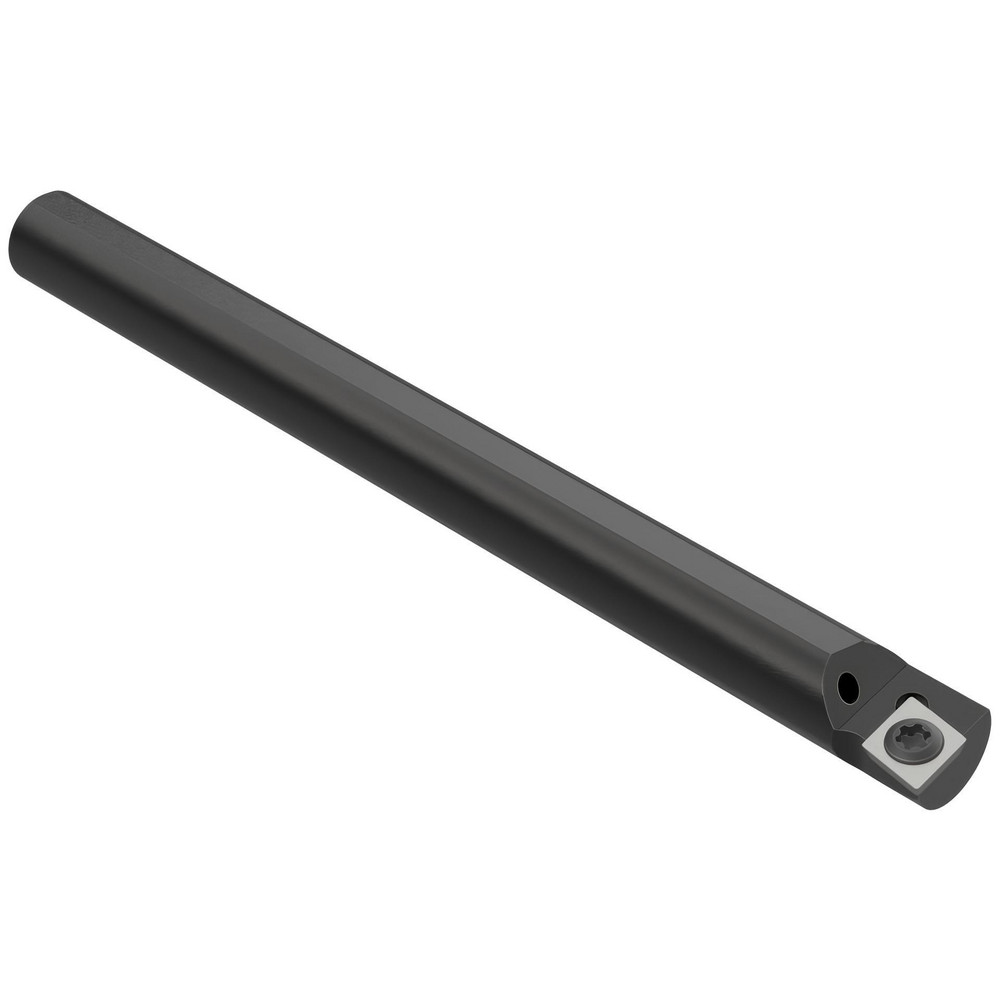

80.00 mm OAL, Screw, Uses CDCB 04T0.. Inserts
| Minimum Bore Diameter (mm) | 8.50 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3346 |
| Maximum Bore Depth (Decimal Inch) | 0.4409 |
| Maximum Bore Depth (mm) | 11.20 |
| Toolholder Style | A-SCLD |
| Tool Material | Steel |
| Insert Compatibility | CDCB 04T0.. |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |

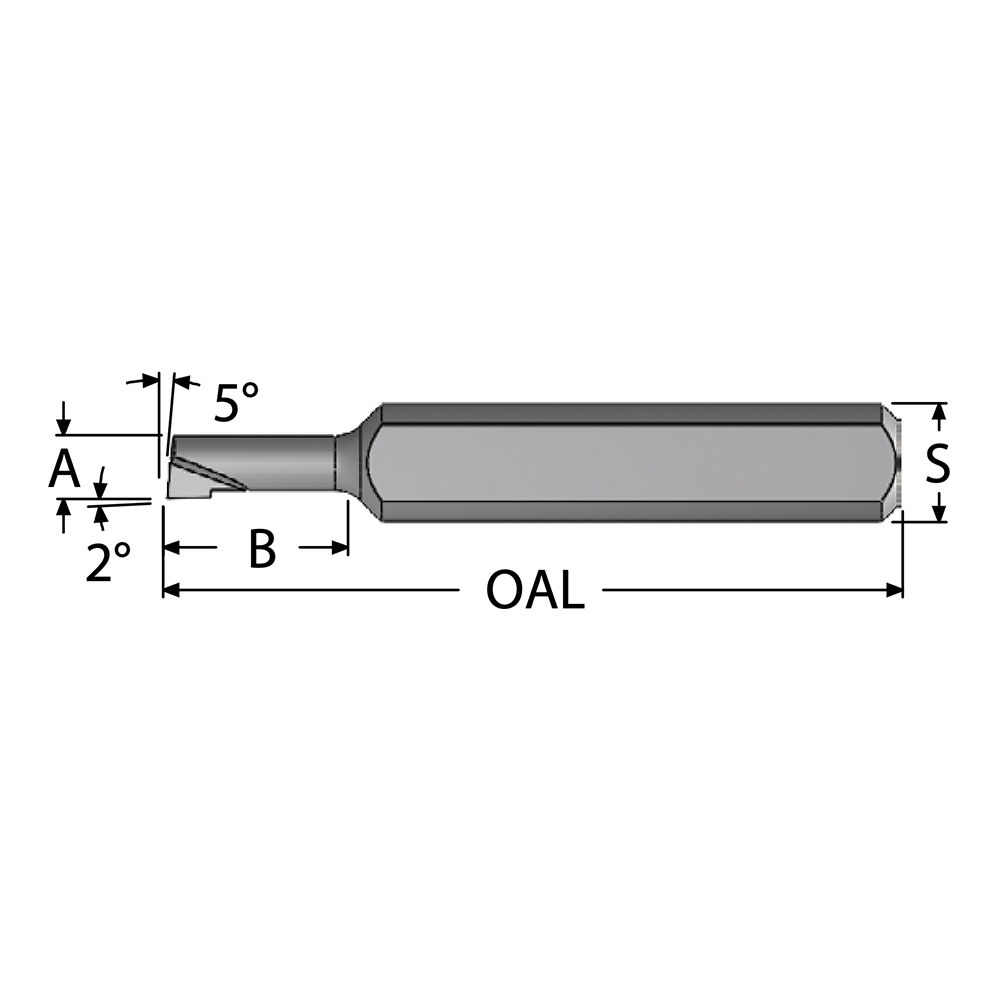

| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 95 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (mm) | 3.97 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1772 |
| Center to Cutting Edge (mm) | 4.50 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0380 |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 04727095 |
