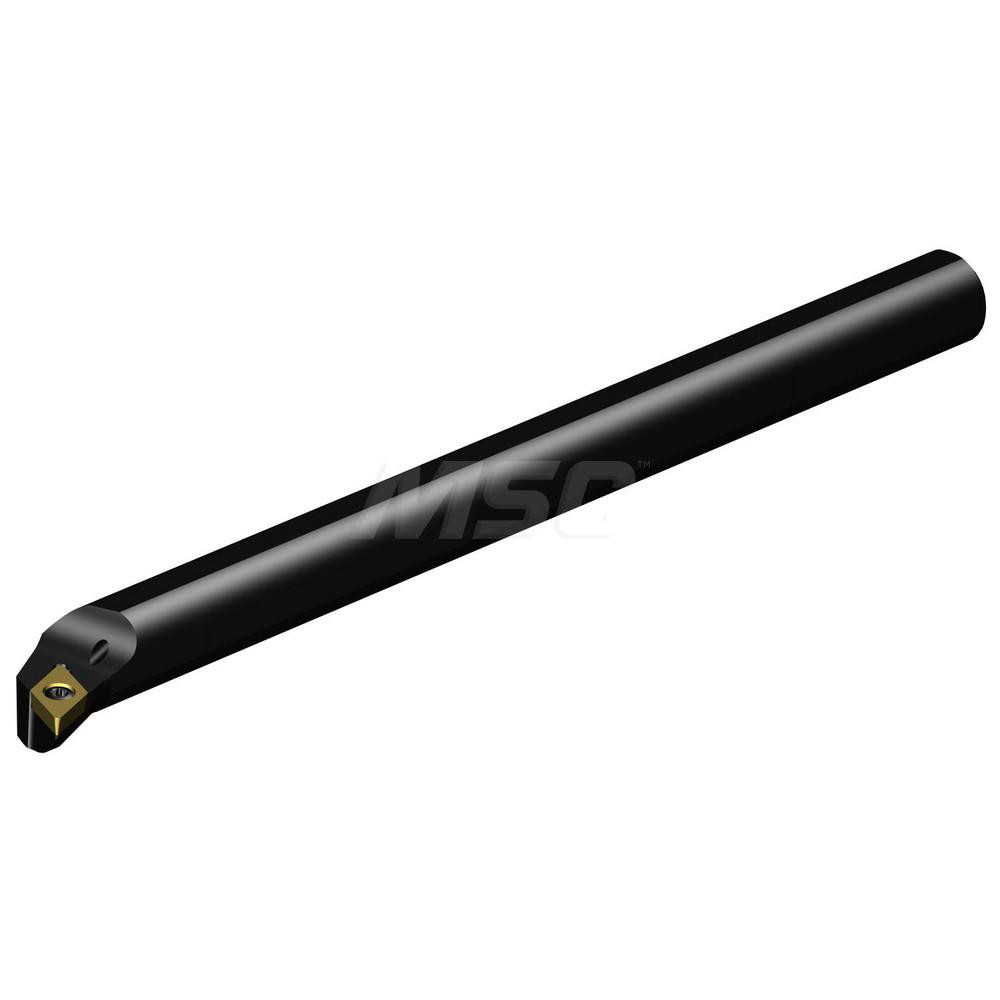

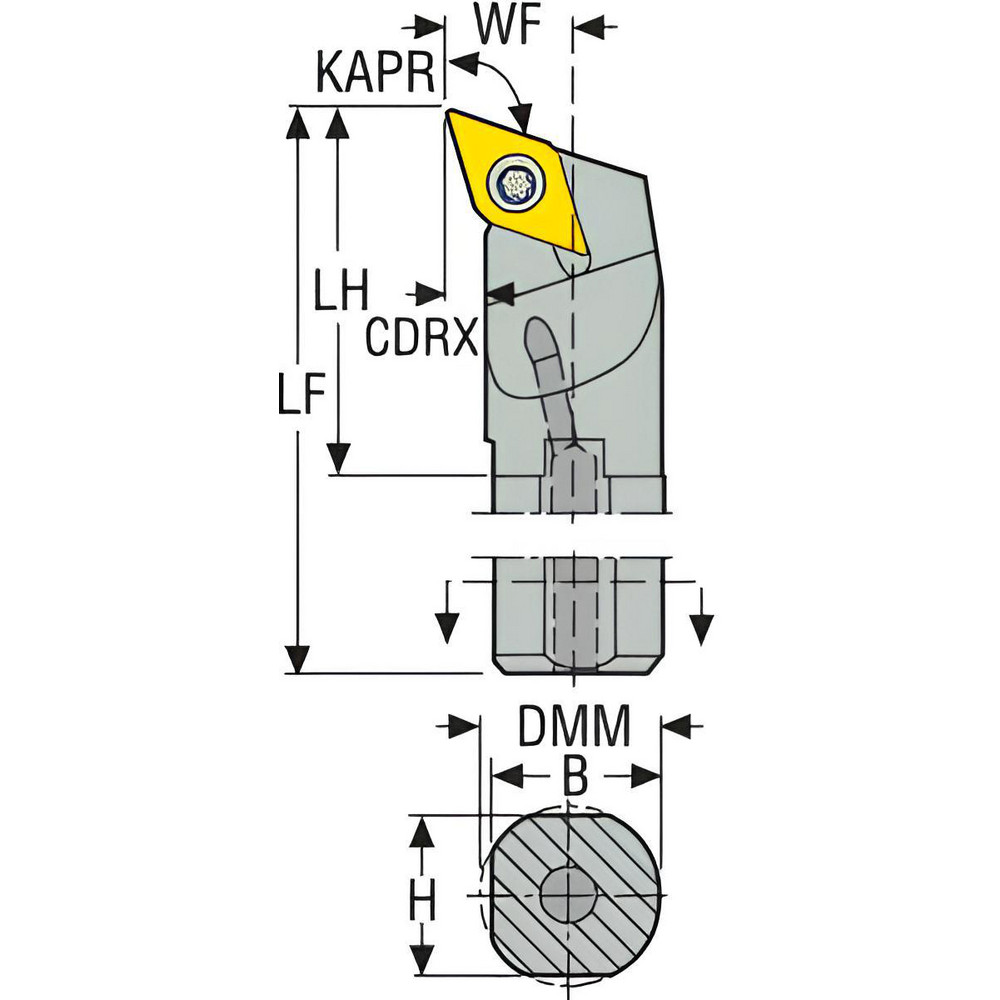

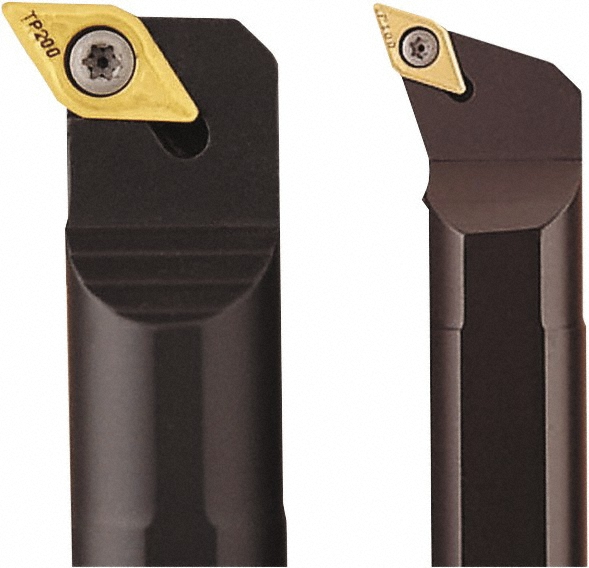

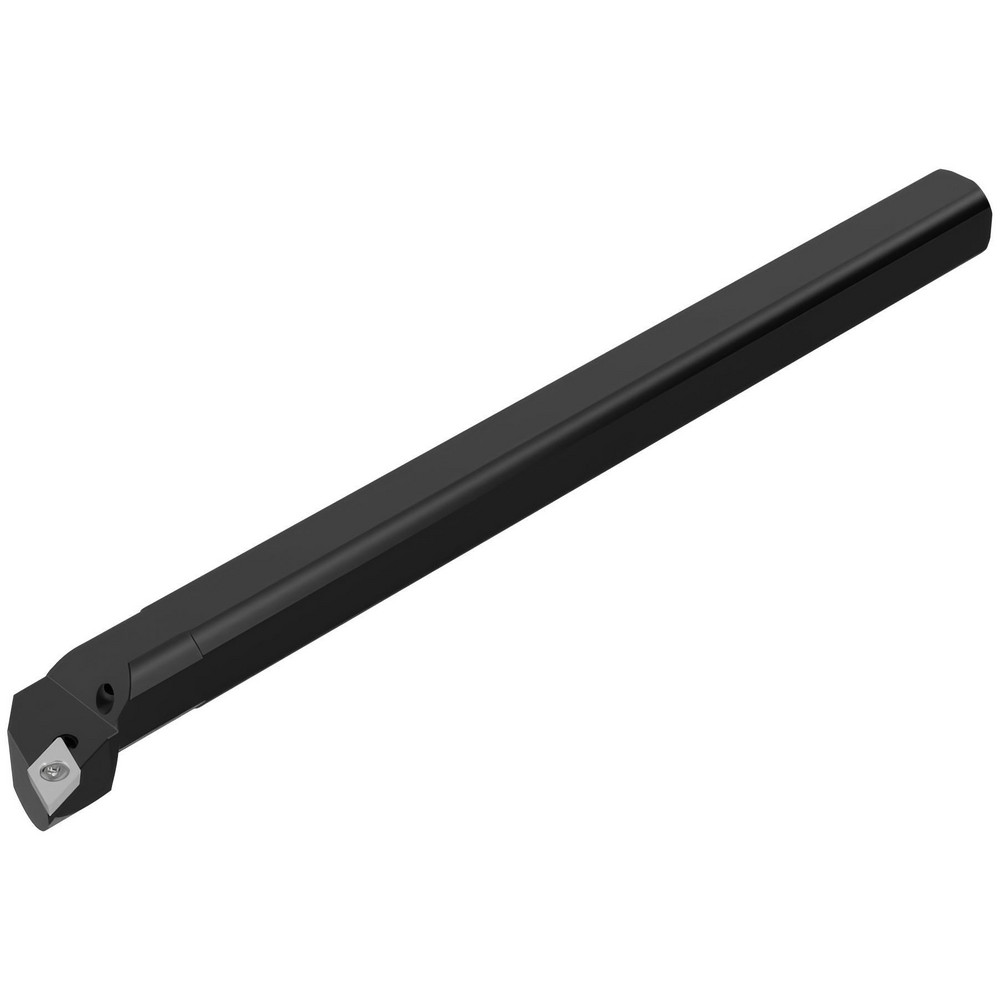

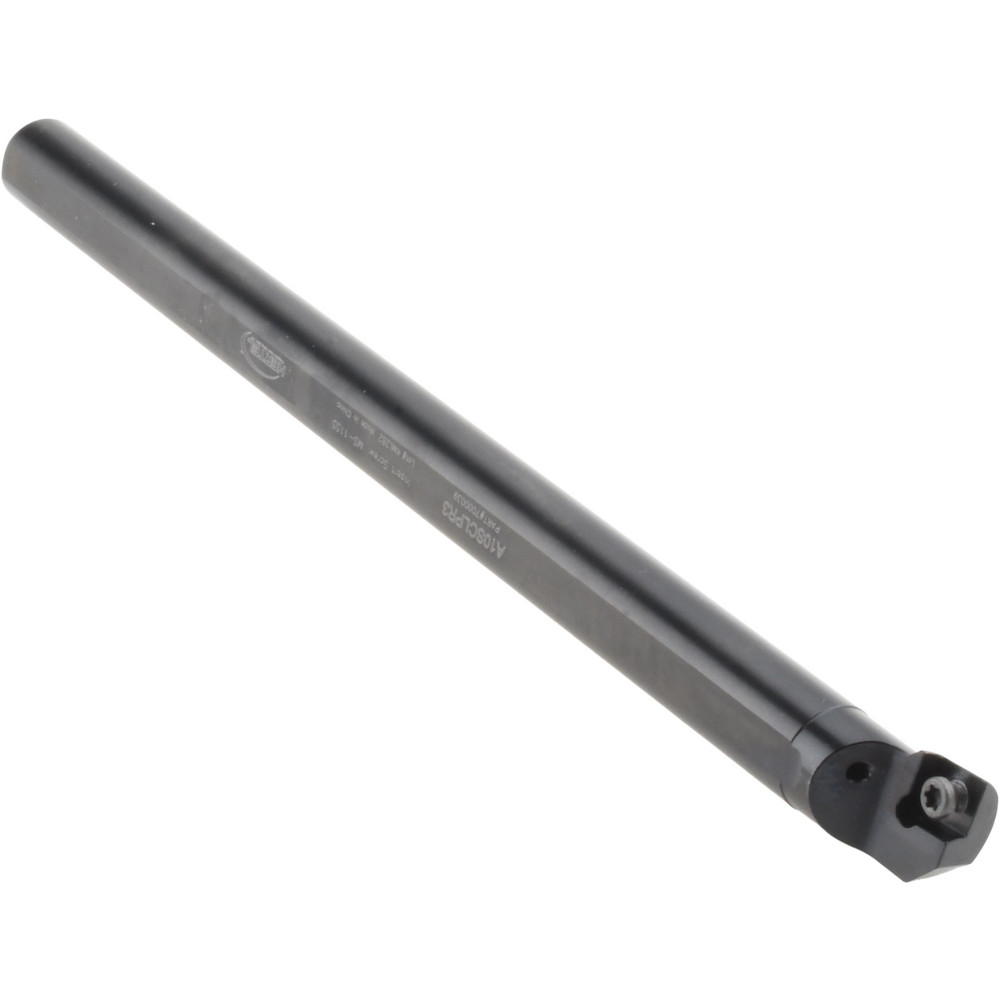

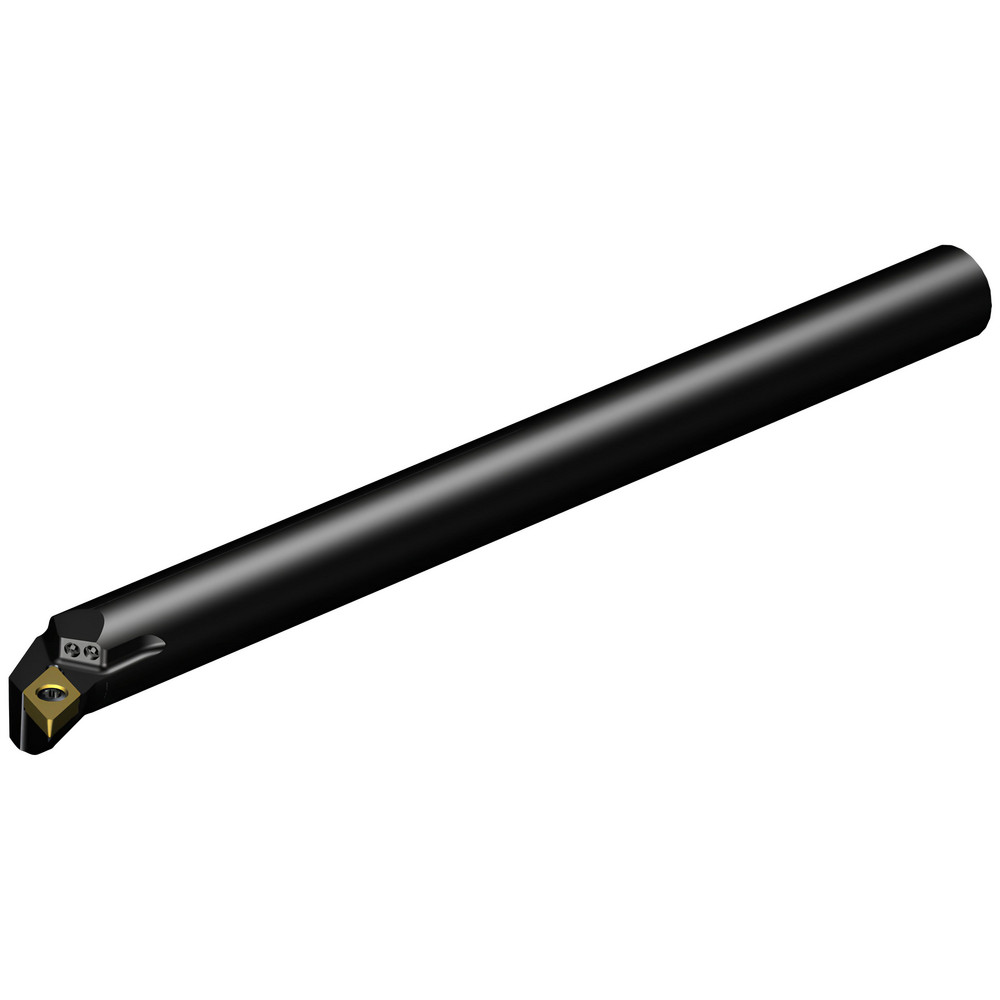

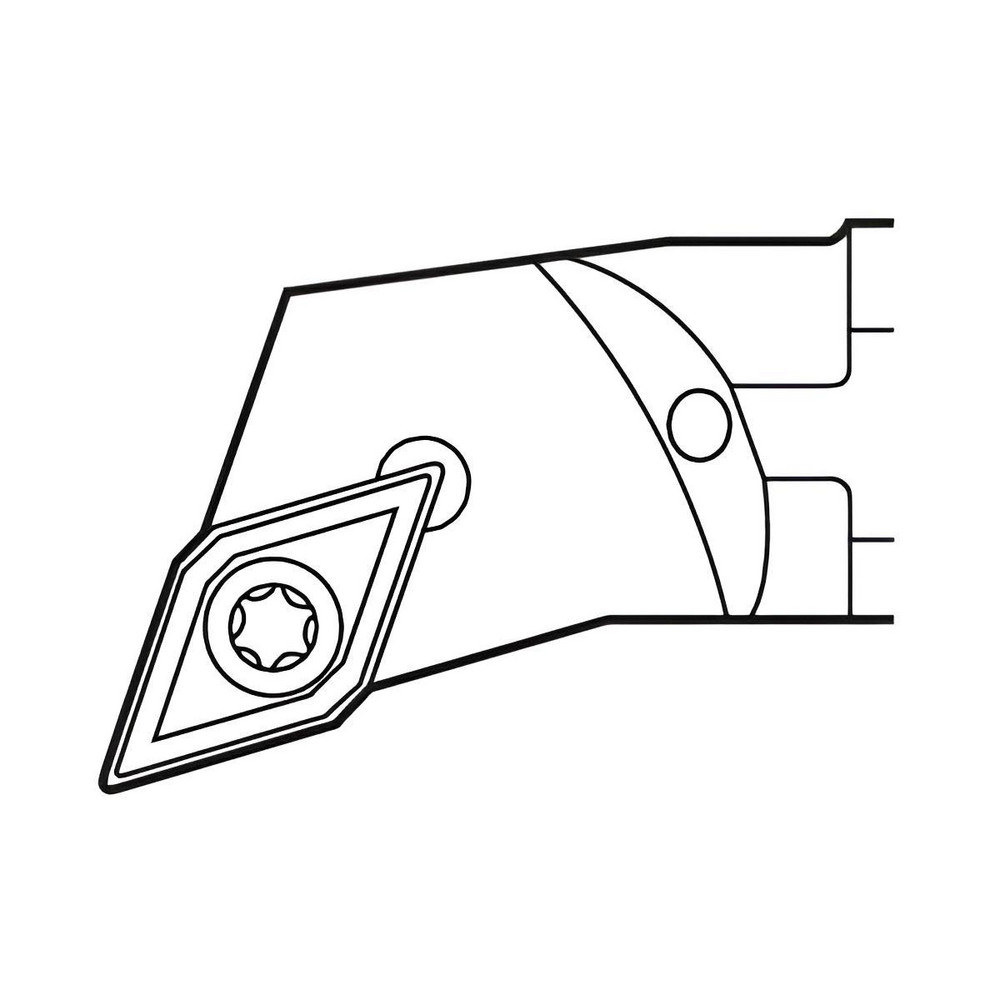

10.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 0.8400 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.8400 |
| Toolholder Style | SDQC |
| Tool Material | Steel |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 10.00 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | DC..21.5.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 107.5 |
| Series | SDQC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Inch) | 1/2 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 29106572 |
