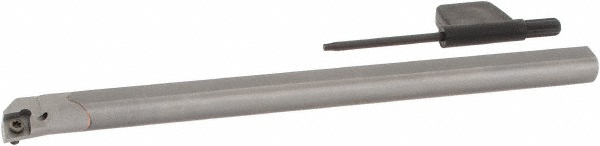

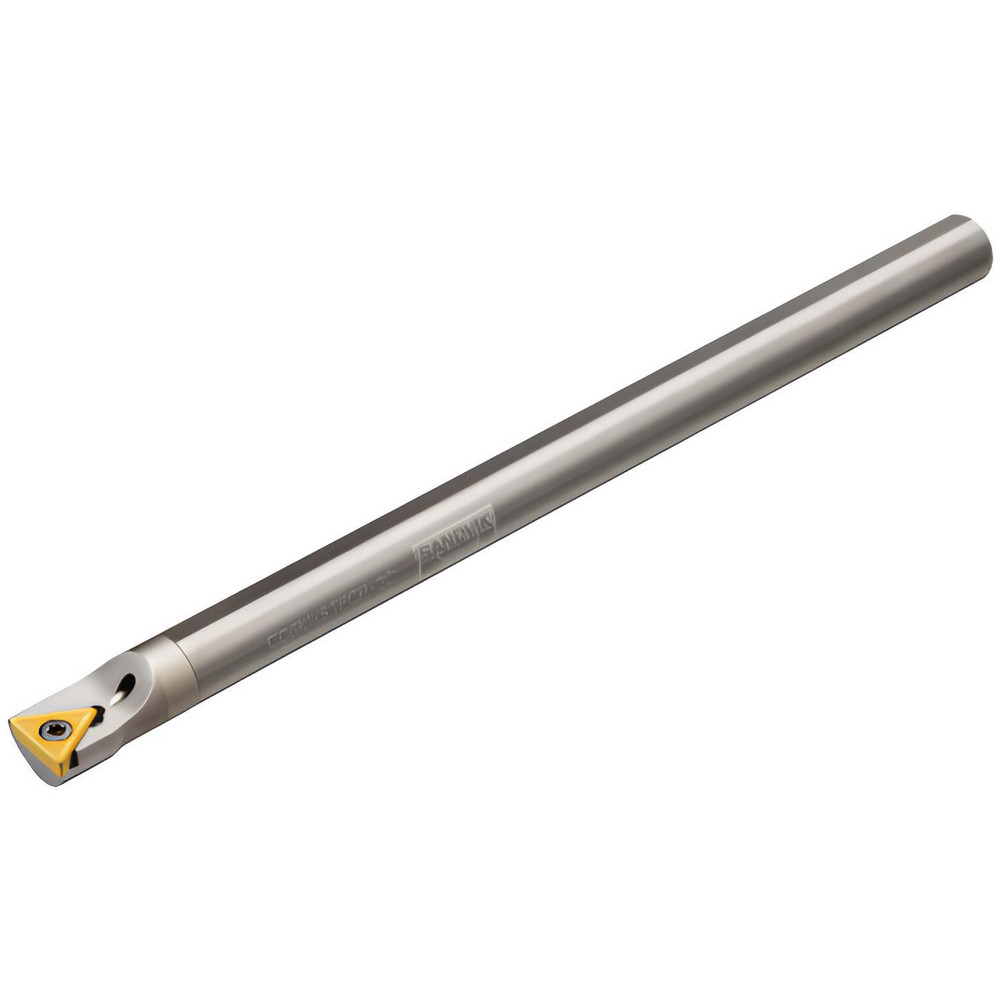

Screw, Uses TC..2 Inserts
| Minimum Bore Diameter (mm) | 20.62 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.8118 |
| Maximum Bore Depth (Decimal Inch) | 1.8756 |
| Maximum Bore Depth (Inch) | 1-7/8 |

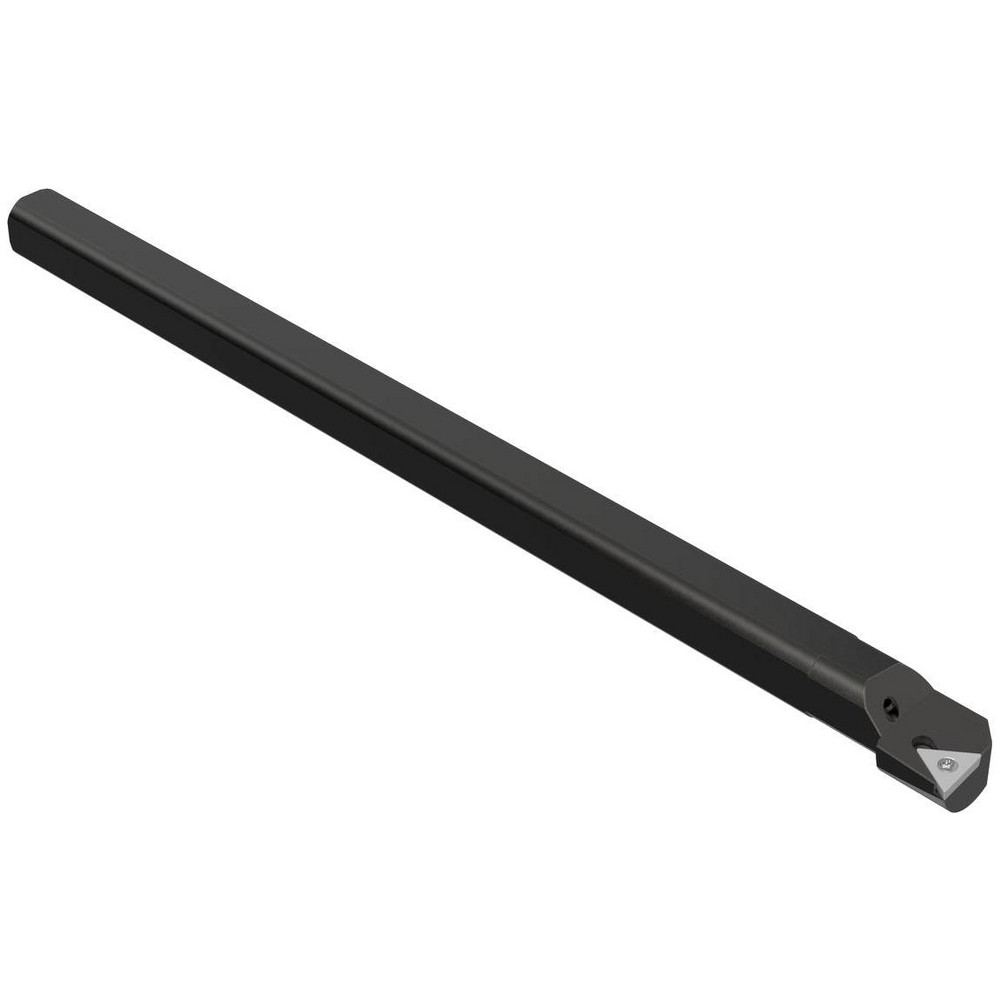

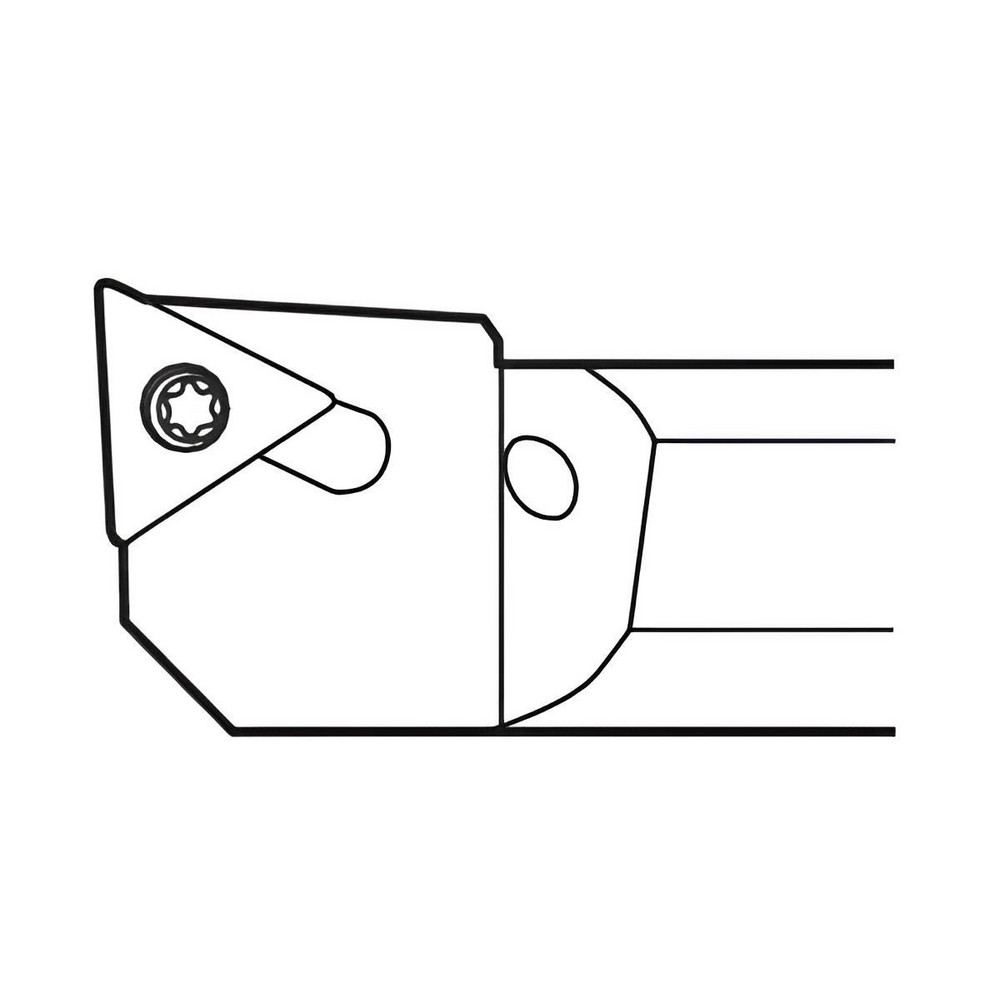

| Toolholder Style | A10-STUCL |
| Tool Material | Steel |
| Insert Compatibility | TC..2 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Insert Holding Method | Screw |
| Rake | Neutral (Axial); Negative (Radial) |
| Lead Angle | 93 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | Yes |

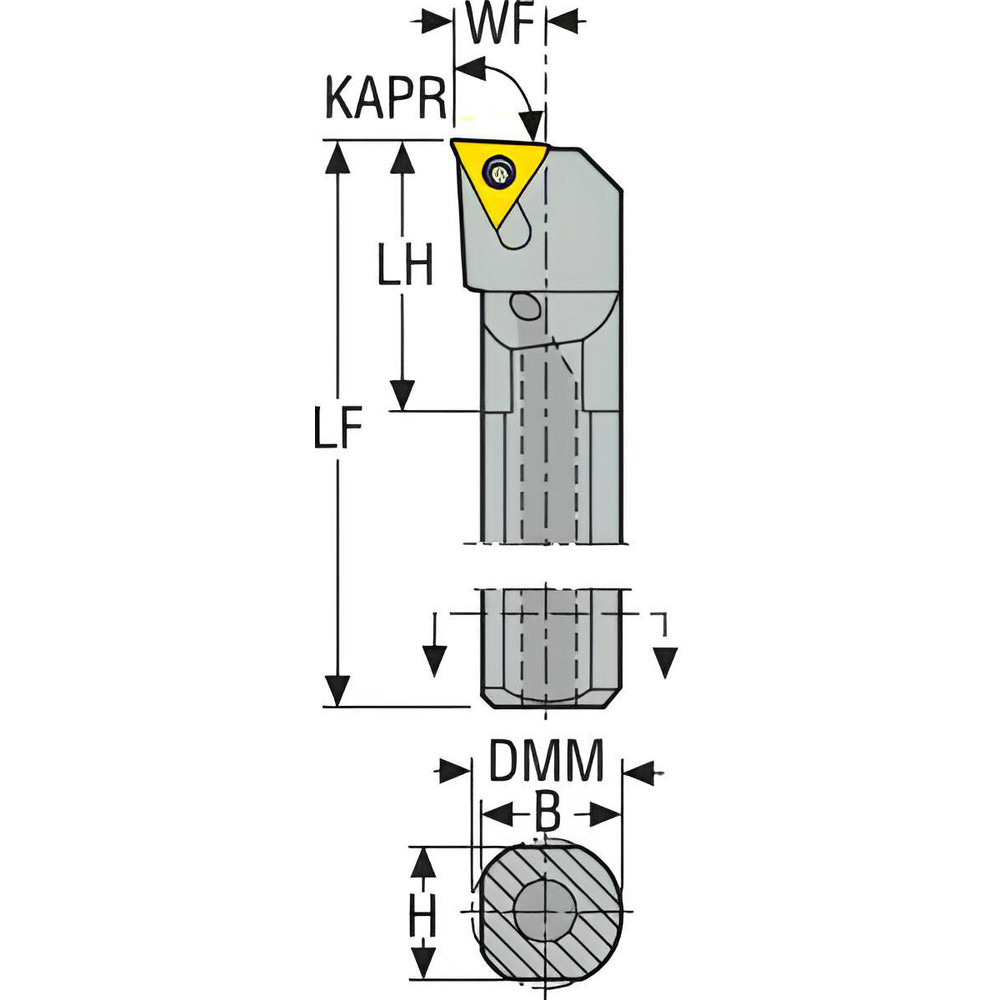

| Back of Bar to Cutting Edge (Decimal Inch) | 0.7185 |
| Back of Bar to Cutting Edge (mm) | 18.25 |
| Center to Cutting Edge (Decimal Inch) | 0.4059 |
| Center to Cutting Edge (mm) | 10.31 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 37745247 |
