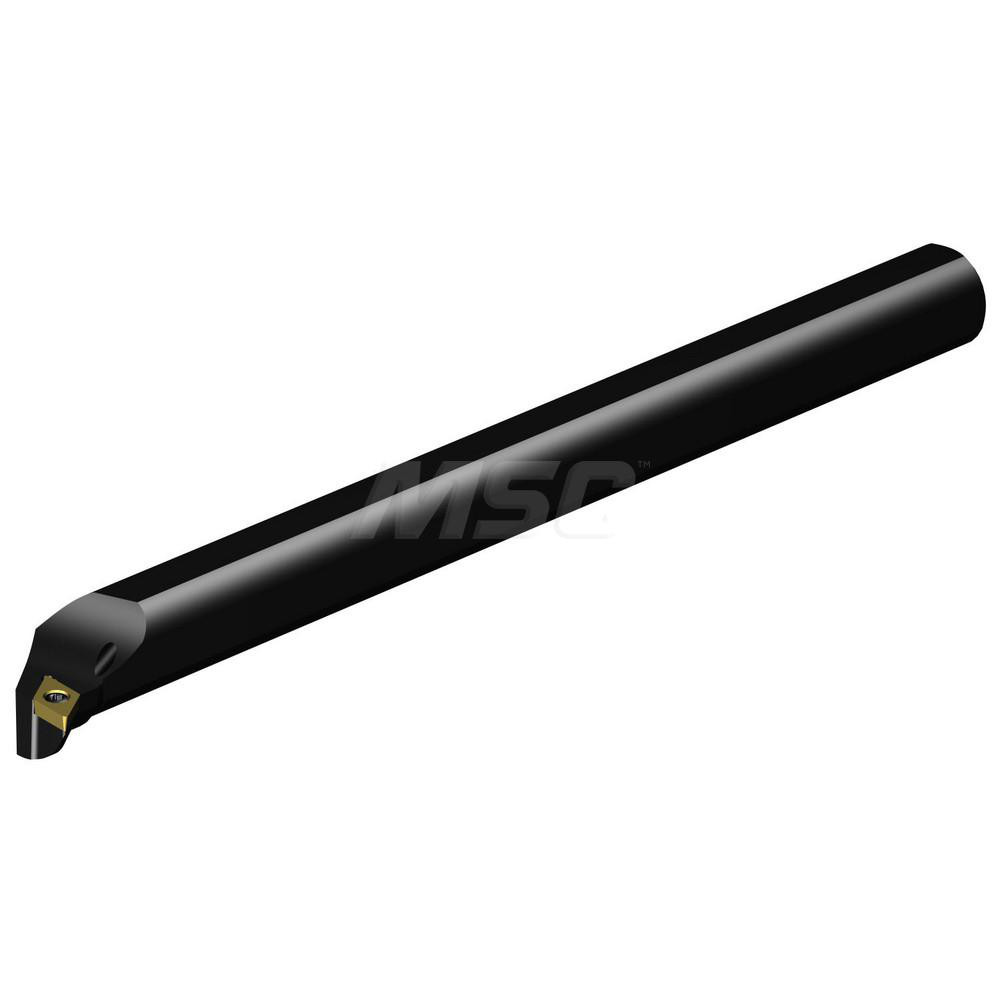

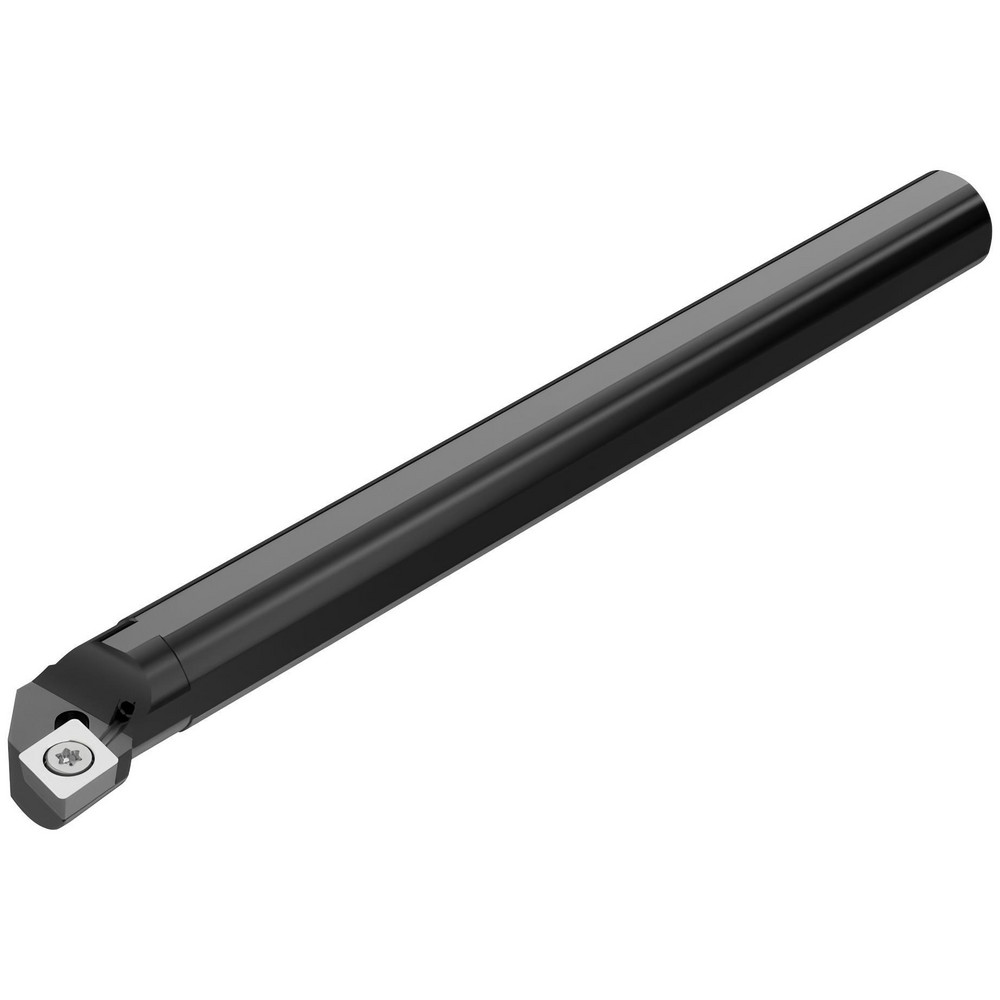

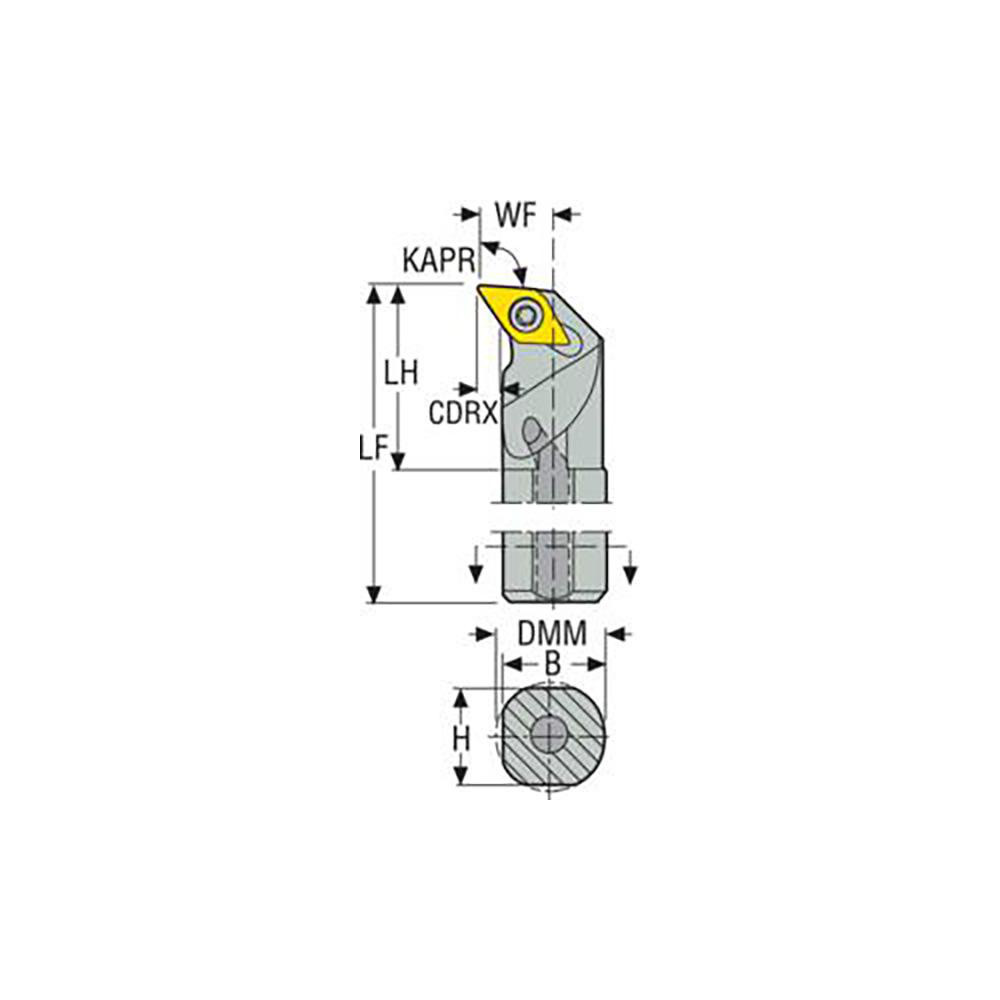

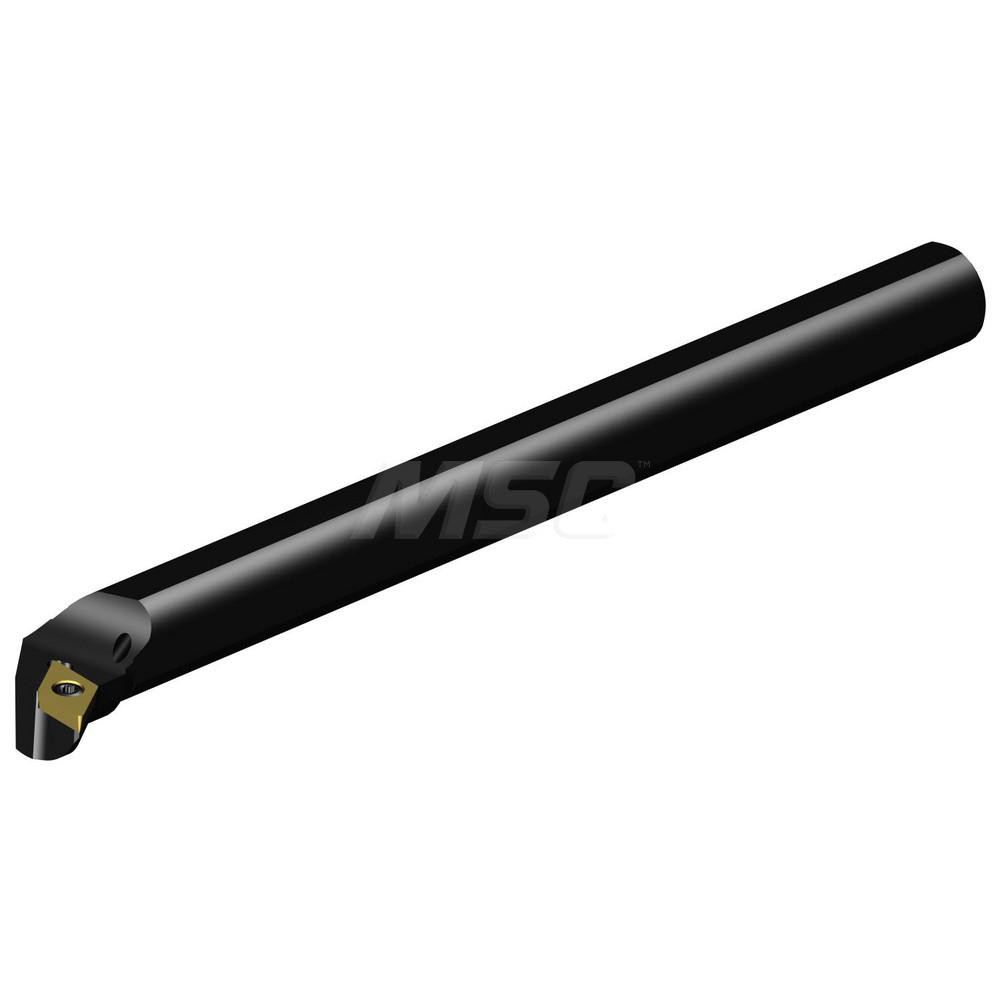

160.00 mm OAL, Screw, Uses DC.. 0702.. Inserts
| Minimum Bore Diameter (mm) | 17.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.6693 |
| Maximum Bore Depth (Decimal Inch) | 0.7874 |
| Maximum Bore Depth (mm) | 20.00 |
| Toolholder Style | A-SDUC |
| Tool Material | Steel |
| Insert Compatibility | DC.. 0702.. |
| Shank Diameter (mm) | 12.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.2992 |
| Overall Length (mm) | 160.00 |
| Compatible Insert Size Code | 0702 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 93 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Center to Cutting Edge (mm) | 9.00 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 00782169 |
