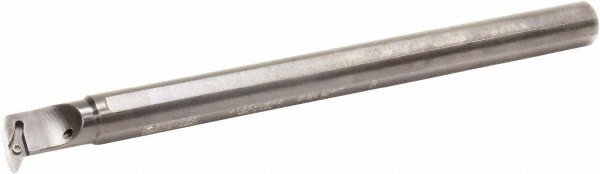

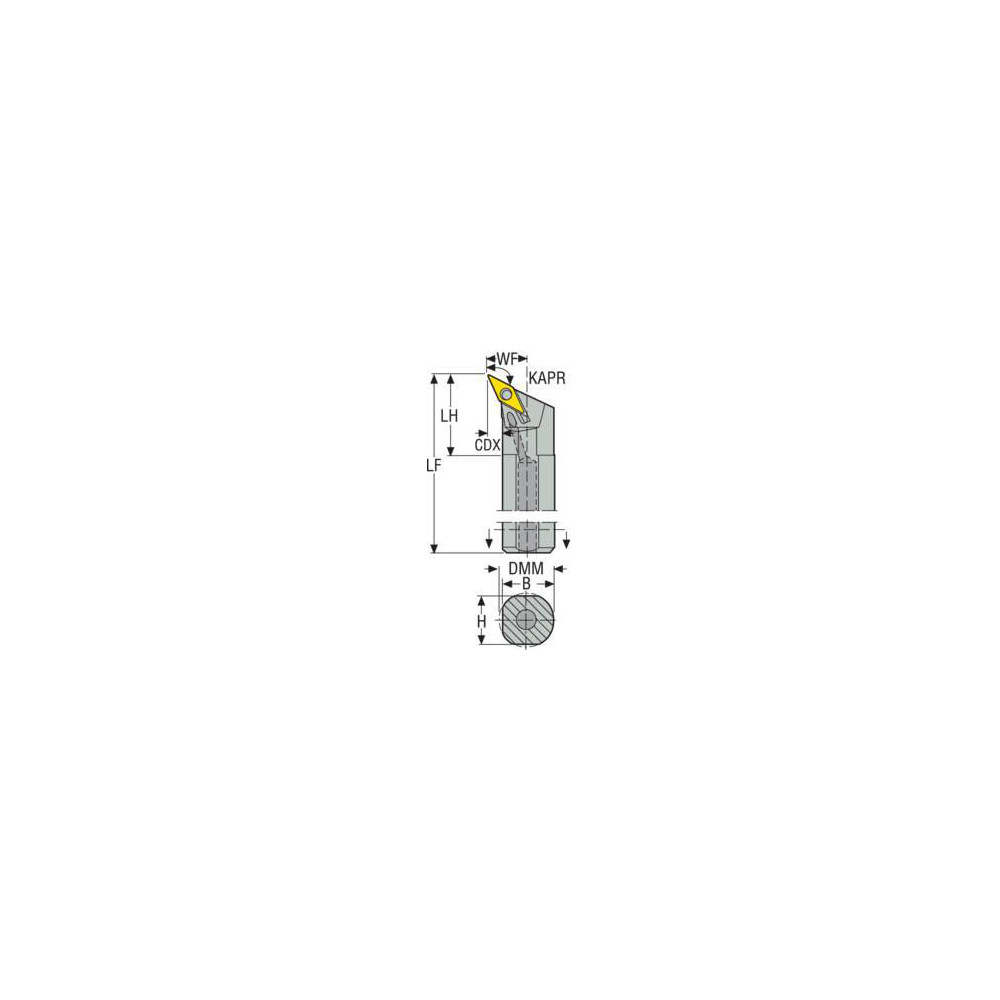

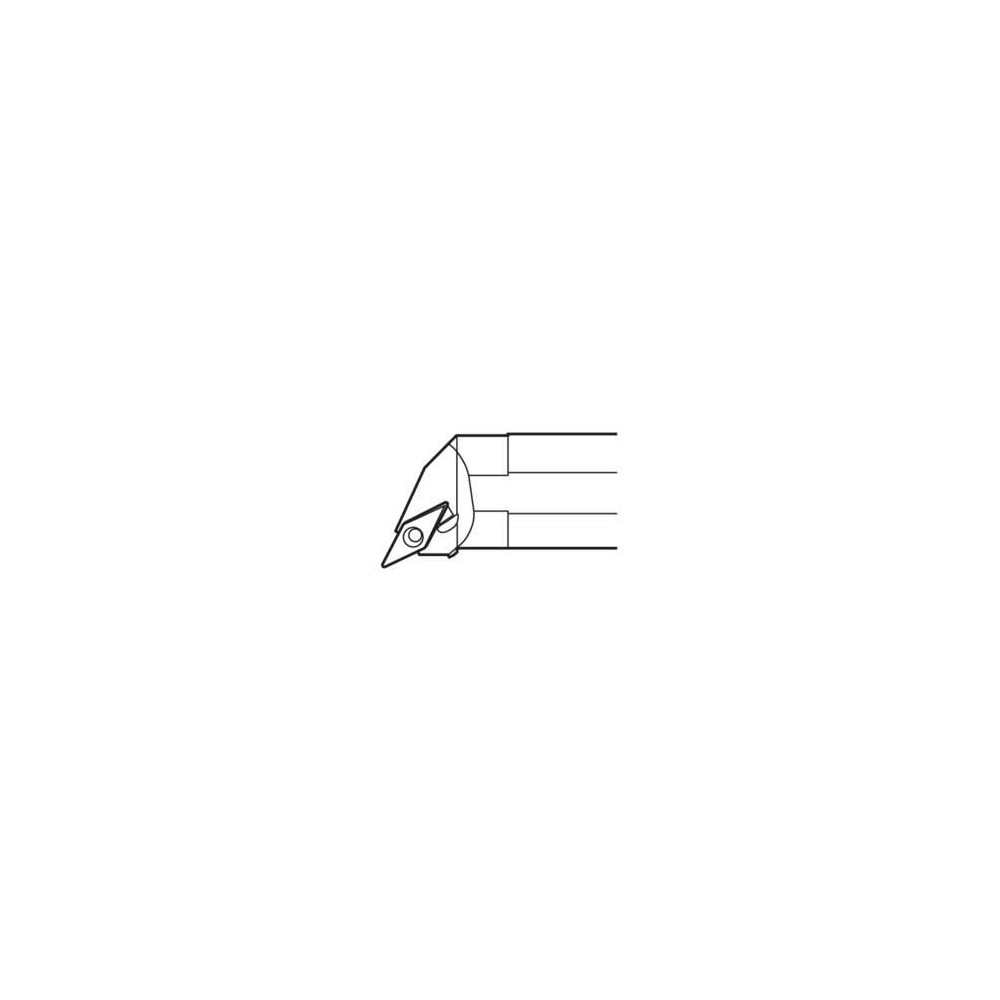

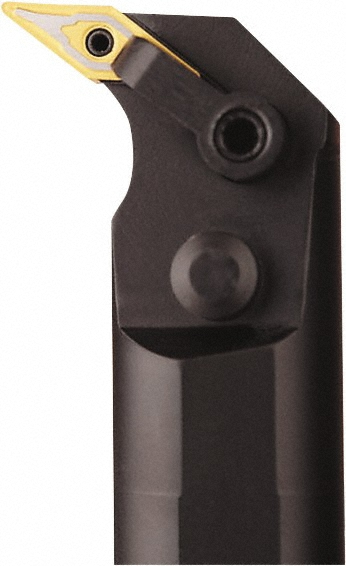

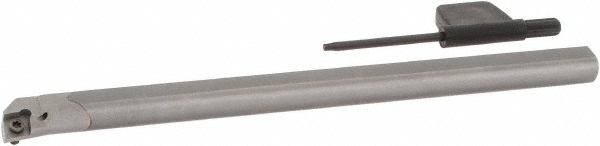

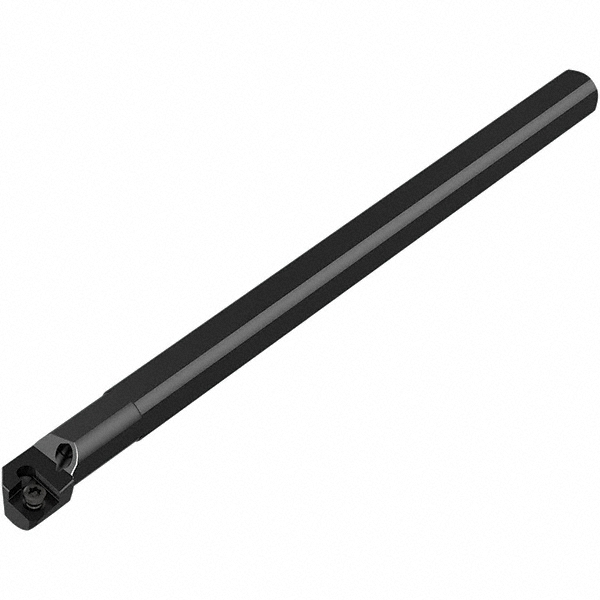

12.0000" OAL, Pin, Uses VNMU 2.531 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.3000 |
|---|---|
| Toolholder Style | A-PVPN |
| Tool Material | Steel |
| Insert Compatibility | VNMU 2.531 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 2.53 |
| Insert Holding Method | Pin |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -3.00 |
| Lead Angle | 117.5 |
| Series | Pin Lock |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3125 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 82000530 |
