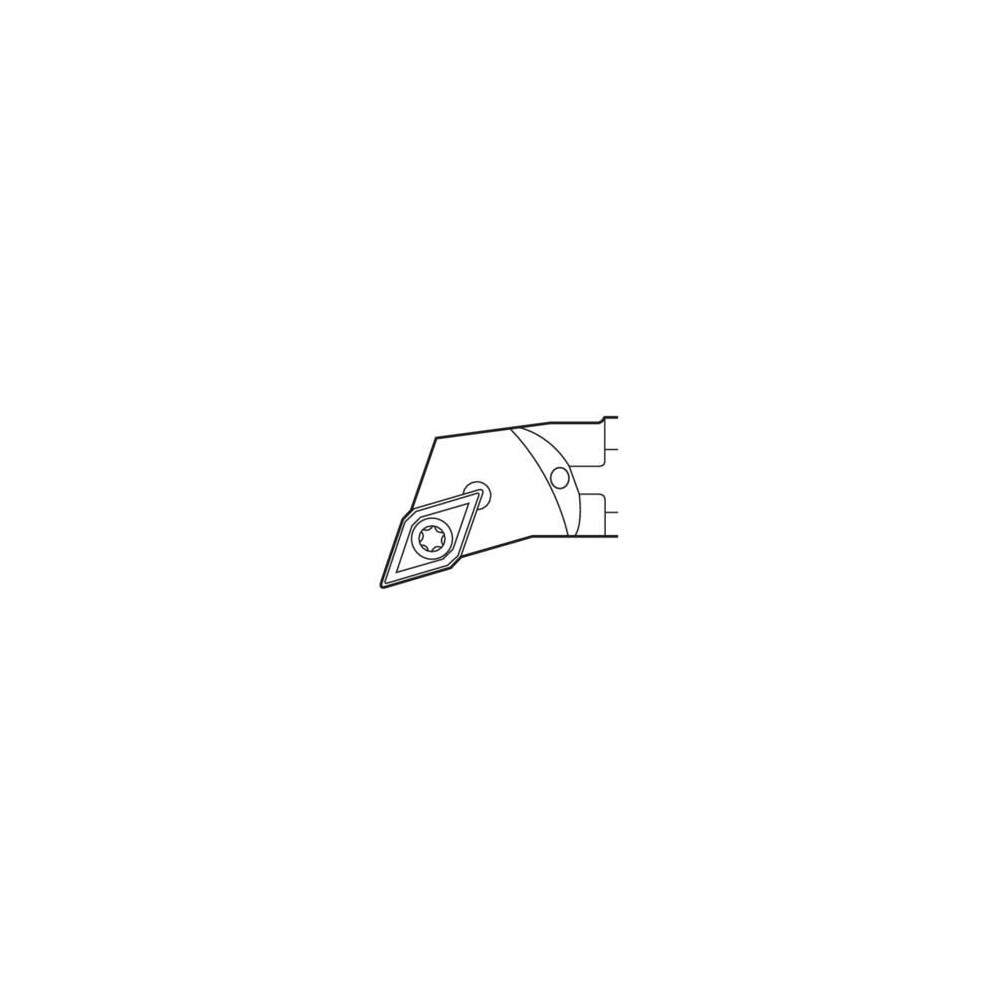

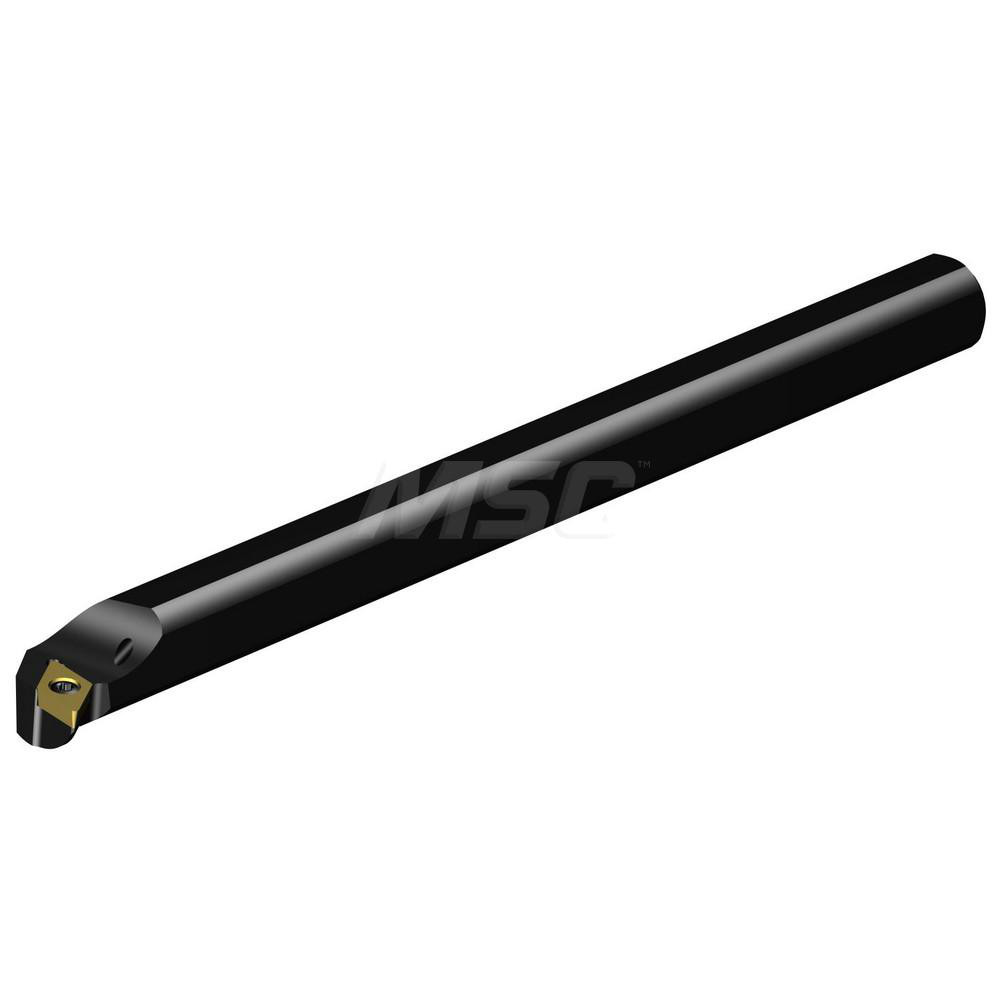

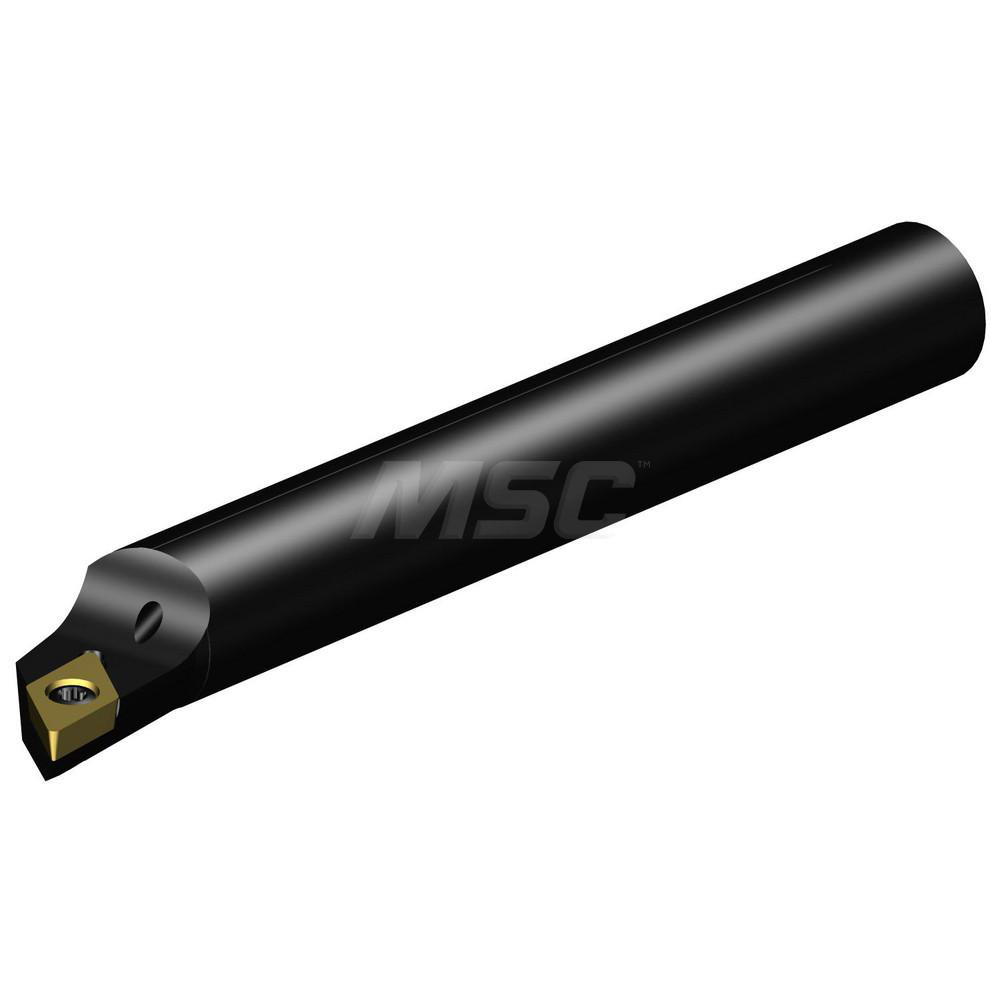

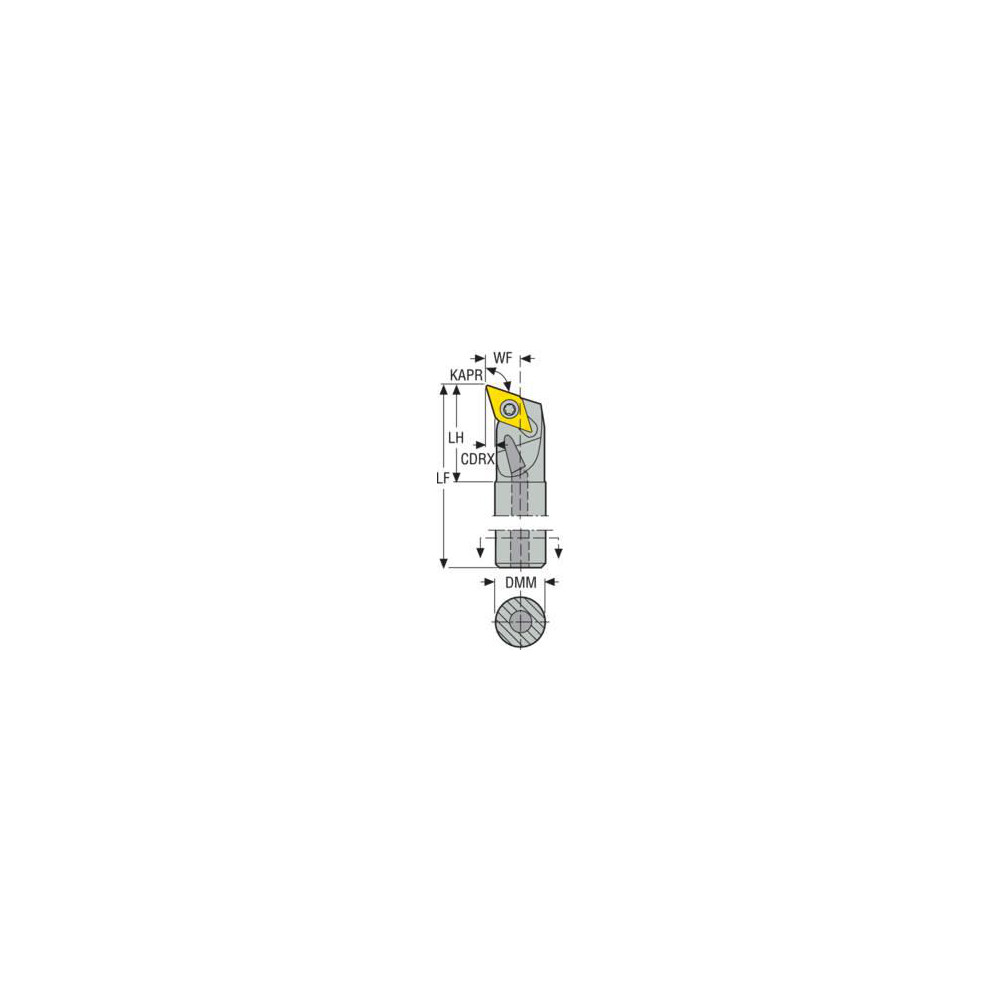

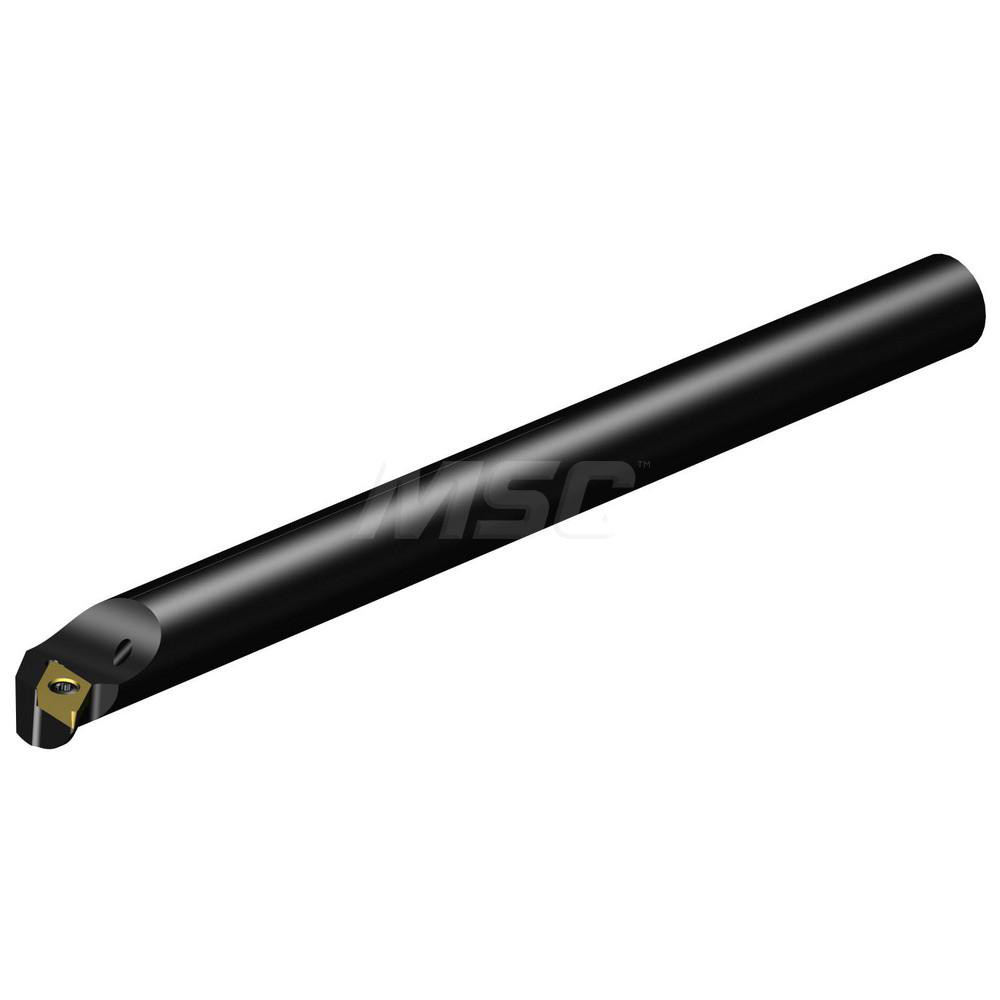

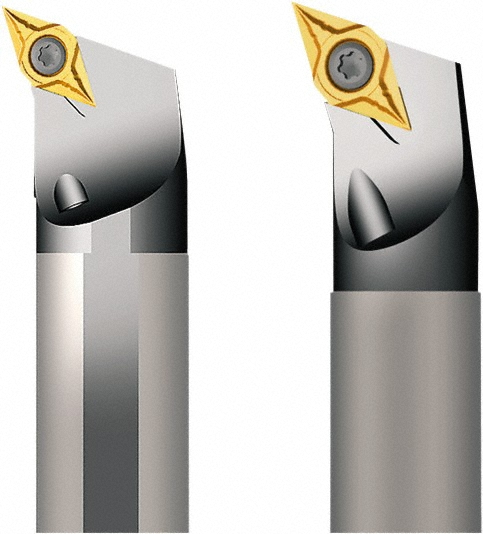

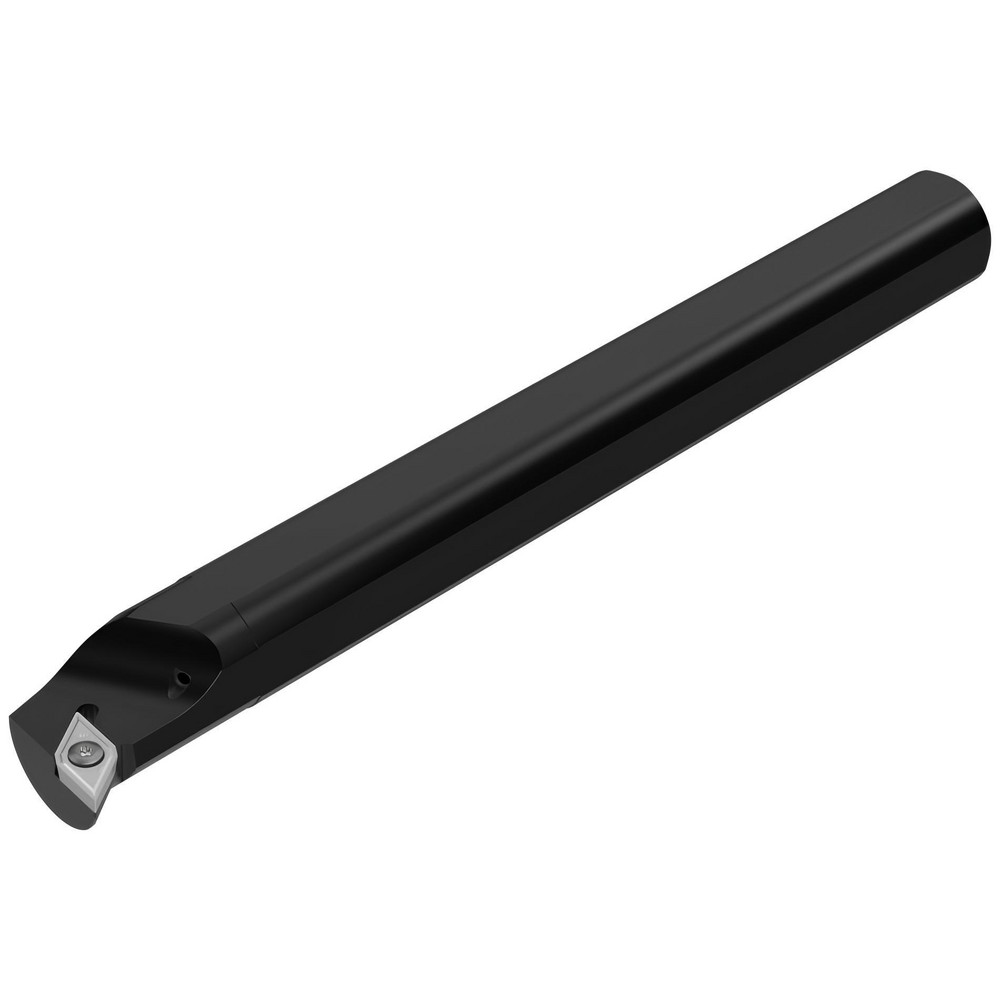

200.00 mm OAL, Screw, Uses DC.. 11T3.. Inserts
| Minimum Bore Diameter (mm) | 25.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Maximum Bore Depth (Decimal Inch) | 1.2598 |
| Maximum Bore Depth (mm) | 32.00 |
| Toolholder Style | A-SDQC |
| Tool Material | Steel |
| Insert Compatibility | DC.. 11T3.. |
| Shank Diameter (mm) | 20.00 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Compatible Insert Size Code | 11T3 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 107.5 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Inscribed Circle (mm) | 9.52 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Center to Cutting Edge (mm) | 13.00 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 78444270 |
