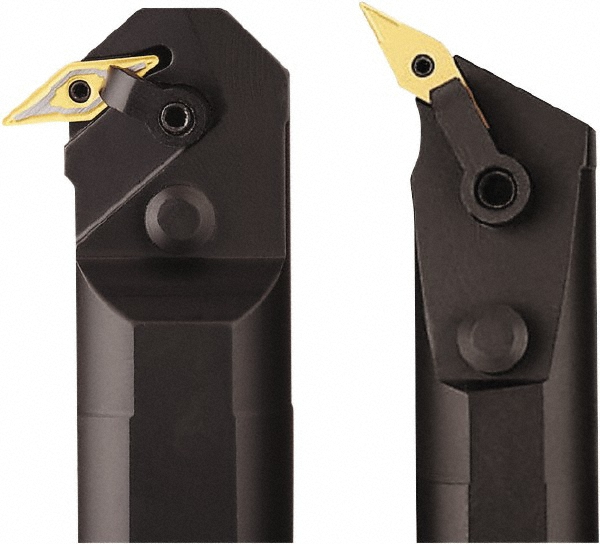

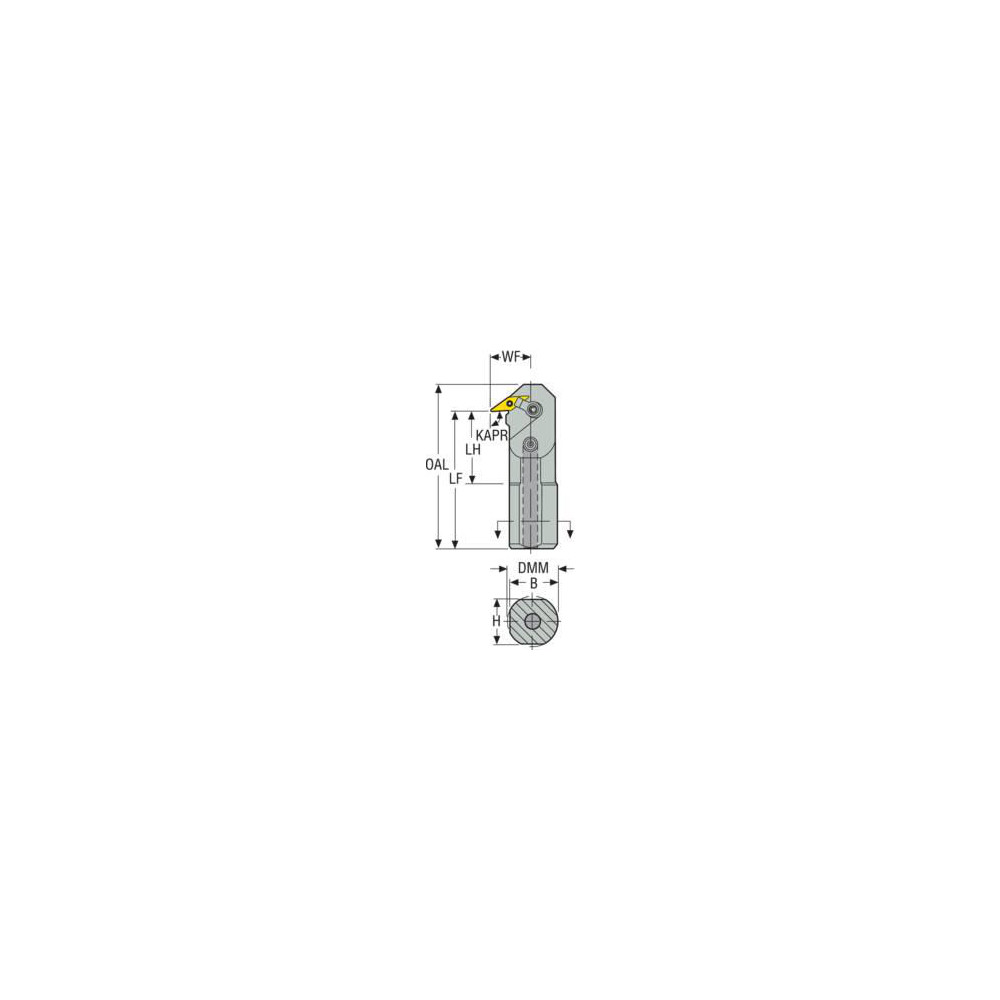

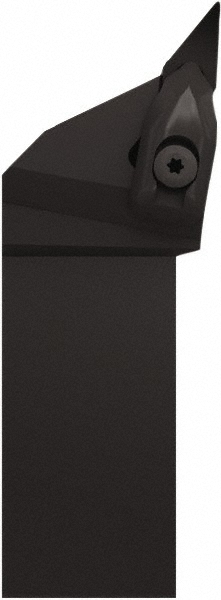

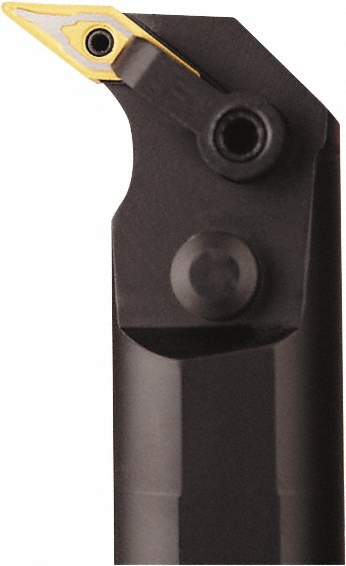

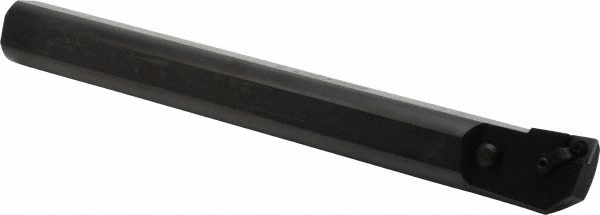

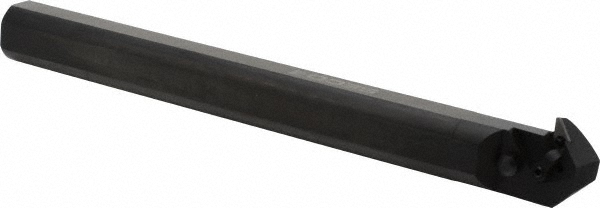

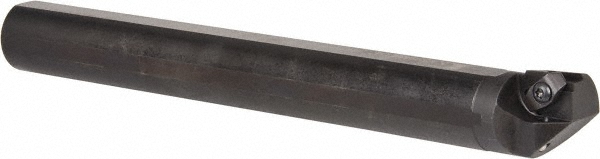

14.7950" OAL, Pin & Clamp, Uses VNMG 332 Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
|---|---|
| Toolholder Style | MVLN |
| Tool Material | Steel |

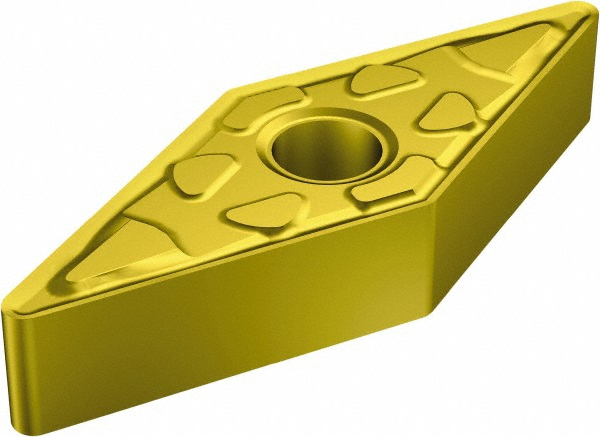

| Insert Compatibility | VNMG 332 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.7950 |
| Compatible Insert Size Code | 33 |
| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -12.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 1.1250 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 76742352 |
