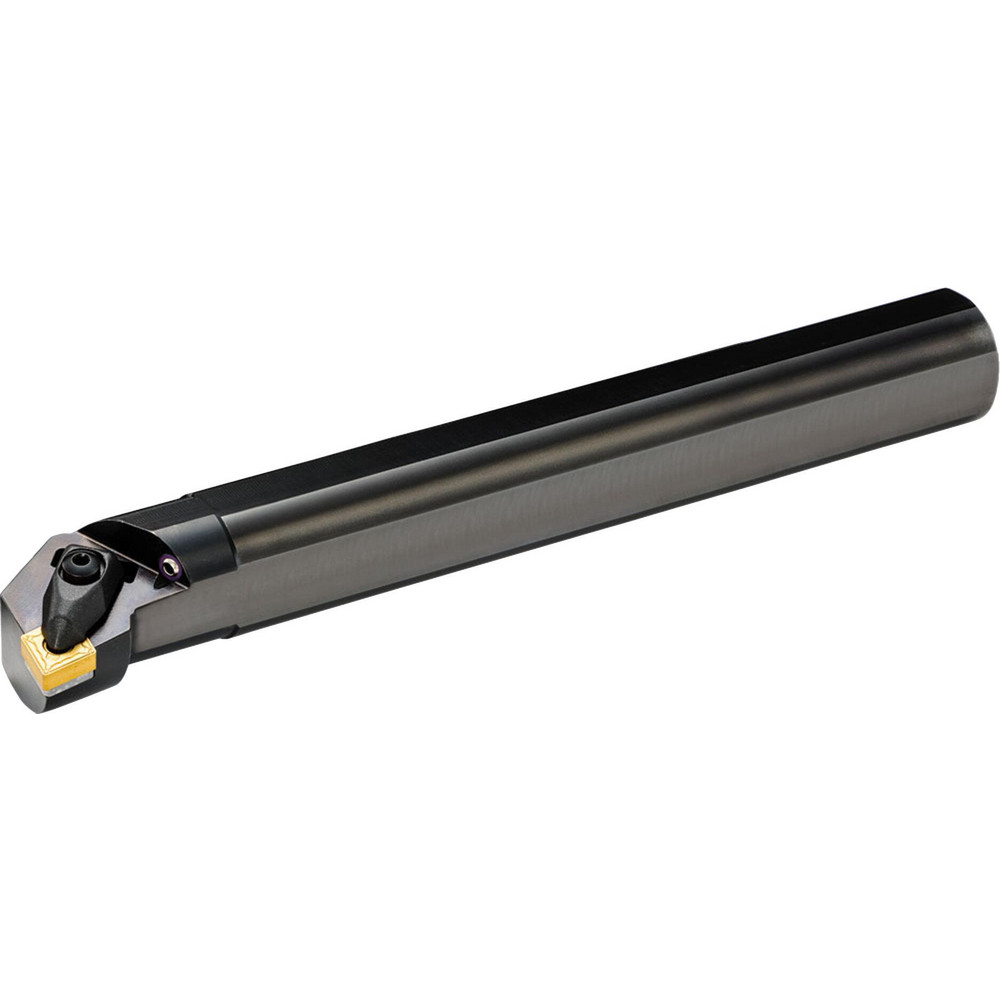

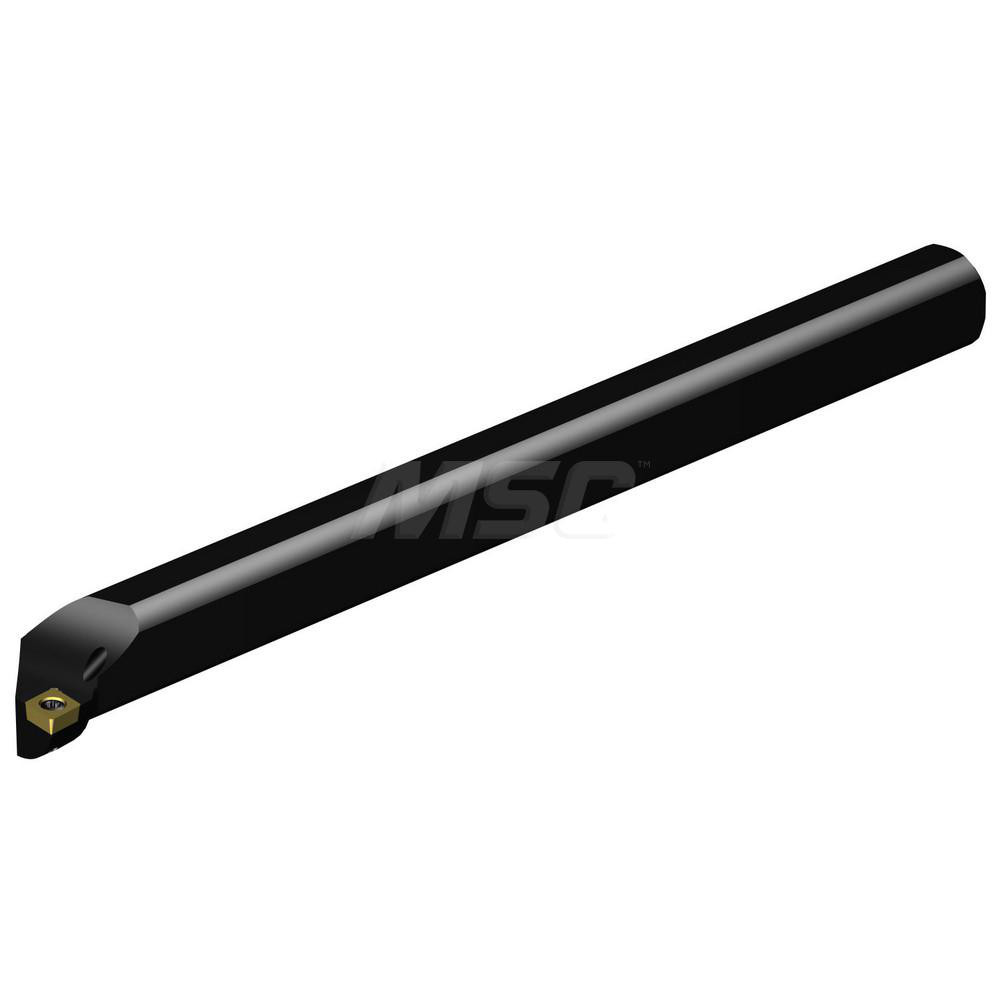

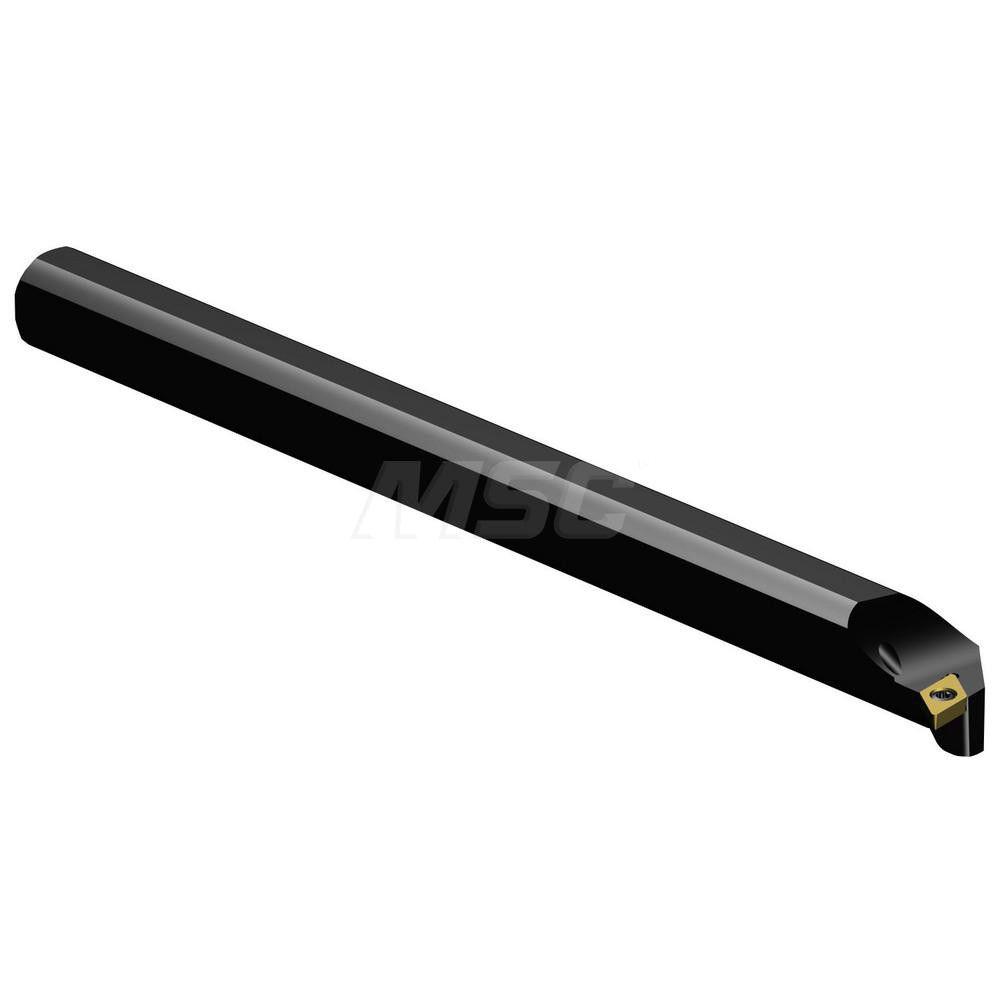

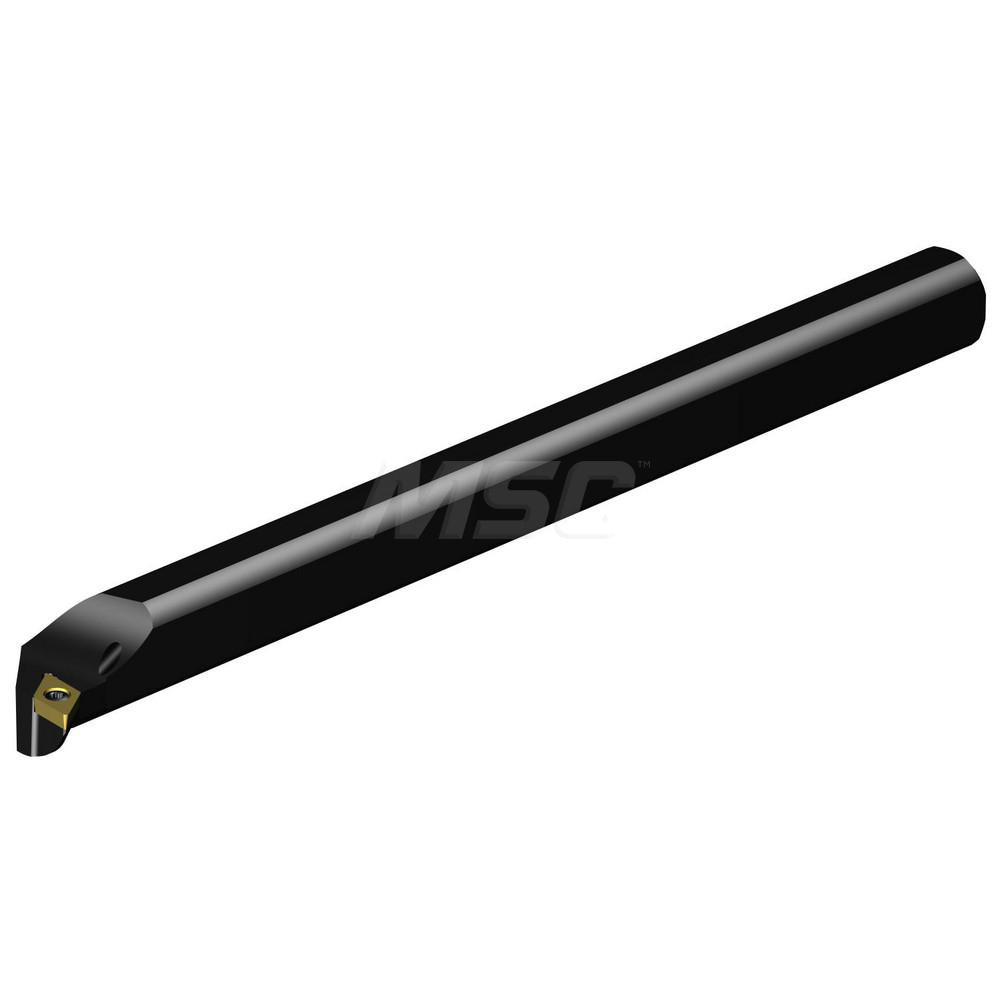

200.00 mm OAL, Pin & Clamp, Uses WNMA 0804.. Inserts
| Minimum Bore Diameter (mm) | 32.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Maximum Bore Depth (Decimal Inch) | 1.1024 |
| Maximum Bore Depth (mm) | 28.00 |
| Toolholder Style | A-DWLN |
| Tool Material | Steel |
| Insert Compatibility | WNMA 0804.. |
| Shank Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |

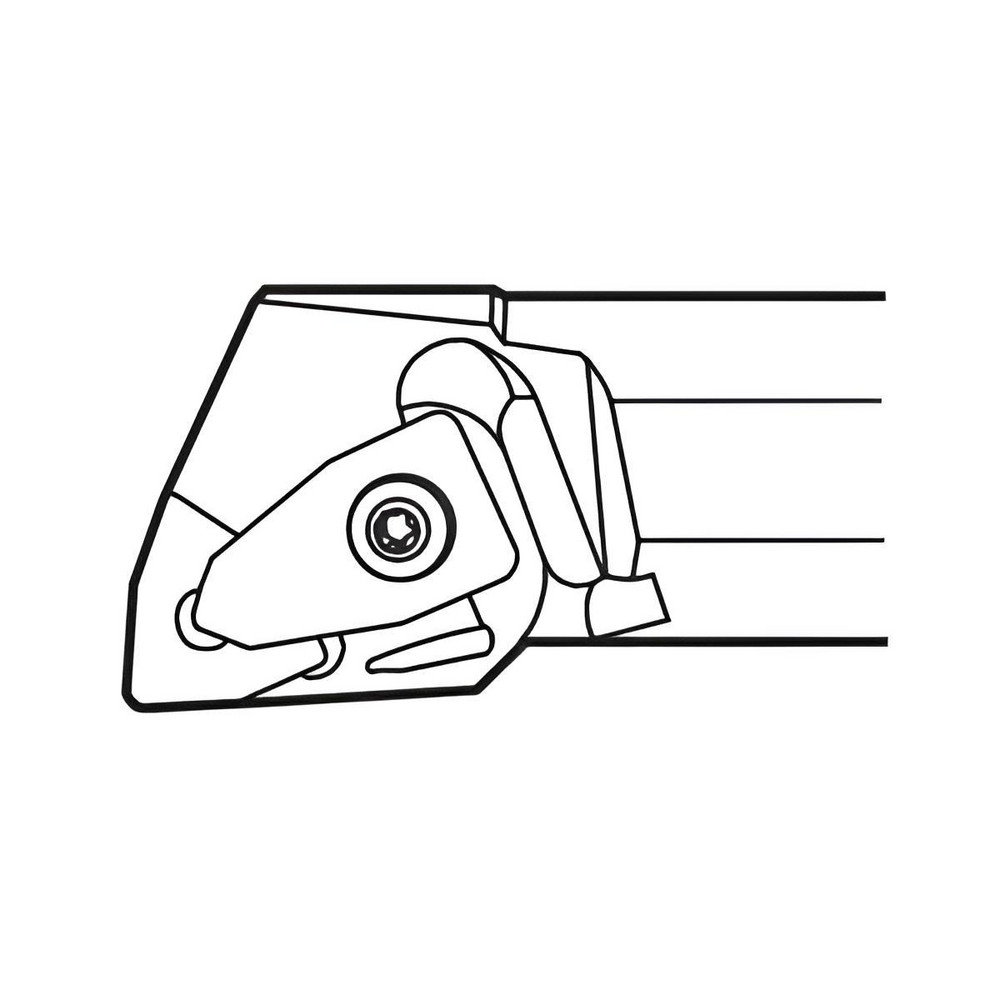

| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Rake Angle | -5.00 |
| Lead Angle | 95 |
| Series | Pin & Clamp |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (mm) | 12.70 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Center to Cutting Edge (mm) | 17.00 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 77900892 |
