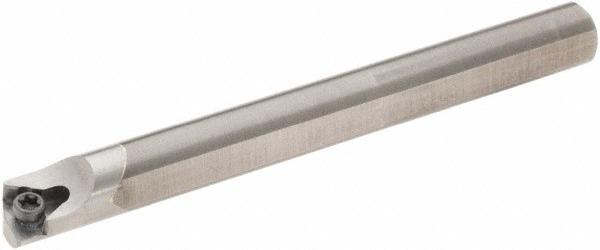

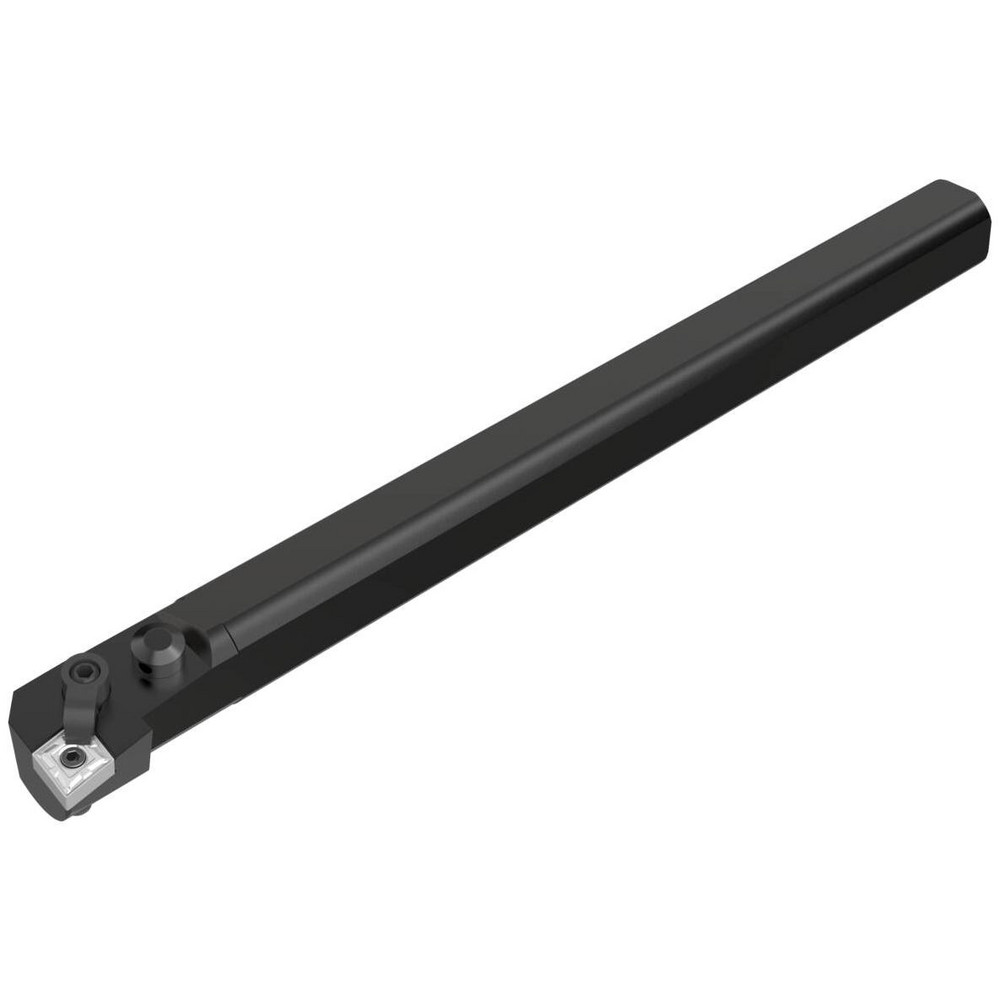

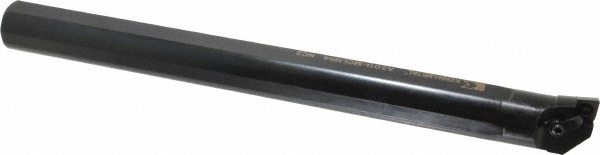

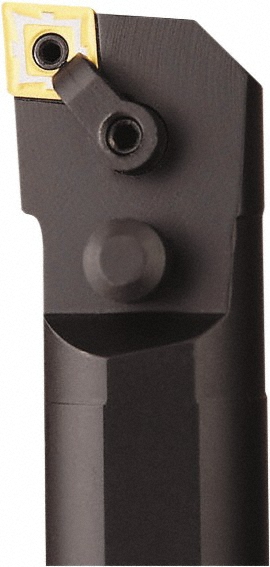

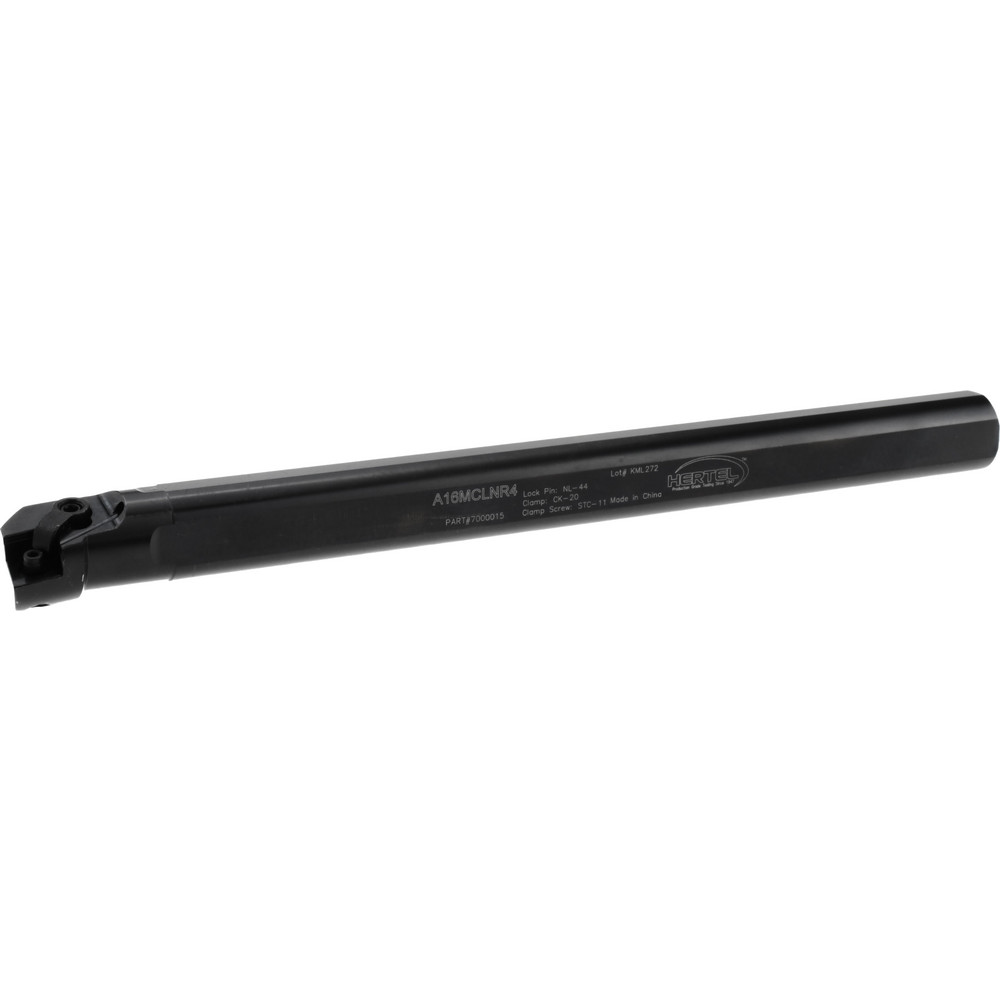

16.0000" OAL, Pin & Clamp, Uses CNMG 543 Inserts

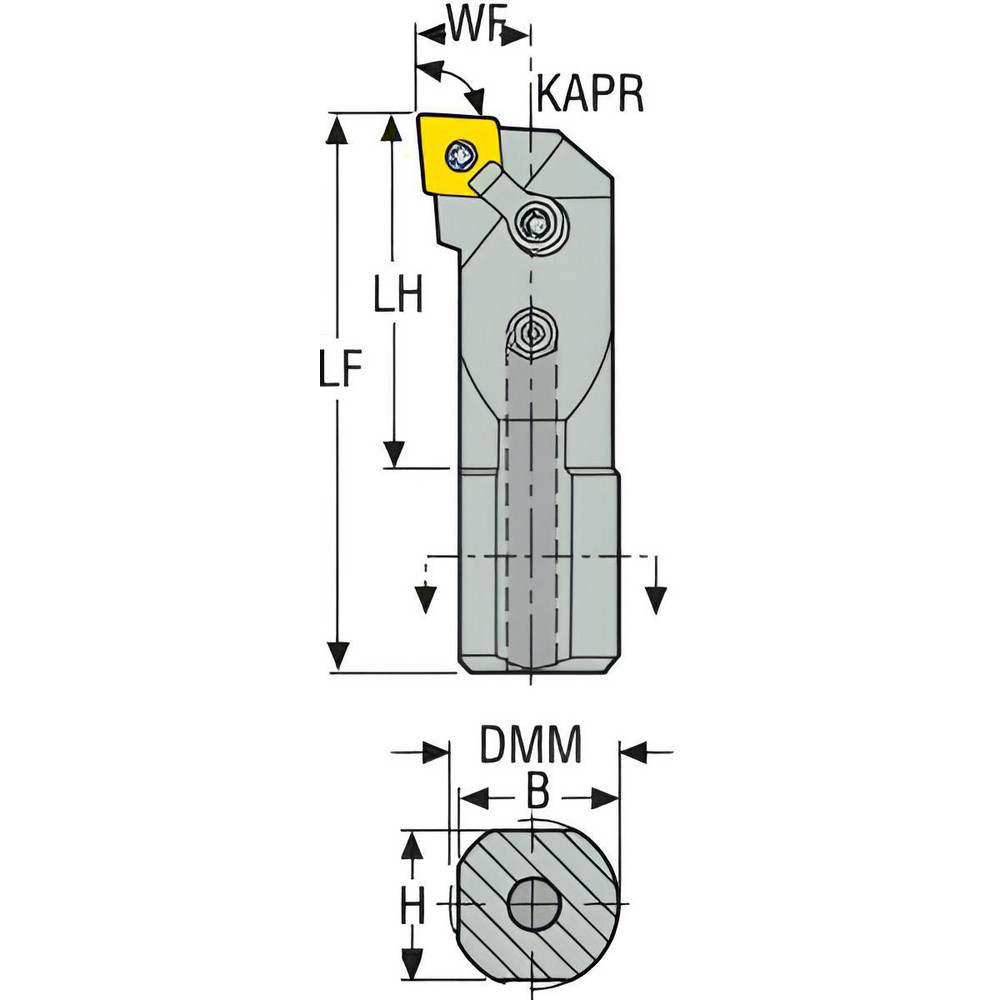

| Minimum Bore Diameter (Decimal Inch) | 2.5620 |
|---|---|
| Toolholder Style | A-MCLN |
| Tool Material | Steel |
| Insert Compatibility | CNMG 543 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 16.0000 |

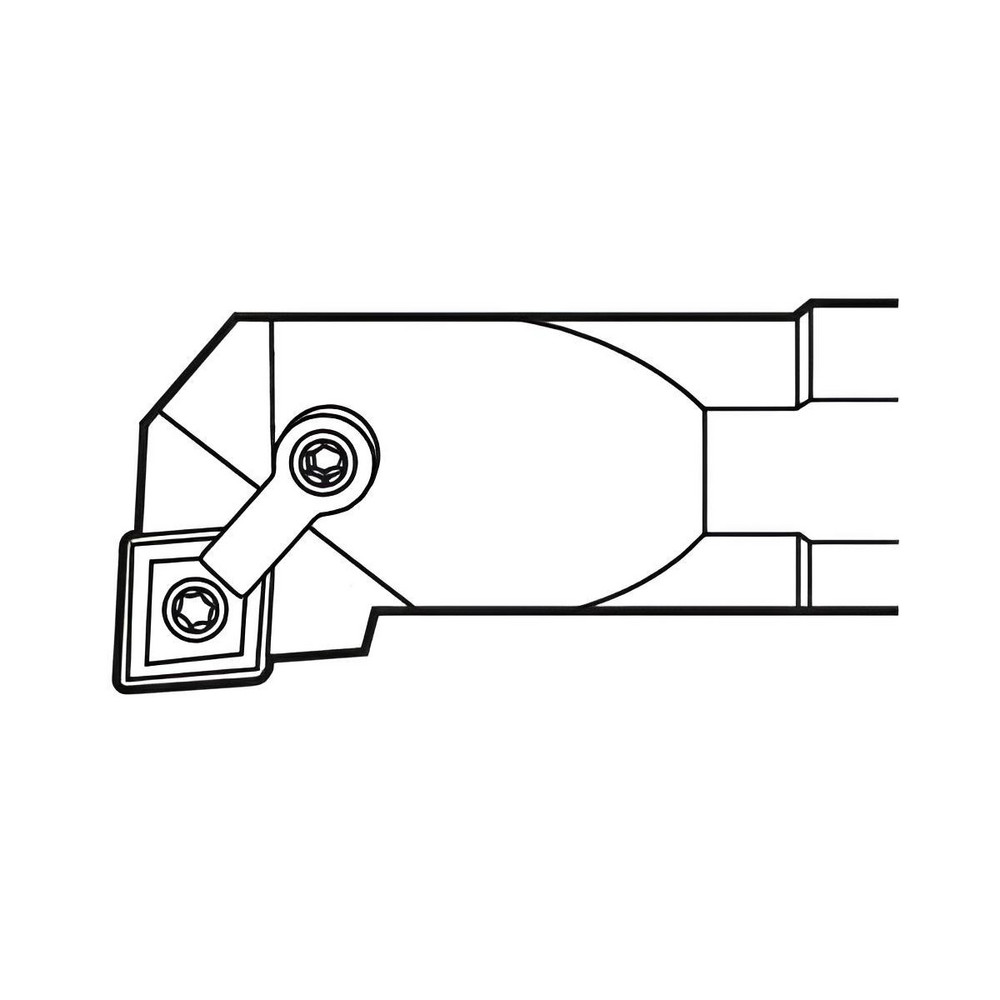

| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Rake Angle | -5.00 |
| Lead Angle | 95 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 1/4 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 76736479 |
