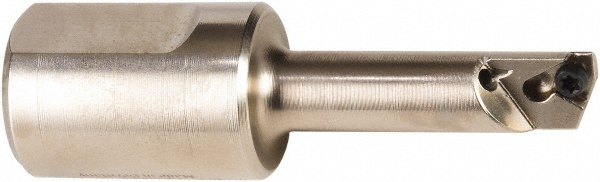

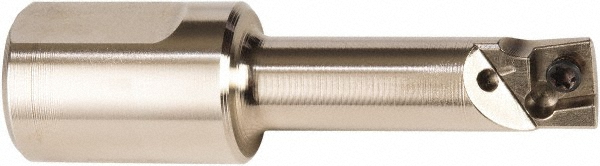

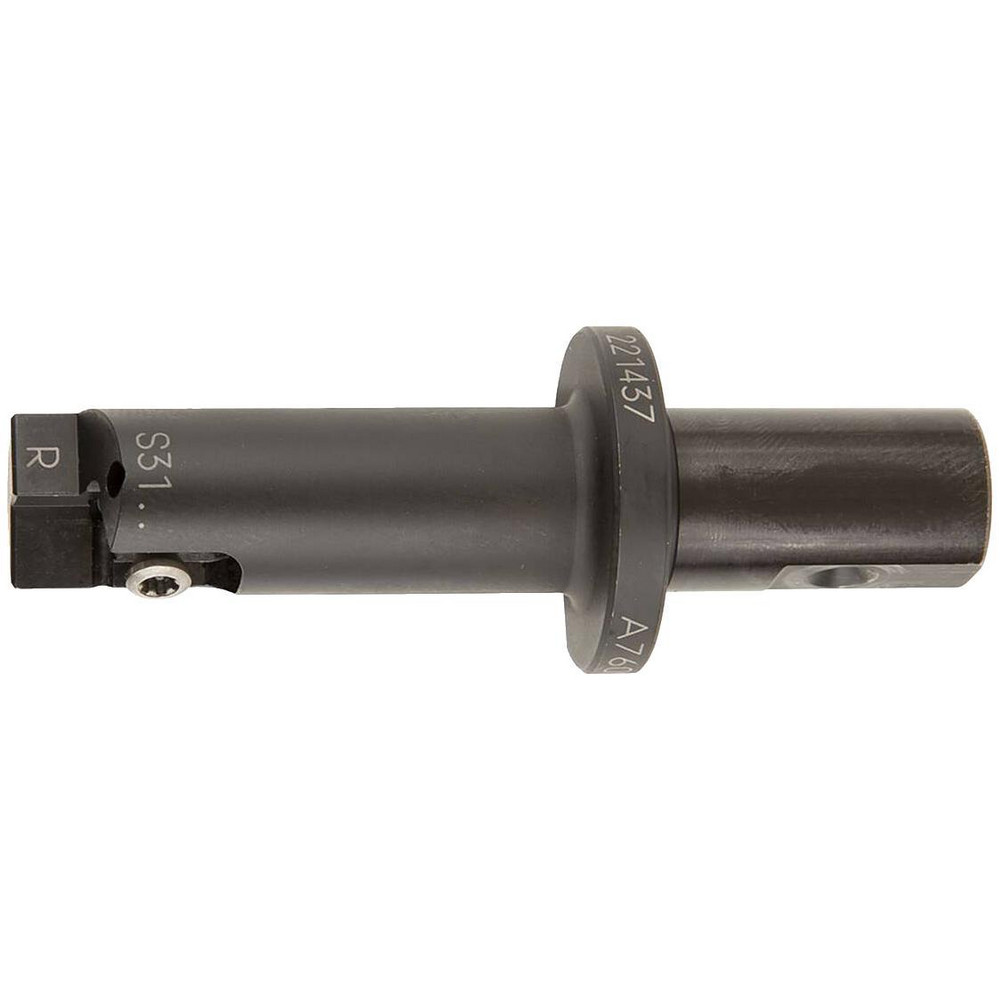

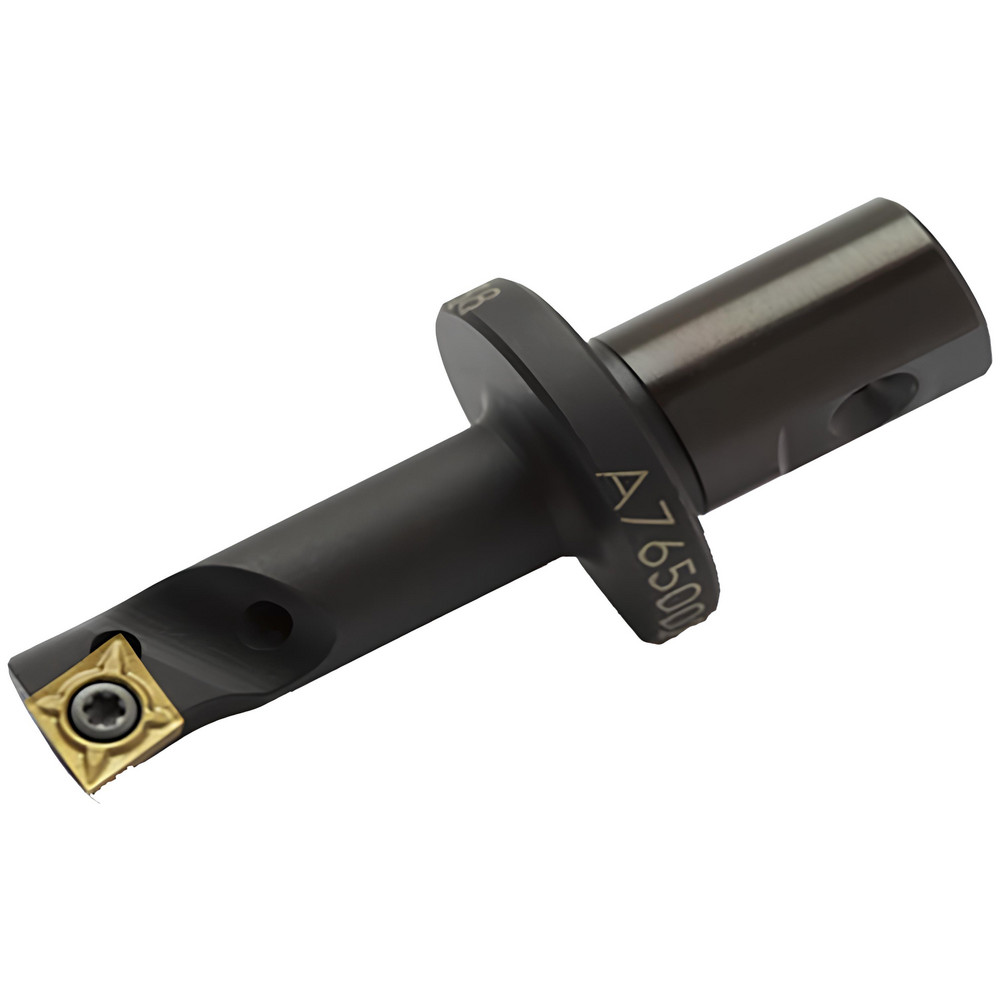

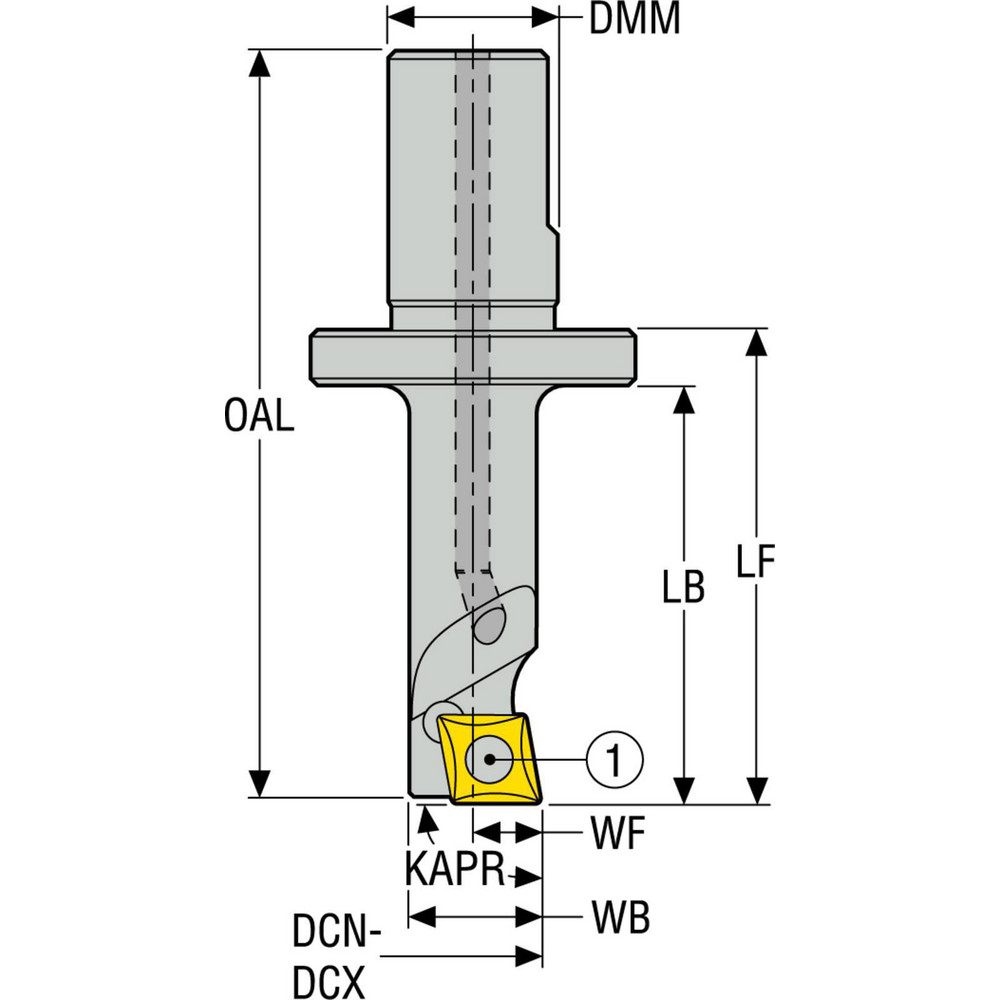

64.00 mm OAL, Screw, Uses CC.. 0602.. Inserts
| Minimum Bore Diameter (mm) | 10.01 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3940 |
| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Maximum Bore Depth (mm) | 30.00 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3940 |
| Tool Material | Steel |
| Insert Compatibility | CC.. 0602.. |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 2.5200 |
| Overall Length (mm) | 64.00 |
| Compatible Insert Size Code | 0602 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Lead Angle | 90 |
| Series | AxiaBore |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Center to Cutting Edge (mm) | 4.80 |
| Maximum Bore Diameter (mm) | 13.00 |
| UNSPSC Code | 23241601 |
| Maximum Bore Diameter (Decimal Inch) | 0.5120 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.5120 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 75873513 |
