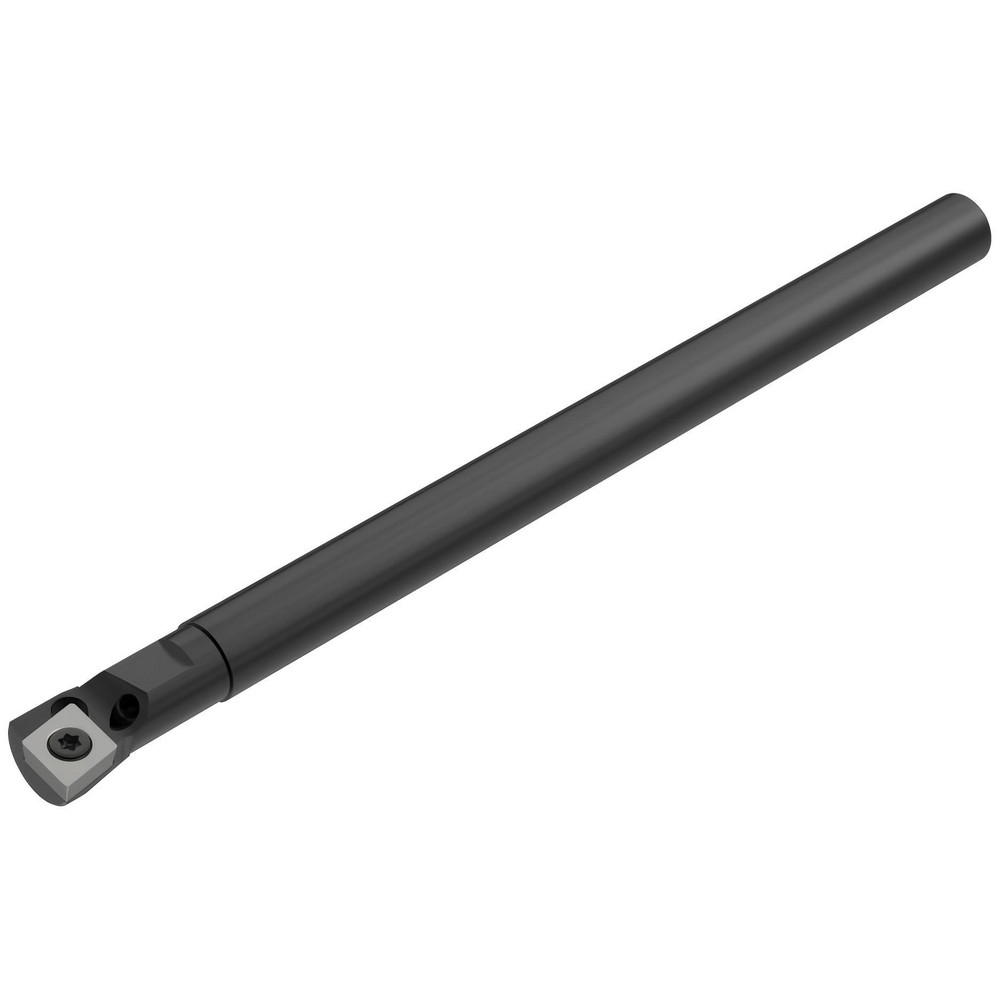

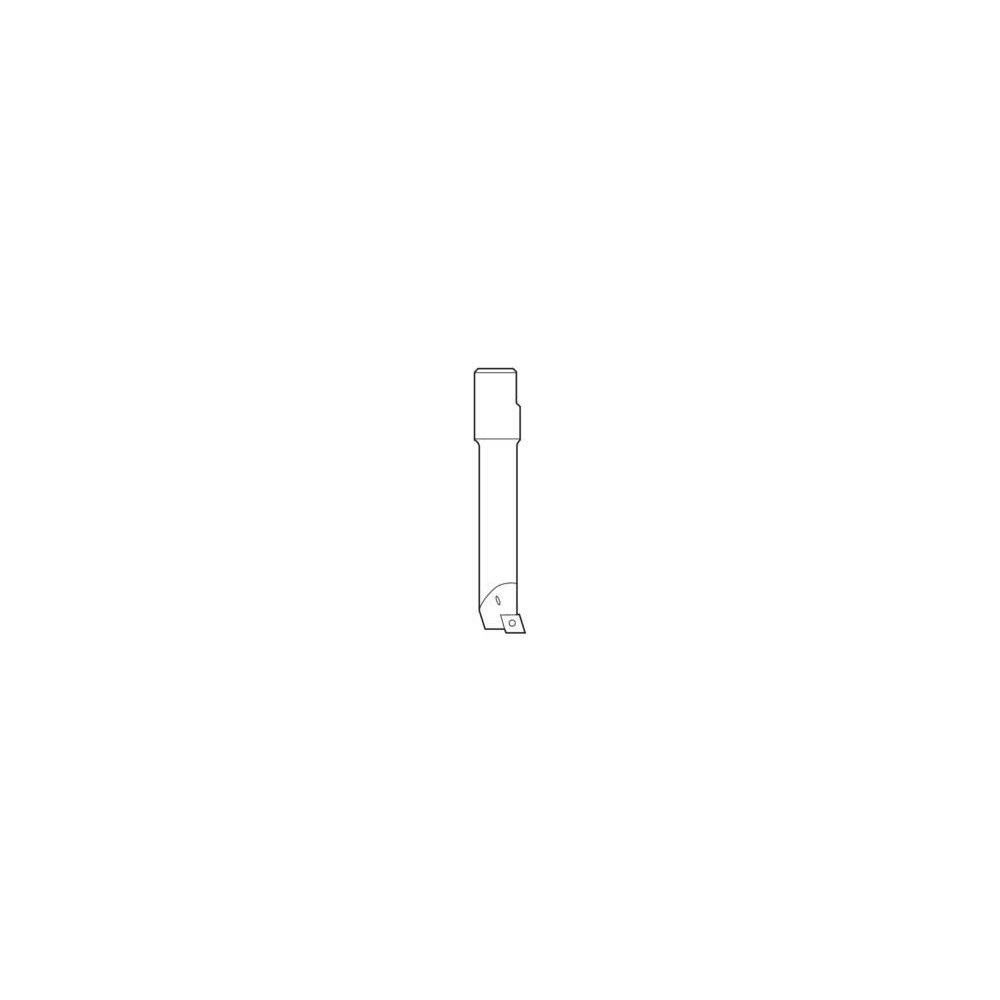

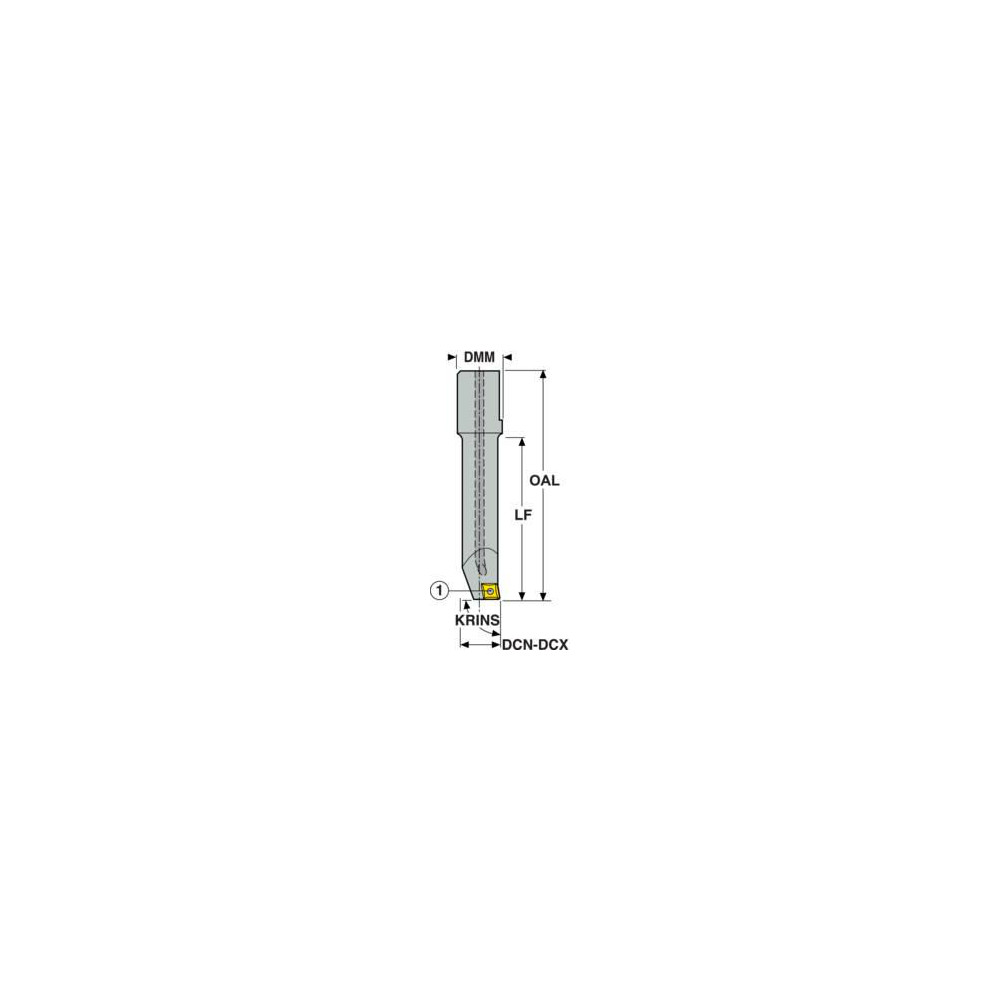

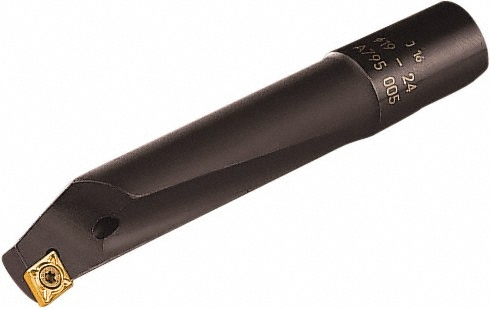

40.00 mm OAL, Uses CC.. 0602.. Inserts
| Minimum Bore Diameter (mm) | 10.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Maximum Bore Depth (mm) | 40.00 |
| Tool Material | Steel |
| Insert Compatibility | CC.. 0602.. |
| Shank Diameter (mm) | 16.00 |
| Overall Length (Decimal Inch) | 1.5750 |
| Overall Length (mm) | 40.00 |
| Compatible Insert Size Code | 0602 |
| Compatible Insert Shape | Diamond |
| Lead Angle | 90 |
| Series | Graflex |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Maximum Bore Diameter (mm) | 16.00 |
| UNSPSC Code | 23241601 |
| Maximum Bore Diameter (Decimal Inch) | 0.6299 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 76709690 |
