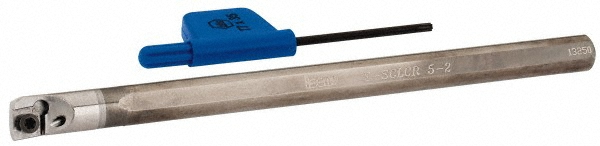

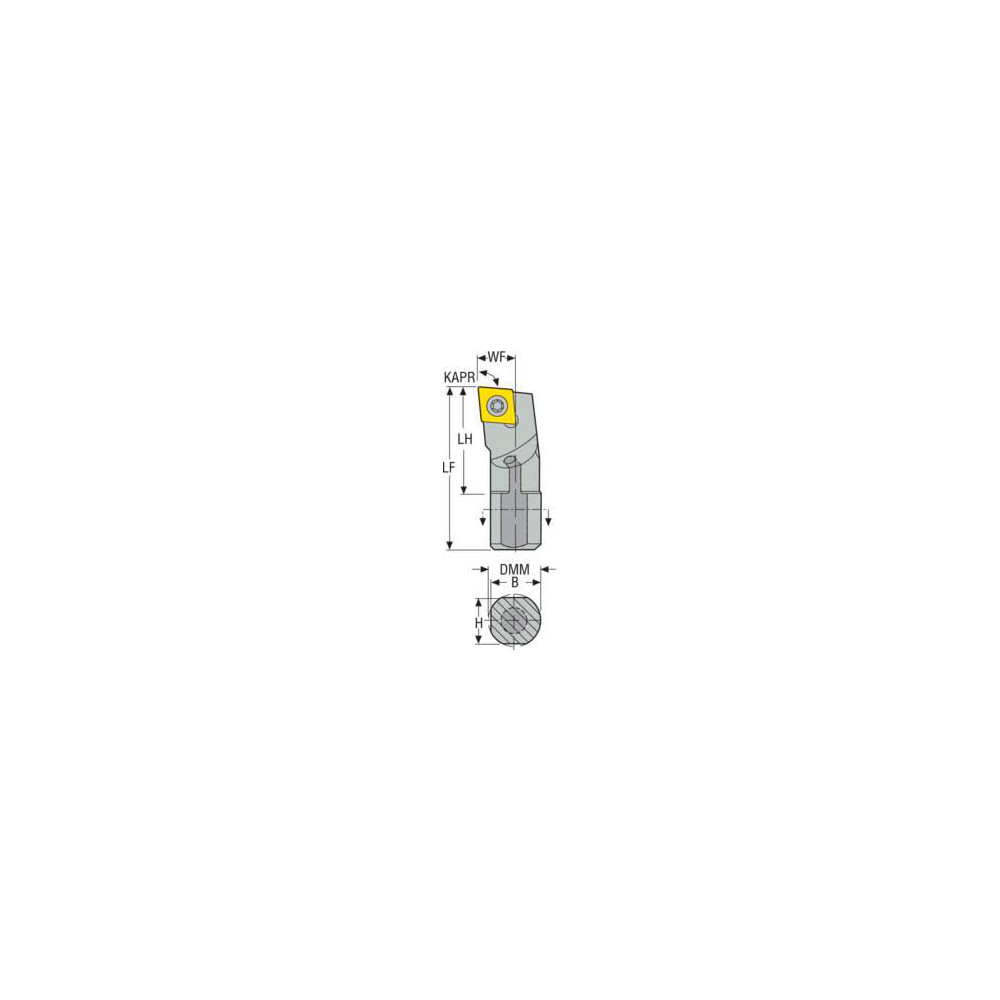

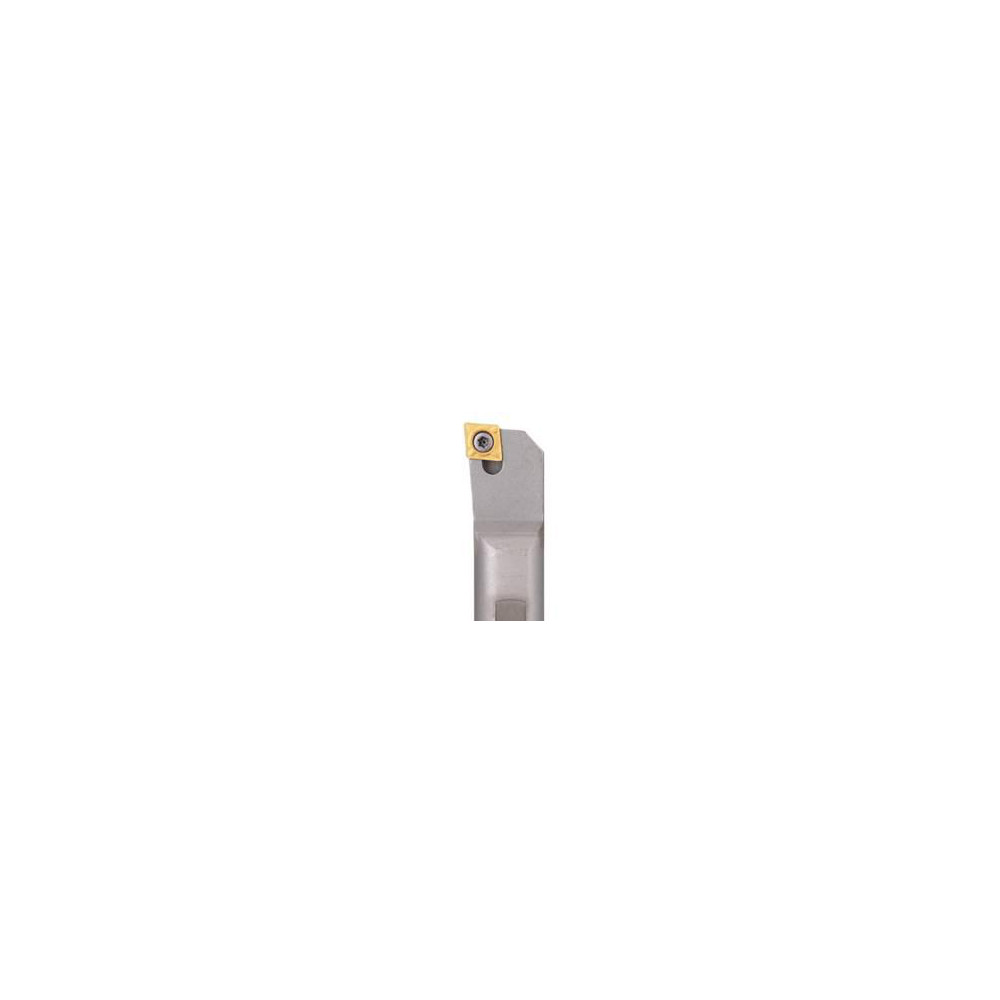

Screw, Uses CC.. 21.51 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.6250 |
|---|---|
| Toolholder Style | SCLC |
| Tool Material | Solid Carbide |
| Insert Compatibility | CC.. 21.51 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 8 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3130 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 85211050 |
