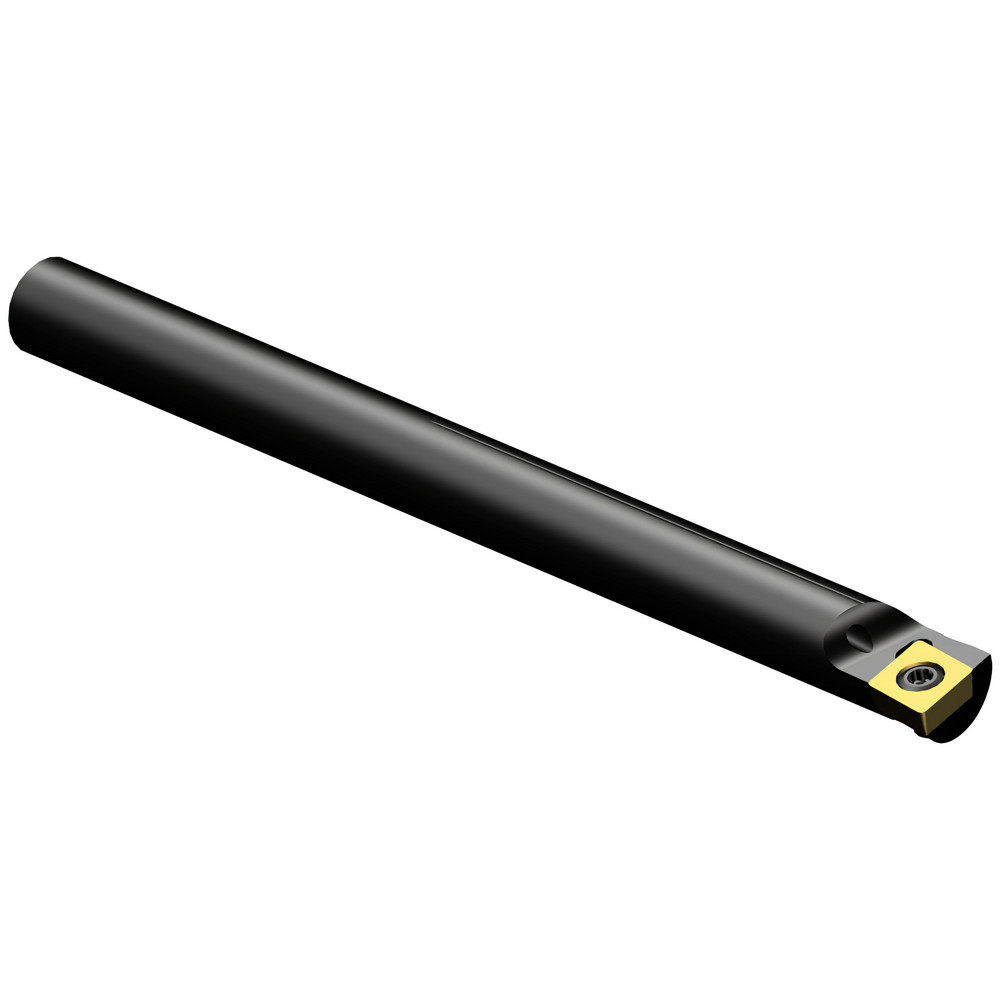

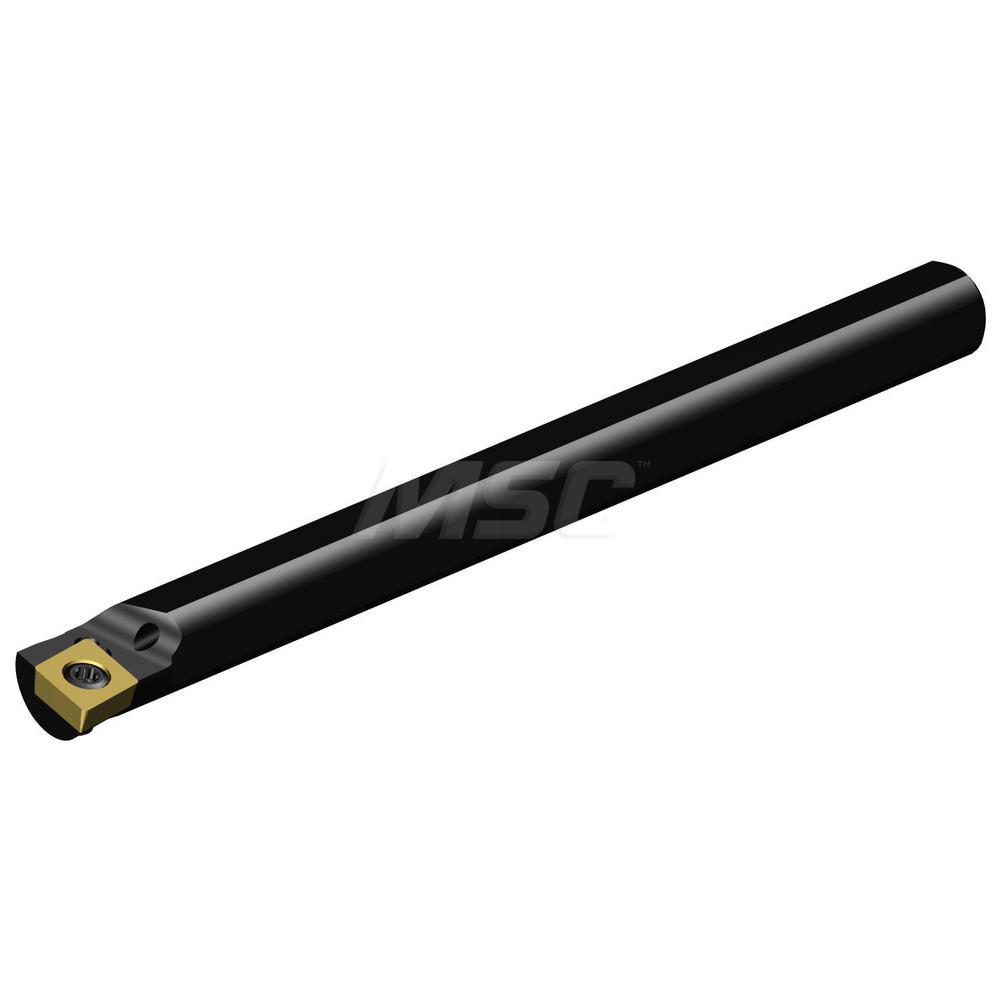

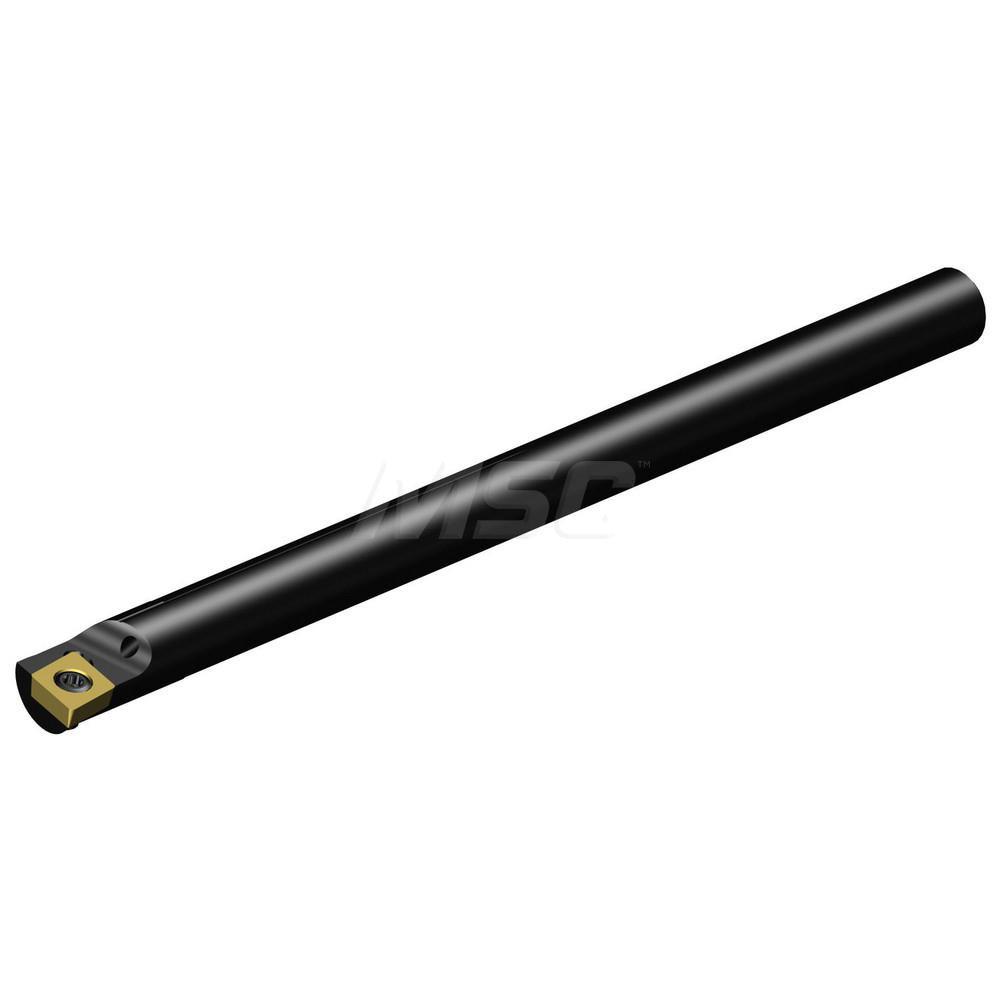

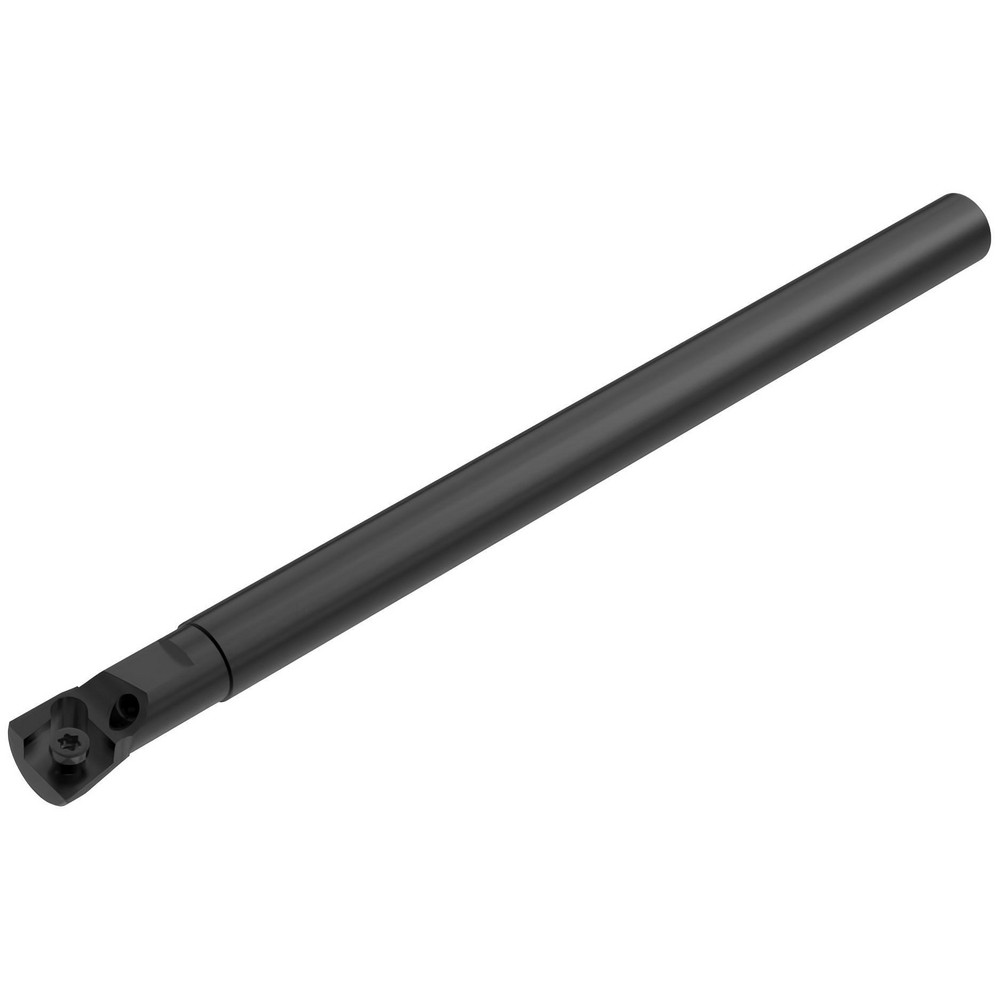

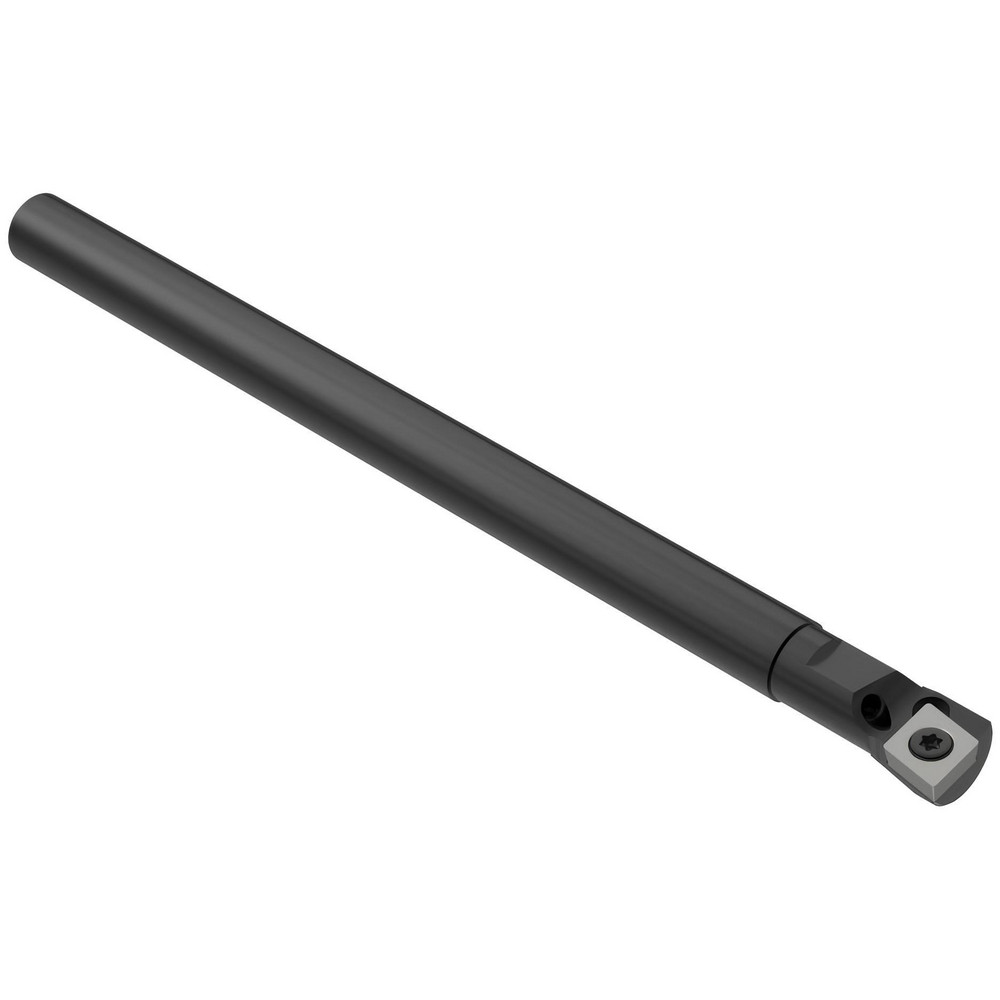

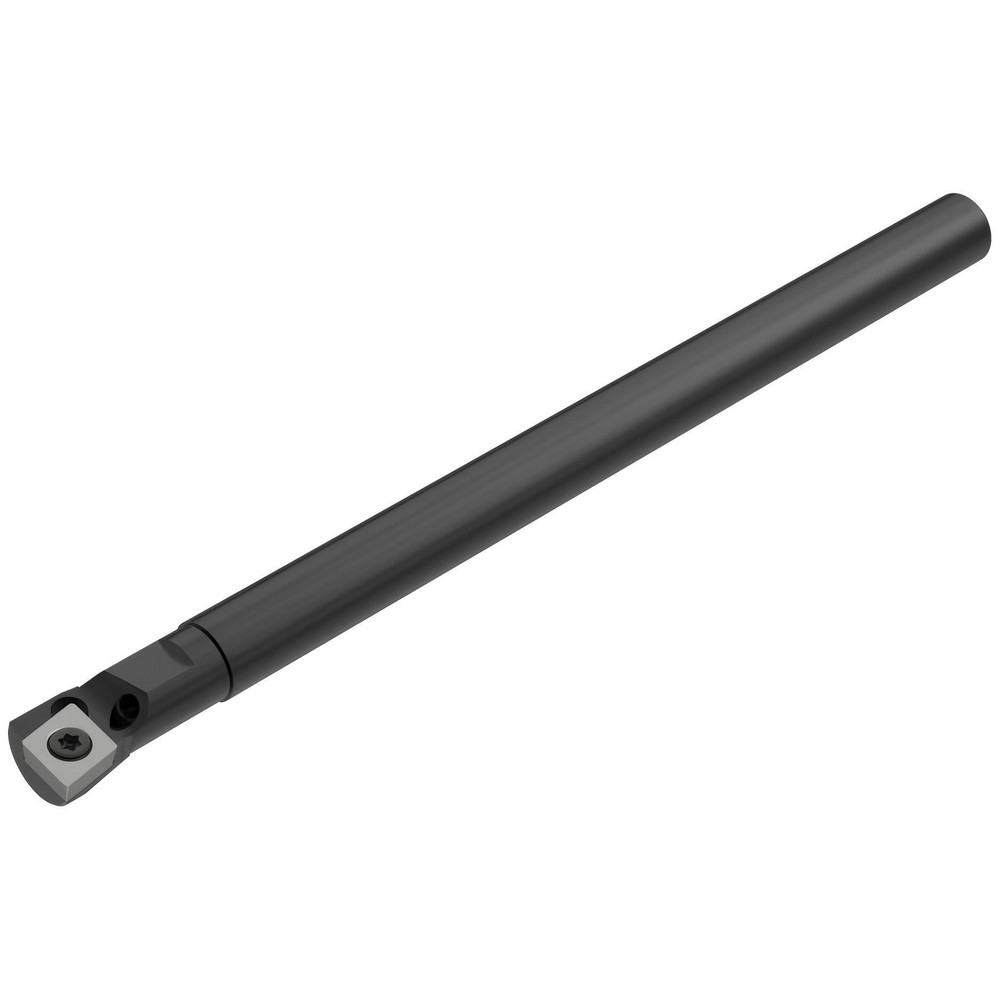

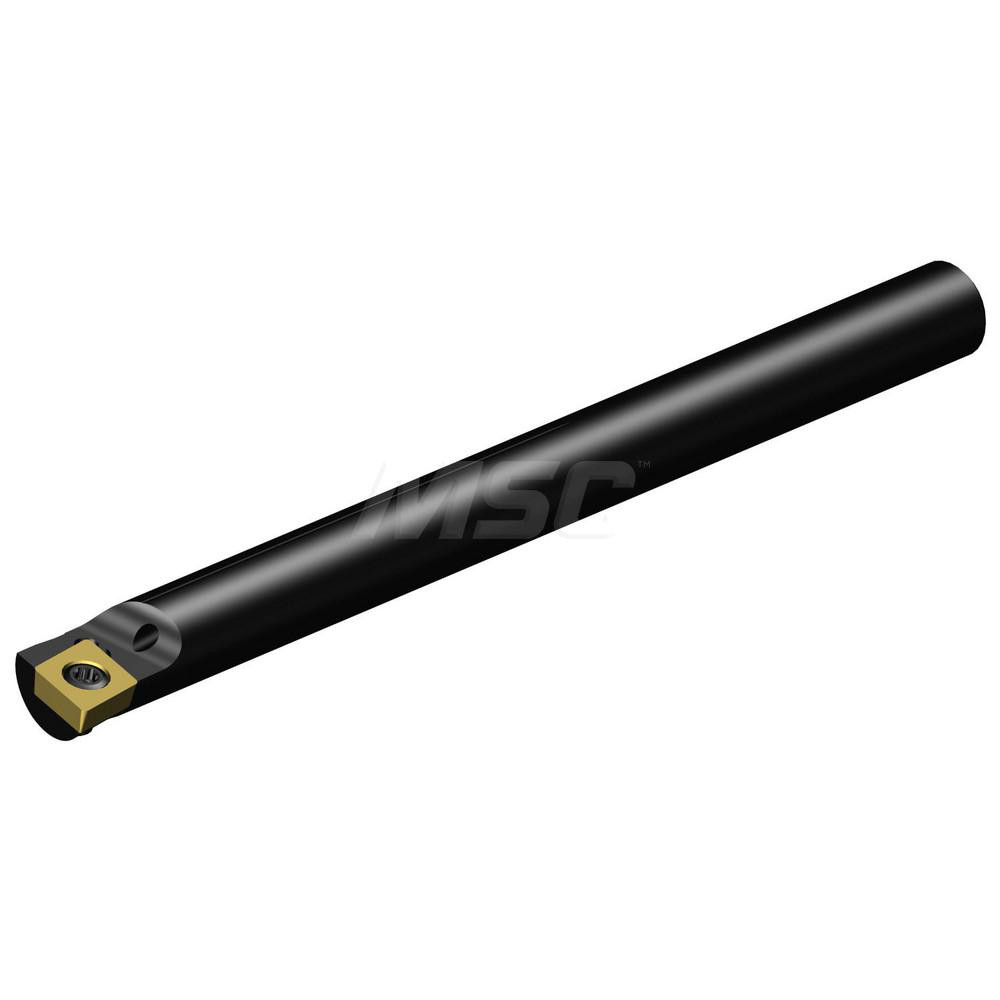

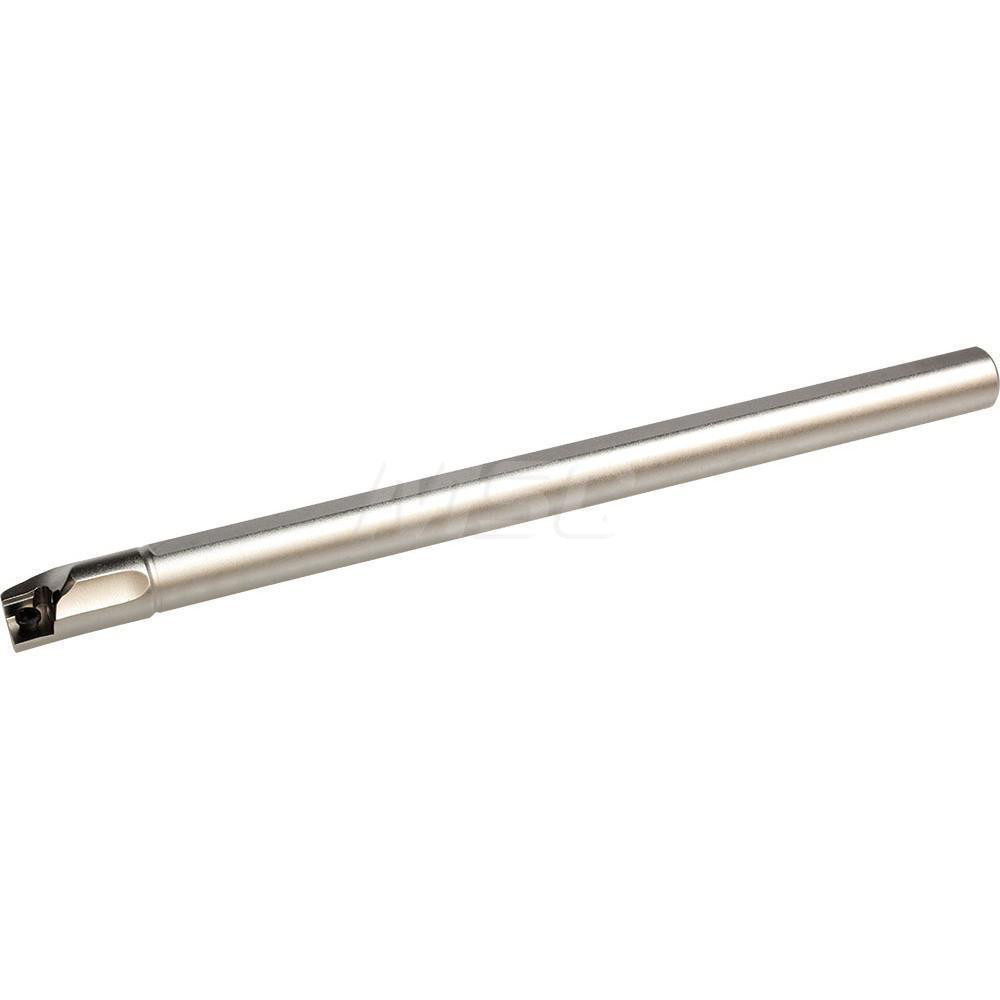

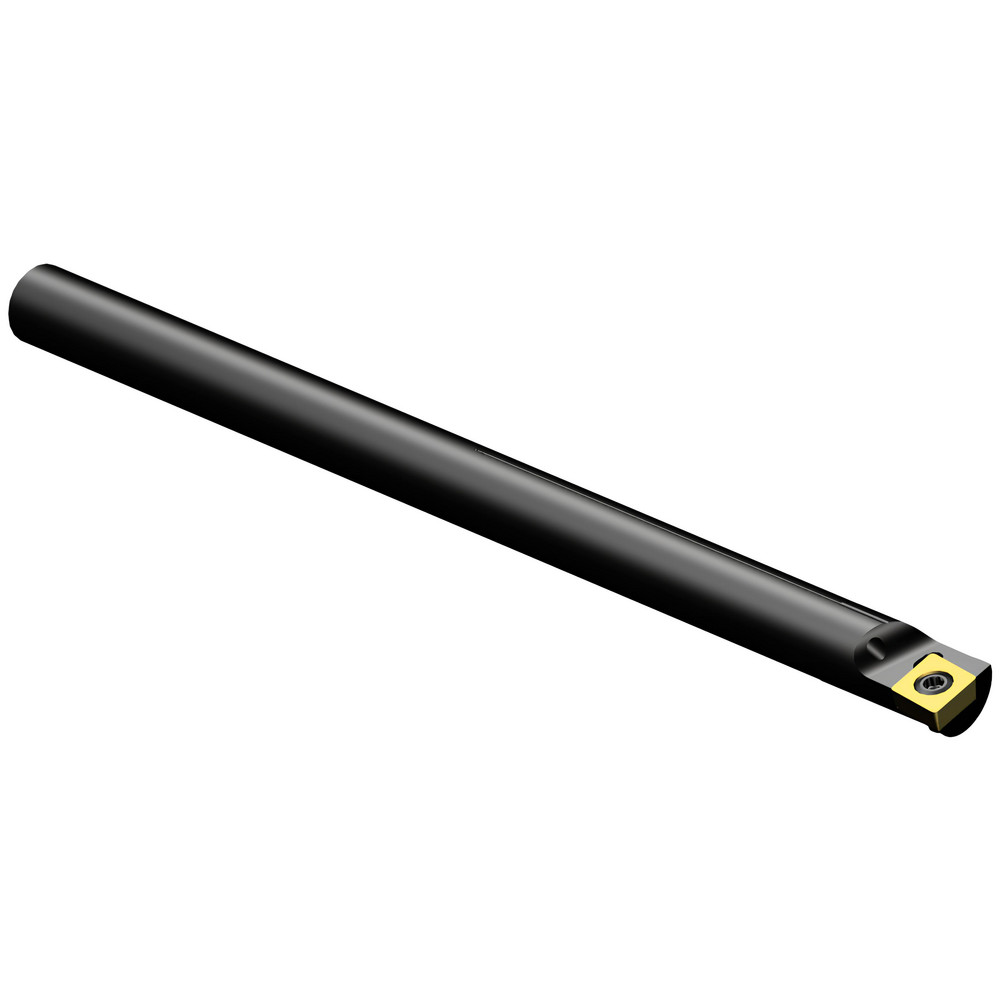

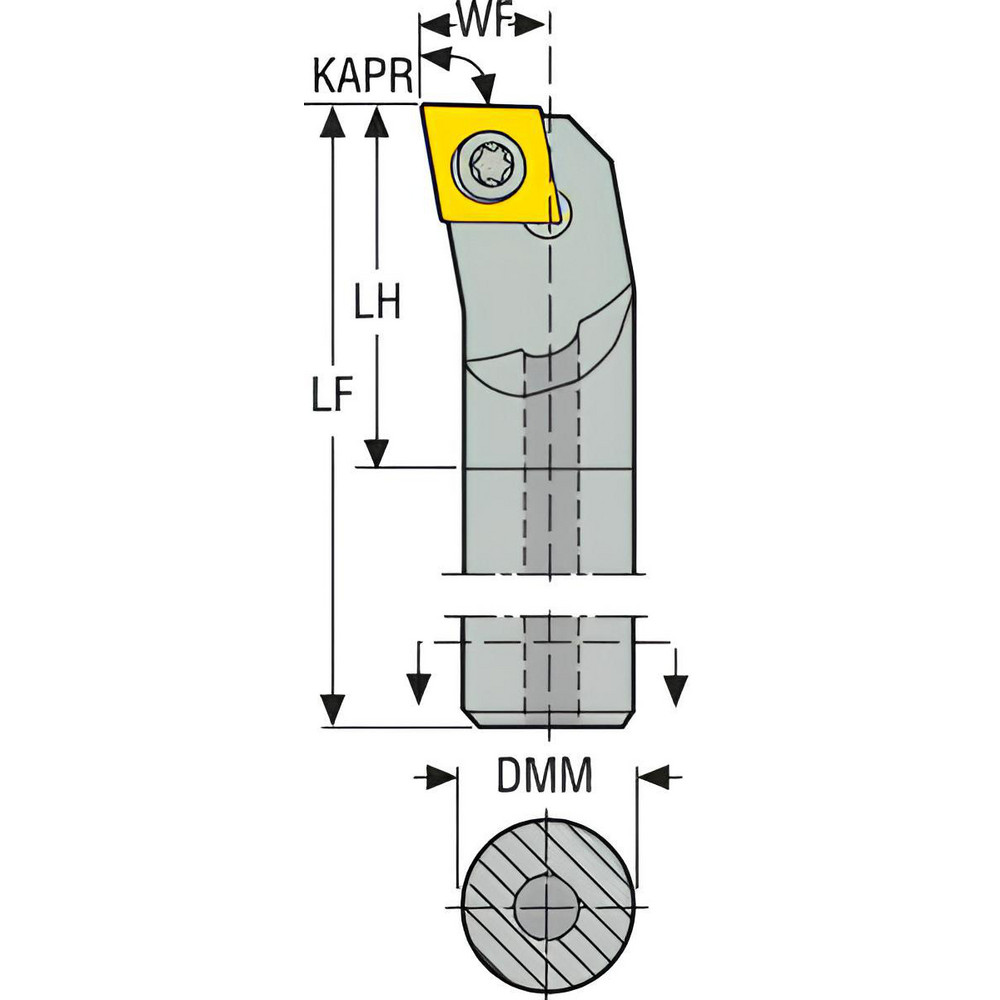

125.00 mm OAL, Screw, Uses CC.. 0602.. Inserts
| Minimum Bore Diameter (mm) | 10.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Maximum Bore Depth (Decimal Inch) | 0.8268 |
| Maximum Bore Depth (mm) | 21.00 |
| Toolholder Style | E-SCFC |
| Tool Material | Solid Carbide |
| Insert Compatibility | CC.. 0602.. |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 90 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Center to Cutting Edge (mm) | 5.00 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 76743277 |
