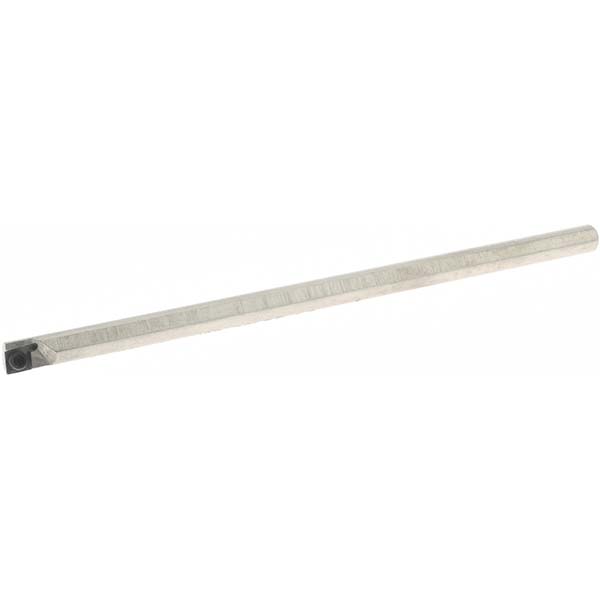

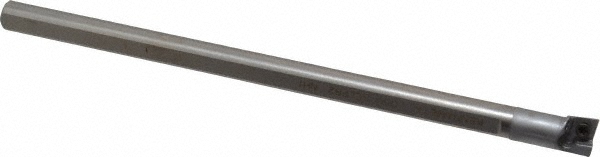

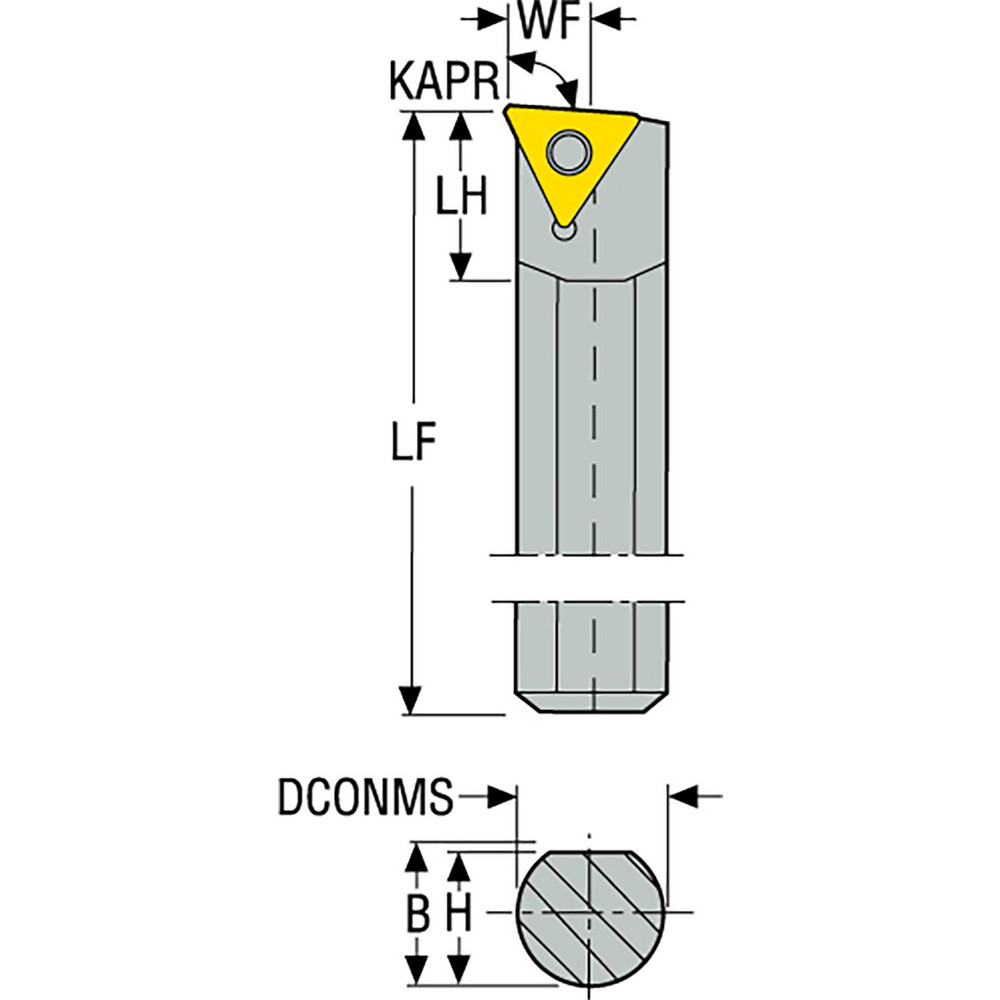

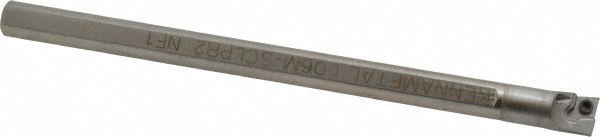

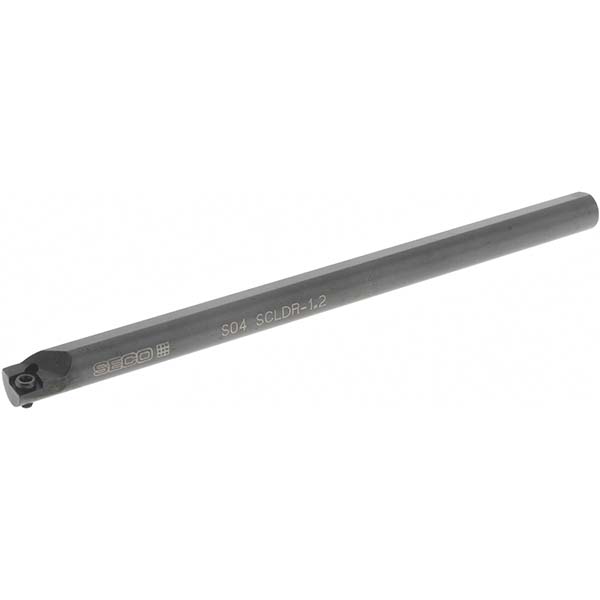

4.0000" OAL, Screw, Uses TD.. 1.2 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.2900 |
|---|---|
| Toolholder Style | STLD |
| Tool Material | Heavy Metal |
| Insert Compatibility | TD.. 1.2 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Compatible Insert Size Code | 1.21.5. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Negative |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1650 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Manufacturers Catalog Number | H04 STLDR-1.2 |

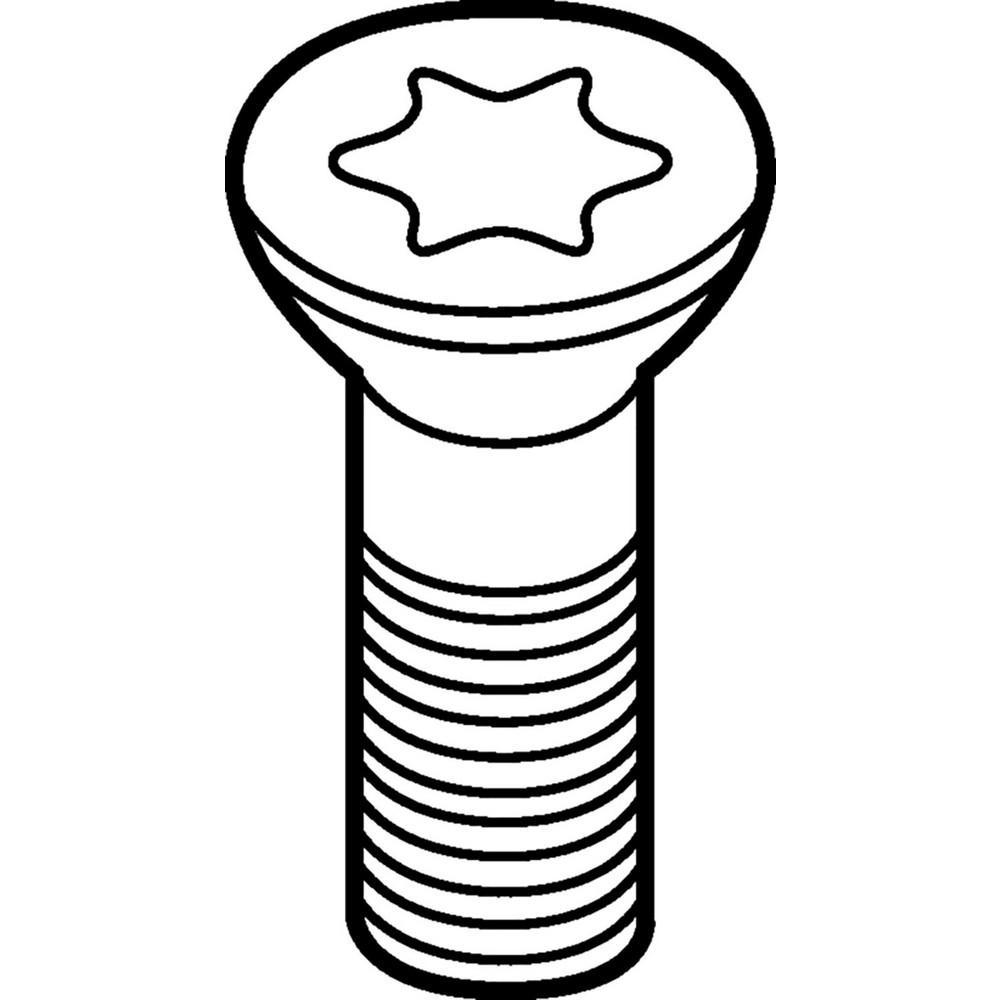

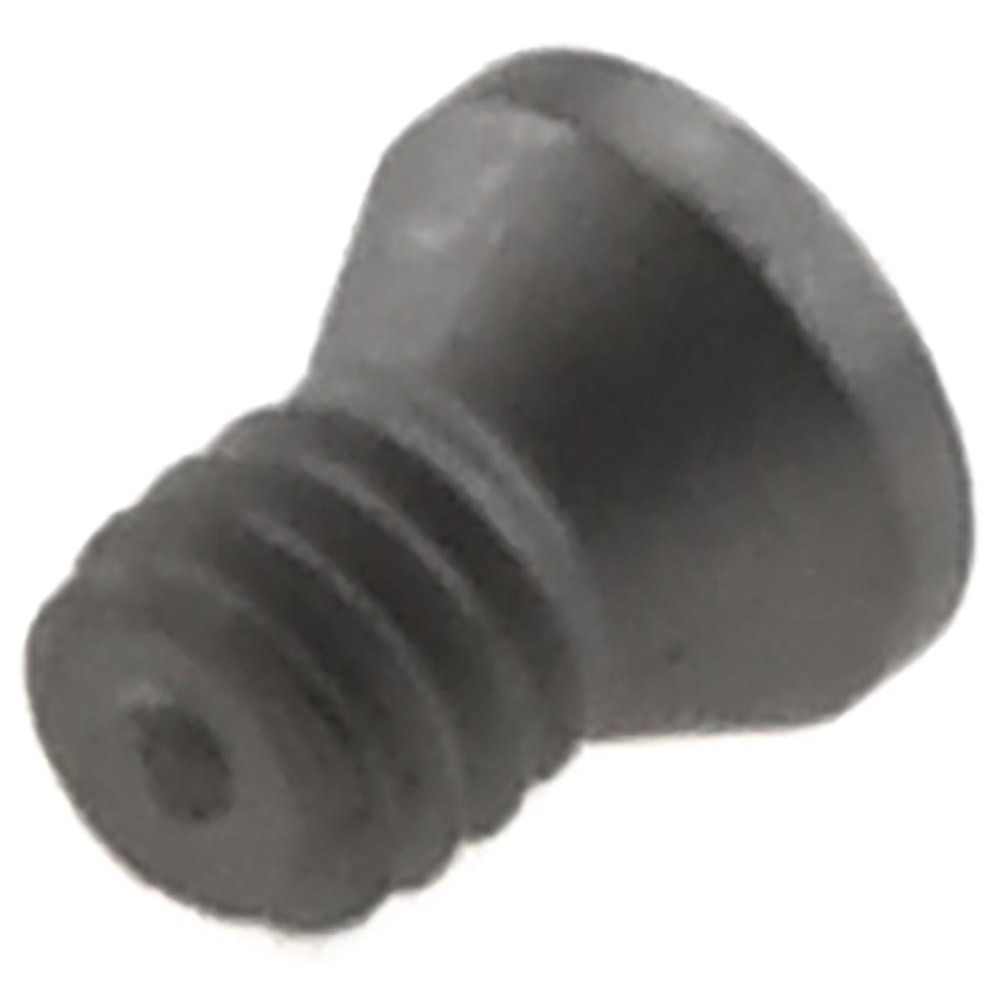

| Insert Screw | CS120 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 00546952 |
