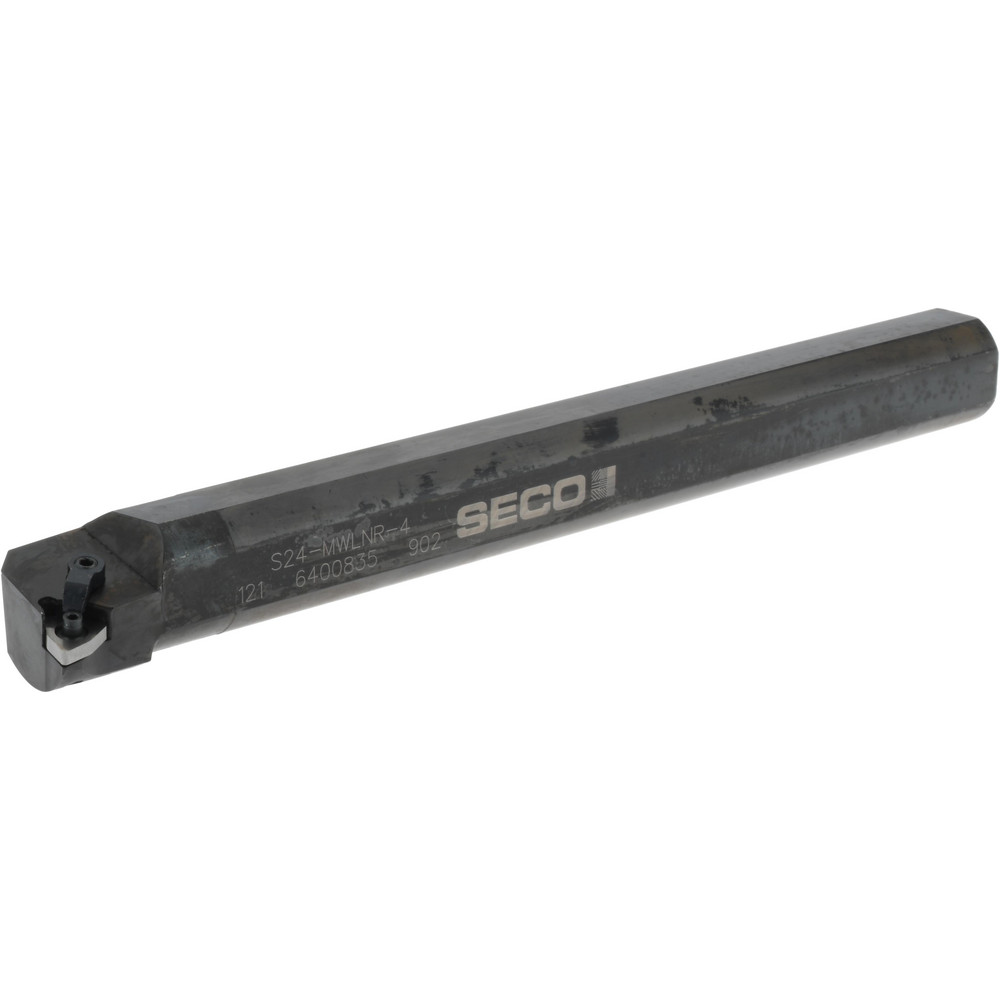

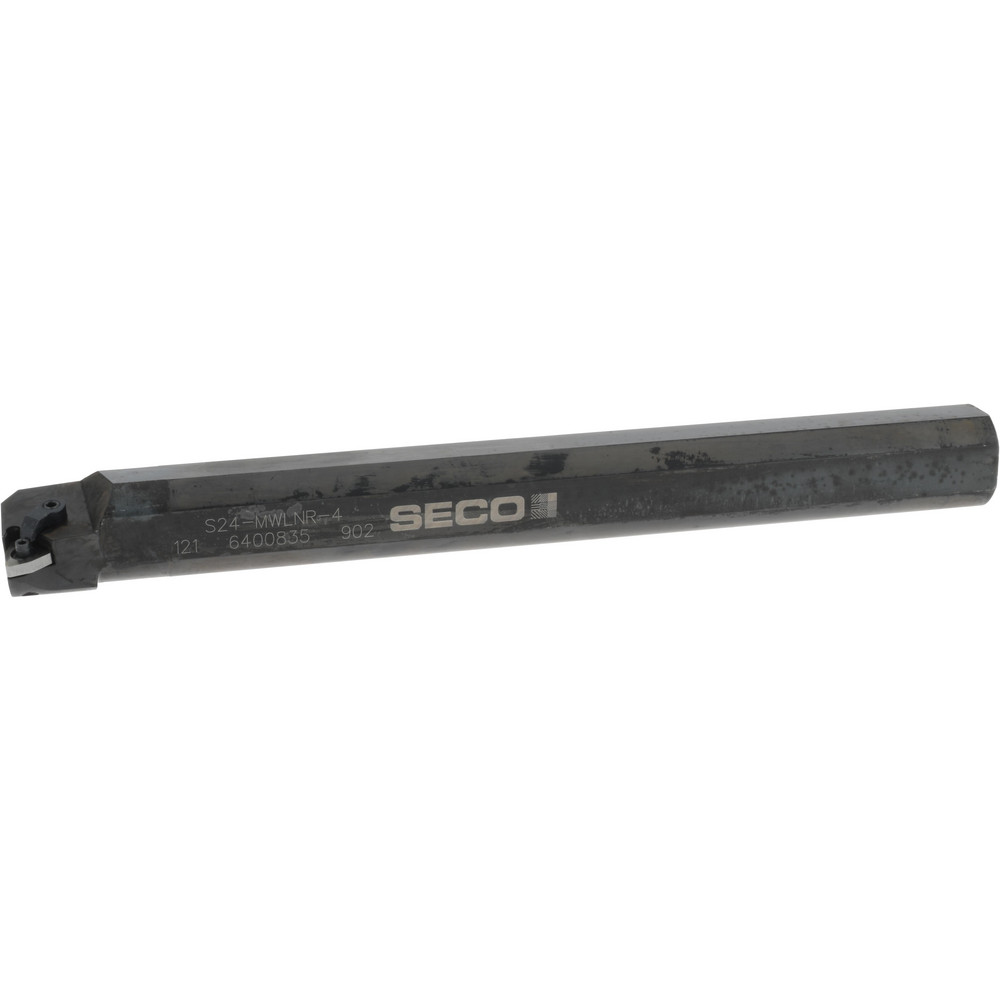

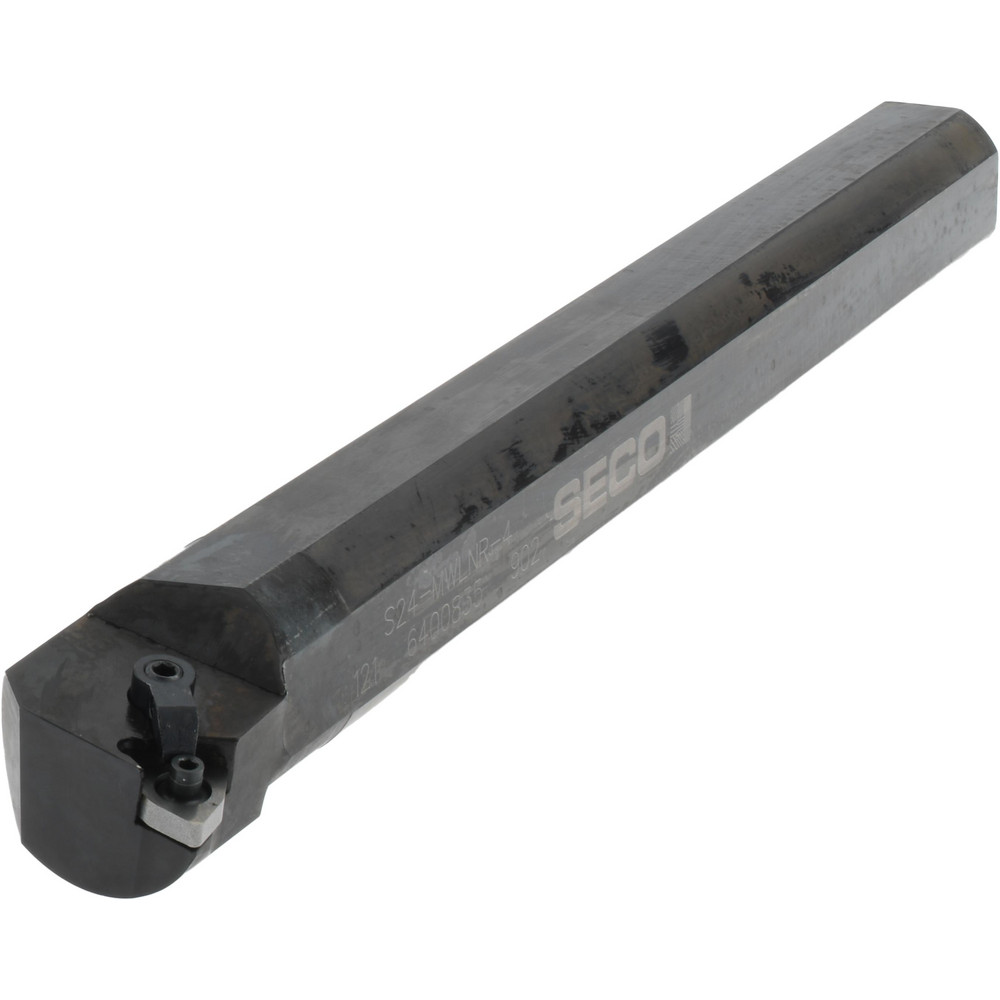

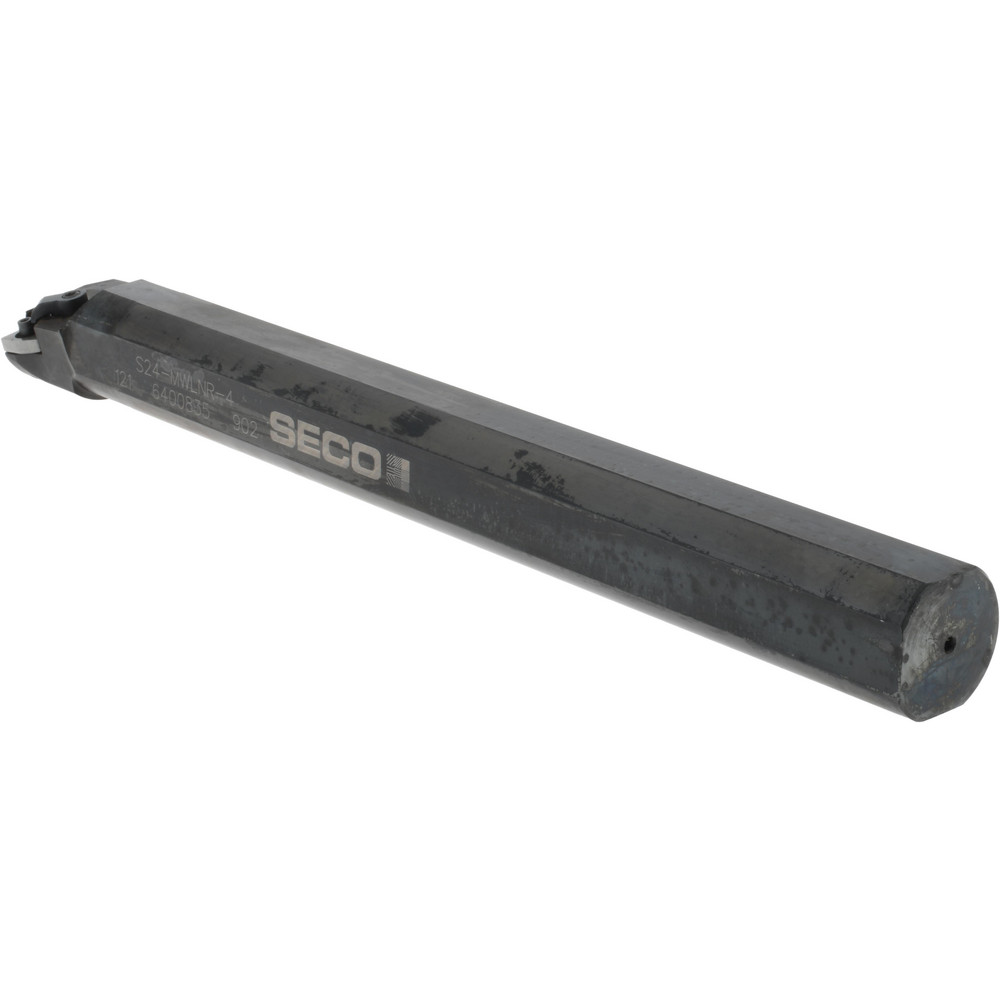

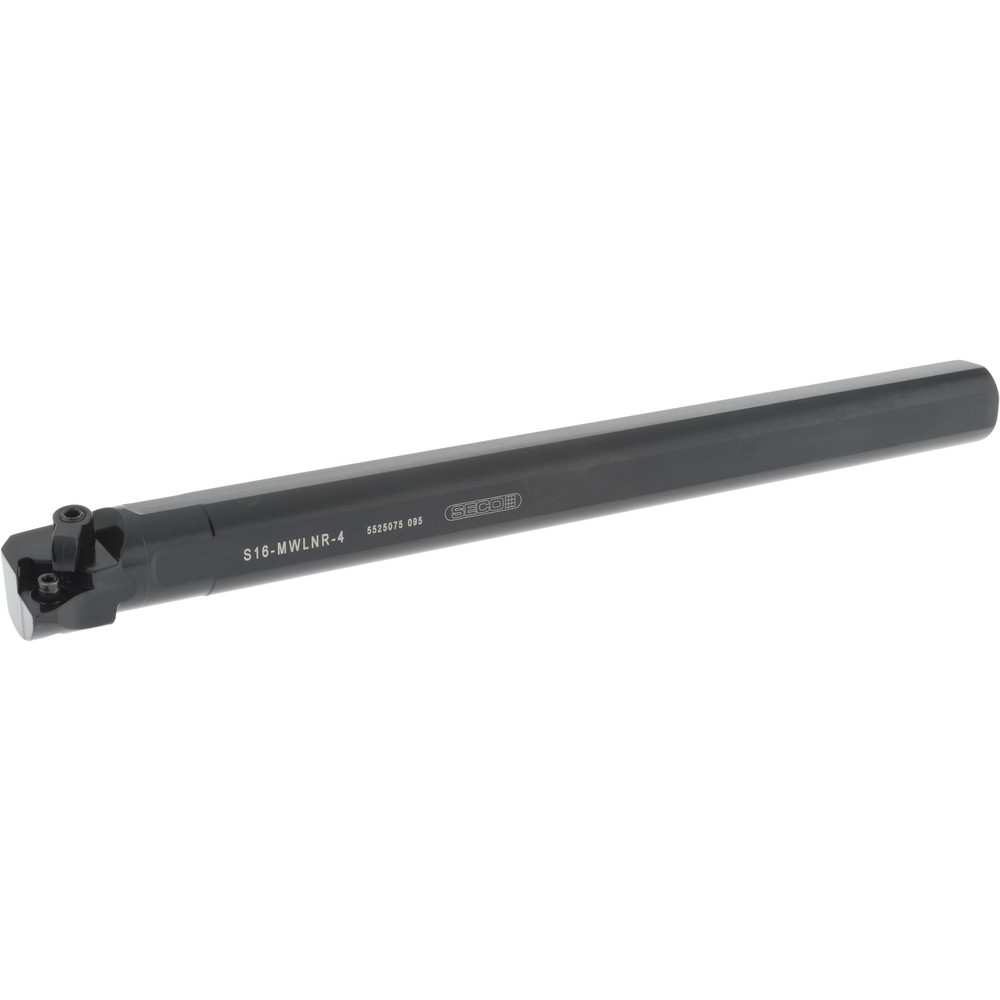

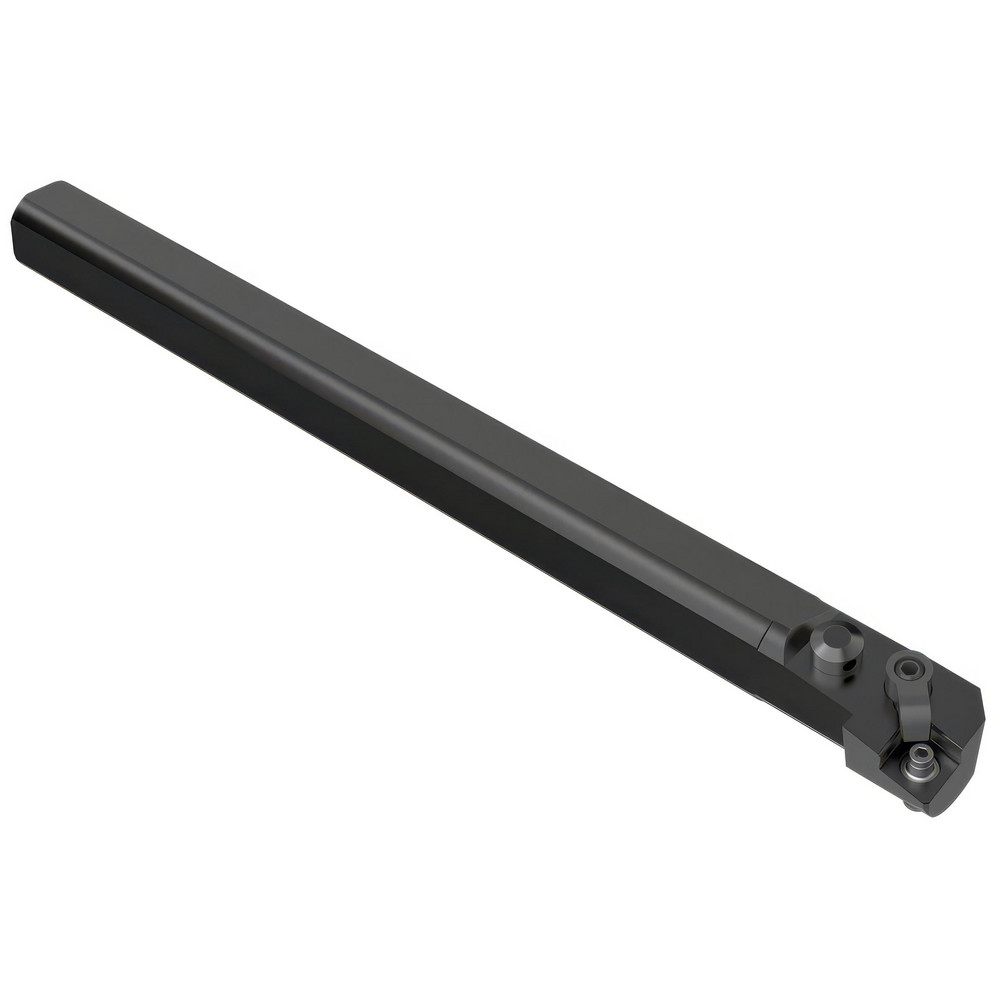

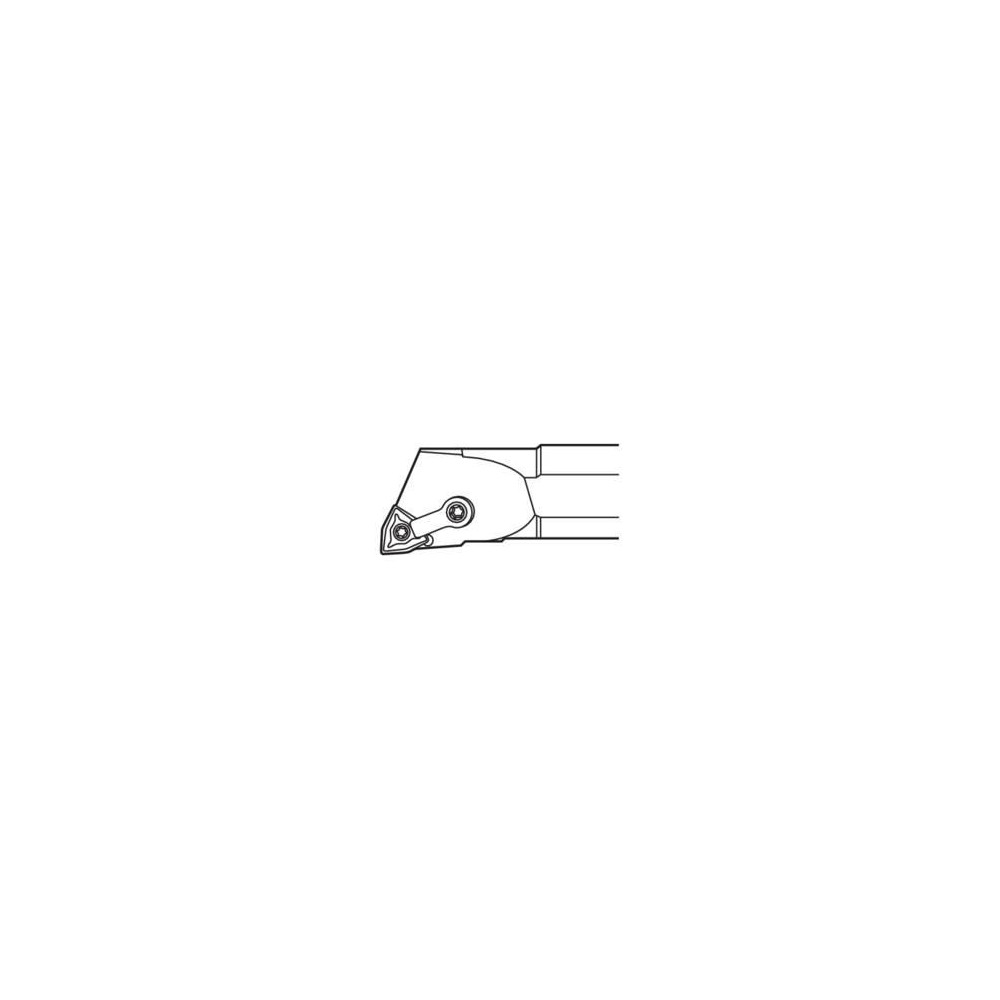

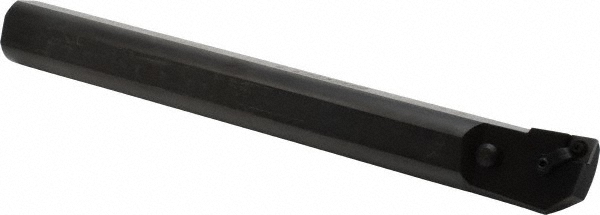

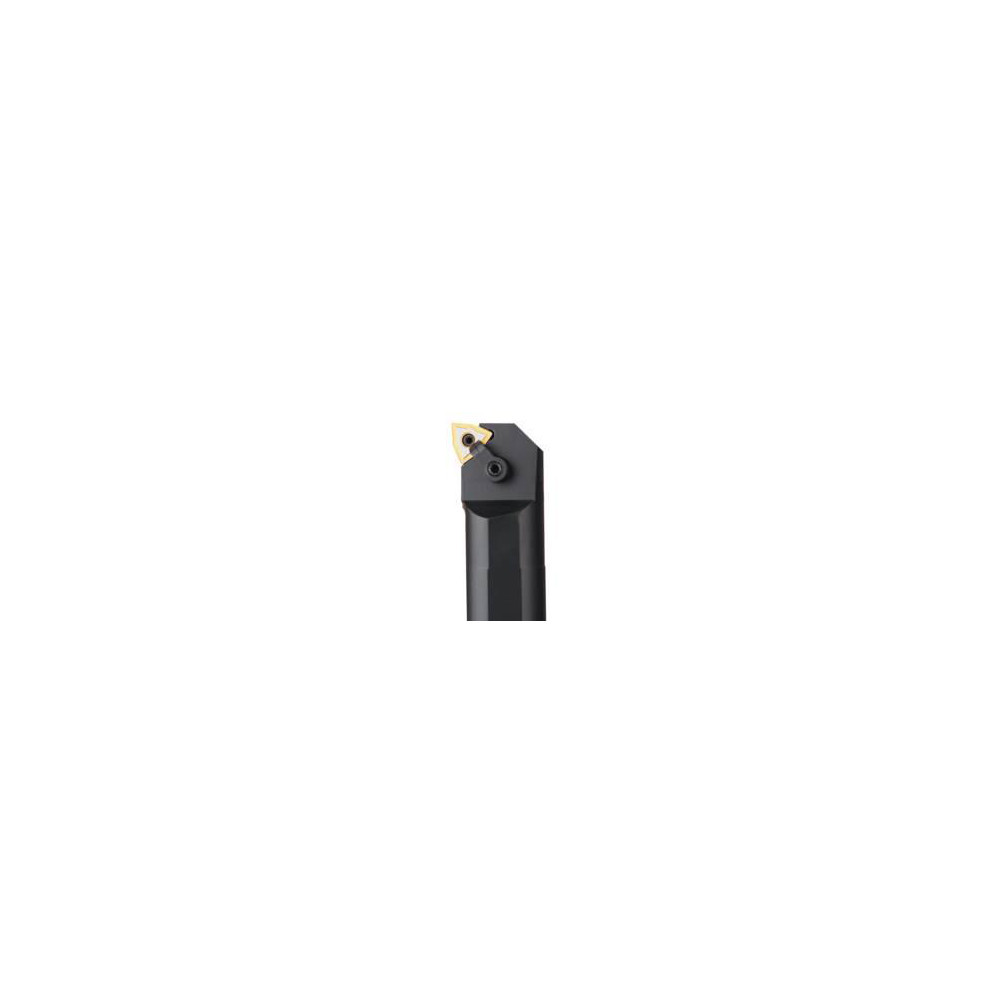

Pin & Clamp, Uses WNMG 432 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.7800 |
|---|---|
| Toolholder Style | MWLN |
| Tool Material | Steel |

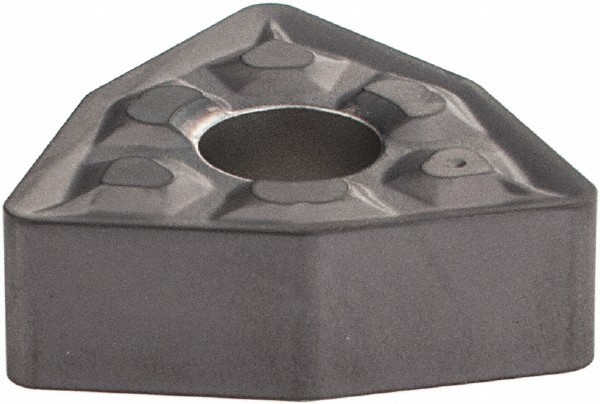

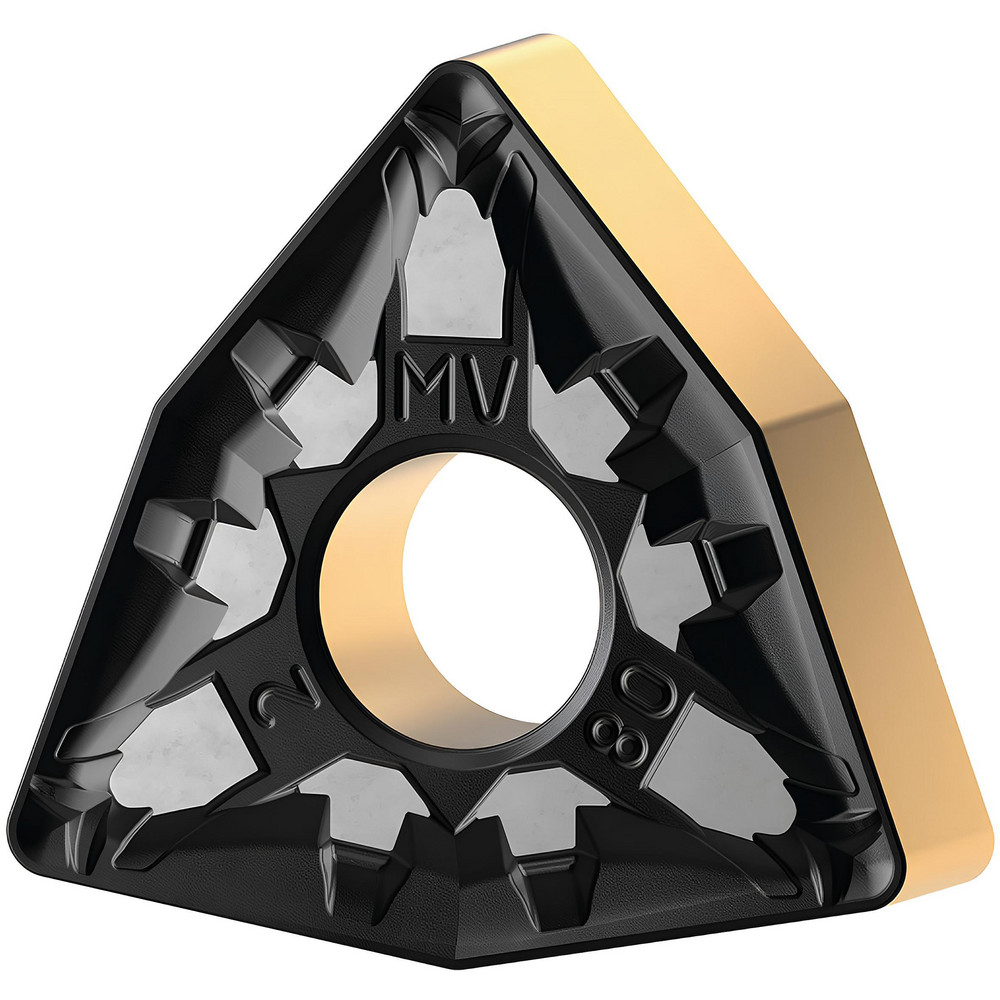

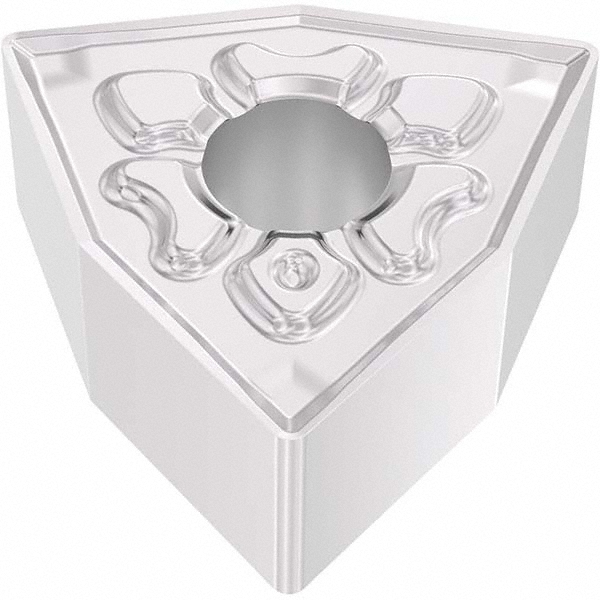

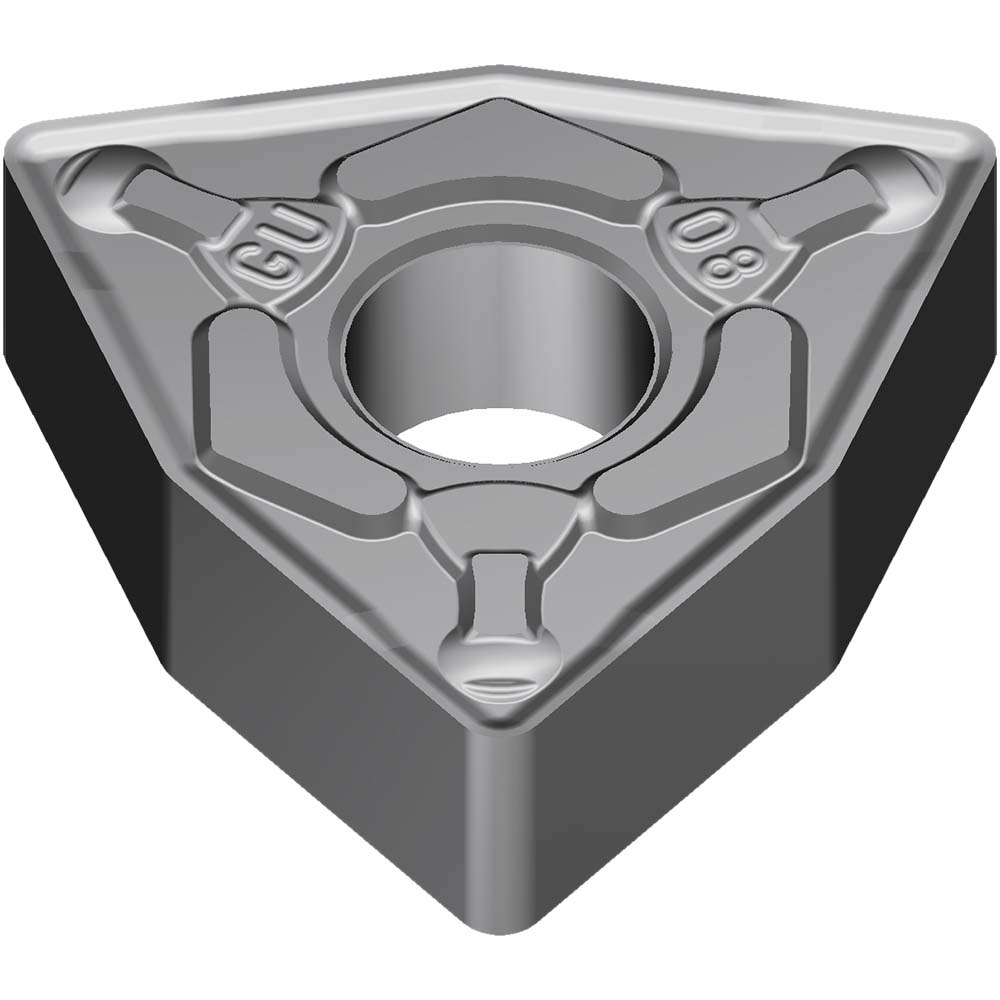

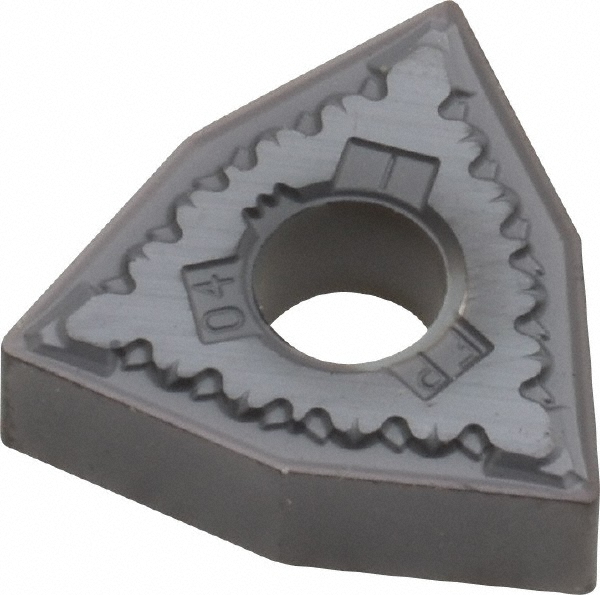

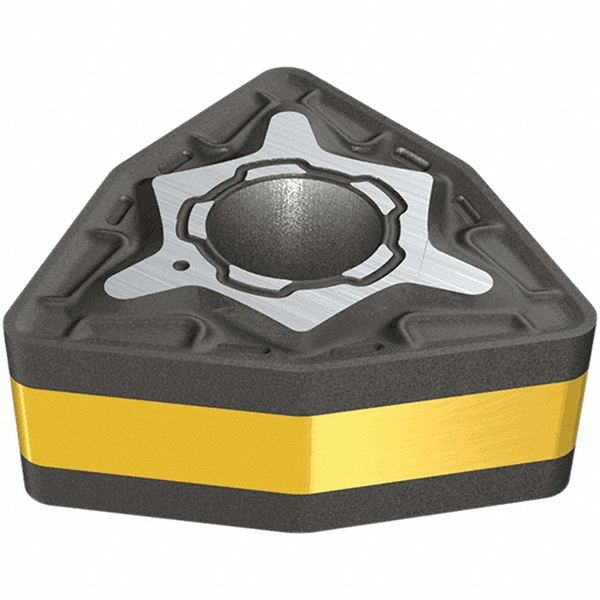

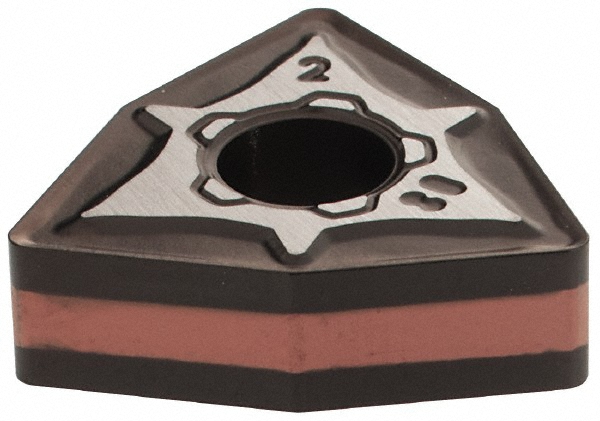

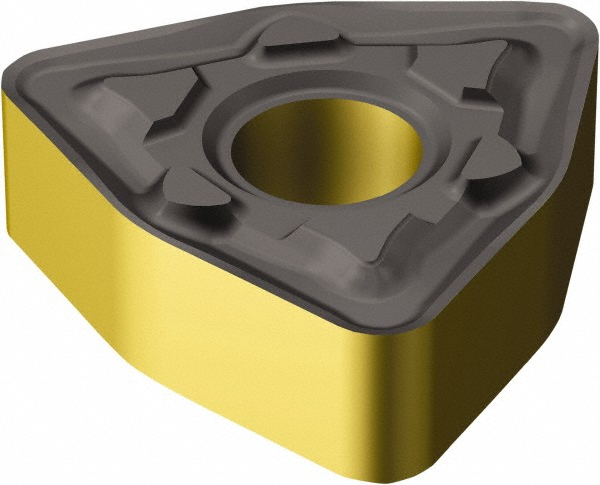

| Insert Compatibility | WNMG 432 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | 43/44 |
| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -13.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Insert Size | 187R |
| Coolant Through | No |
| Country of Origin | India |
| MSC Number | MSC# 57137804 |
