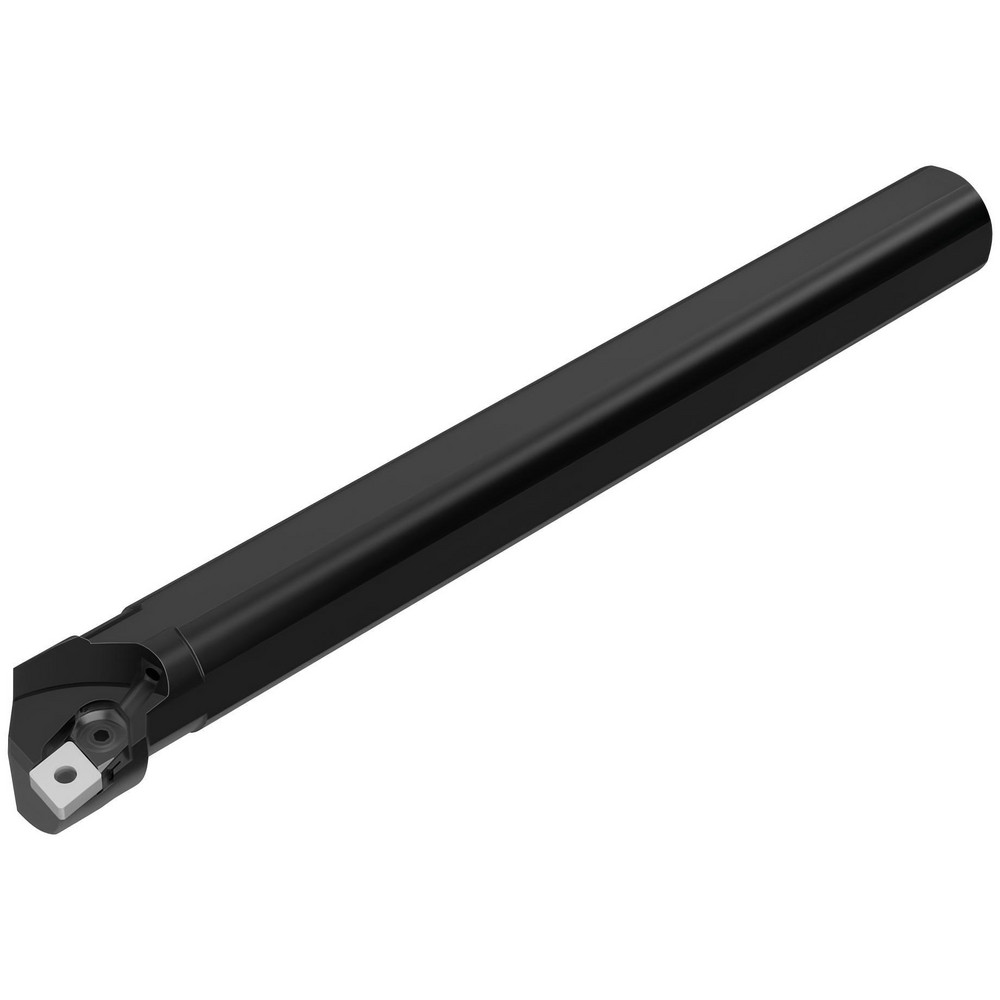

400.00 mm OAL, Pin & Clamp, Uses CNM.. 1906.. Inserts
| Minimum Bore Diameter (mm) | 63.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Maximum Bore Depth (Decimal Inch) | 2.7559 |
| Maximum Bore Depth (mm) | 70.00 |
| Toolholder Style | S-MCLN |
| Tool Material | Steel |
| Insert Compatibility | CNM.. 1906.. |
| Shank Diameter (mm) | 50.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 15.7480 |
| Overall Length (mm) | 400.00 |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Rake Angle | -5.00 |
| Lead Angle | 95 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (mm) | 19.05 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Center to Cutting Edge (mm) | 35.00 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Coolant Through | No |
| Country of Origin | India |
| MSC Number | MSC# 72175318 |
