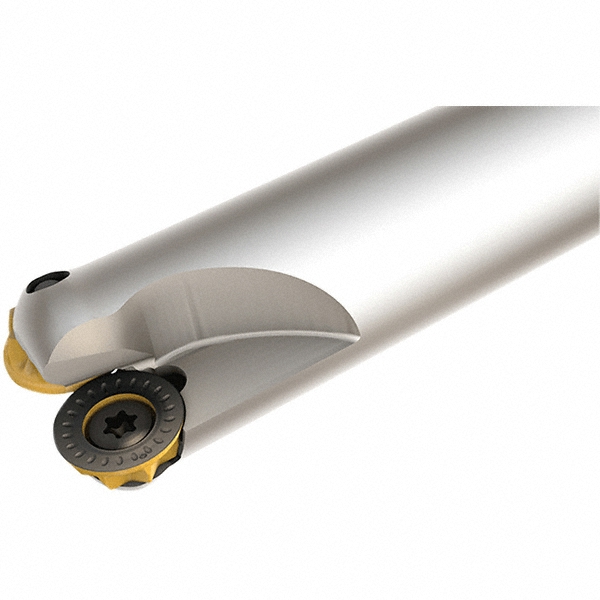

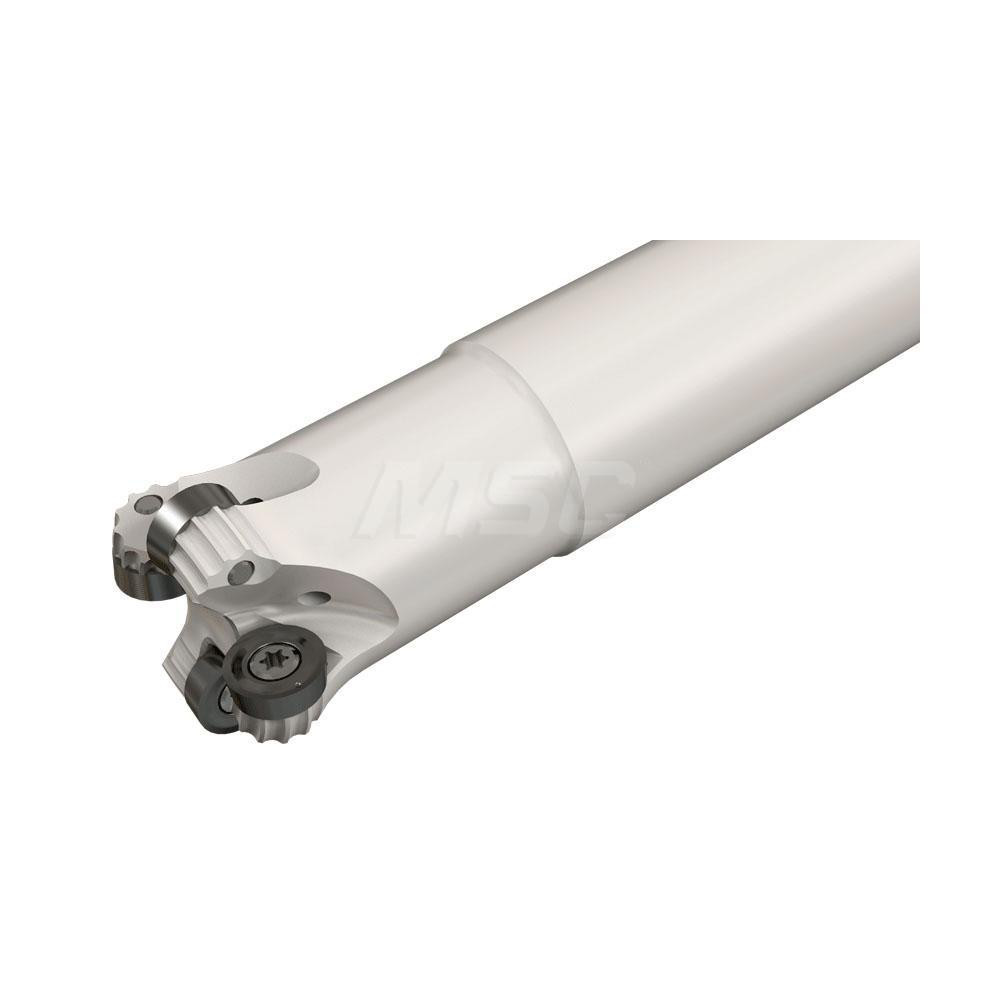

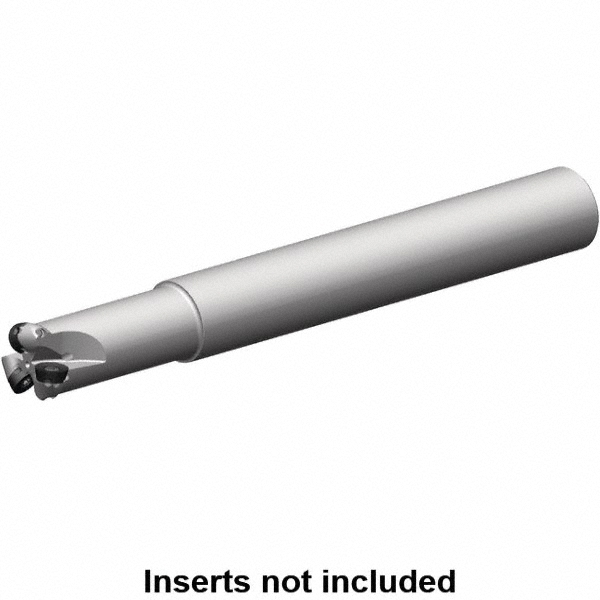

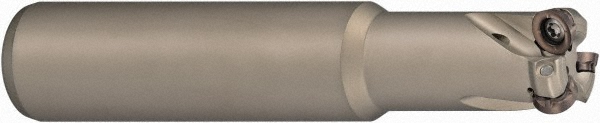

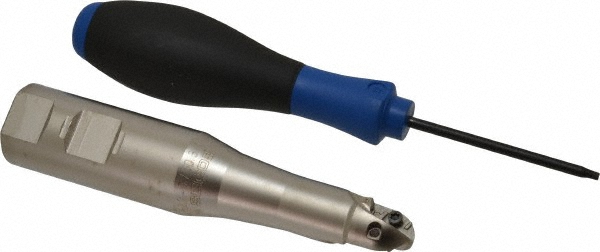

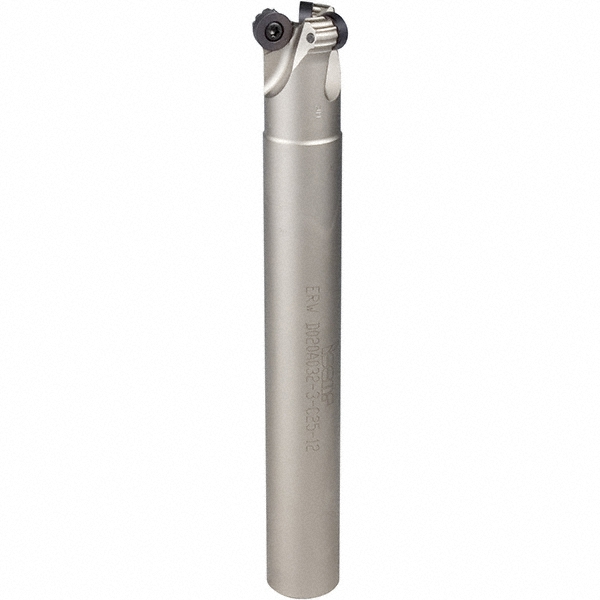

Uses 2 VPGX 2206..E.-E10 Inserts, 1" Cylindrical Shank

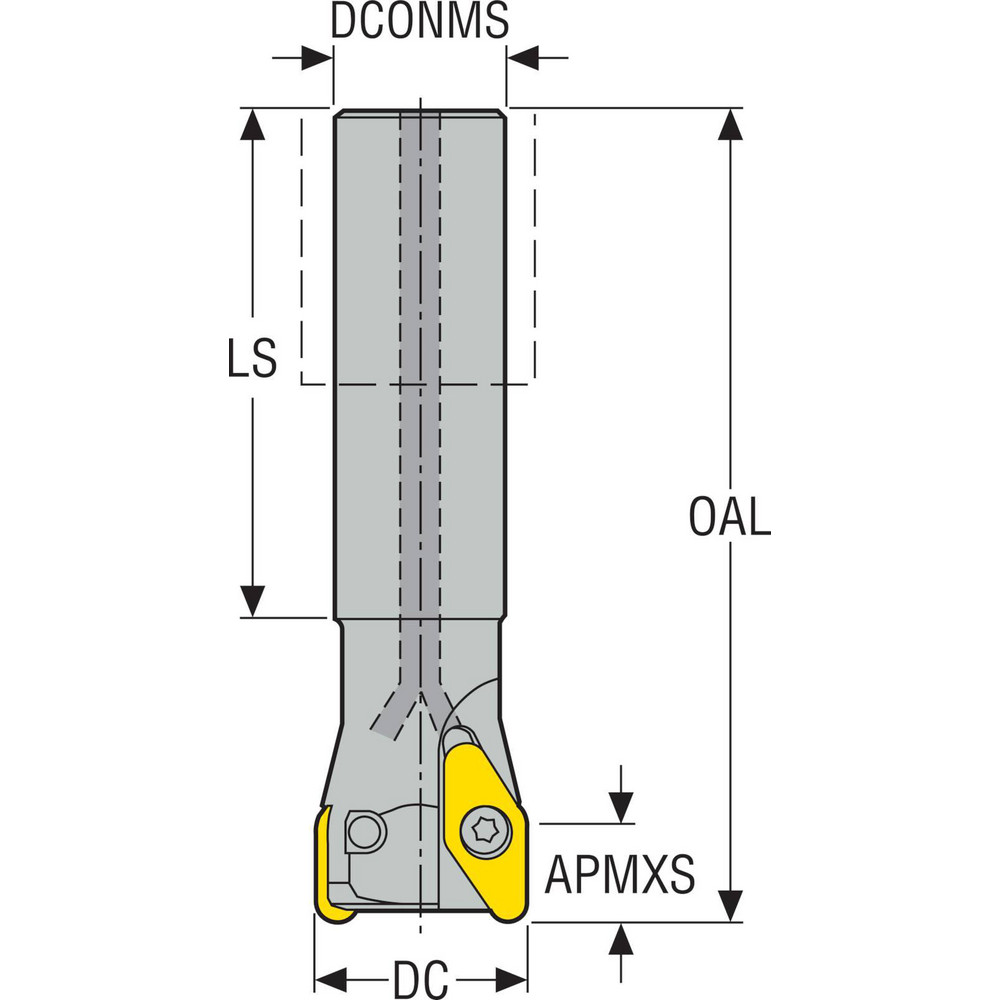

| Cutting Diameter (Decimal Inch) | 1.2500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Toolholder Style | R217.97 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter | 0.5625 |

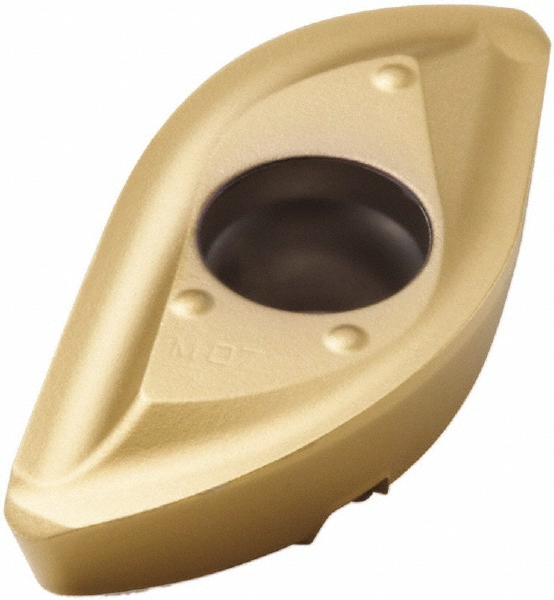

| Compatible Insert Style | VPGX 2206..E.-E10 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | R217 |
| Maximum Rpm | 40000 |
| Shank Length (Decimal Inch) | 4.0000 |
| Functional Length (Decimal Inch) | 3.7950 |
| Head Length (Inch) | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Tool Application | Milling |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Projection (Decimal Inch) | 3.5400 |
| Manufacturers Catalog Number | R217.97-01.25-0-V22.2A |
| Cutting Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 07947922 |
