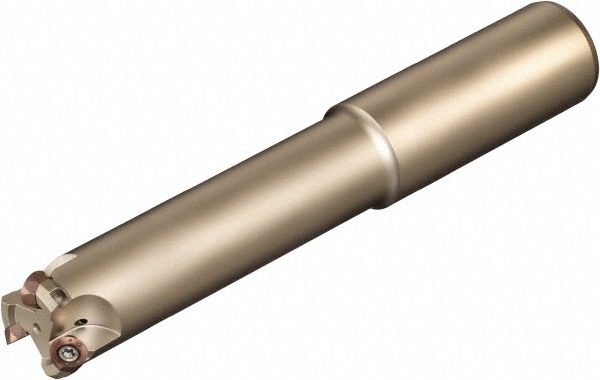

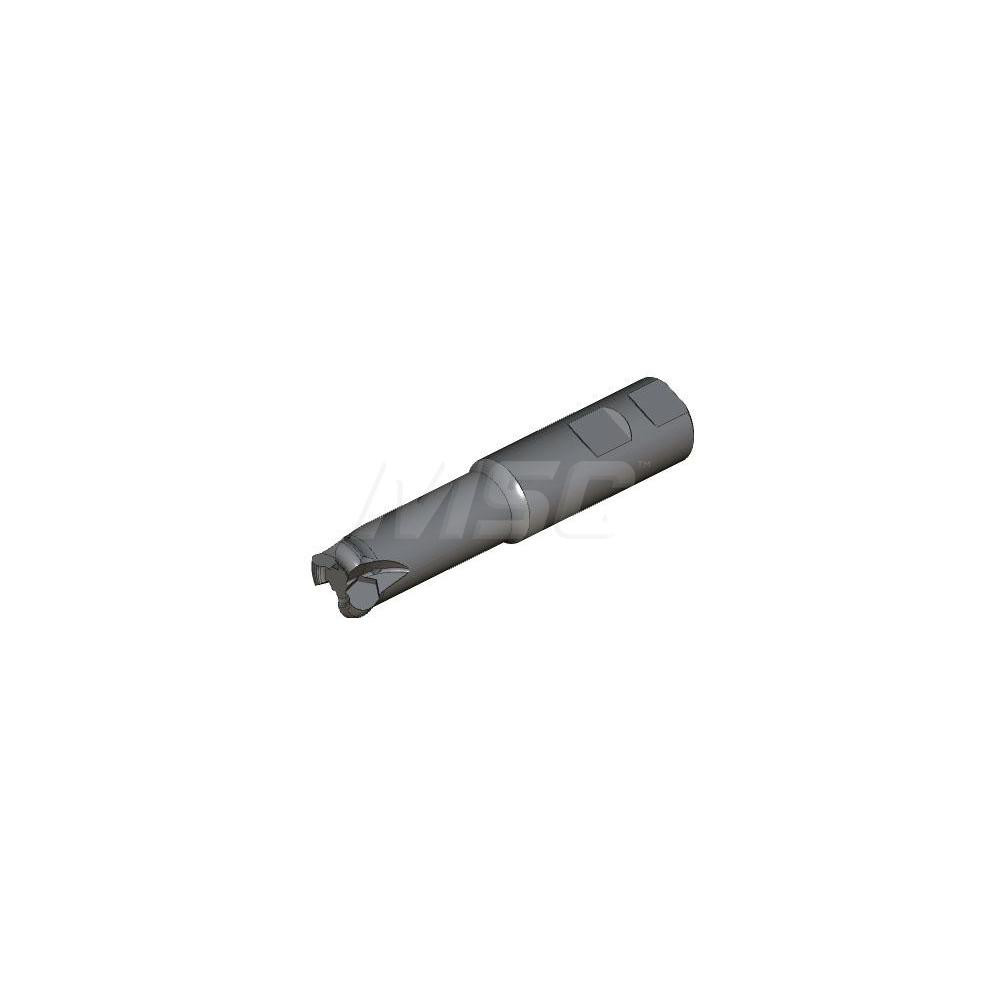

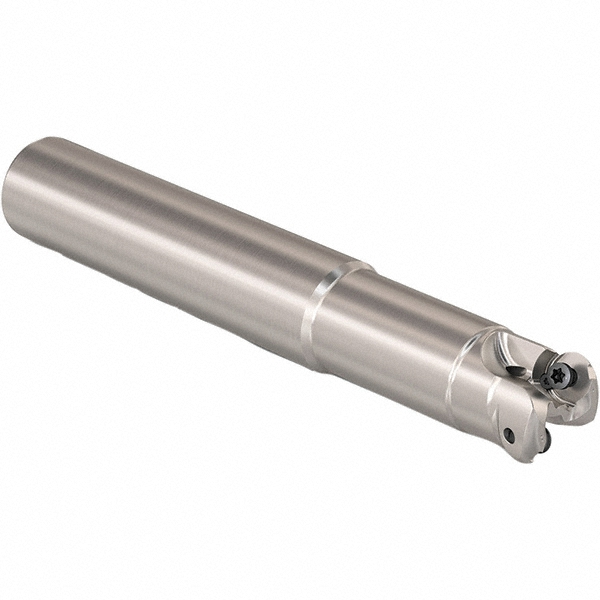

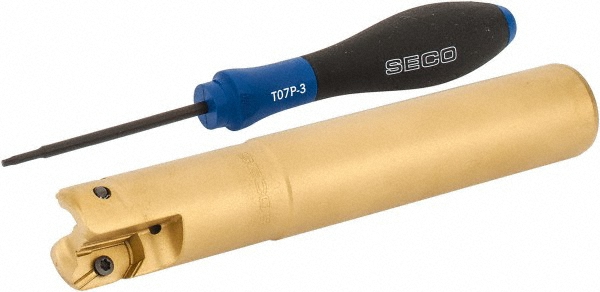

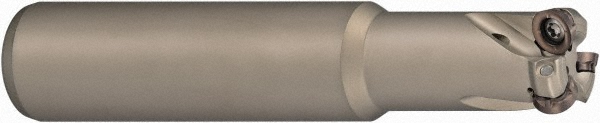

Uses 2 XPKX12 Inserts, 1" Cylindrical Shank

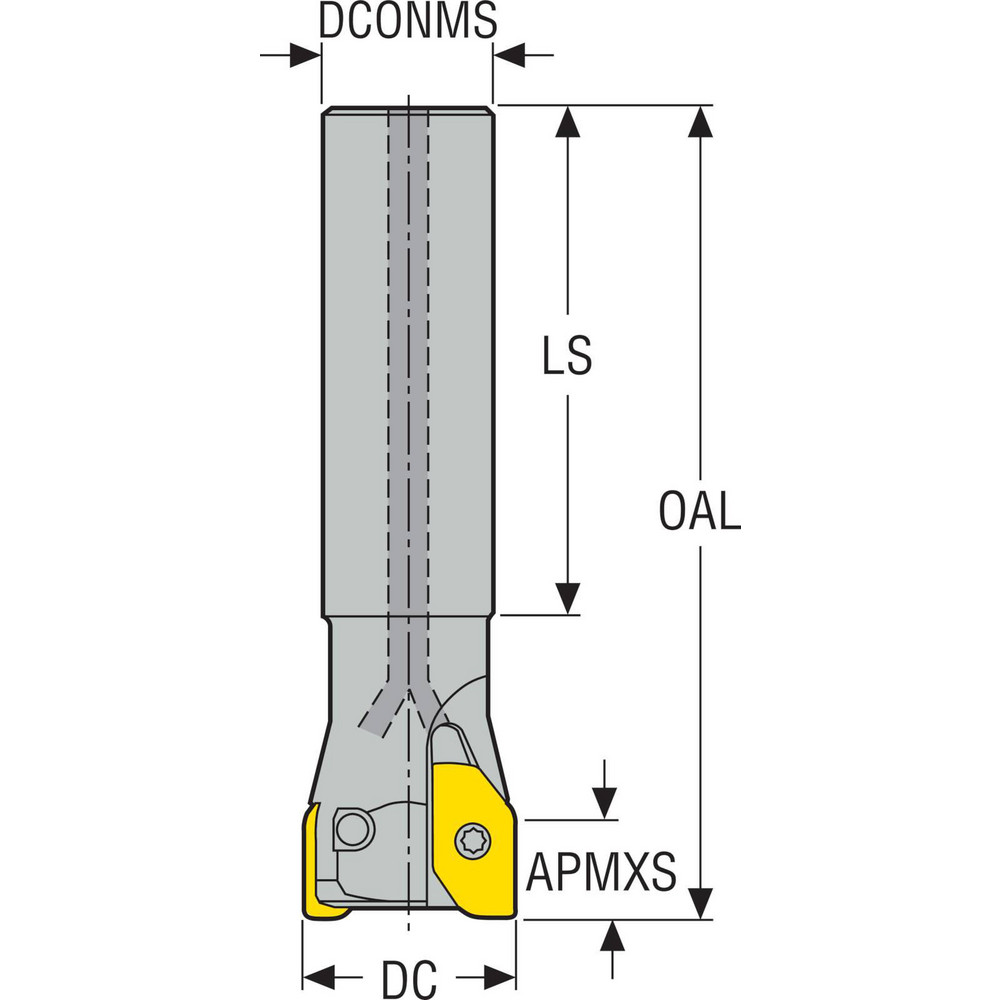

| Cutting Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (mm) | 25.40 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Toolholder Style | R217.29; R217.97 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter | 0.5625 |
| Compatible Insert Style | XPKX12 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | R217 |
| Maximum Rpm | 40000 |
| Shank Length (Decimal Inch) | 3.8000 |
| Functional Length (Decimal Inch) | 2.1650 |
| Head Length (Decimal Inch) | 2.2000 |
| Tool Application | Milling |
| Toolholder Material | Steel |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Projection (Decimal Inch) | 3.7200 |
| Manufacturers Catalog Number | R217.97-01.00-0-12.2A |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Country of Origin | France |
| MSC Number | MSC# 61924098 |
