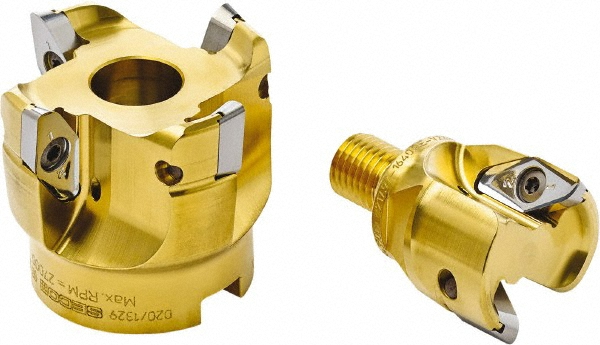

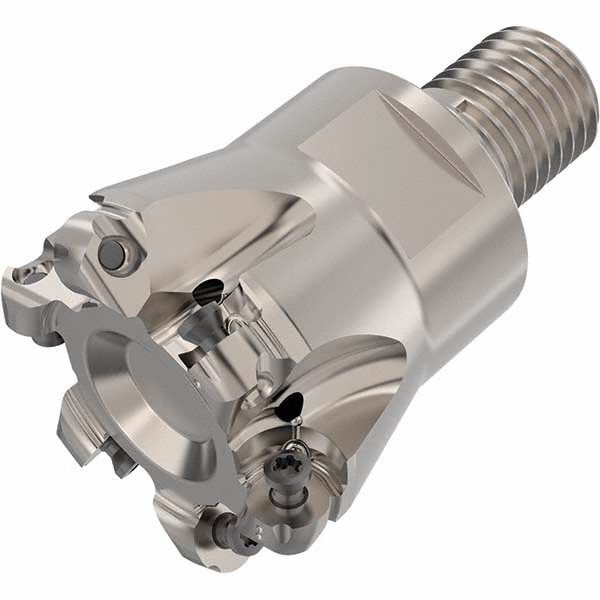

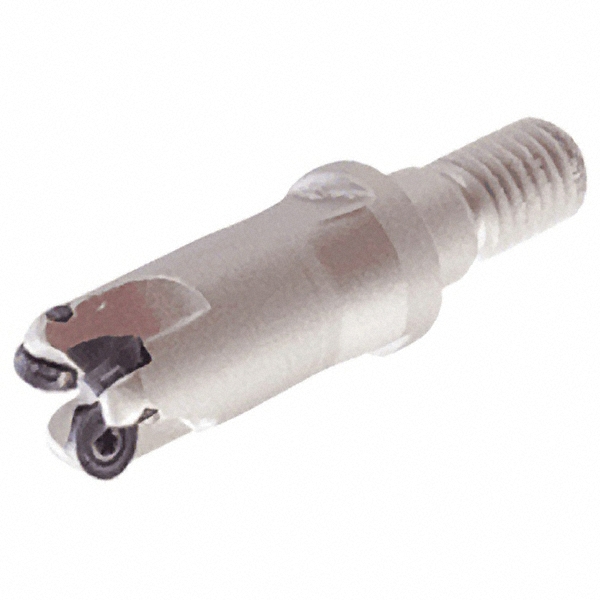

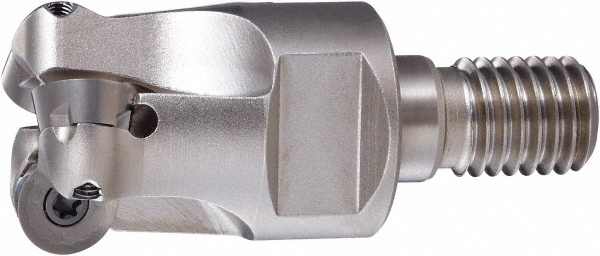

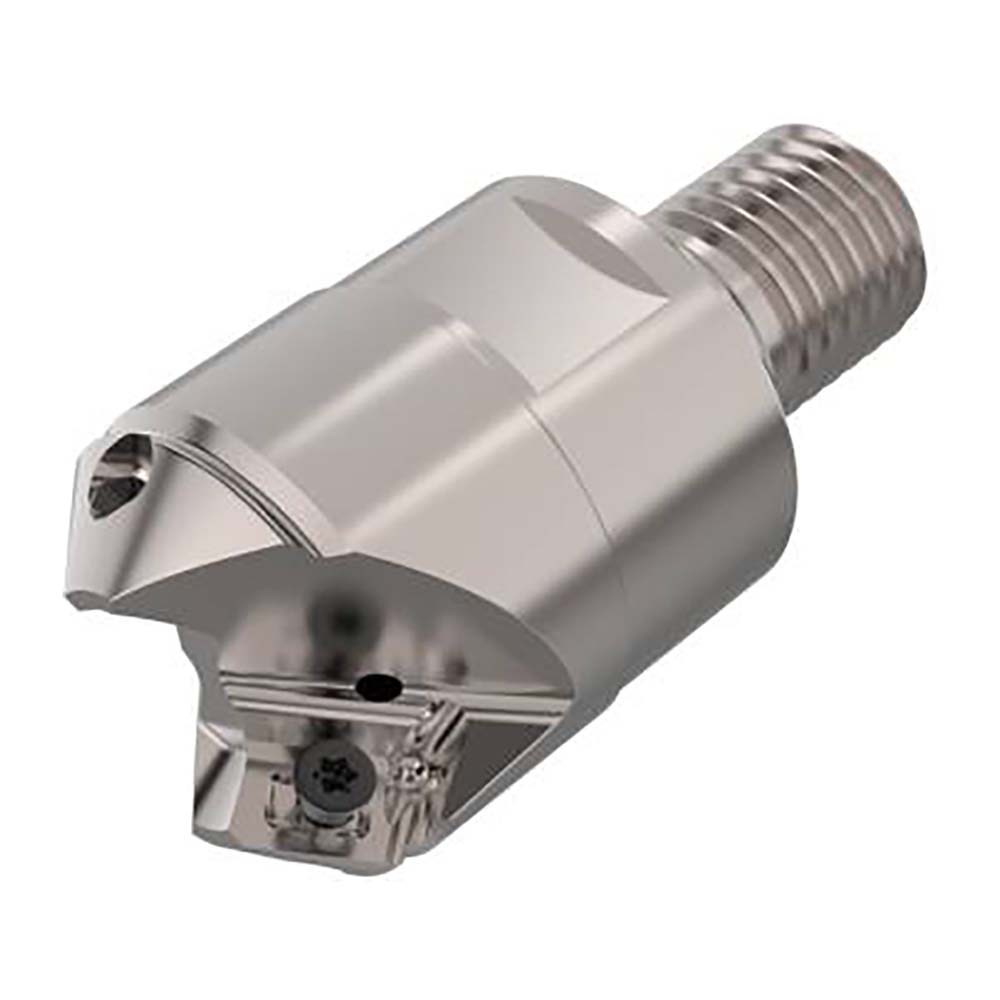

Uses 6 RDH.. 06T1 Inserts, M16 Modular Connection Shank
| Cutting Diameter (mm) | 32.00 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0236 |
| Minimum Cutting Diameter (mm) | 26.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Toolholder Style | R217.29; R217.97 |
| Shank Type | Modular Connection |
| Compatible Insert Style | RDH.. 06T1 |

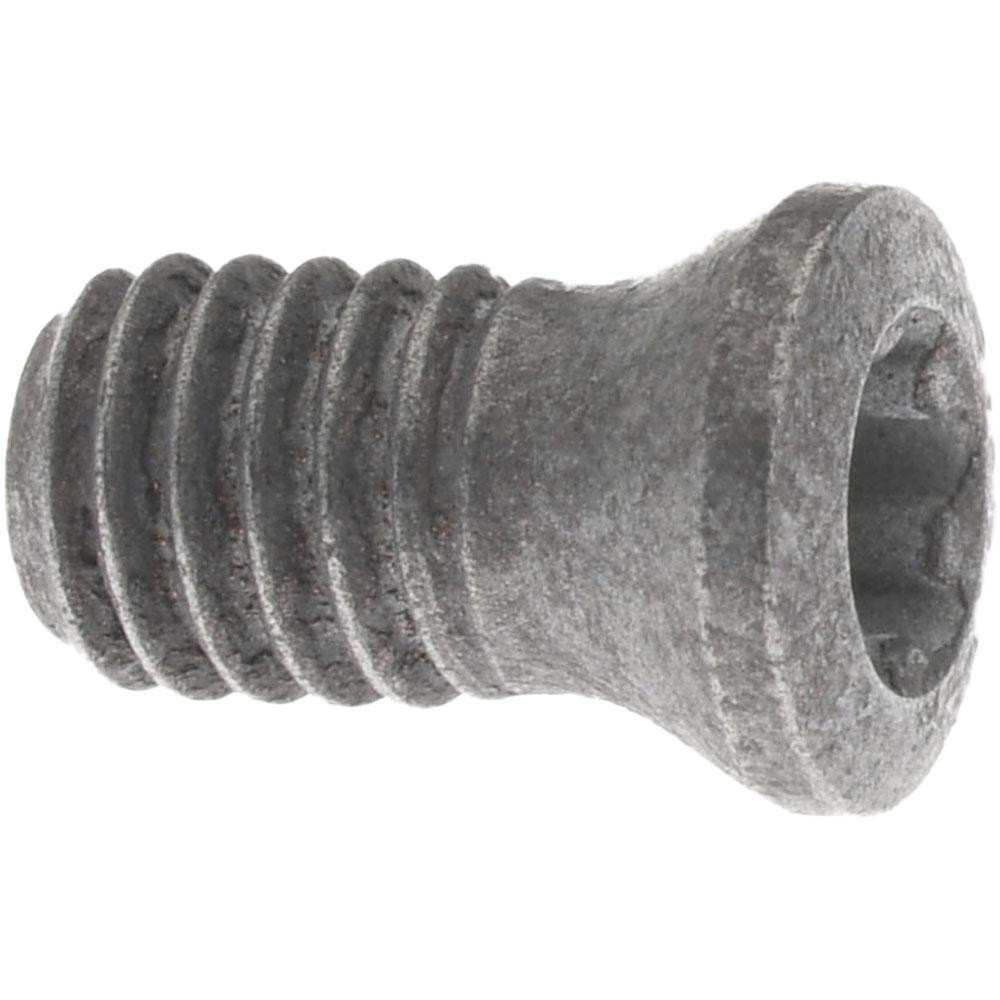

| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Overall Length (Decimal Inch) | 1.1020 |
| Maximum Rpm | 20000 |
| Modular Connection Size | M16 |
| Functional Length (mm) | 28.00 |
| Insert Diameter (Decimal Inch) | 0.2362 |
| Insert Diameter (mm) | 6.00 |
| Tool Application | Milling |
| Toolholder Material | Steel |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 77904258 |
