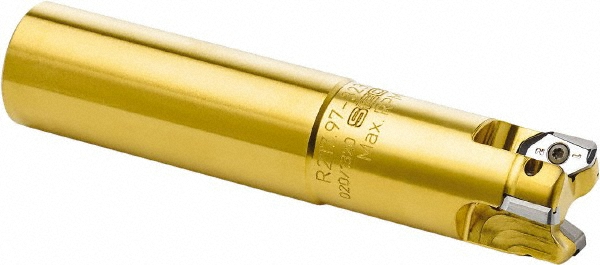

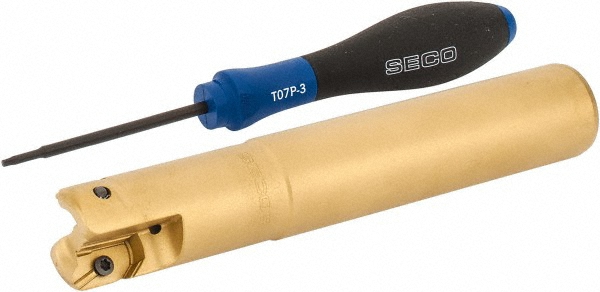

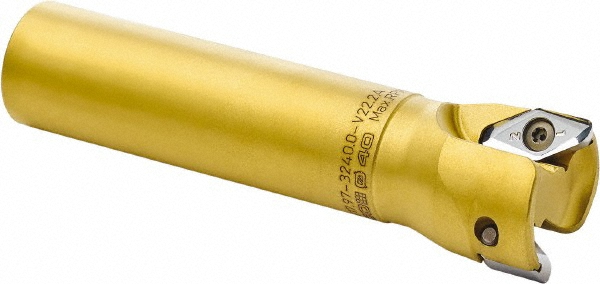

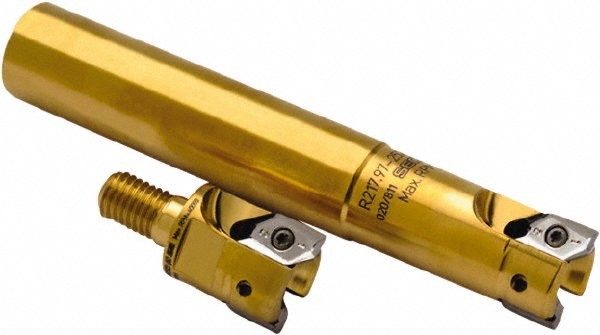

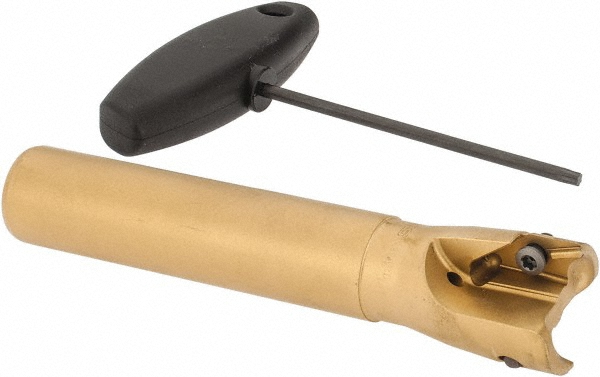

Uses 2 VPGX 2206..E.-E10 Inserts, Cylindrical Shank

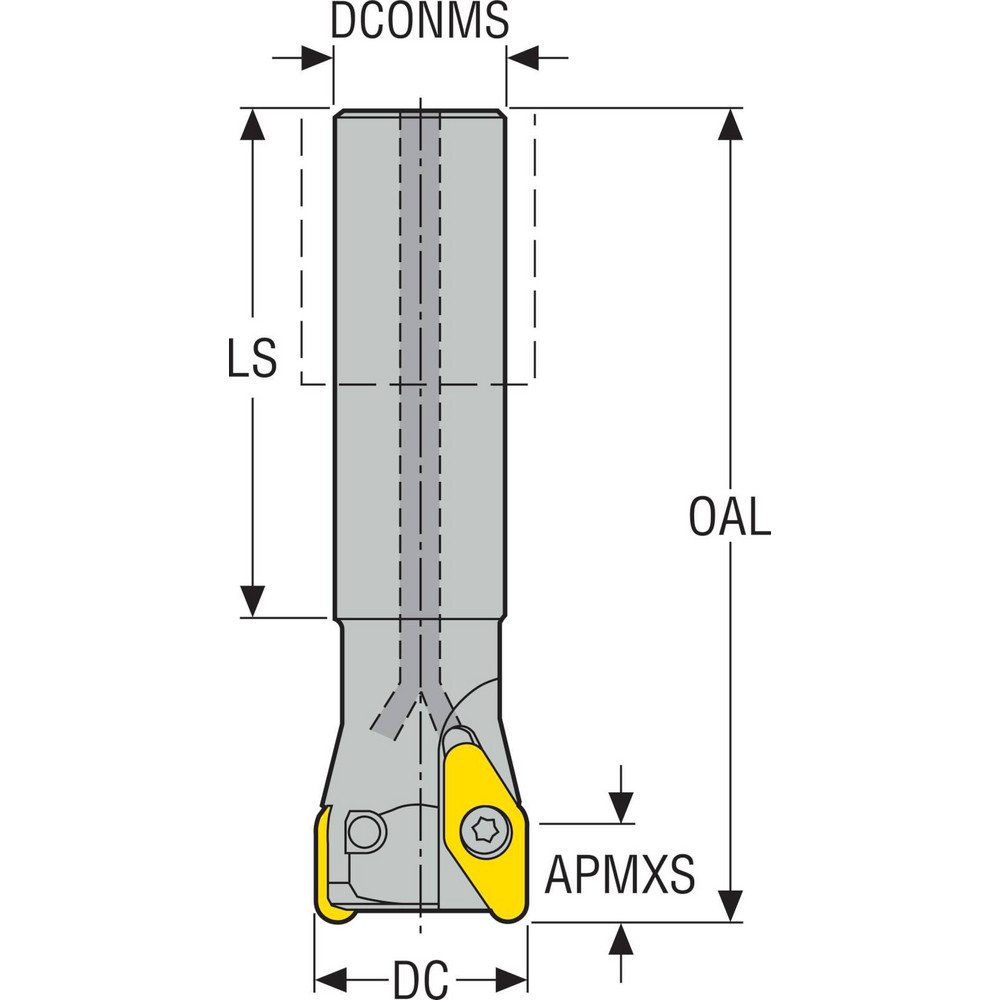

| Cutting Diameter (mm) | 32.00 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Toolholder Style | R217.97 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch - 0 Decimals) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Compatible Insert Style | VPGX 2206..E.-E10 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 4.7240 |
| Maximum Rpm | 40000 |
| Shank Length (mm) | 75.00 |
| Shank Length (Decimal Inch) | 2.9528 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Country of Origin | France |
| MSC Number | MSC# 77908408 |
