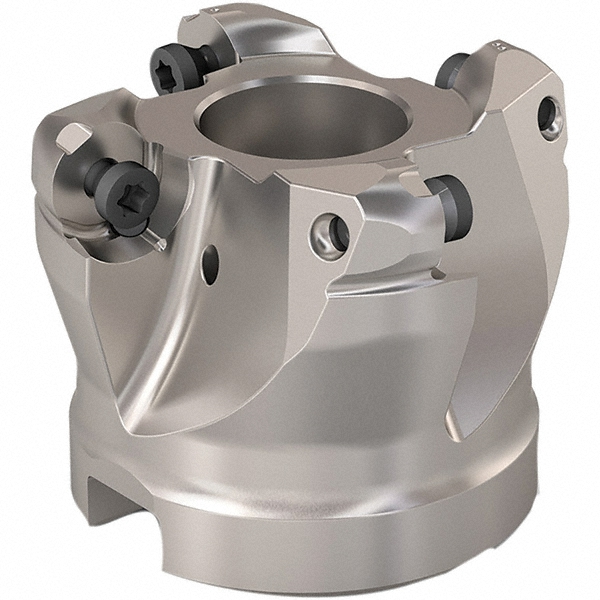

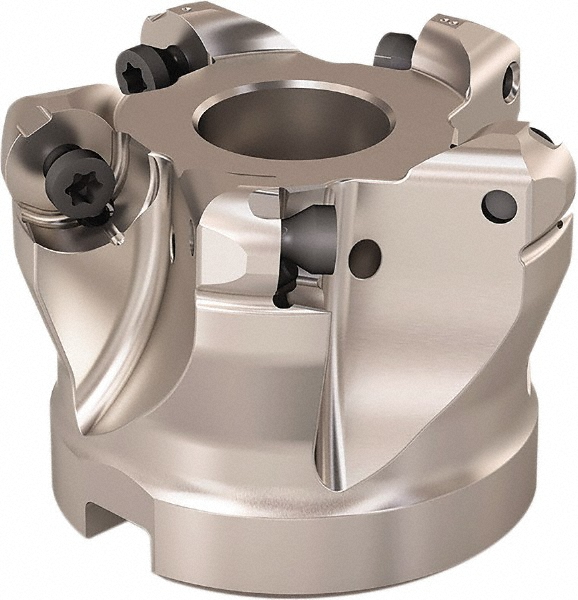

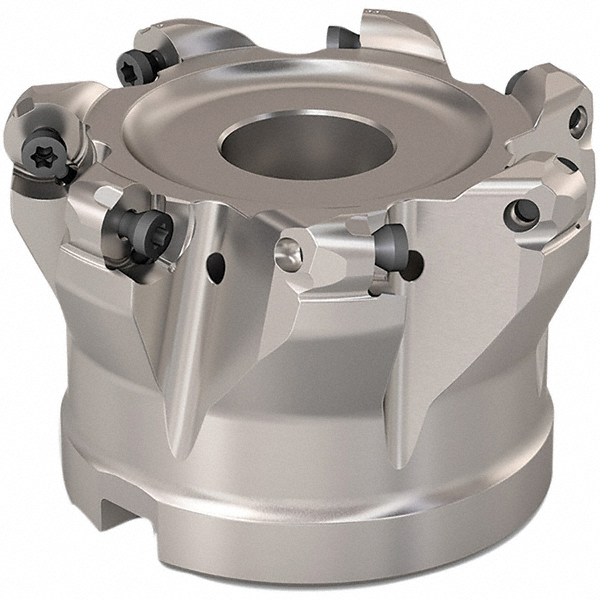

Takes (7) RP..1204 Inserts, 6 mm Max Depth, Through Coolant
| Cutting Diameter (Decimal Inch) | 3.5276 |
|---|---|
| Cutting Diameter (mm) | 89.60 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | RP..1204 |
| Cutter Style | R220.29 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220.29 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.00 |
| Keyway Width | 16.0000 |
| Keyway Width (Decimal Inch) | 16.0000 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum RPM | 8800 |
| Insert Inscribed Circle (mm) | 12.00 |
| Number Of Cutter Inserts | 7 |
| Overall Diameter (Mm - 4 Decimals) | 101.60 |
| Coolant Through | Yes |
| Overall Diameter (Decimal Inch - 4 Decimals) | 4.0000 |
| UNSPSC Code | 27112803 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 48050587 |
