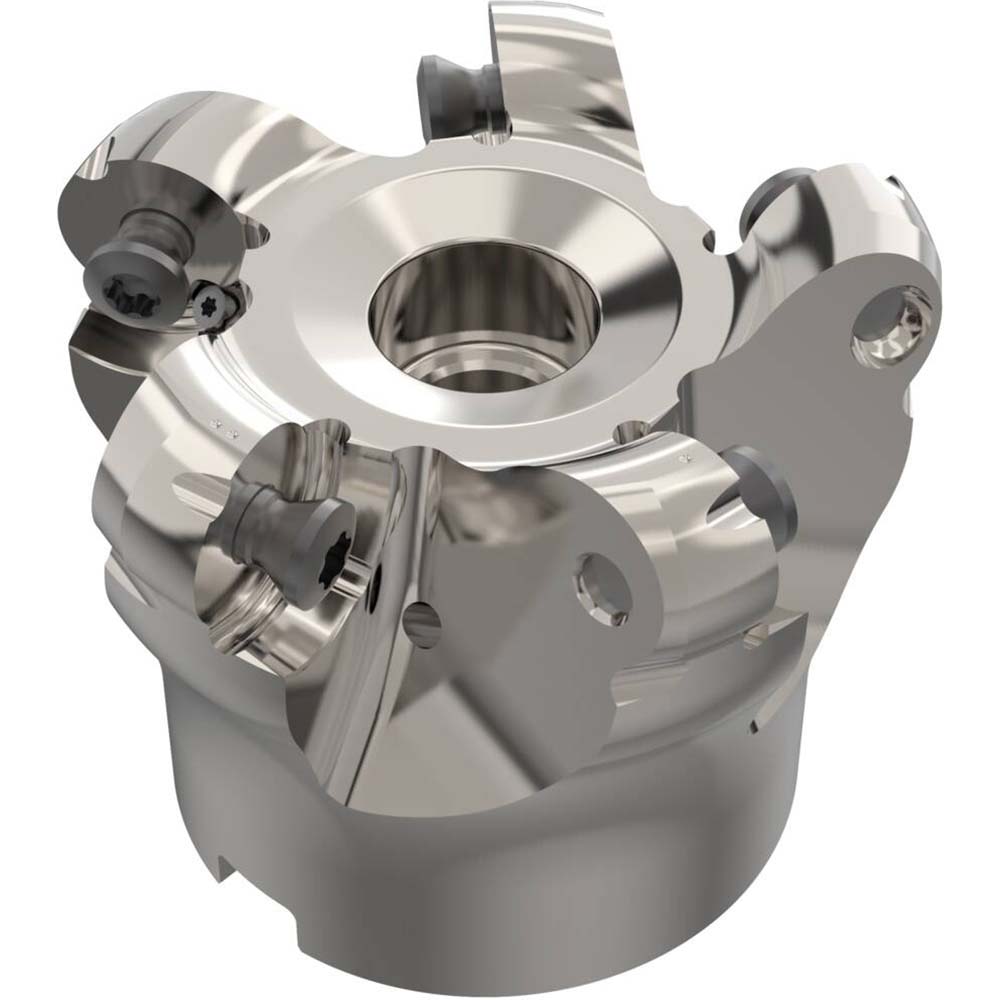

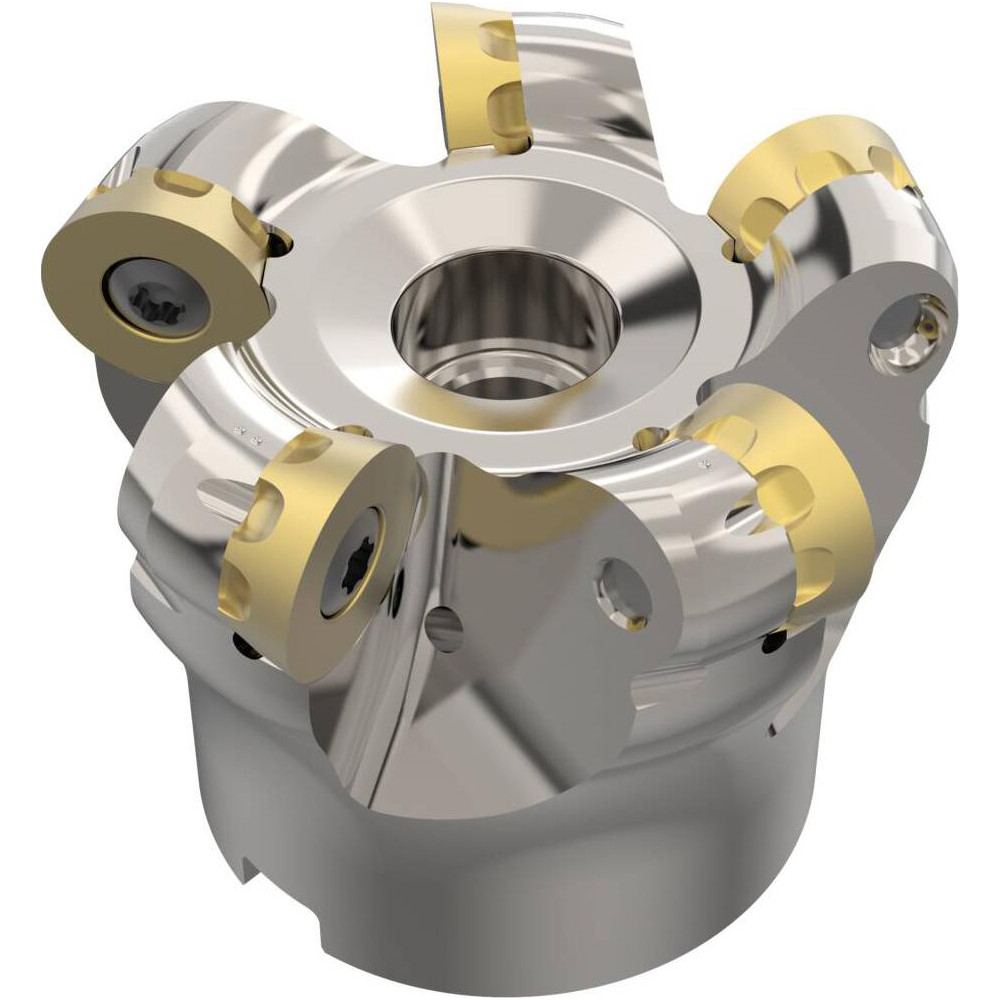

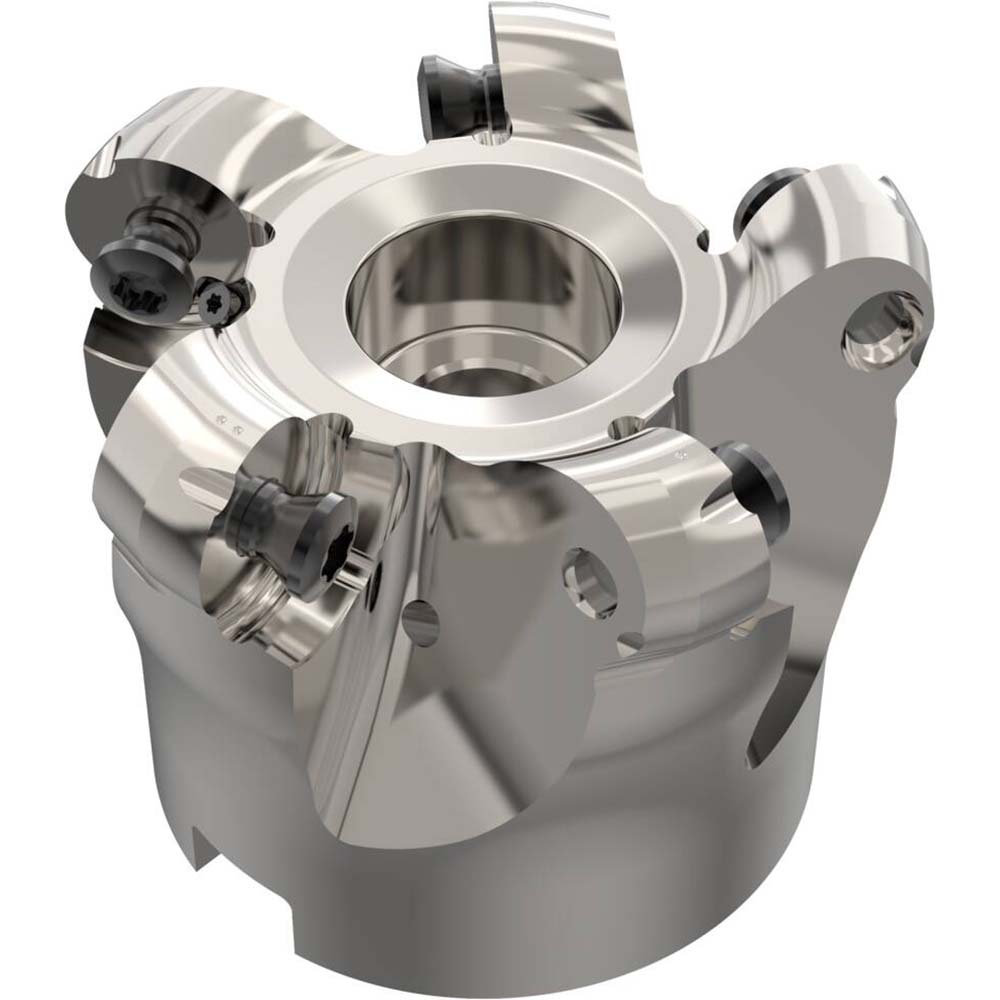

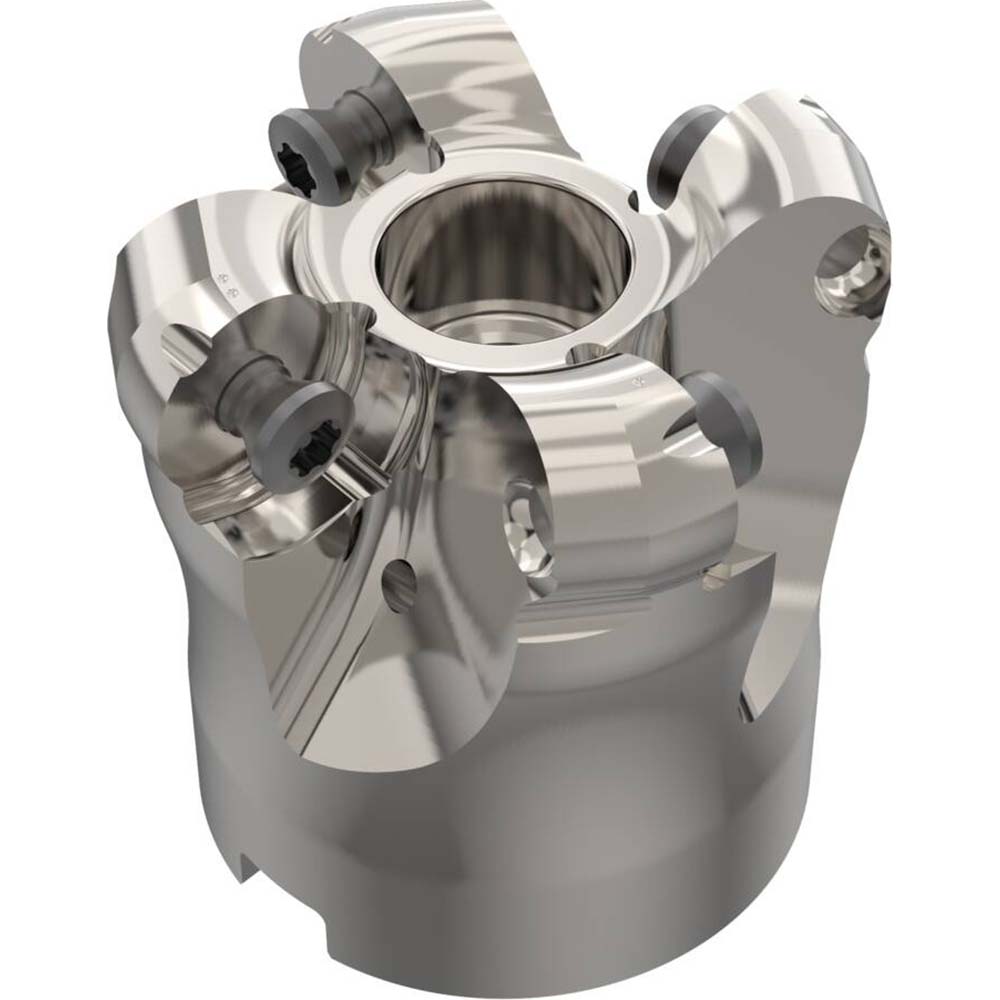

Takes (5) RP..16.. Inserts, 8 mm Max Depth, Through Coolant

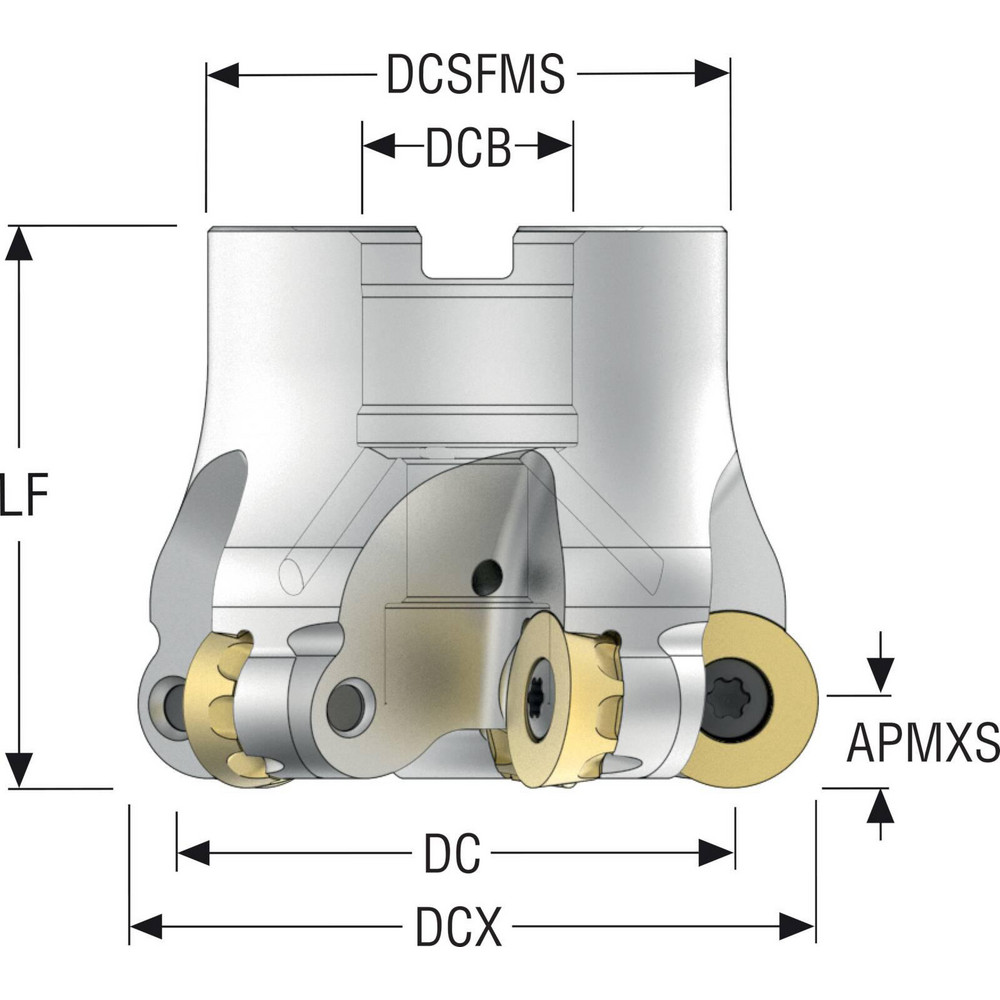

| Cutting Diameter (Decimal Inch) | 1.8750 |
|---|---|
| Cutting Diameter (Inch) | 1-7/8 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Compatible Insert Size Code | RP..16.. |
| Cutter Style | R220.29 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220.29 |
| Hub Diameter (mm) | 46.00 |
| Keyway Width (mm) | 8.15 |
| Keyway Width | 8.1500 |
| Keyway Width (Decimal Inch) | 8.1500 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum RPM | 8700 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Overall Diameter (Decimal Inch - 4 Decimals) | 2.5000 |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 94873049 |
