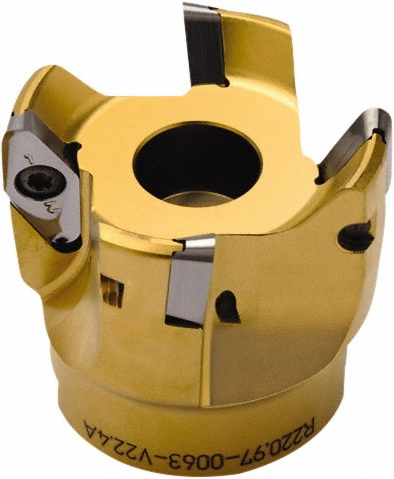

Takes (3) VPGX 2206 Inserts, 0.3937" Max Depth, Through Coolant

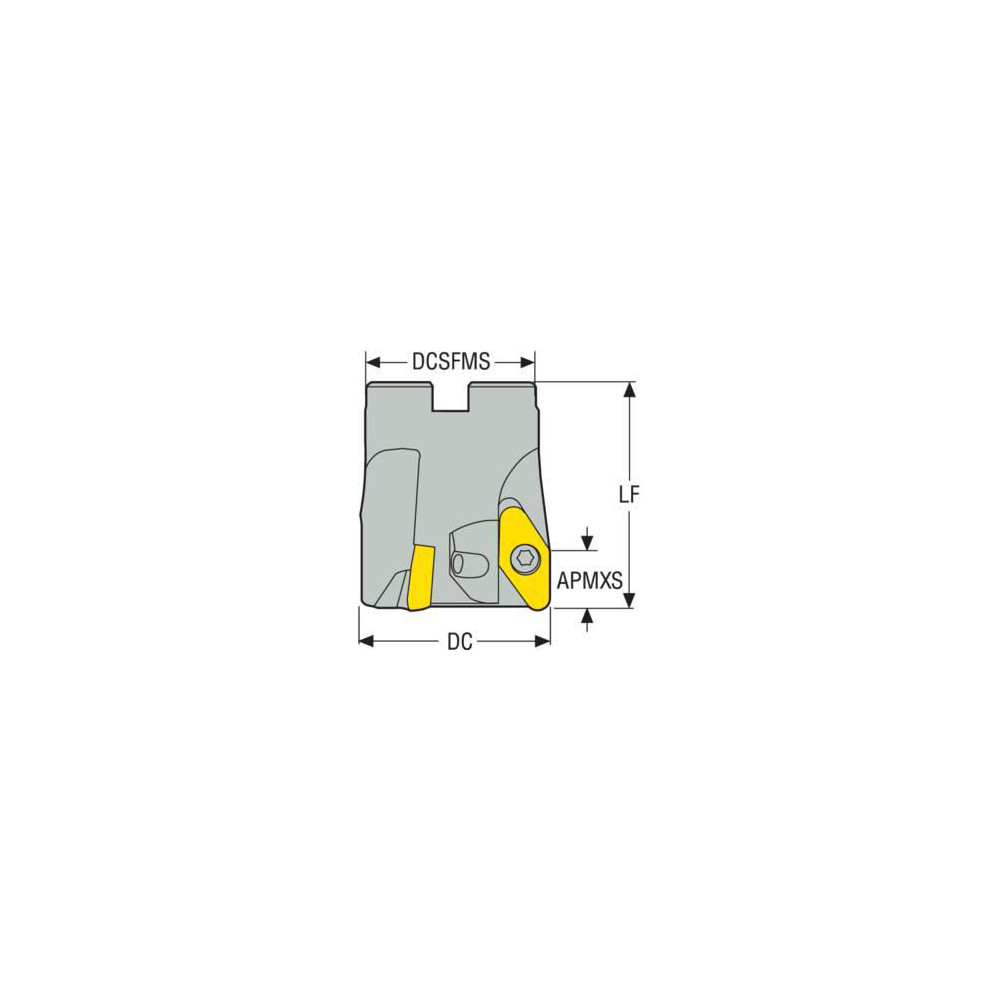

| Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | VPGX 2206 |
| Maximum Ramping Angle | 8.00 |
| Cutter Style | R220.97 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Counterbore Diameter (mm) | 22.00 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Overall Height (Decimal Inch) | 57.00 |
| Maximum RPM | 30000 |
| Tool Application | Helical Interpolation; Ramping |
| Complete Insert Compatibility | VPGX 220620ER-E10; VPGX 220648ER-E10; VPGX 220640ER-E10; VPGX 220616ER-E10; VPGX 220631EN-E10; VPGX 220624ER-E10; VPGX 220663ER-E10; VPGX 220608PDER-E10; VPGX 220605ER-E10 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 04957858 |
