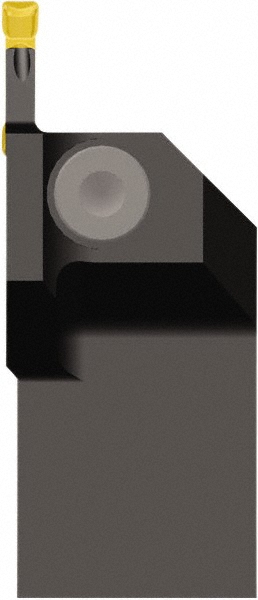

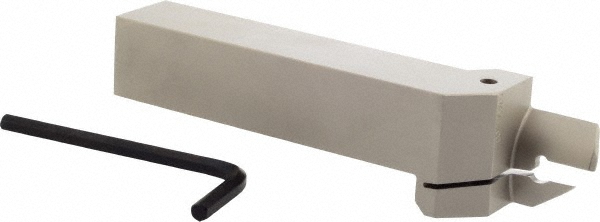

0.98" Max Depth of Cut, 1-1/4 x 1-1/4" Shank
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 5 |
| Hand of Holder | Right Hand |

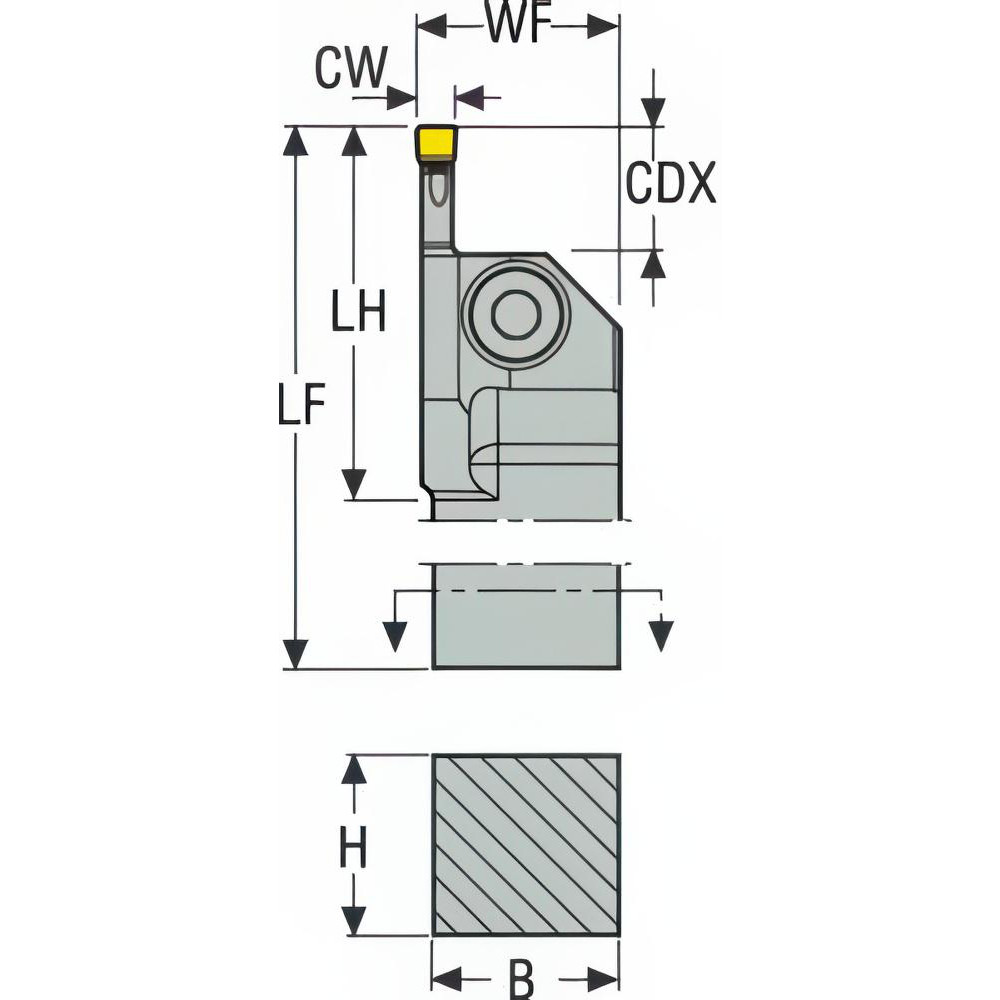

| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | CFM |
| Insert Holding Method | Clamp |
| Insert Compatibility | LC.. 1605.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Multi-Directional Turning (MDT); Jetstream |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3000 |
| Head Length (Decimal Inch) | 2.18 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160502-0500-GS; LCGN 160507-0150R-D76; LCGN 160507-0355-ST; LCGN 160507-0150L-D76; LCGN 160502-0520-FG; LCMF 160500-A187-MP; LCGF 1605M0-0500-RP; LCGN 160502-0500-FG; LCMF 160504-0500-FT; LCGF 160500-0476-RP; LCGF 160502-0500-GG; LCMF 160504-0500-MC |
| Coolant Through | No |
| Country of Origin | India |
| MSC Number | MSC# 60183597 |
