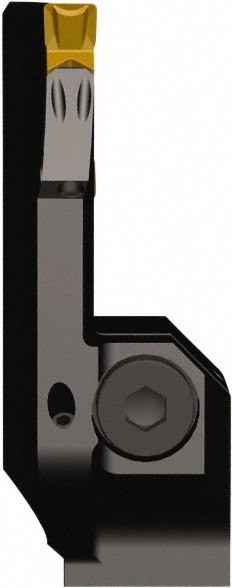

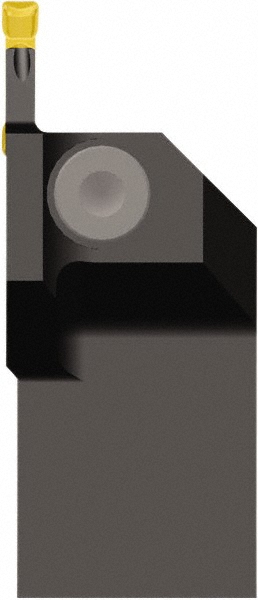

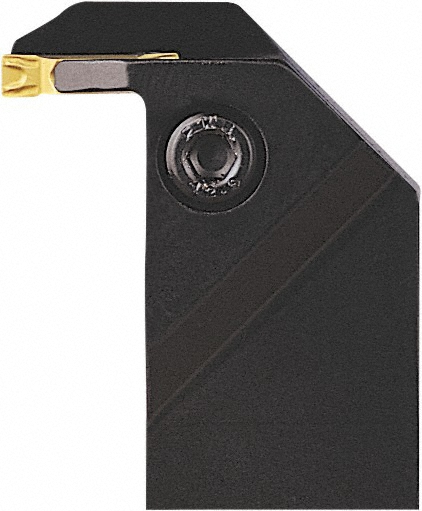

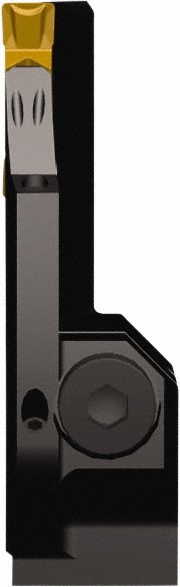

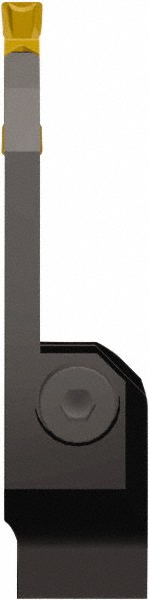

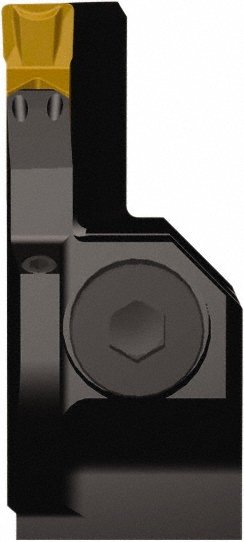

1.42" Max Depth of Cut, 1 x 1" Shank, Uses LC1606 Inserts
| Insert Seat Size | 6 |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.4200 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | CFO |
| Insert Holding Method | Clamp |
| Insert Compatibility | LC.. 1606.. |
| Compatible Insert Size Code | LC1606 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Multi-Directional Turning (MDT); Jetstream |
| Shank Length (mm) | 81.00 |
| Shank Length (Decimal Inch) | 3.1890 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |

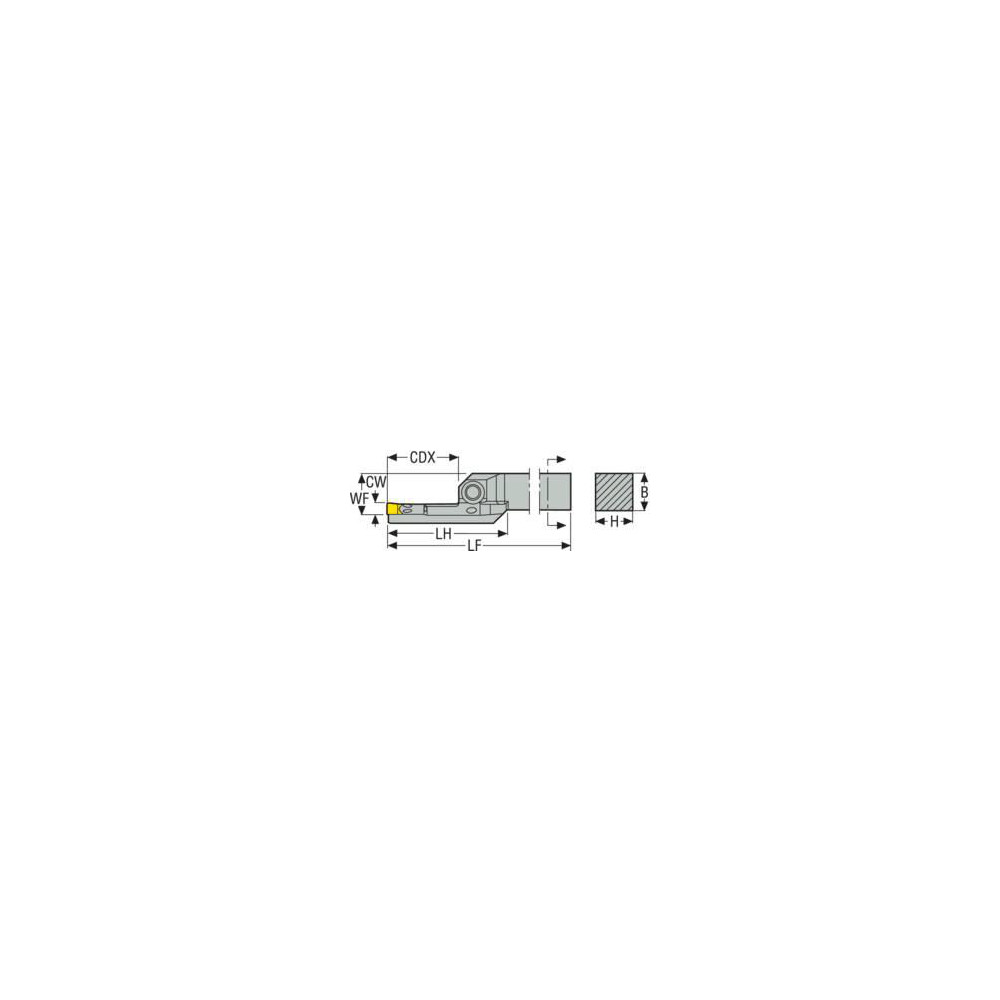

| Back of Bar to Cutting Edge (Decimal Inch) | 1.0400 |
| Head Length (Decimal Inch) | 2.83 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 20.00 |
| Minimum Axial Groove Inside Diameter(mm) | 8.00 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160604-0600-GS; LCMF 160600-A250-MP; LCMF 160604-0600-MC; LCGN 1606M0-0300-R; LCGN 160602-0635-FG; LCMF 160604-0600-MT; LCGF 160604-0600-GG; LCGN 160610-0200L-D76; LCGN 160610-0200R-D76; LCMF 160604-0600-FT; LCMF 160605-A250-FT; LCGN 160602-0600-FG |
| Coolant Through | No |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 51656163 |
