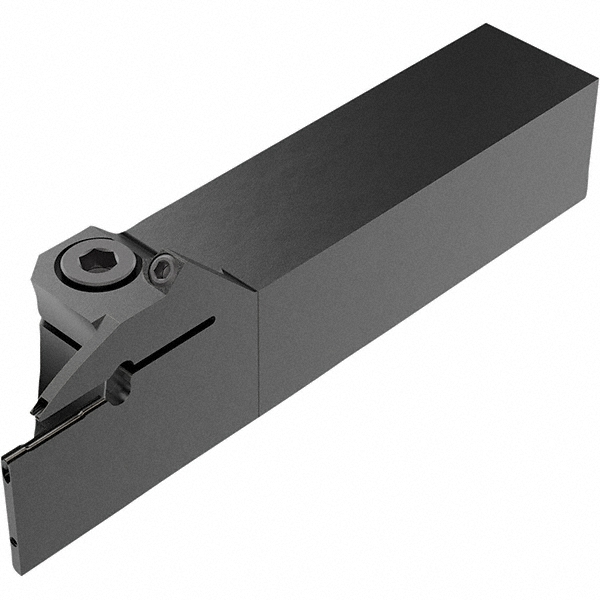

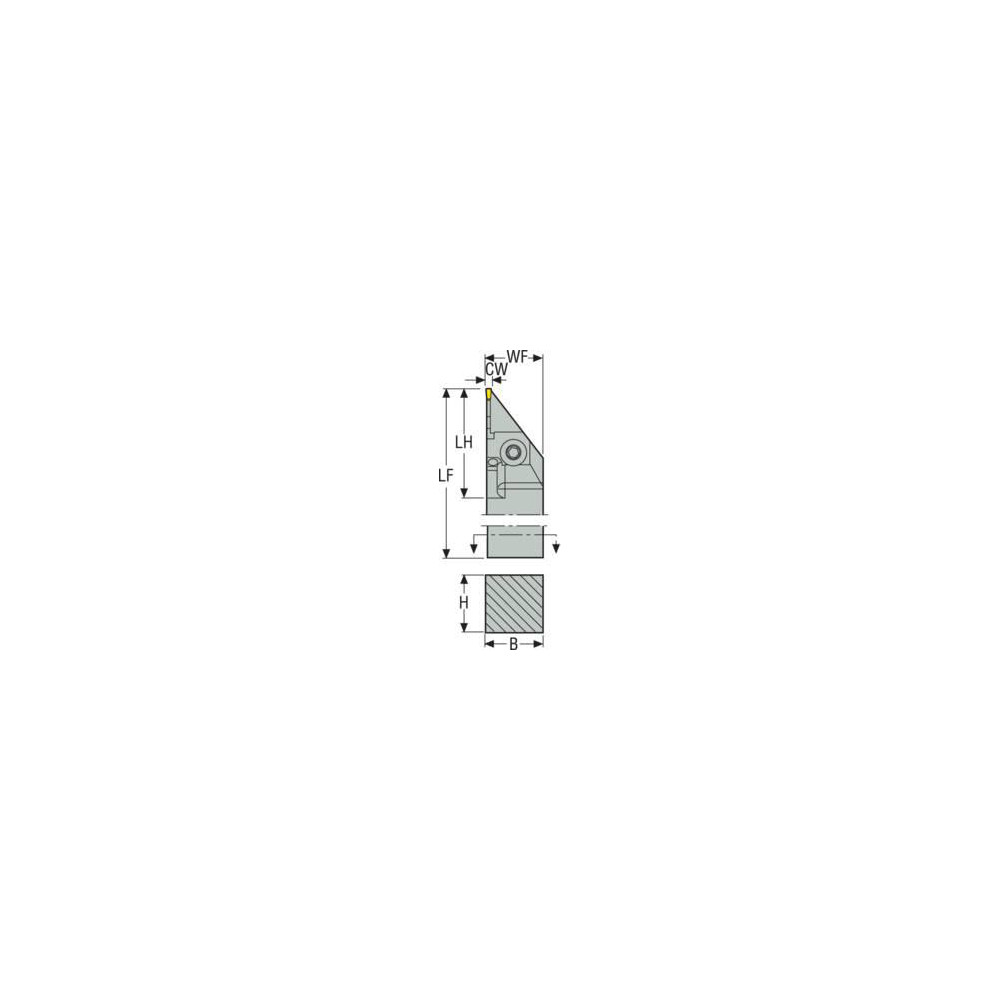

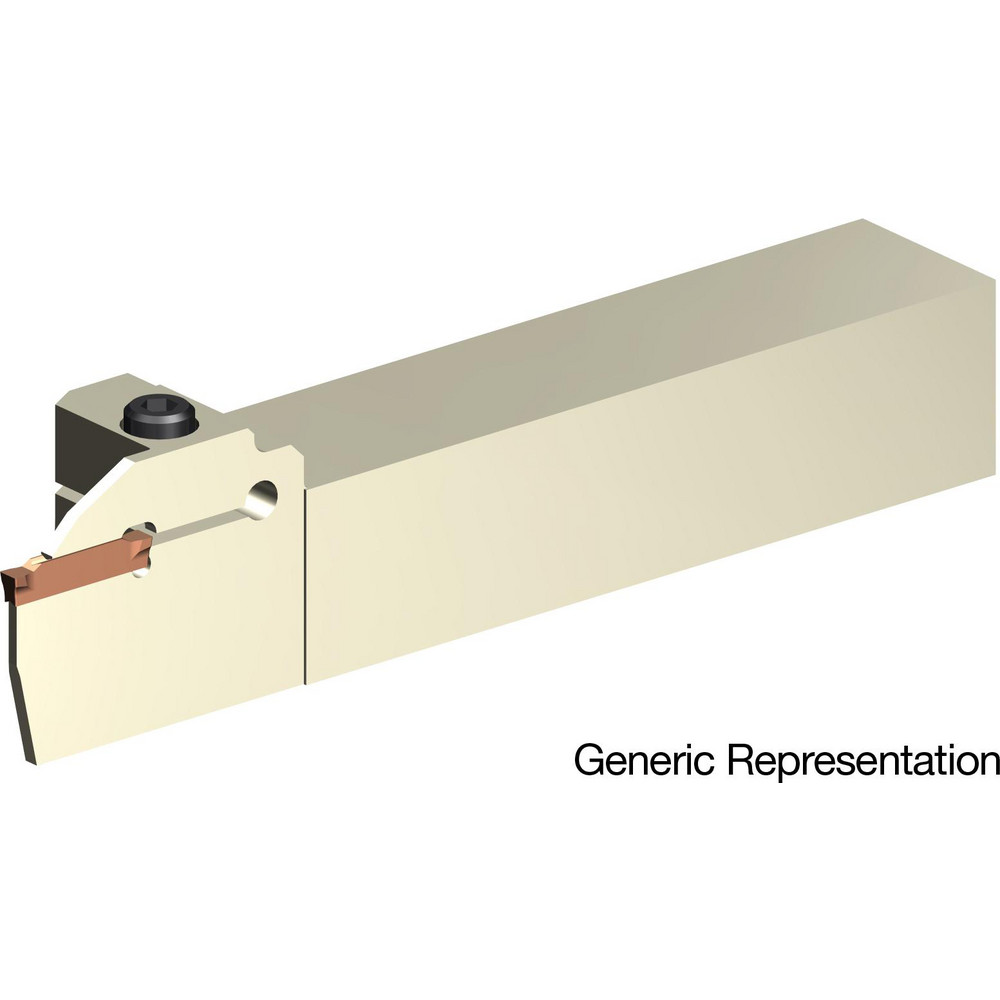

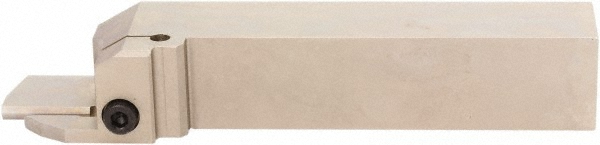

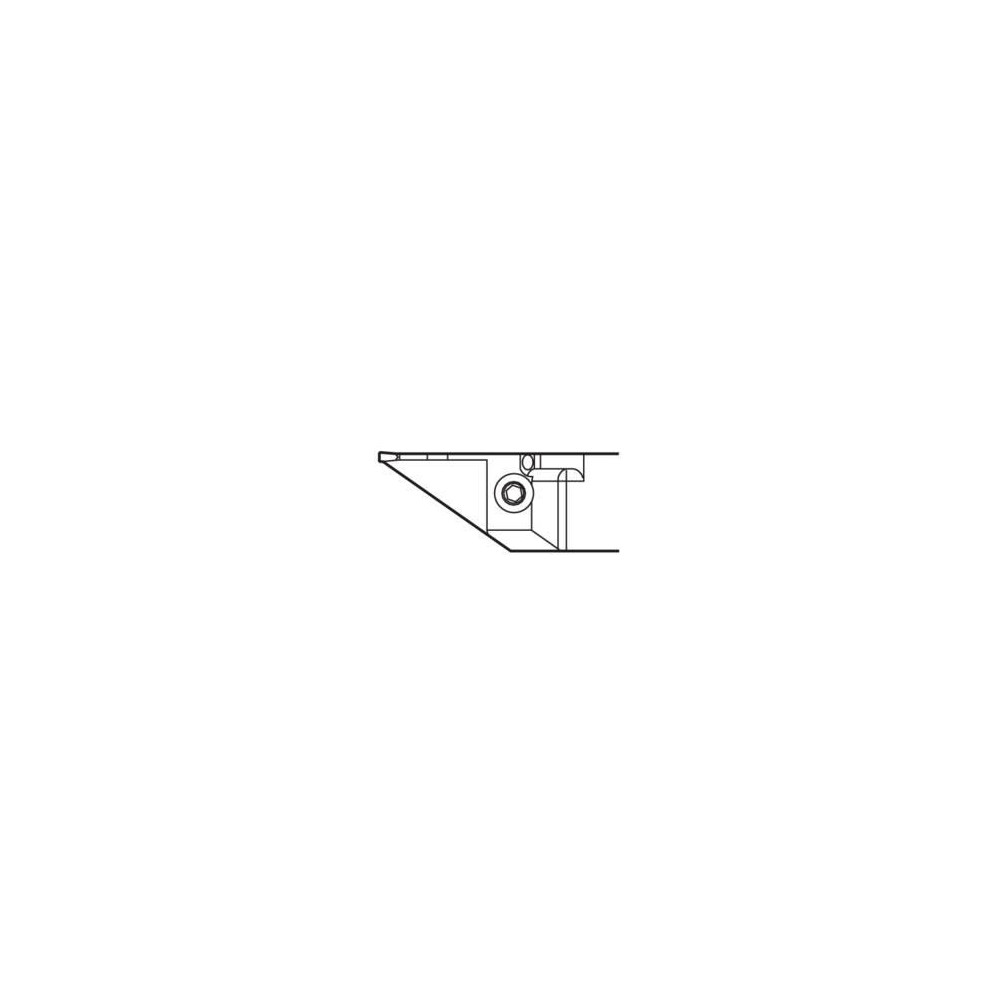

33.53 mm Max Depth of Cut, 3/4 x 3/4" Shank, Uses LC1902 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3200 |
| Maximum Depth of Cut (mm) | 33.53 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | CFS |
| Insert Holding Method | Clamp |
| Insert Compatibility | LC.. 1902.. |
| Compatible Insert Size Code | LC1902 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Multi-Directional Turning (MDT); Jetstream |
| Shank Length (mm) | 114.30 |
| Shank Length (Decimal Inch) | 4.5000 |
| Shank Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2990 |
| Maximum Workpiece Diameter (mm) | 33.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.5 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCMF 190202-0200-FTL6; LCMF 190202-0200-FTR6; LCMF 190202-0200-FT |
| Coolant Through | No |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 60137098 |
