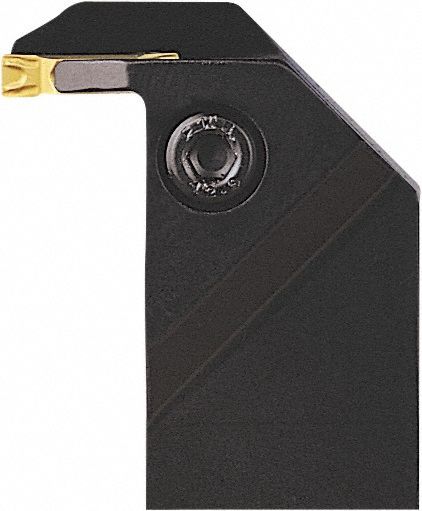

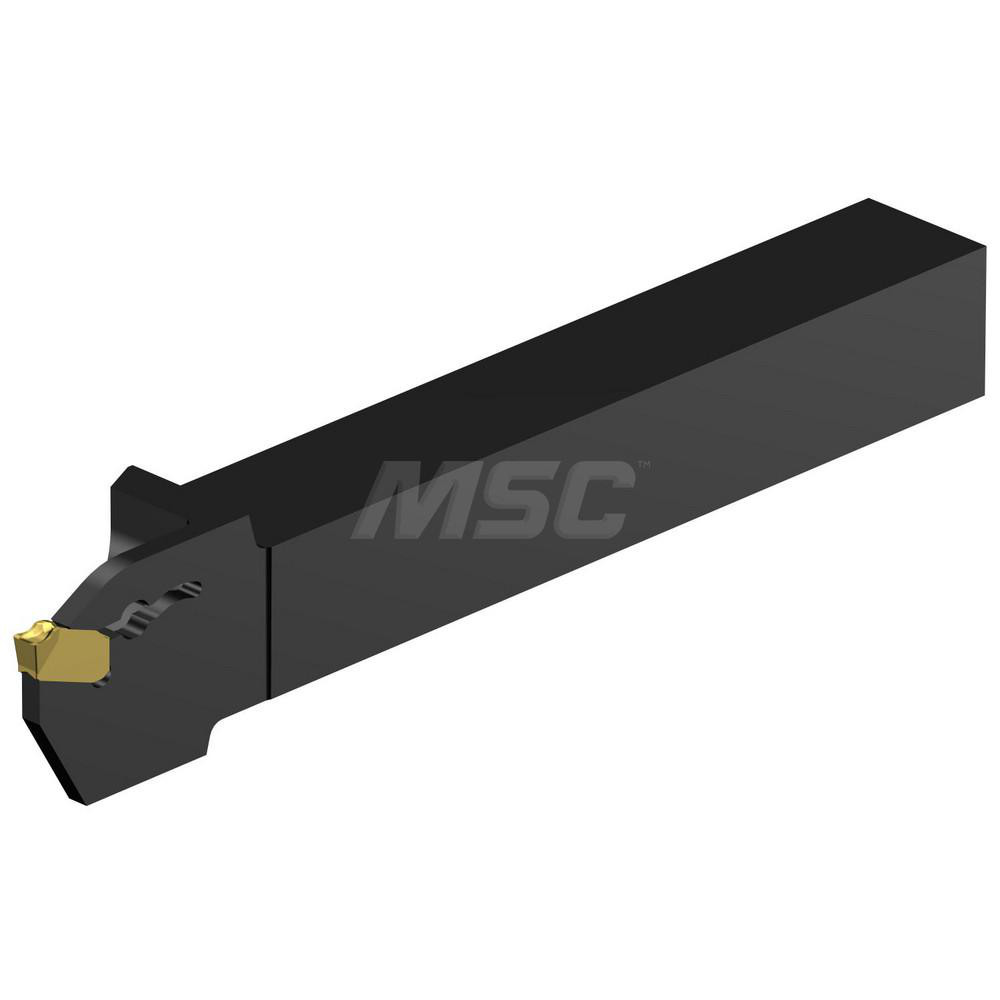

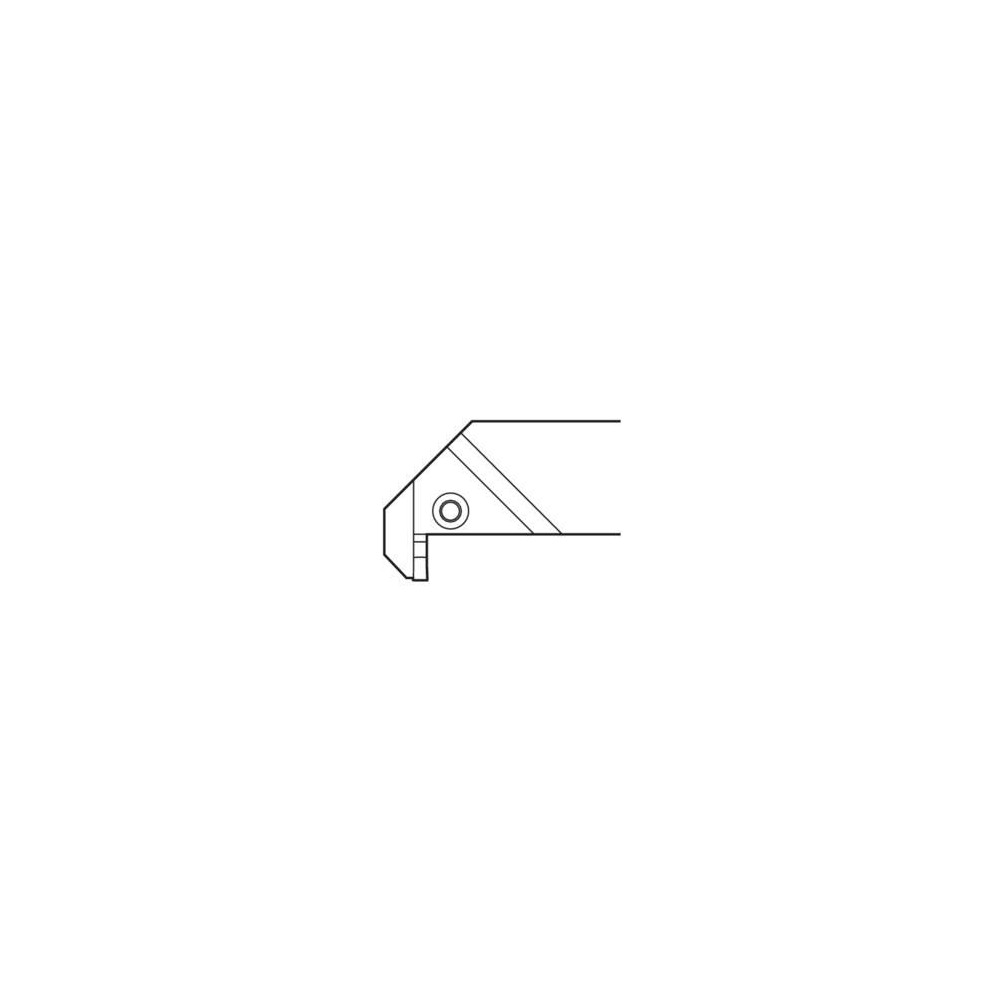

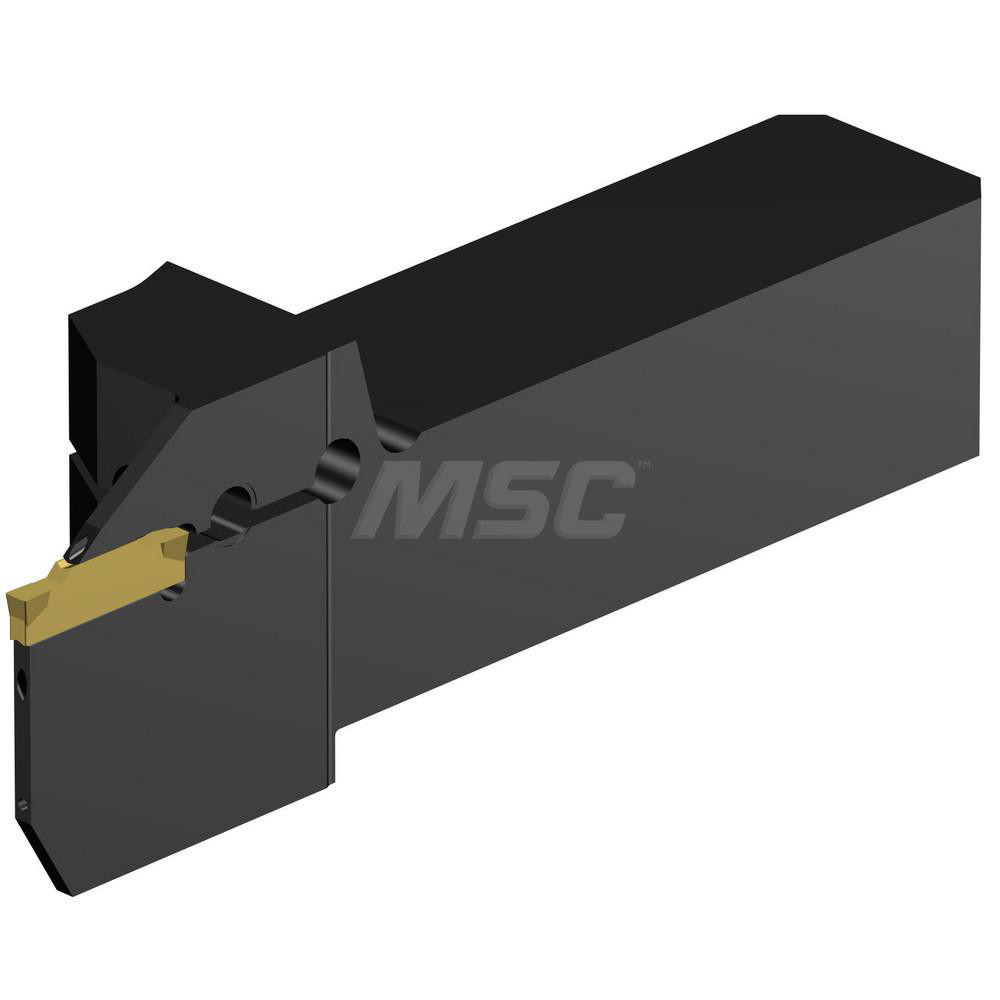

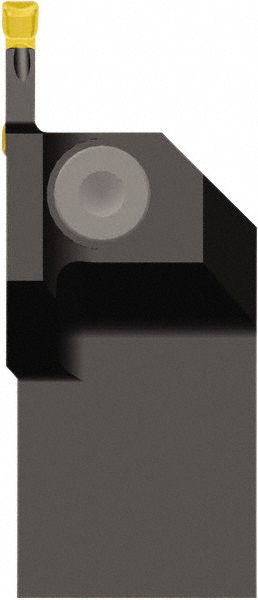

0.8" Max Depth of Cut, 1 x 1" Shank, Uses LC1606 Inserts

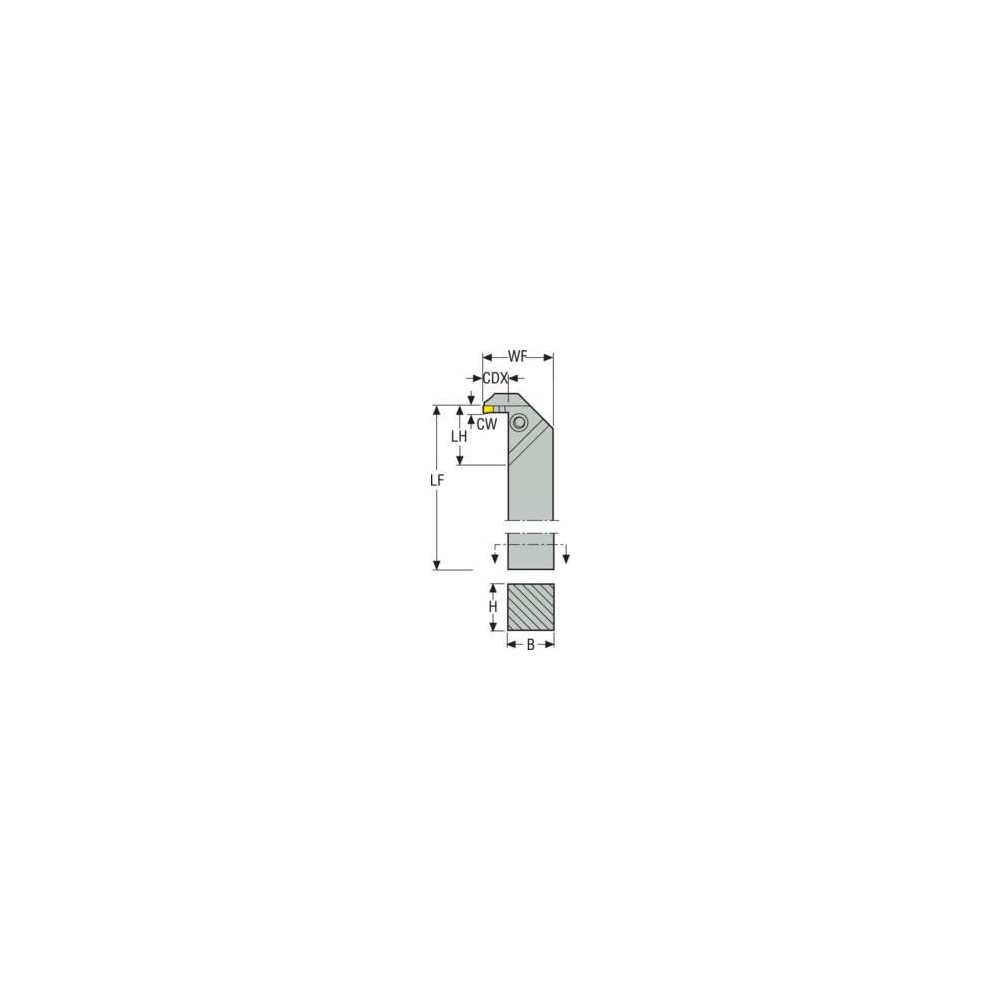

| Insert Seat Size | 6 |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | CGI |
| Insert Holding Method | Clamp |
| Insert Compatibility | LC.. 1606.. |
| Compatible Insert Size Code | LC1606 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Multi-Directional Turning (MDT) |
| Shank Length (mm) | 118.40 |
| Shank Length (Decimal Inch) | 4.6610 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.7900 |
| Head Length (Decimal Inch) | 1.26 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 6.7000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 4.3000 |
| Complete Insert Compatibility | LCMF 300812-1000-FT; LCGF 3008M0-0800-RP; LCMF 300808-1000-FT; LCMF 300812-0800-FT; LCMF 3008M0-0800-MP; LCGF 300804-0800-GG; LCMF 300804-0800-FT; LCMR 300808-0800-FT; LCGF 3008M0-1000-RP; LCMF 300808-0800-FT; LCGF 300804-0800-GS; LCMF 3008M0-1000-MP |
| Coolant Through | No |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 76758929 |
