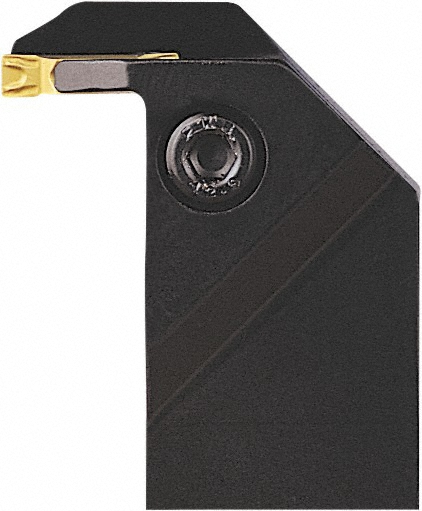

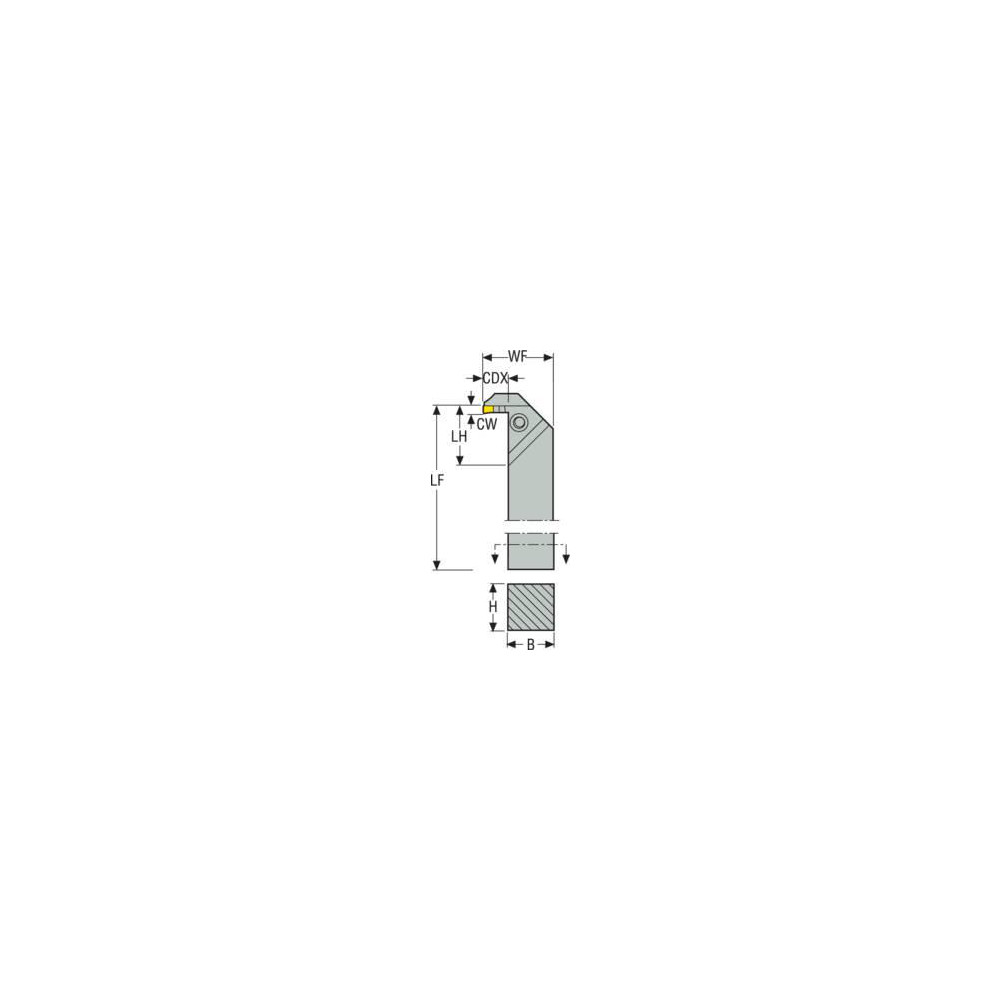

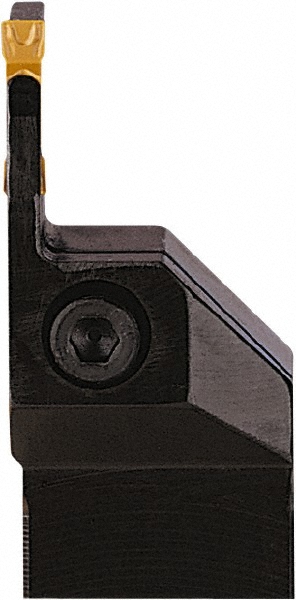

0.53" Max Depth of Cut, 1 x 1" Shank, Uses LC1604 Inserts
| Insert Seat Size | 4 |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5300 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | CGI |
| Insert Holding Method | Clamp |
| Insert Compatibility | LC.. 1604.. |
| Compatible Insert Size Code | LC1604 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Multi-Directional Turning (MDT) |
| Shank Length (mm) | 119.40 |
| Shank Length (Decimal Inch) | 4.7010 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5100 |
| Head Length (Decimal Inch) | 1.26 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 4.0000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 2.7500 |
| Complete Insert Compatibility | LCGF 160402-0400-GG; LCGN 160402-0420-FG; LCGN 160410-0300-DY; LCGN 160402-0440-FG; LCGN 160410-0300-ST; LCGN 160402-0400-FG; LCGN 160405-0240-DY; LCGN 160405-0265-DY; LCMF 160402-0400-FT; LCGF 1604M0-0400-RP; LCGN 1604M0-0200-R; LCGF 160402-0400-GS |
| Coolant Through | No |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 76758861 |
