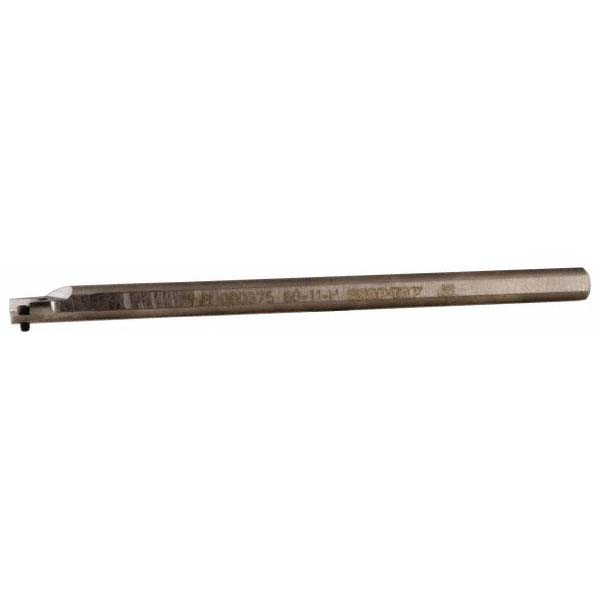

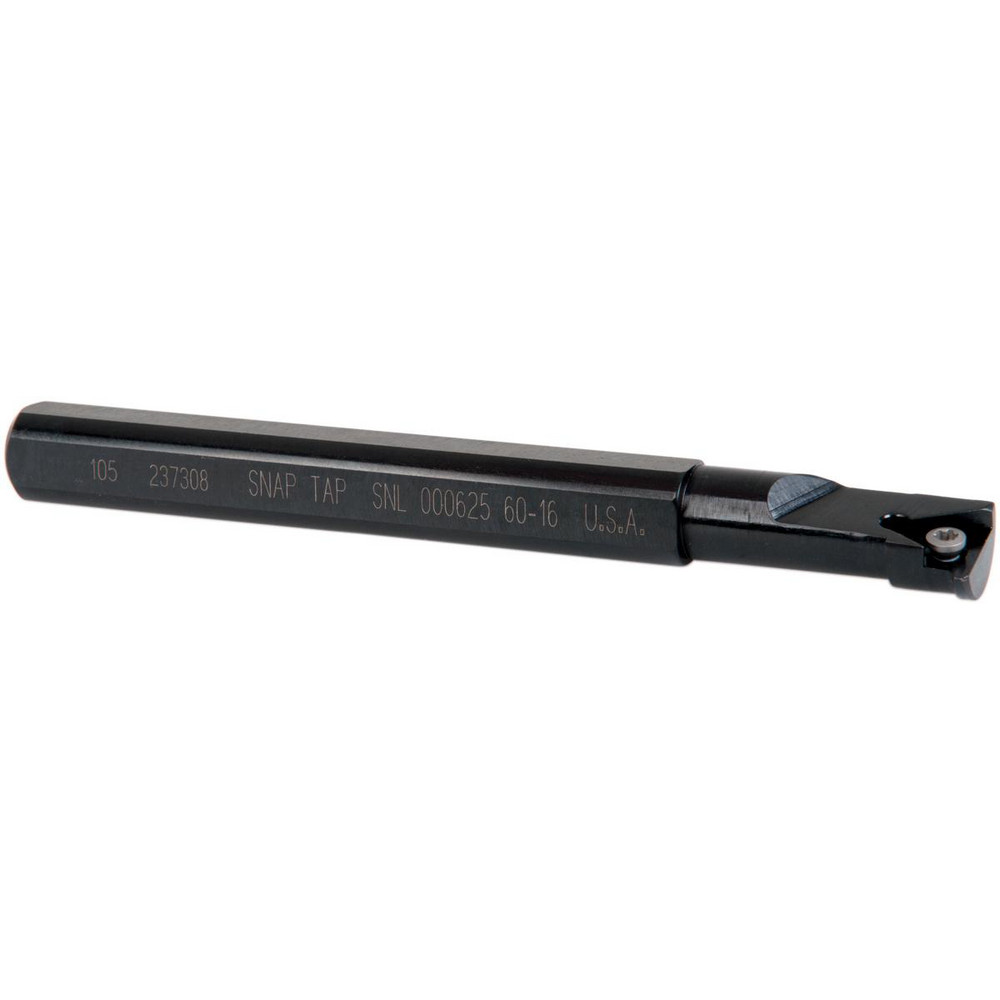

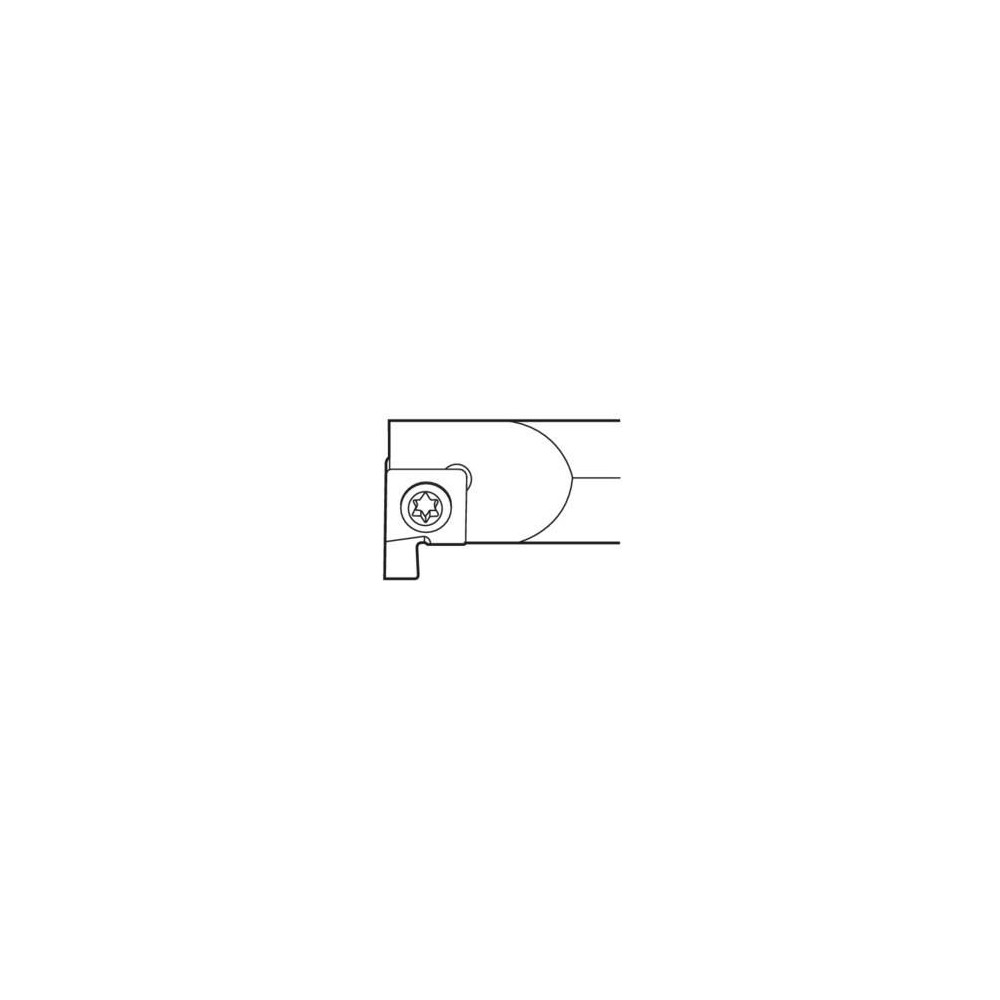

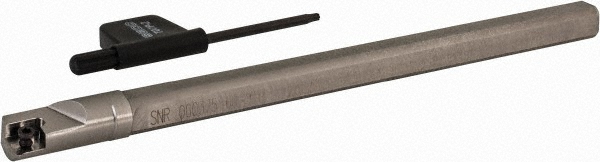

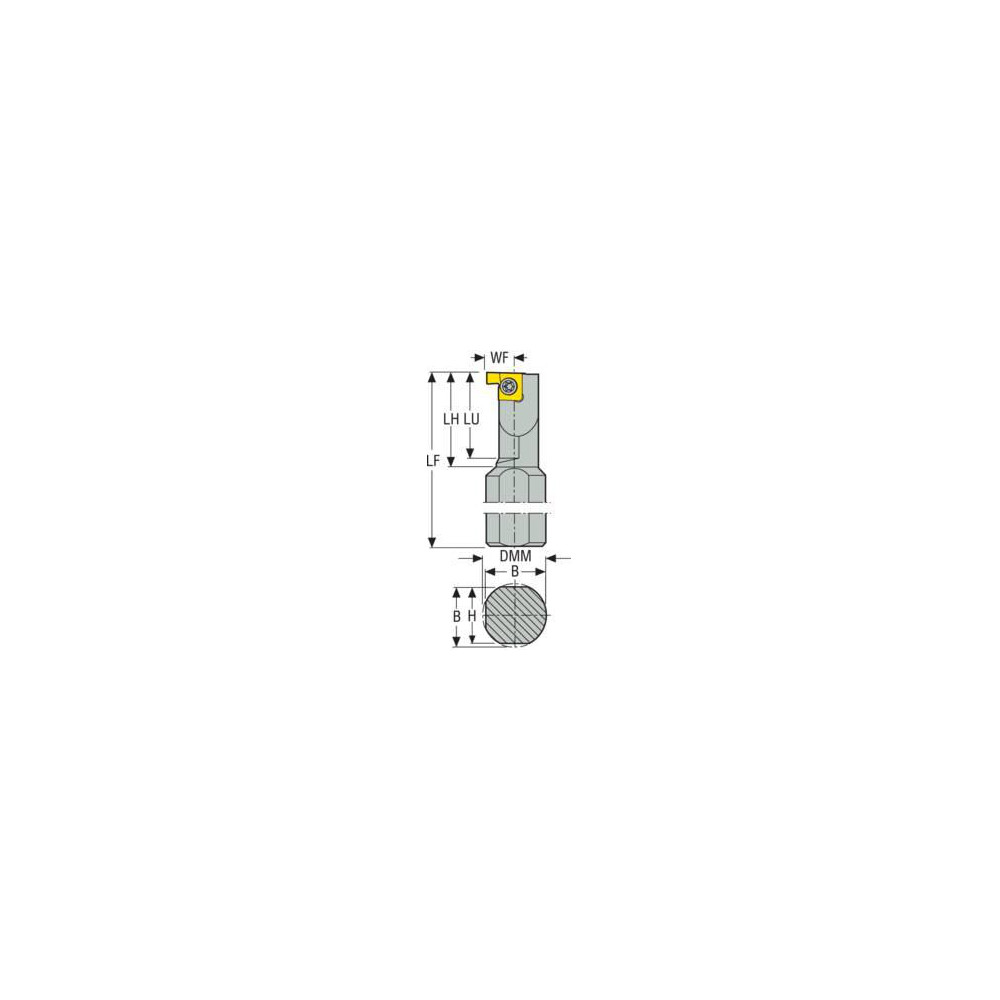

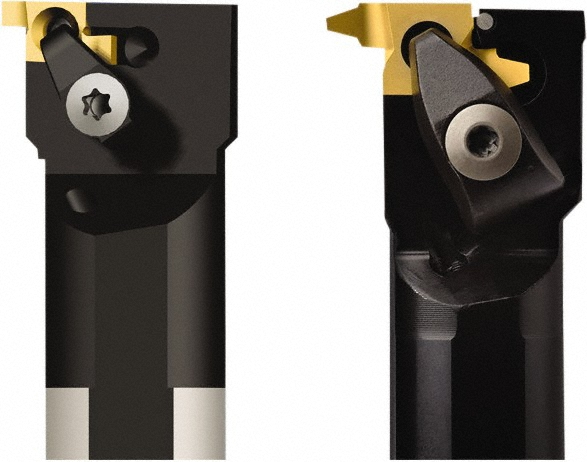

0.103" Max Depth of Cut, 5/8" Shank Dia, Uses 9 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1030 |
| Minimum Groove Width (Decimal Inch) | 0.0300 |
| Toolholder Style | SN |
| Maximum Groove Width (Decimal Inch) | 0.1030 |
| Insert Holding Method | Screw |
| Insert Compatibility | 9NR |
| Compatible Insert Size Code | 9 |
| Shank Height (mm) | 14.40 |
| Shank Height (Decimal Inch) | 0.5660 |
| Series | Snap Tap |
| Shank Length (mm) | 114.30 |
| Shank Length (Decimal Inch) | 4.5000 |
| Shank Length (Inch) | 4-1/2 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.3780 |
| Minimum Hole Diameter (Decimal Inch) | 0.6500 |
| Head Length (Decimal Inch) | 1.5 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| UNSPSC Code | 23153308 |

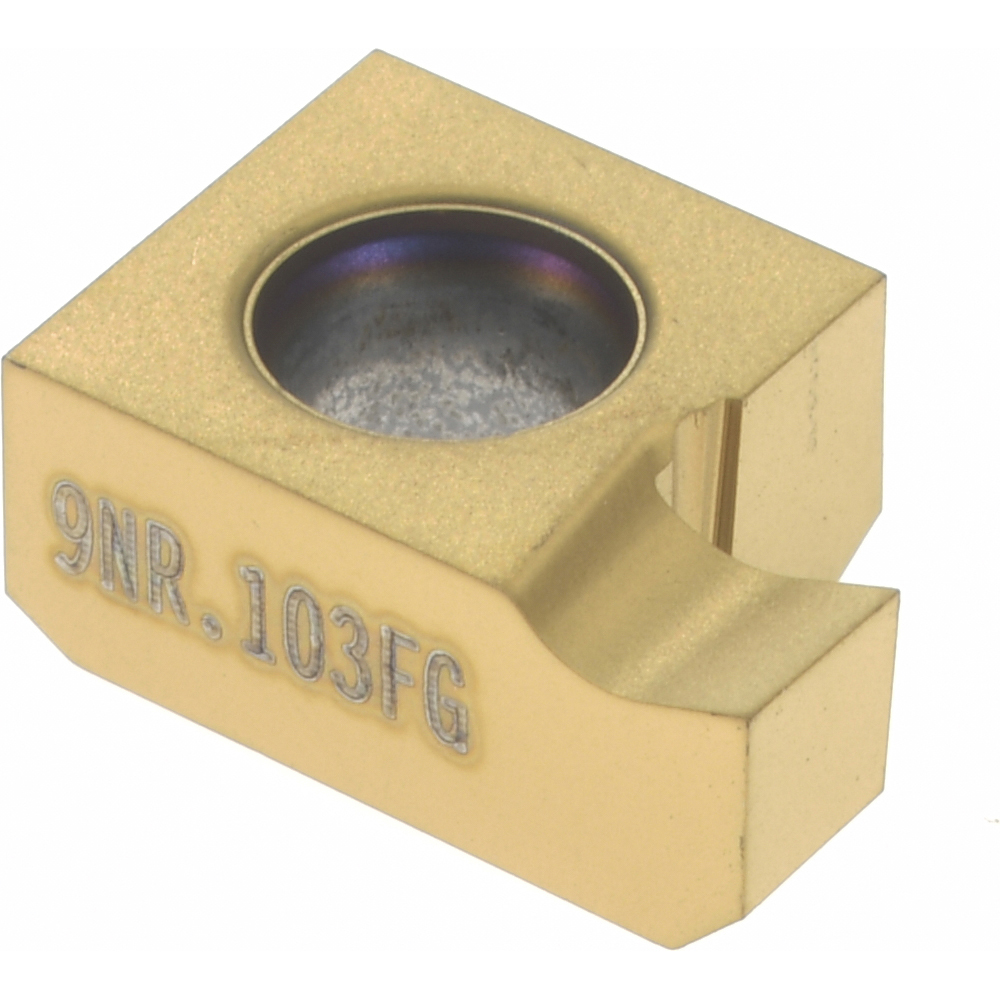

| Complete Insert Compatibility | 9NR .068FG; 9NR .030FG; 9NR .103FG; 9NR .086FG; 9NR .046FG; 9NR .056FG |
| Coolant Through | No |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 57139545 |
