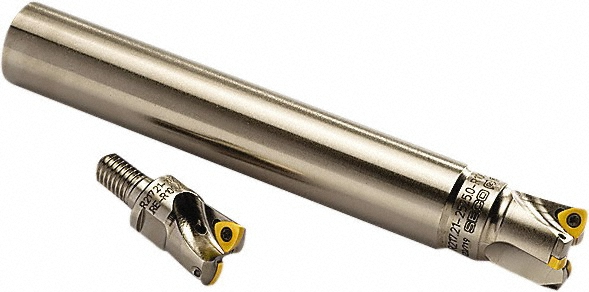

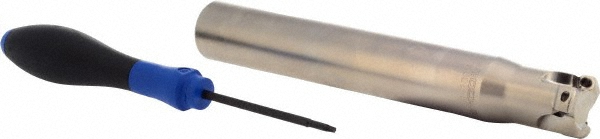

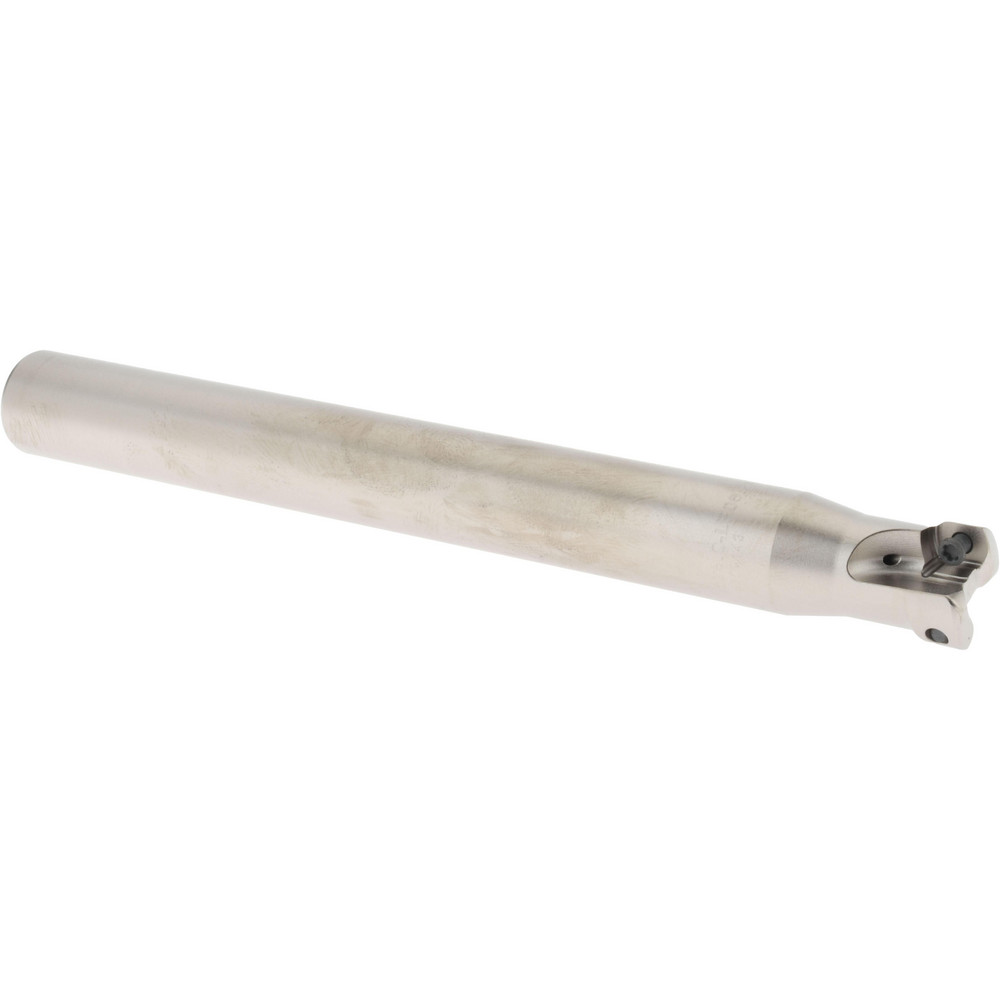

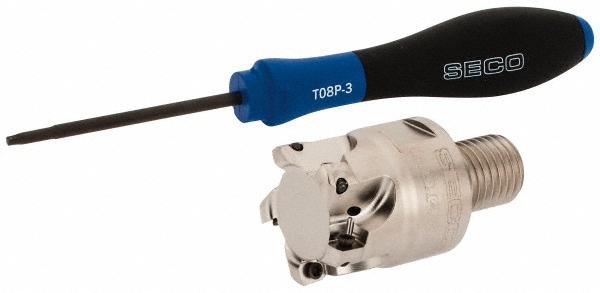

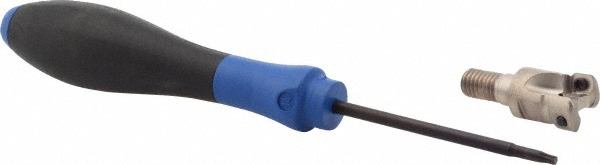

Uses 2 LP06 Inserts, Coolant Through

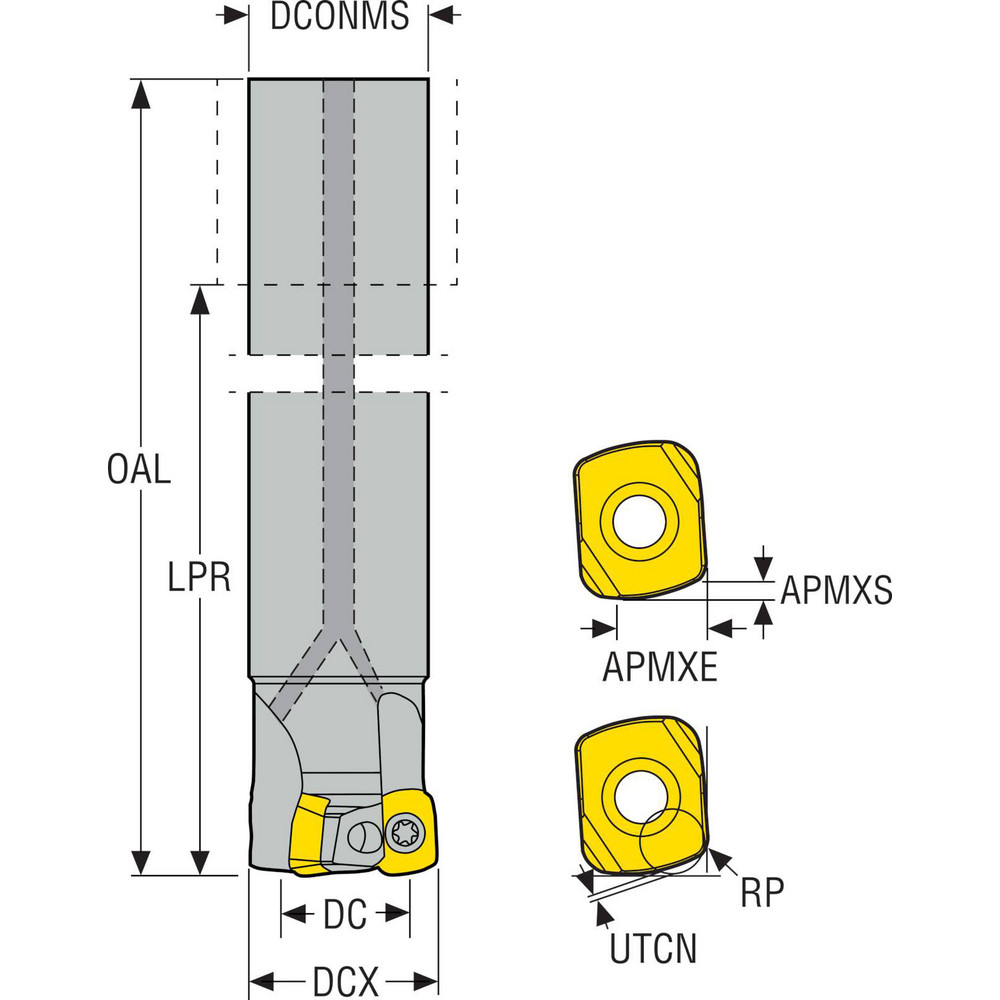

| Minimum Cutting Diameter (Decimal Inch) | 0.4100 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.4720 |
| Maximum Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0300 |
| Toolholder Style | R217.21 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 3.90 |

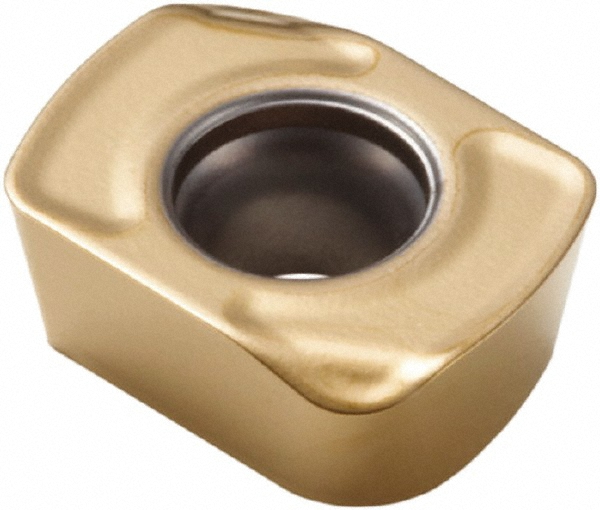

| Compatible Insert Style | LP06 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 6.5000 |
| Maximum RPM | 35000 |
| Tool Application | Milling |
| Weldon Flat | No |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 64424674 |
