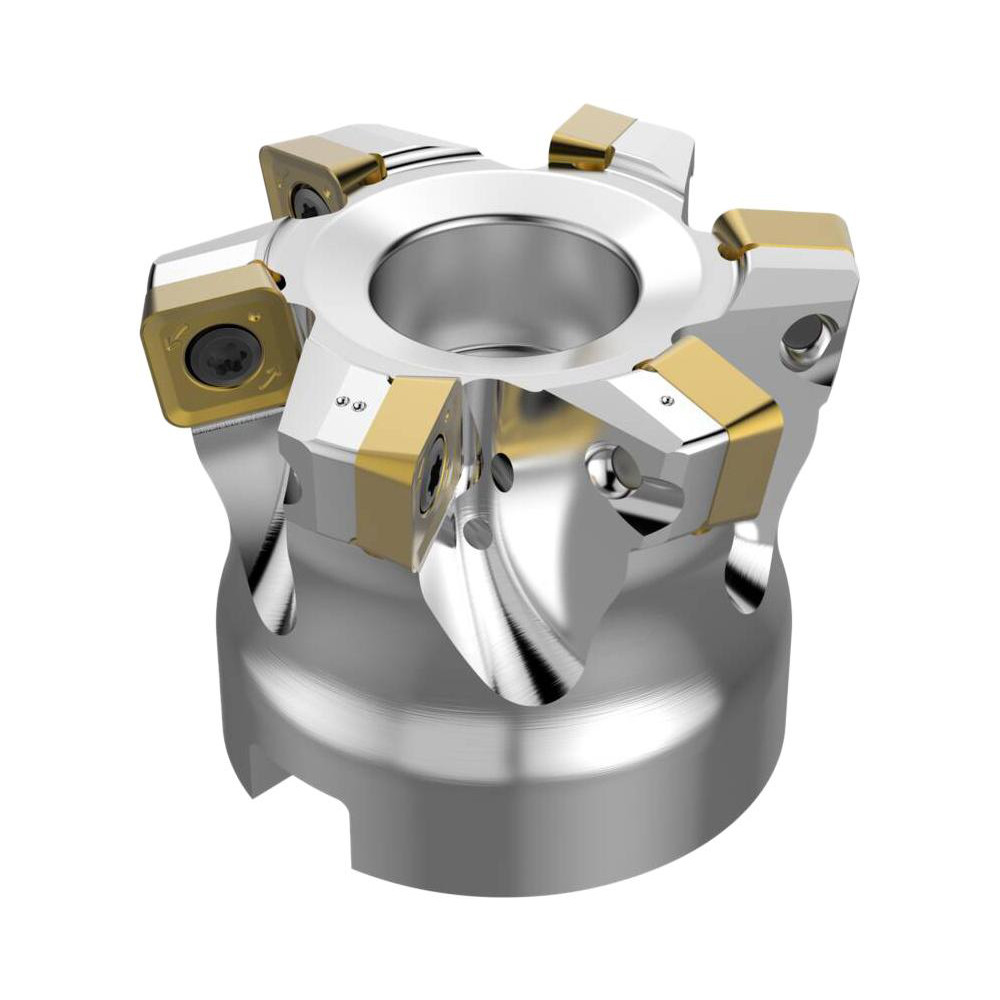

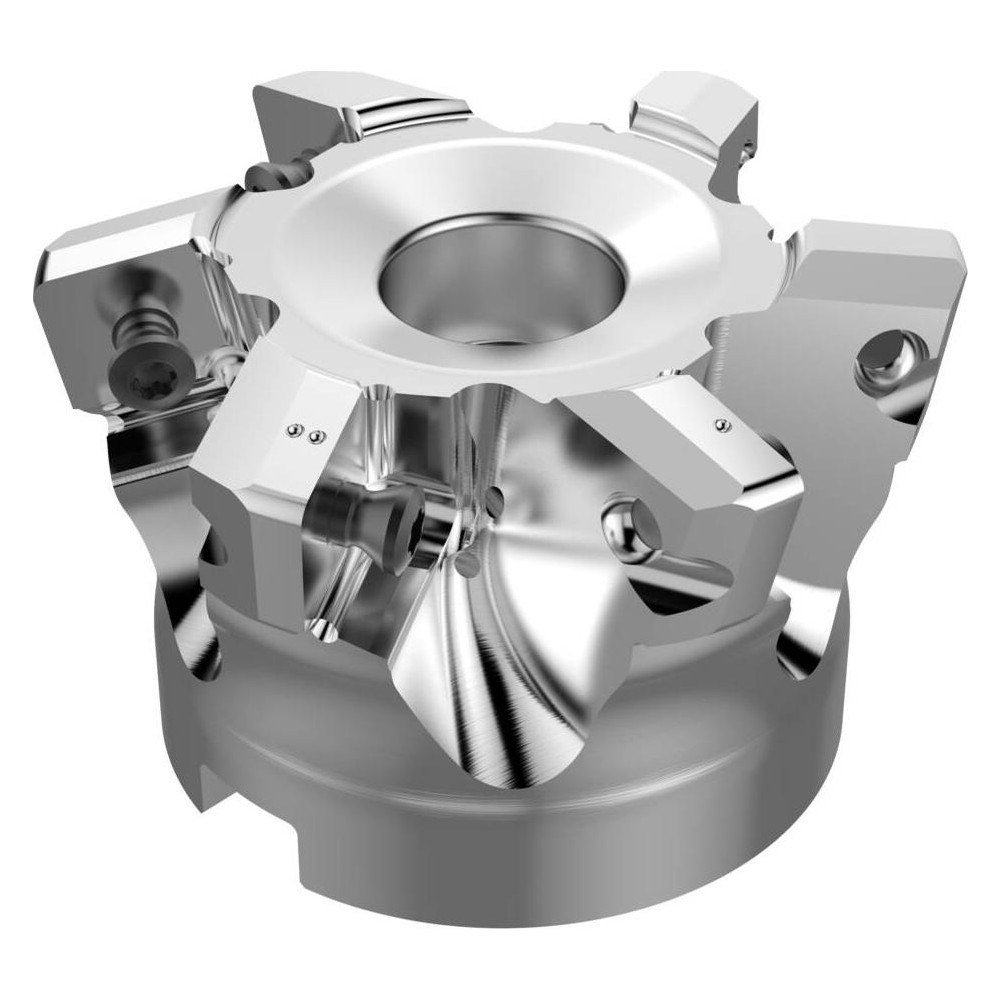

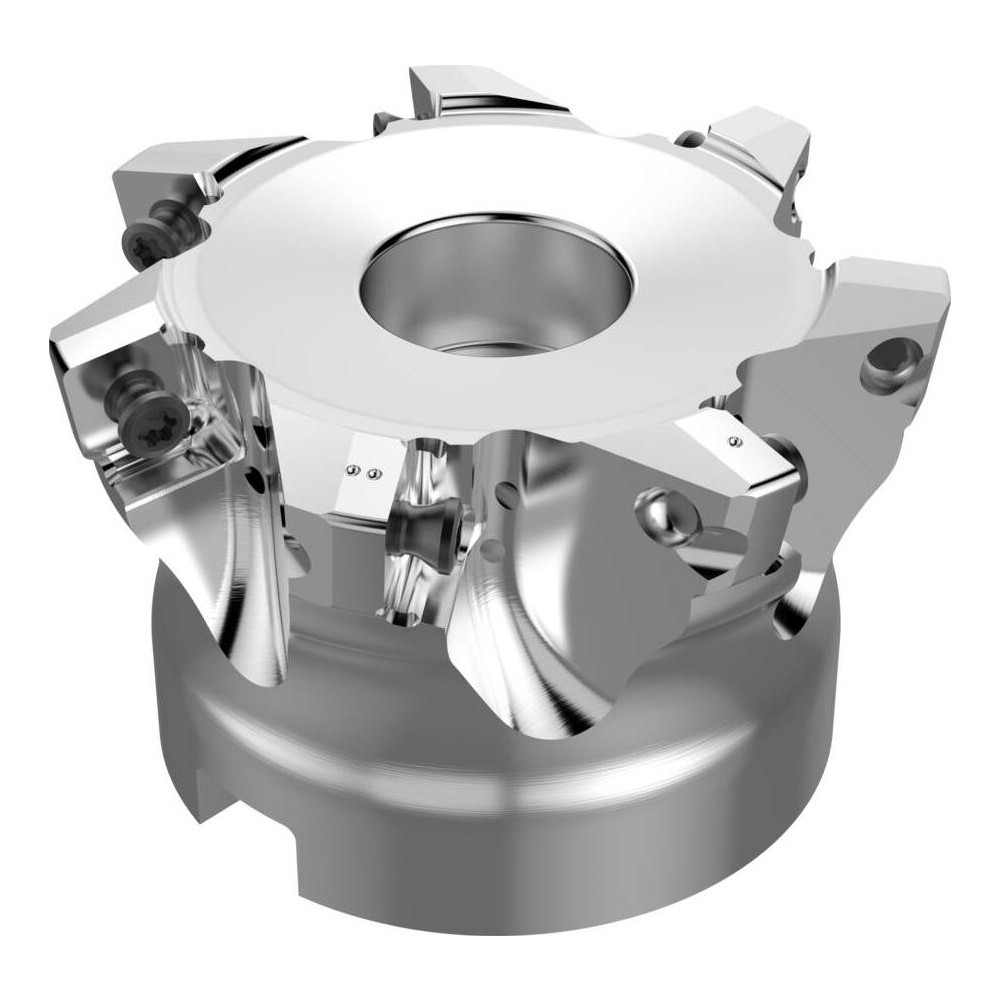

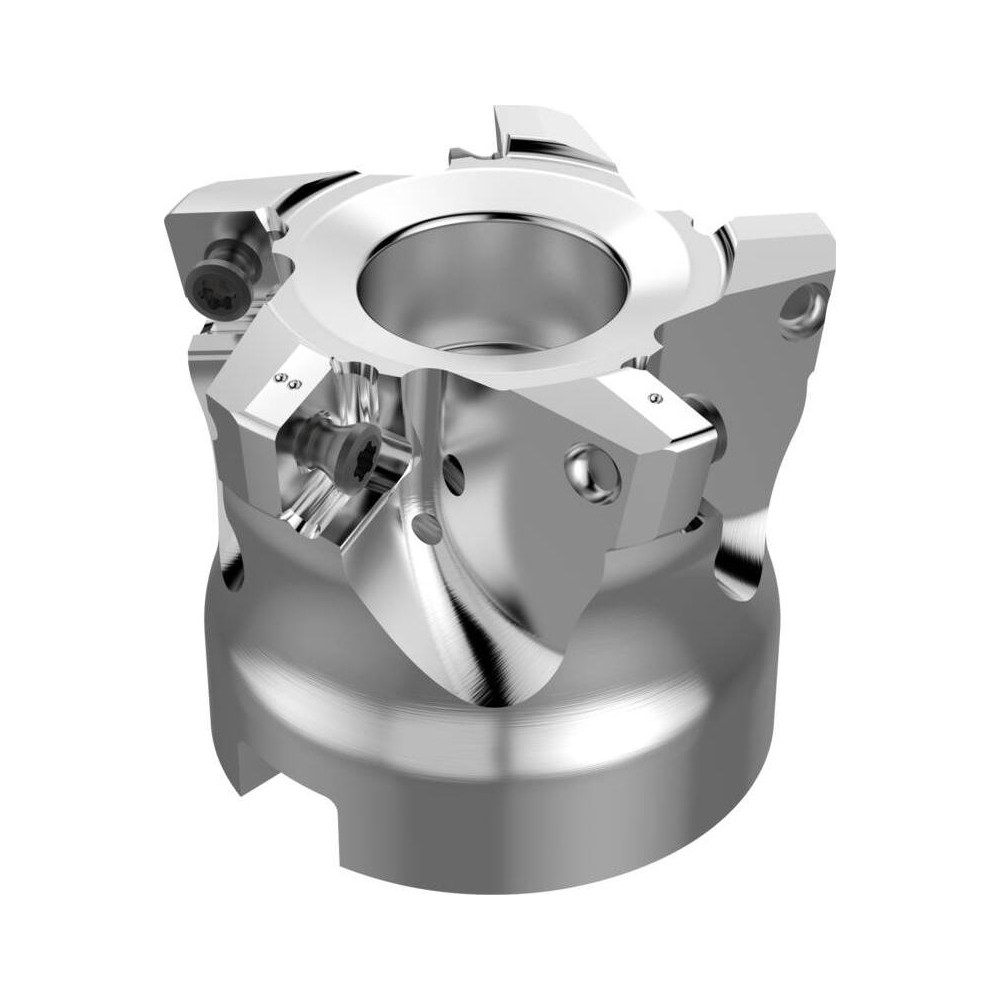

Takes (6) SPKT10T317 Inserts, Through Coolant

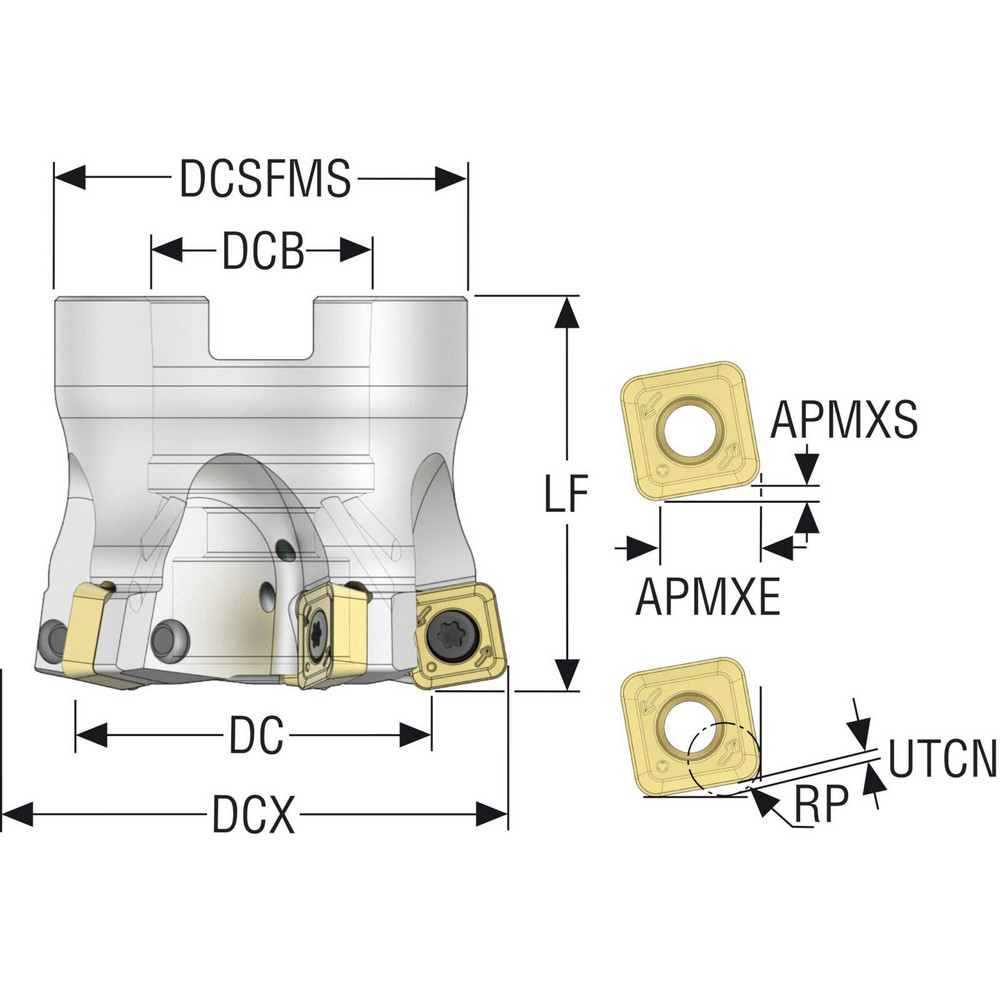

| Minimum Cutting Diameter (mm) | 35.70 |
|---|---|
| Maximum Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 1.10 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | SPKT10T317 |
| Maximum Ramping Angle | 1.80 |
| Cutter Style | High Feed |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220.21 |
| Keyway Width (mm) | 10.40 |
| Overall Height (Decimal Inch) | 40.00 |
| Maximum RPM | 17000 |
| Tool Application | Helical Interpolation; Plunging; Ramping; Shouldering; Slotting; Face Milling |
| Tool Performance | High Performance |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | France |
| MSC Number | MSC# 20628202 |
