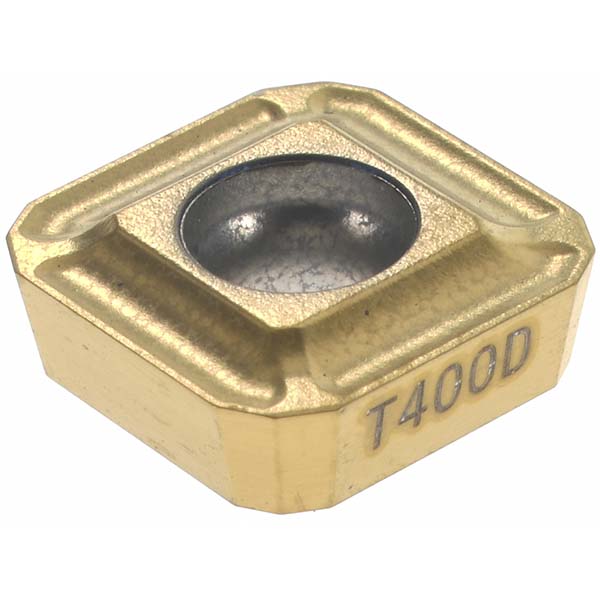

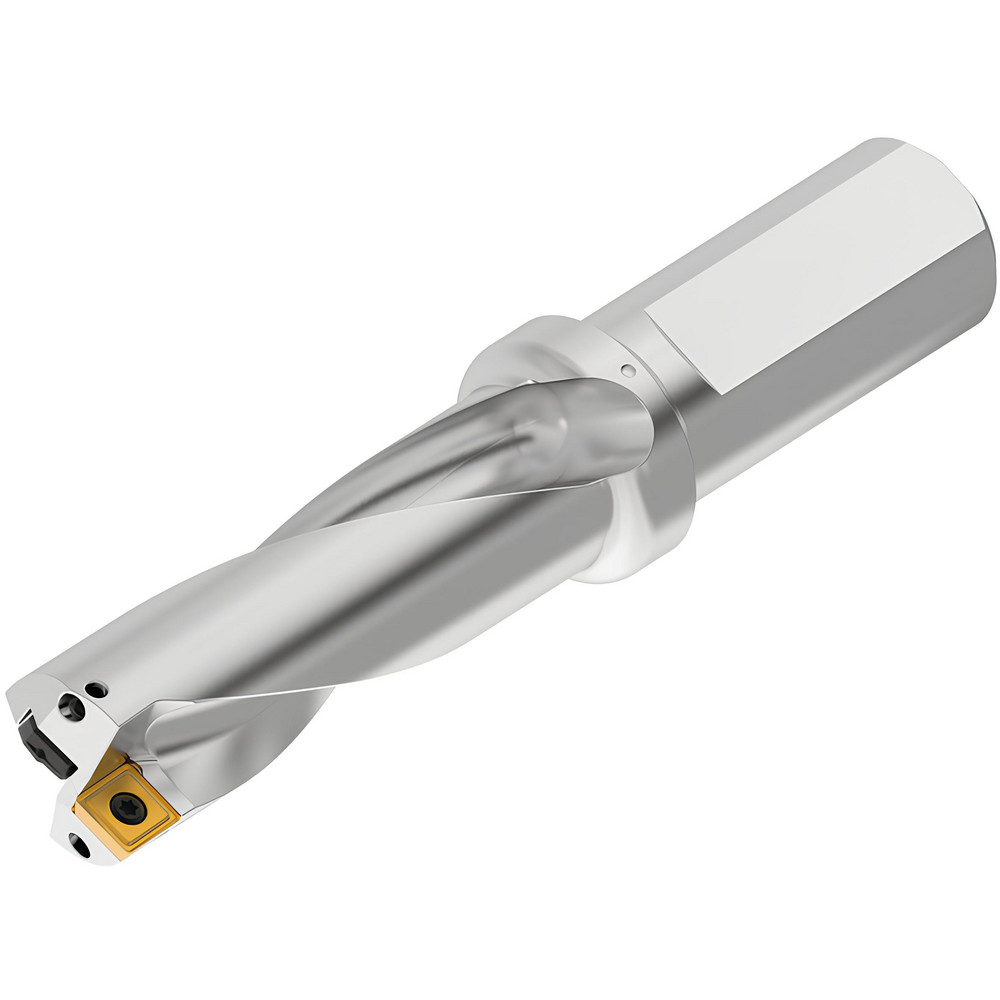

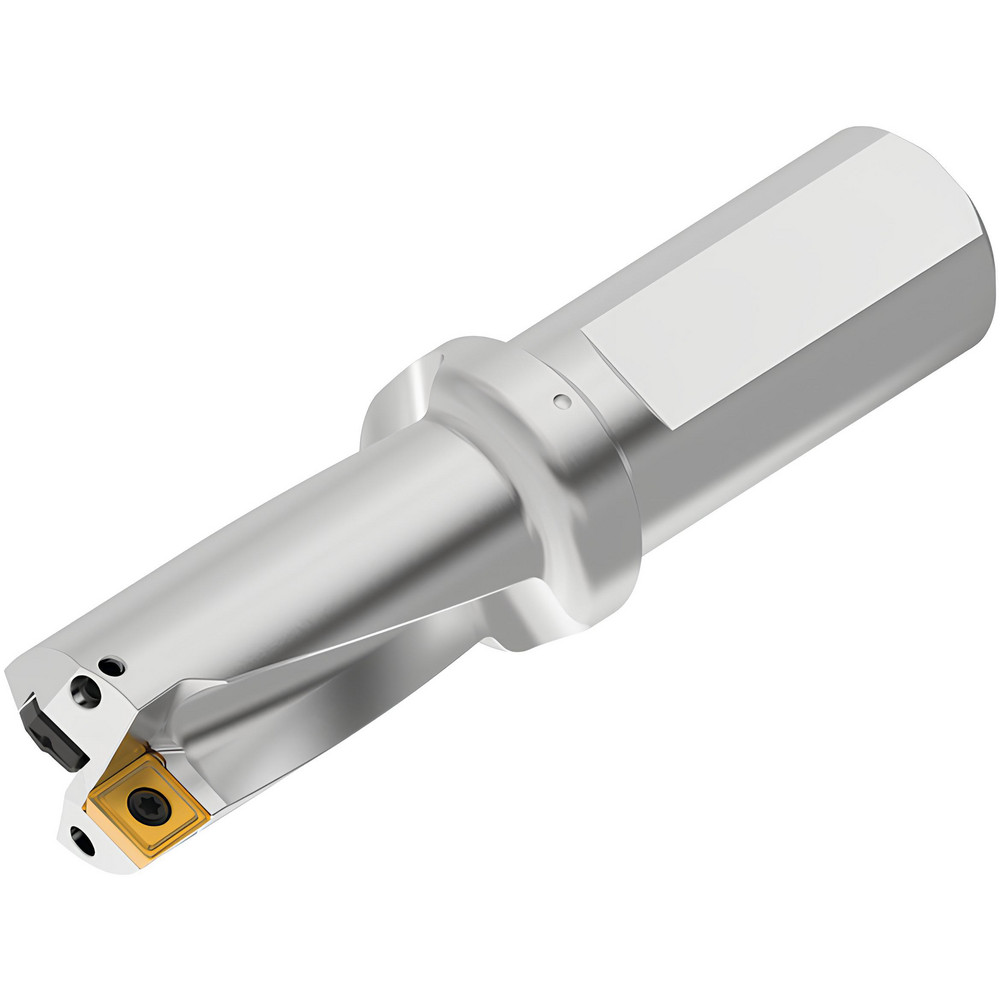

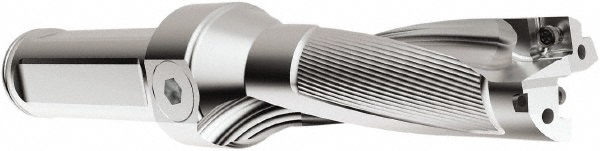

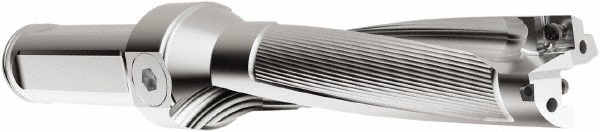

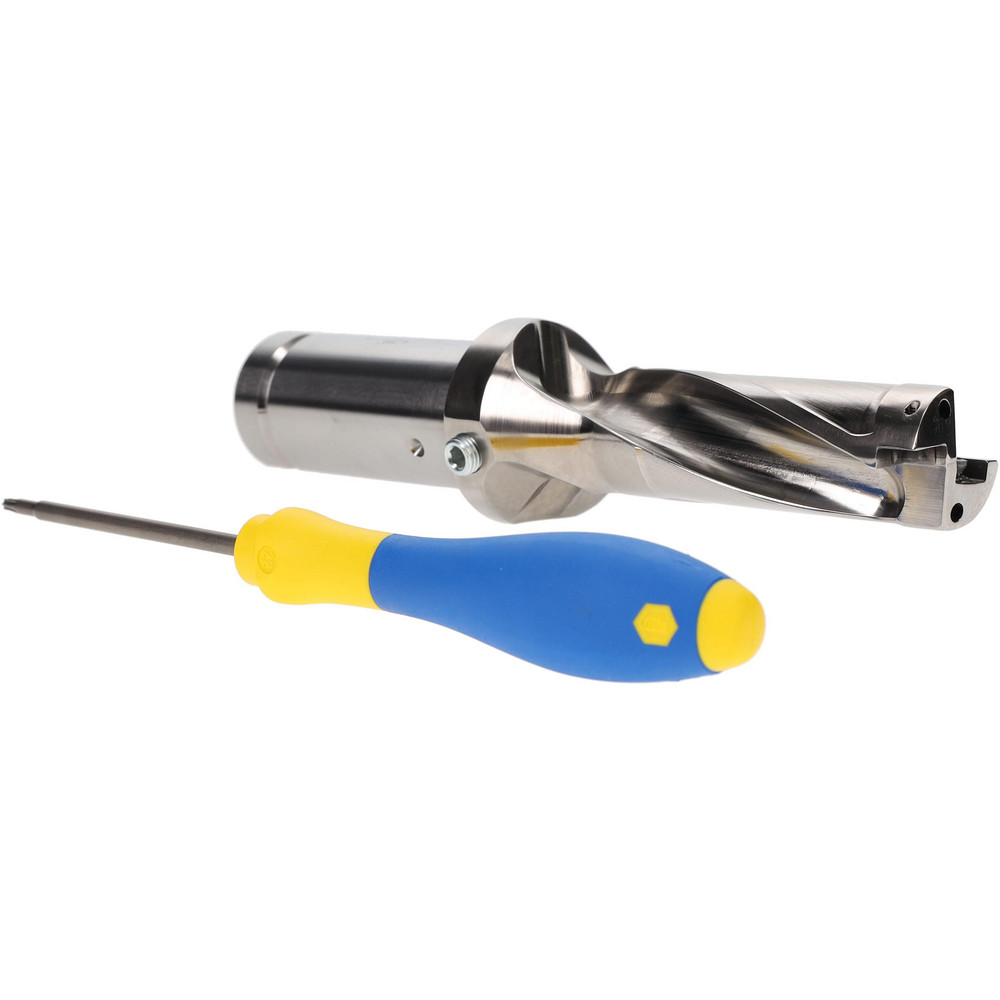

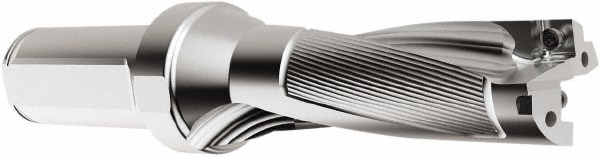

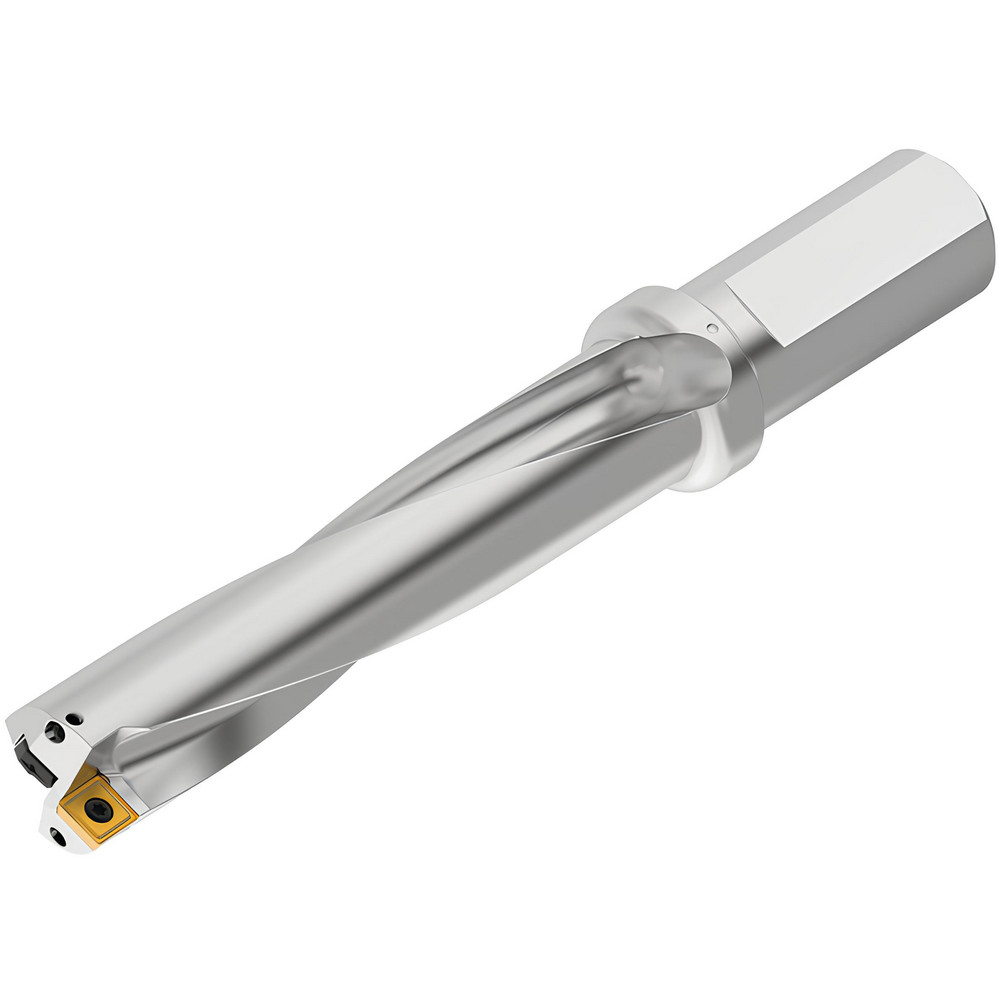

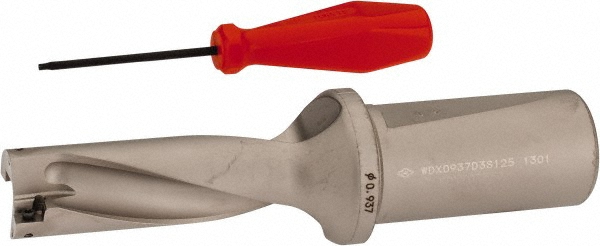

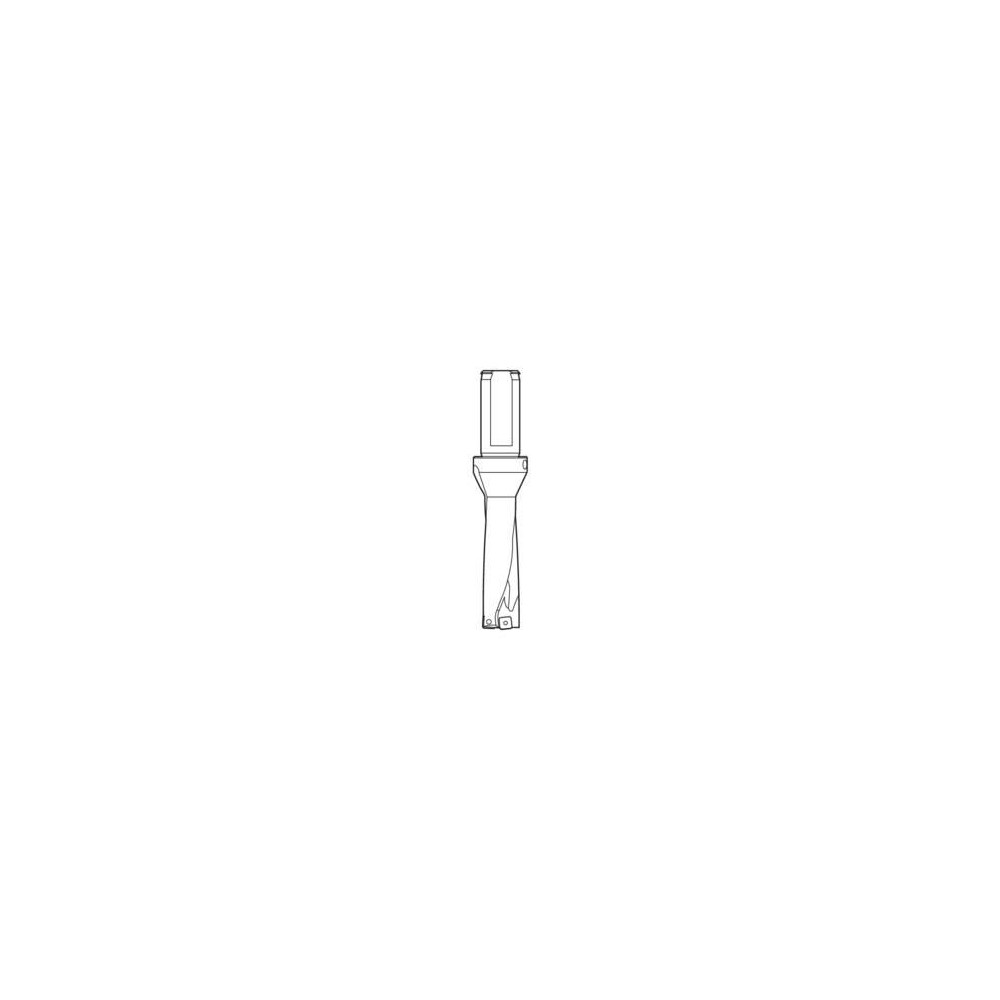

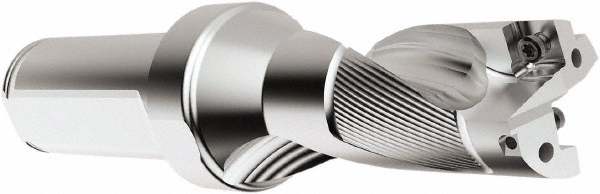

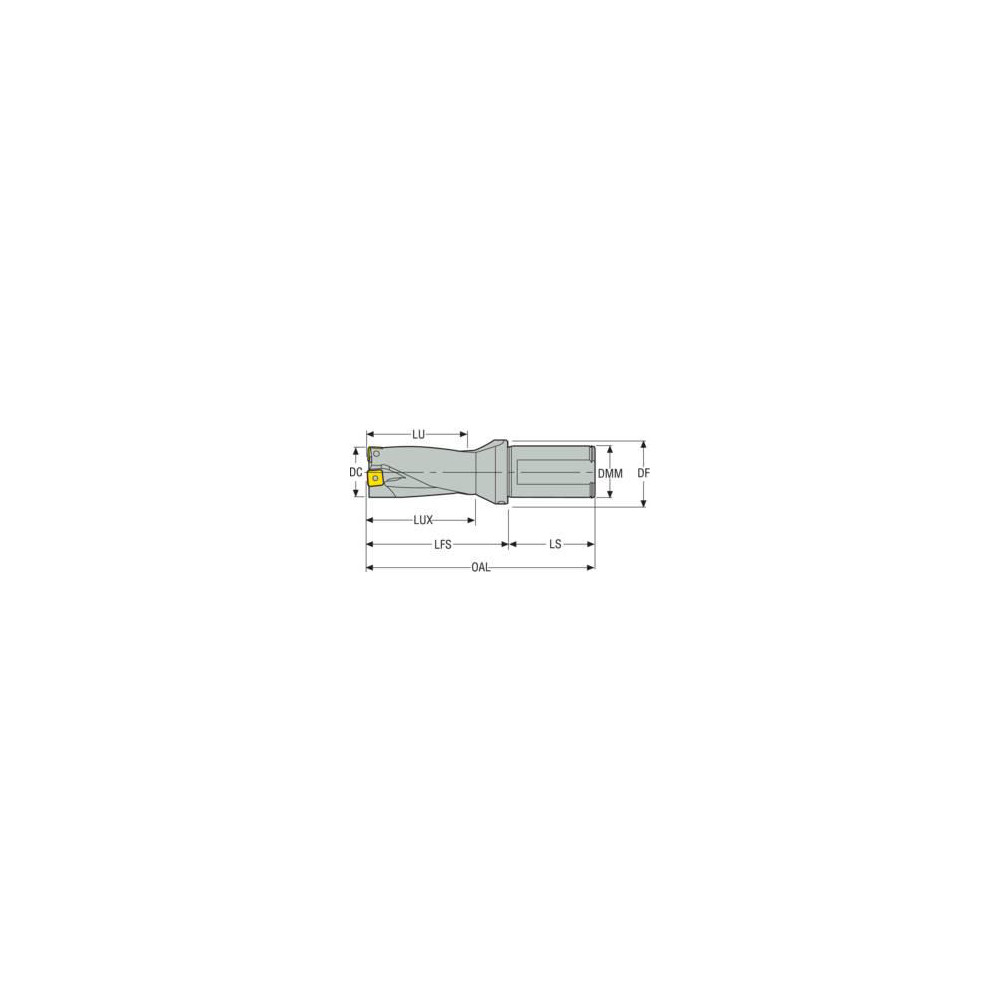

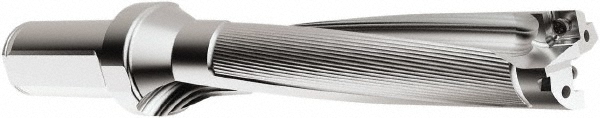

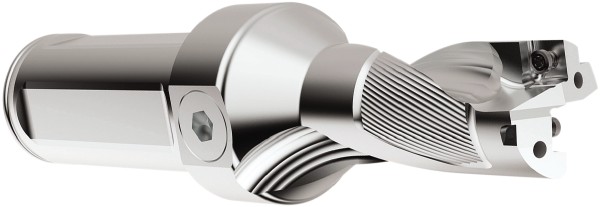

Weldon Flat & Flange Shank, Uses SPGX & SCGX 0903 & 09T308 Inserts, Series SD522
| Compatible Drill Style | SD522 |
|---|---|
| Maximum Drill Diameter (mm) | 31.15 |
| Maximum Drill Diameter (Decimal Inch) | 1.2270 |
| Maximum Drill Depth (Decimal Inch) | 2.3700 |
| Maximum Drill Depth (mm) | 60.20 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |

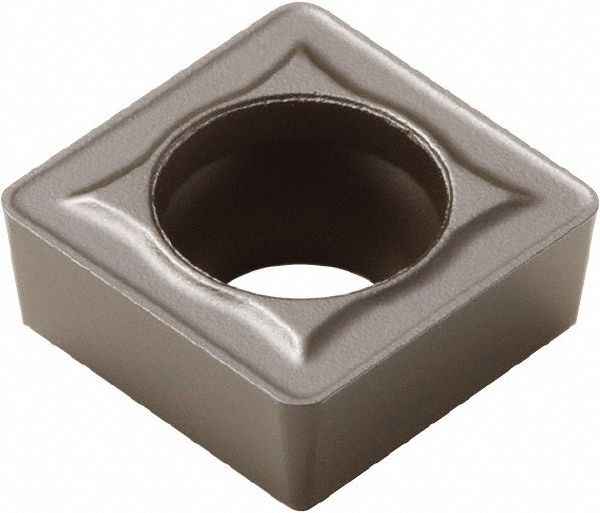

| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 09T308; 0903 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.9260 |
| Series | SD522 |
| Flute Length (Decimal Inch) | 2.5670 |
| Flute Length (mm) | 65.20 |
| Body Length (mm) | 90.19 |
| Body Length (Decimal Inch) | 3.5510 |
| Shank Length (Decimal Inch) | 2.3750 |
| Neck Diameter (Inch) | 1.6540 |
| Modular Connection Size | R7 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3750 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPGX0903; SCGX09T308 |
| Collar Diameter (Decimal Inch) | 1.6540 |
| Collar Diameter (mm) | 42.00 |
| Insert Lock Screw | C03009-T09P; C03007-T09P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 39325501 |
