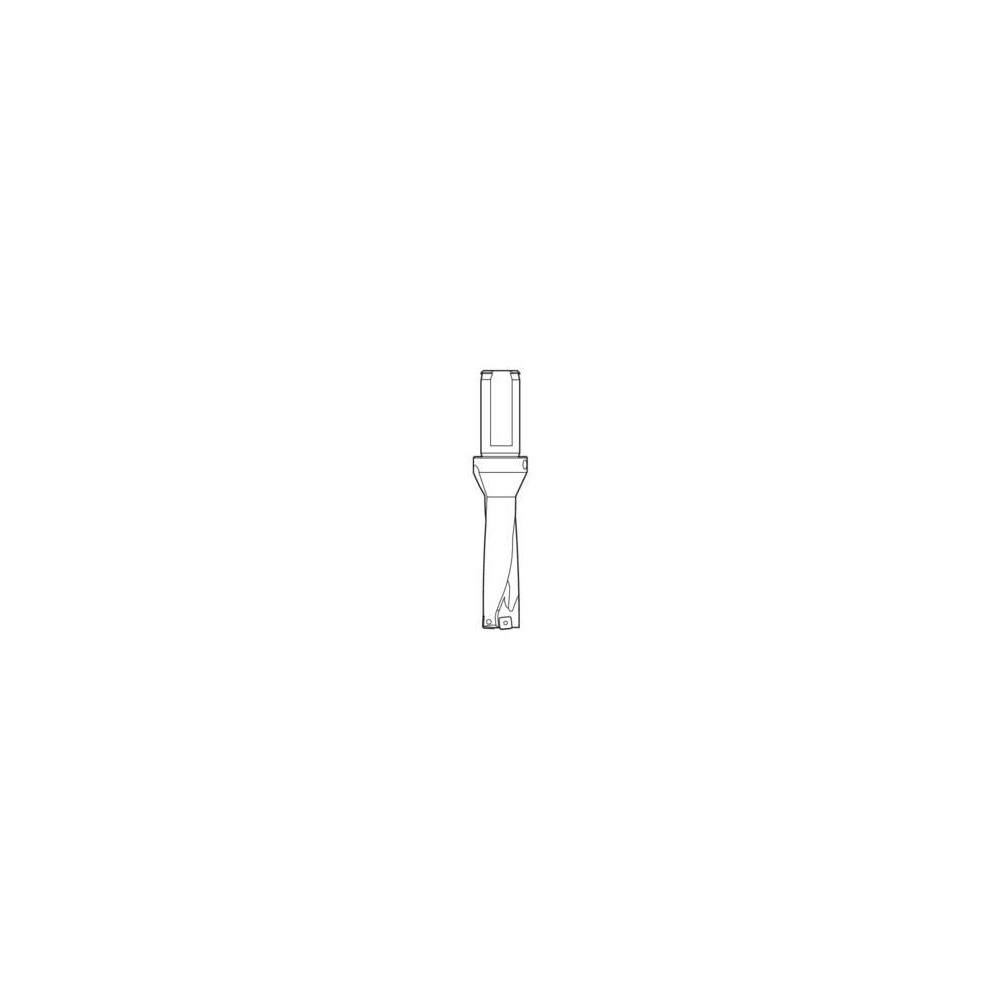

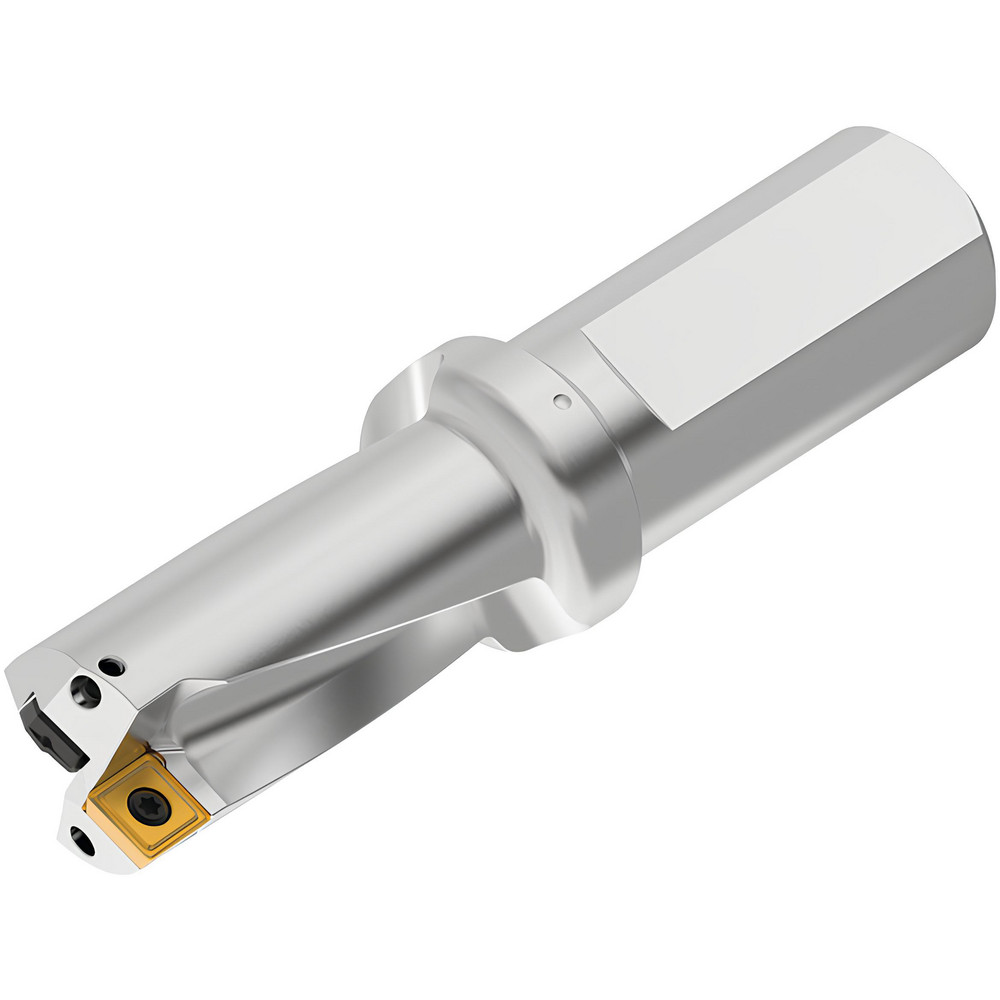

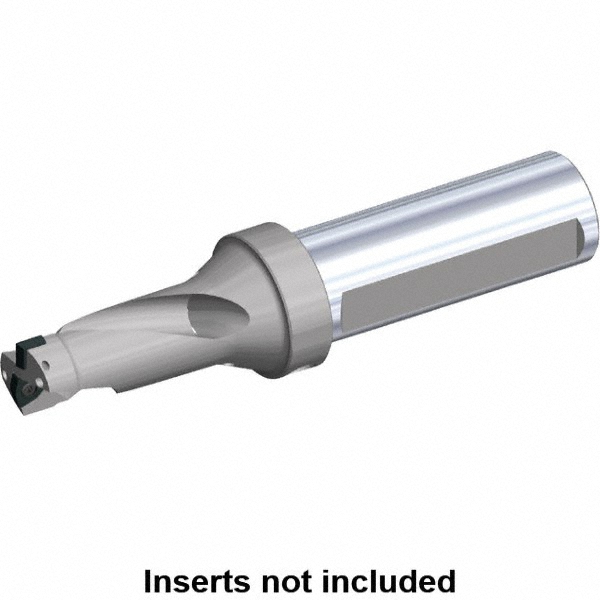

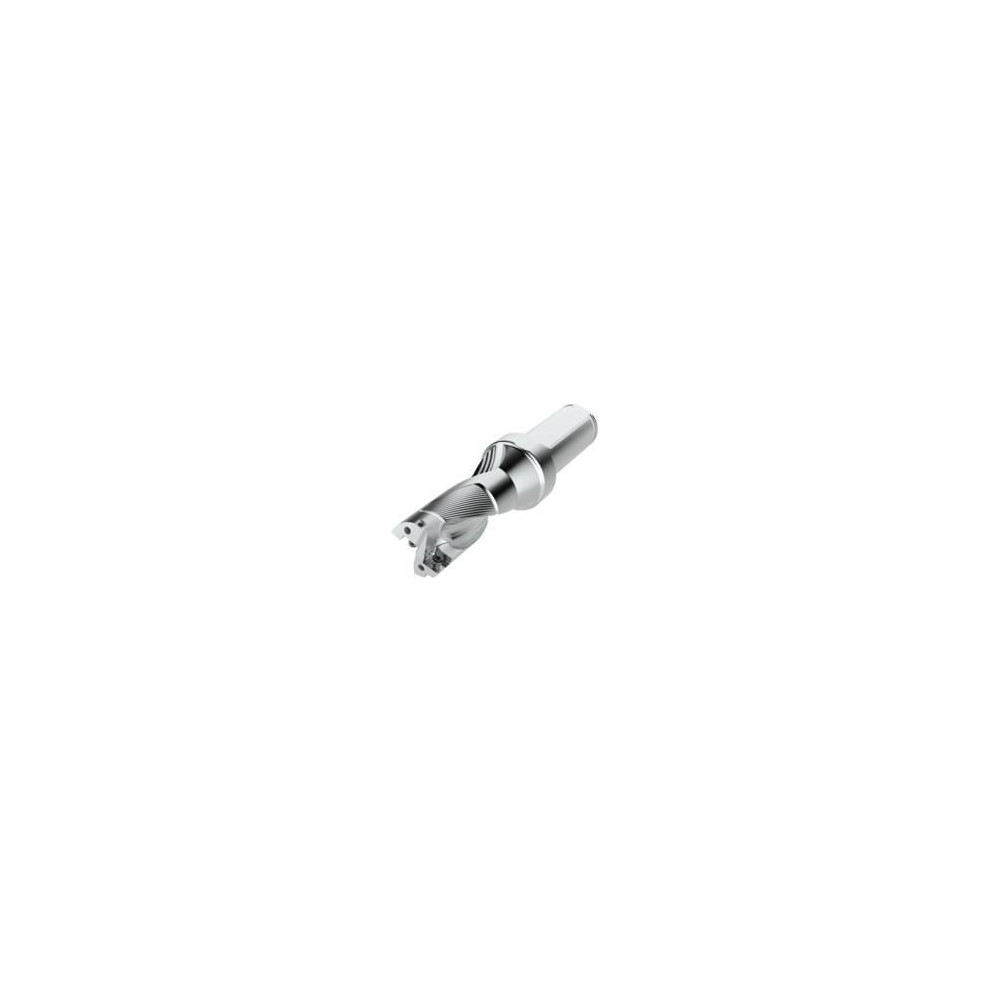

Weldon Flat & Flange Shank, Uses SPGX & SCGX 11T3 & 11T308 Inserts, Series SD522
| Compatible Drill Style | SD522 |
|---|---|
| Maximum Drill Diameter (mm) | 35.92 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.4150 |
| Maximum Drill Depth (Inch) | 2-3/4 |
| Maximum Drill Depth (Decimal Inch) | 2.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 11T308; 11T3 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

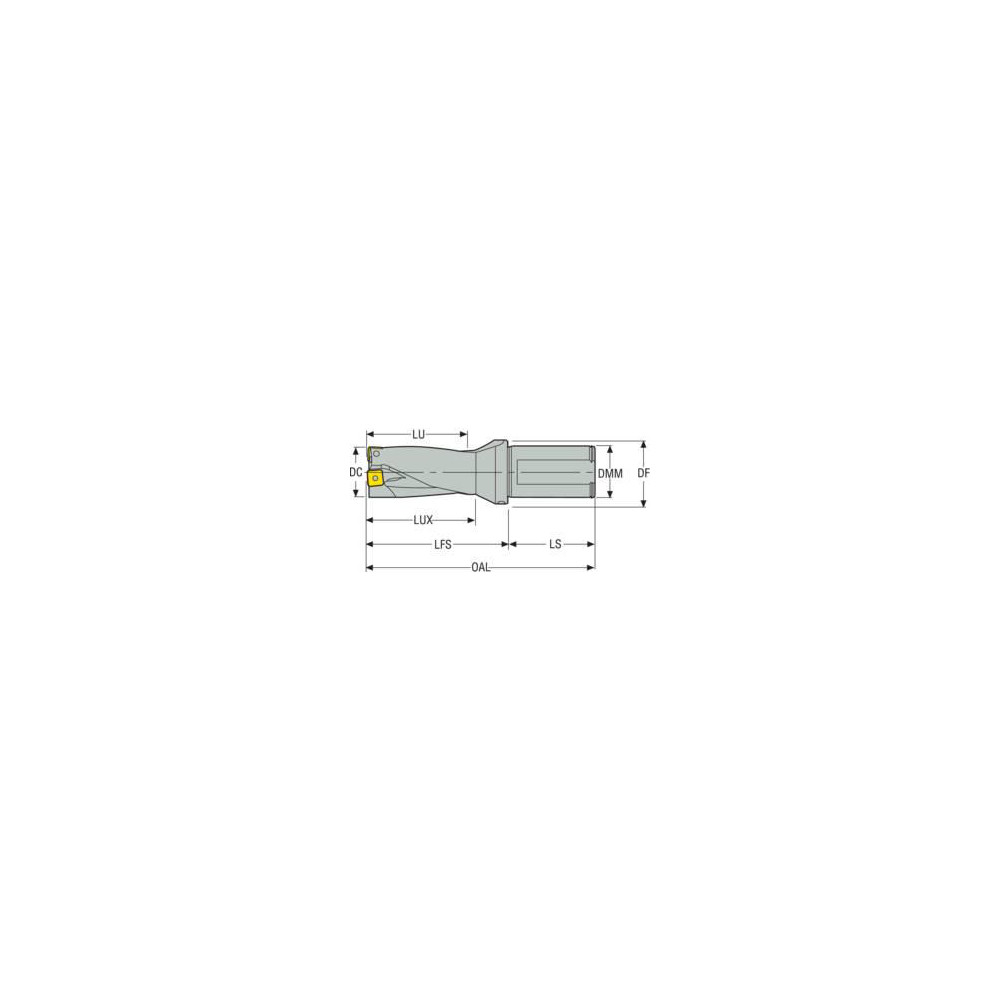

| Overall Length (Decimal Inch) | 6.5560 |
| Series | SD522 |
| Flute Length (Decimal Inch) | 2.9470 |
| Flute Length (mm) | 74.85 |
| Body Length (mm) | 99.85 |
| Body Length (Decimal Inch) | 3.9310 |
| Shank Length (Decimal Inch) | 2.6250 |
| Shank Length (mm) | 66.70 |
| Neck Diameter (Inch) | 1.9690 |
| Modular Connection Size | R7 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4530 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPGX11T3; SCGX11T308 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Collar Diameter (mm) | 50.00 |

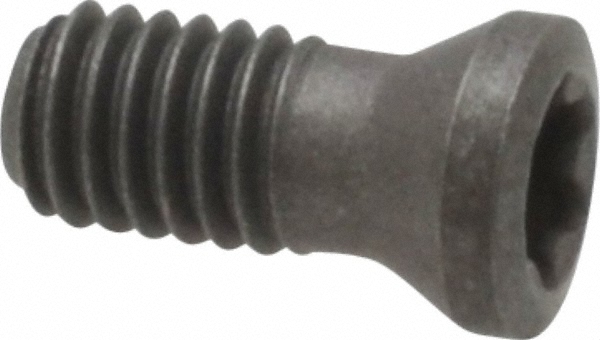

| Insert Lock Screw | C03508-T15P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 39325444 |
