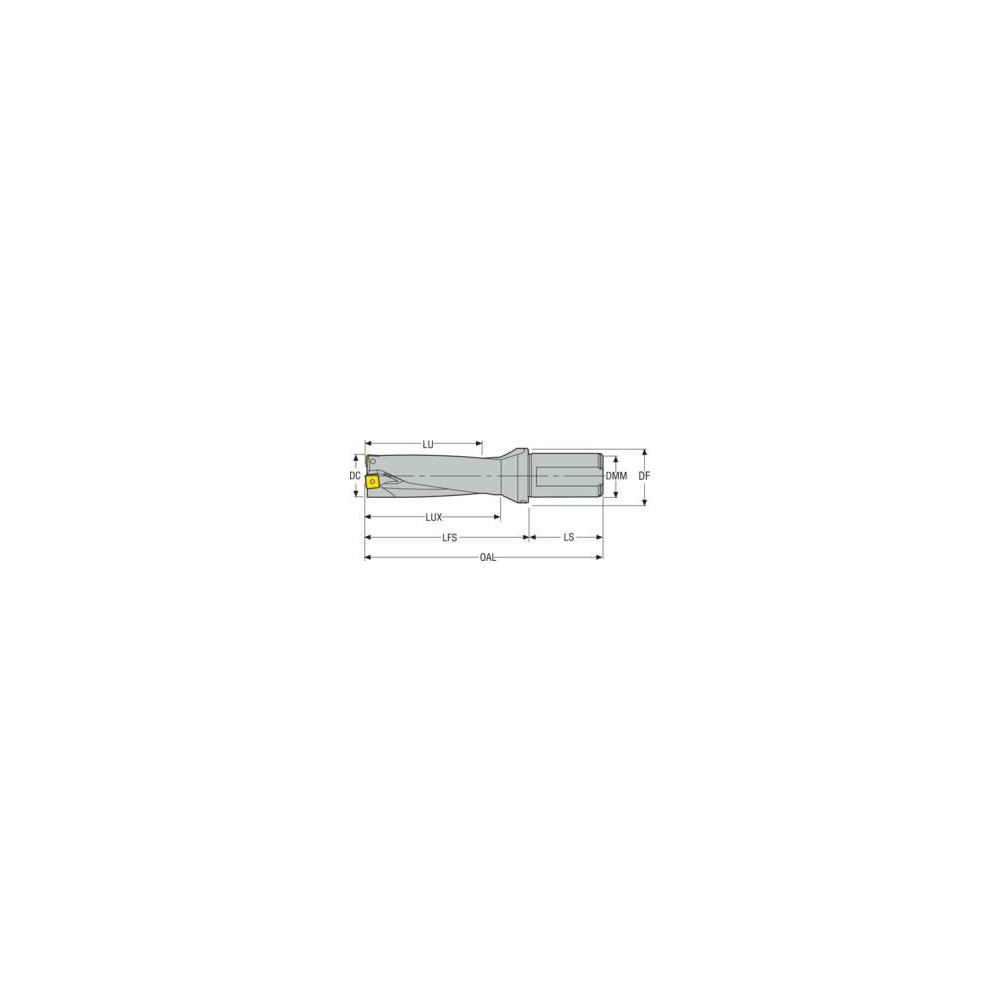

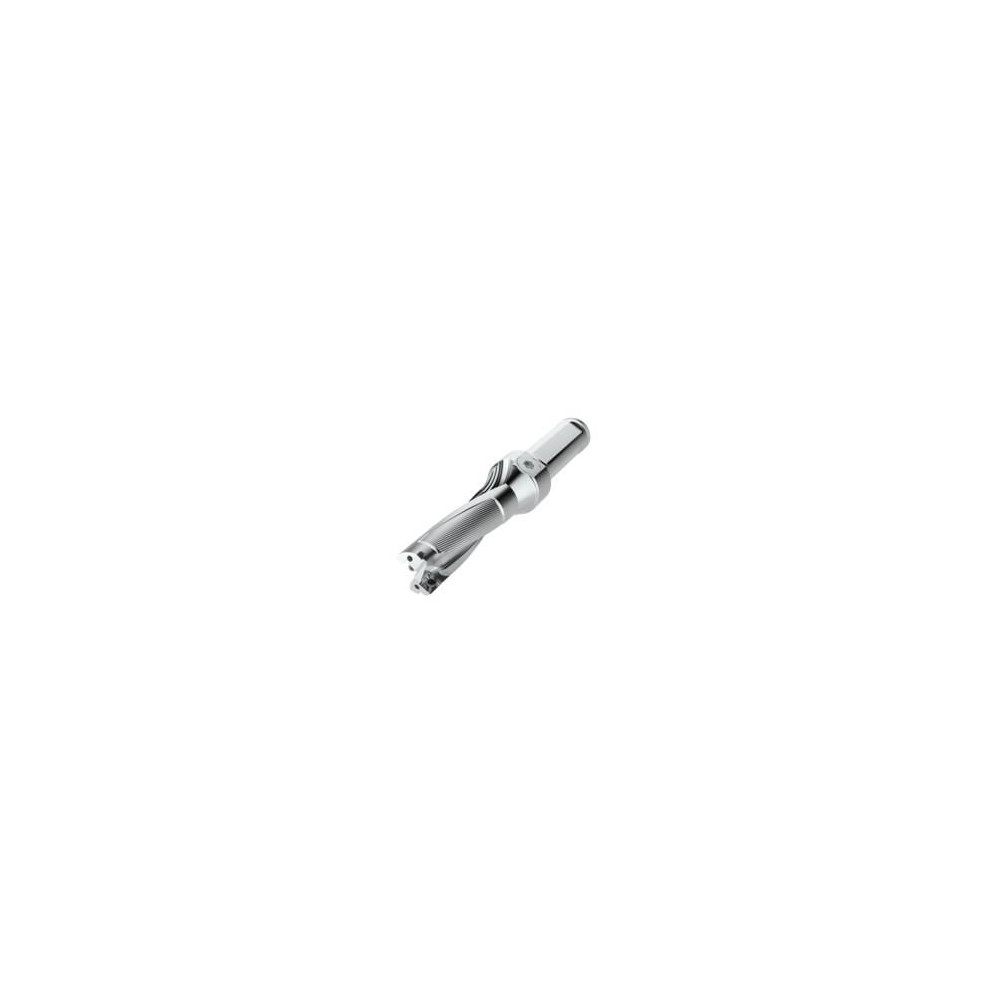

Flatted & Flange Shank, Uses SPGX & SCGX 0602 & 060204 Inserts, Series SD523
| Compatible Drill Style | SD523 |
|---|---|
| Maximum Drill Diameter (mm) | 22.01 |
| Maximum Drill Diameter (Decimal Inch) | 0.8670 |
| Maximum Drill Depth (Decimal Inch) | 2.4800 |
| Maximum Drill Depth (mm) | 62.99 |
| Shank Type | Flange; Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 060204; 0602 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 6.6080 |
| Series | SD523 |
| Flute Length (Decimal Inch) | 2.6770 |
| Flute Length (mm) | 67.99 |
| Body Length (mm) | 97.99 |
| Body Length (Decimal Inch) | 3.8580 |
| Shank Length (Decimal Inch) | 2.7500 |
| Neck Diameter (Inch) | 1.3780 |
| Modular Connection Size | R7-C |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SCGX060204; SPGX0602 |
| Collar Diameter (Decimal Inch) | 1.3780 |
| Collar Diameter (mm) | 35.00 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | C02205-T07P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 39332218 |
