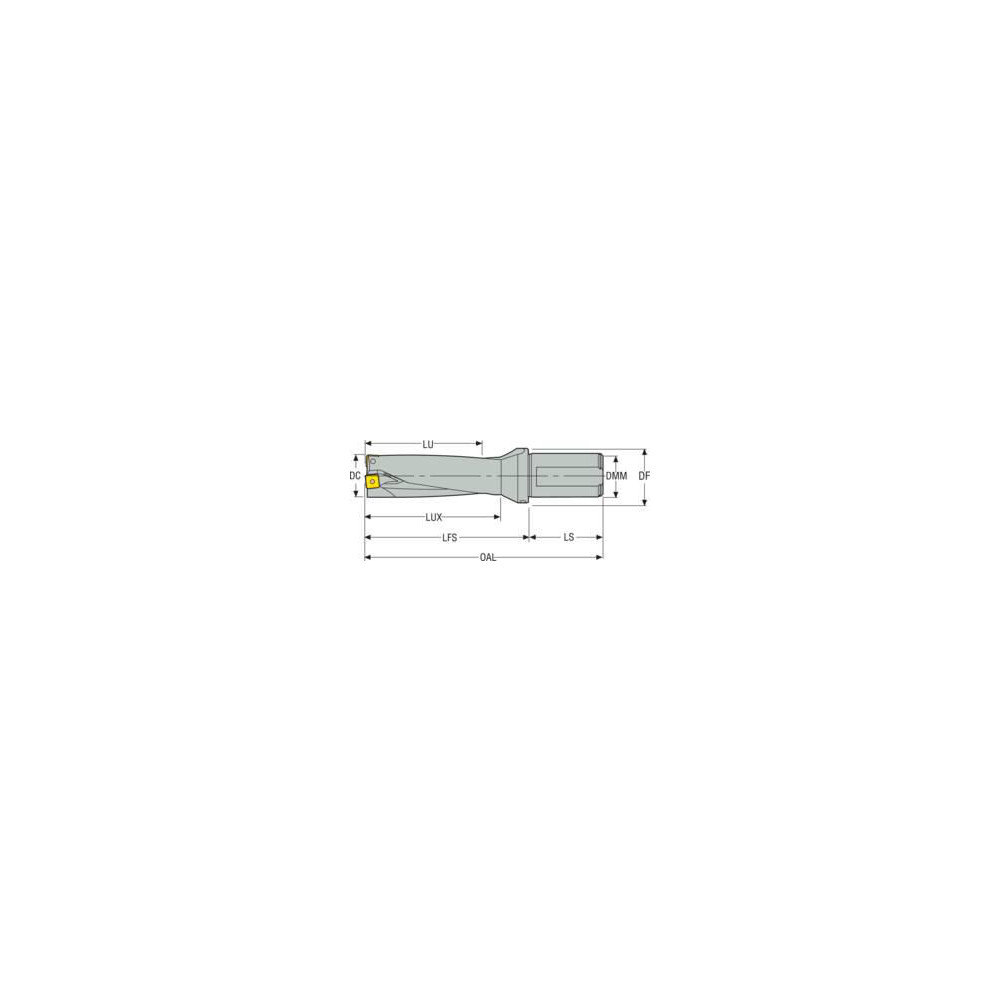

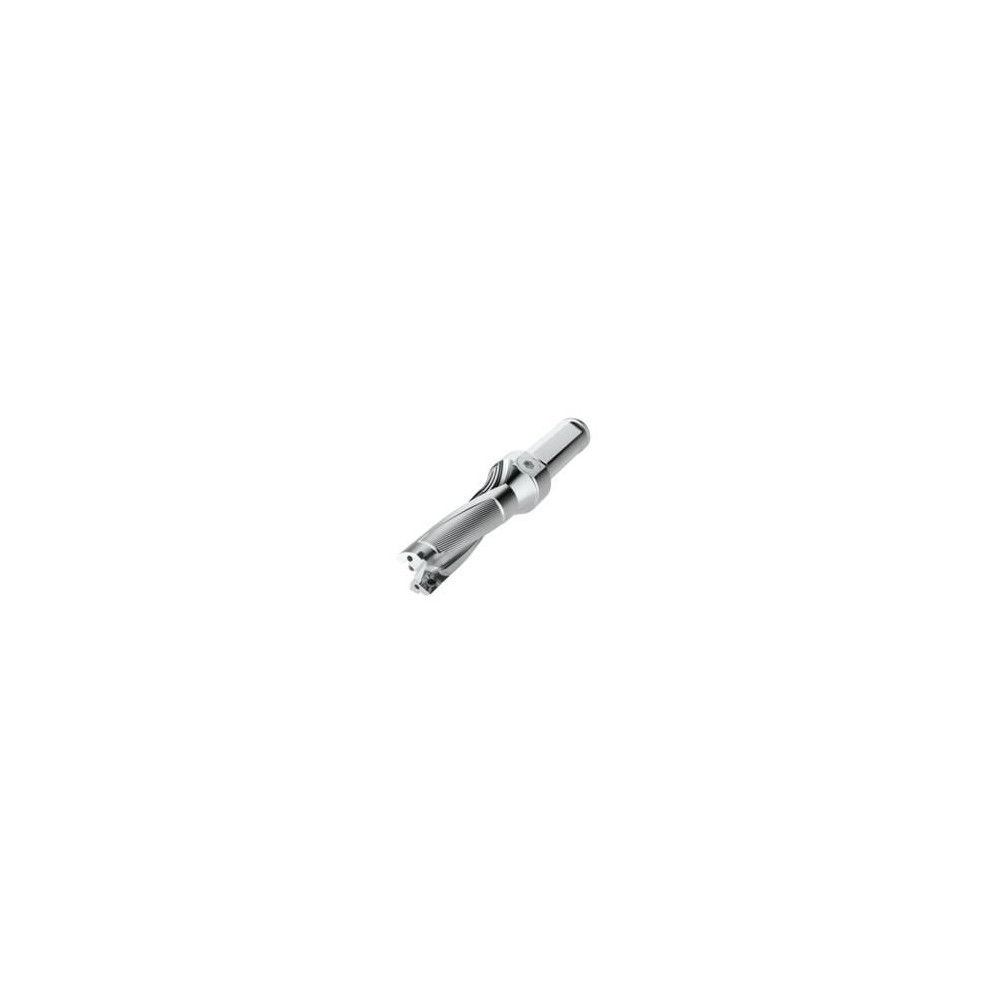

Flatted & Flange Shank, Uses SPGX & SCGX 0903 & 070308 Inserts, Series SD523
| Compatible Drill Style | SD523 |
|---|---|
| Maximum Drill Diameter (mm) | 27.49 |
| Maximum Drill Diameter (Decimal Inch) | 1.0820 |
| Maximum Drill Depth (Decimal Inch) | 3.1900 |
| Maximum Drill Depth (mm) | 81.03 |
| Shank Type | Flange; Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |

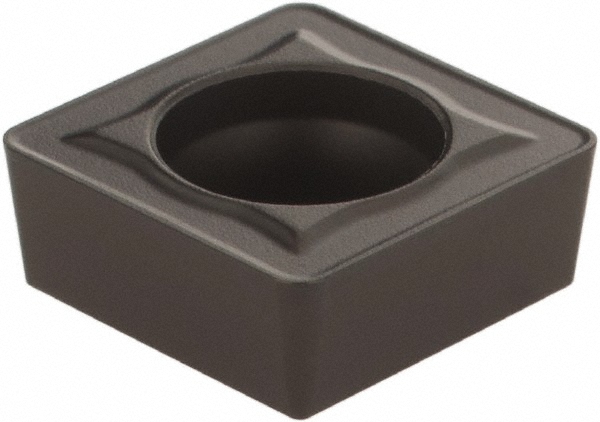

| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 070308; 0903 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 7.3180 |
| Series | SD523 |
| Flute Length (Decimal Inch) | 3.3870 |
| Flute Length (mm) | 86.03 |
| Body Length (mm) | 116.03 |
| Body Length (Decimal Inch) | 4.5680 |
| Shank Length (Decimal Inch) | 2.7500 |
| Neck Diameter (Inch) | 1.6540 |
| Modular Connection Size | R7-C |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3750; 0.3125 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPGX0903; SCGX070308 |
| Collar Diameter (Decimal Inch) | 1.6540 |
| Collar Diameter (mm) | 42.00 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | C03007-T09P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 39332648 |
