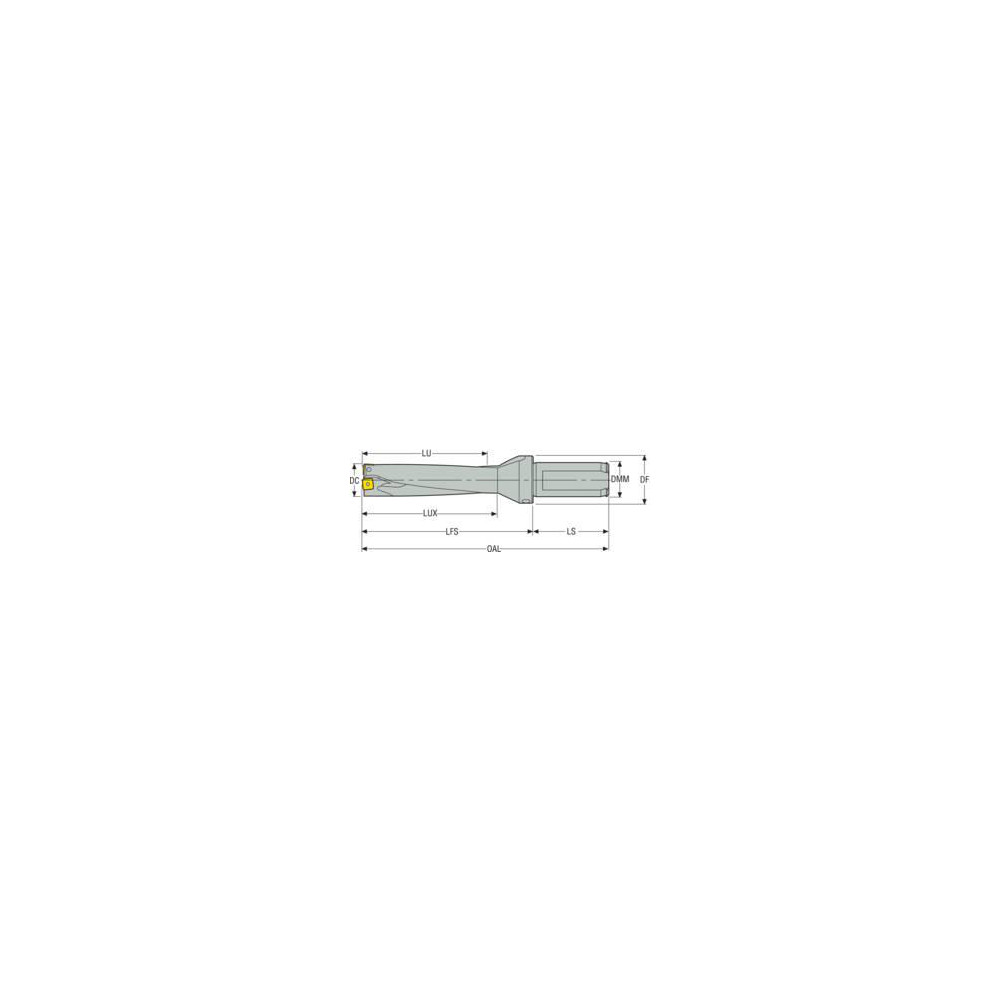

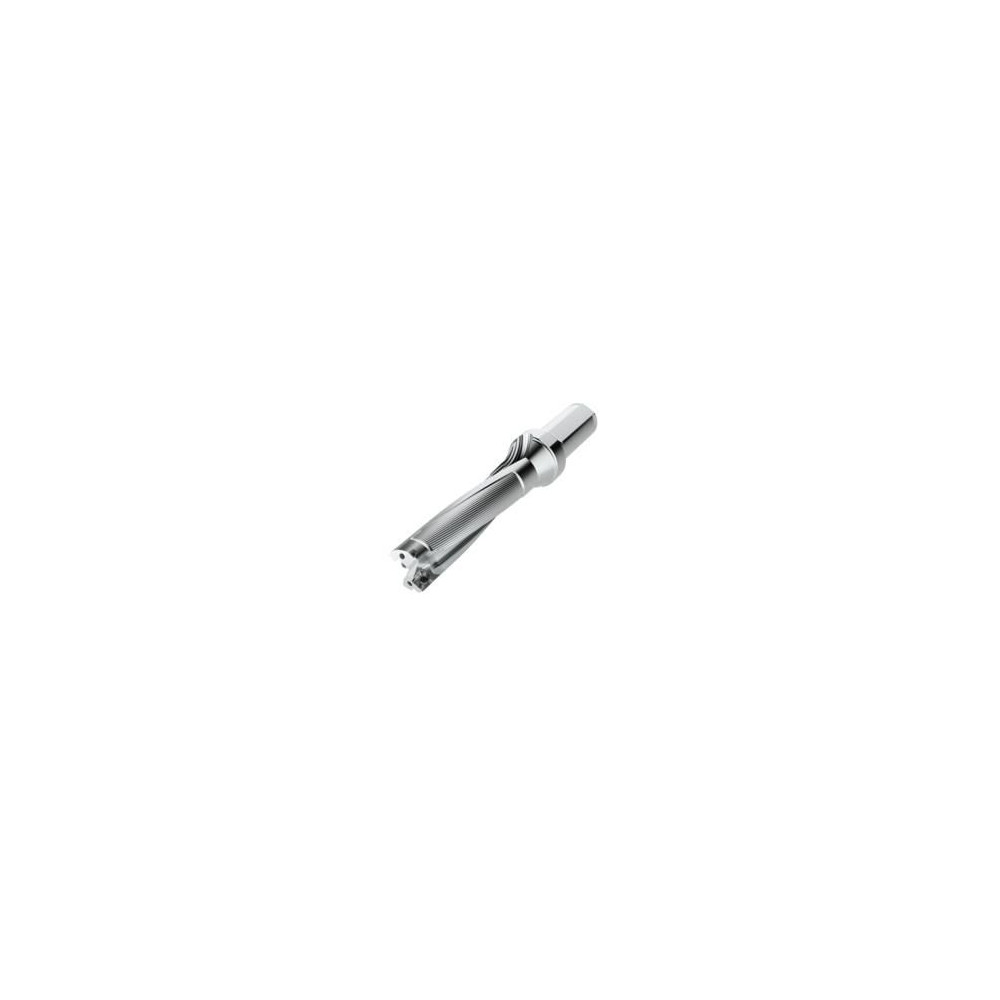

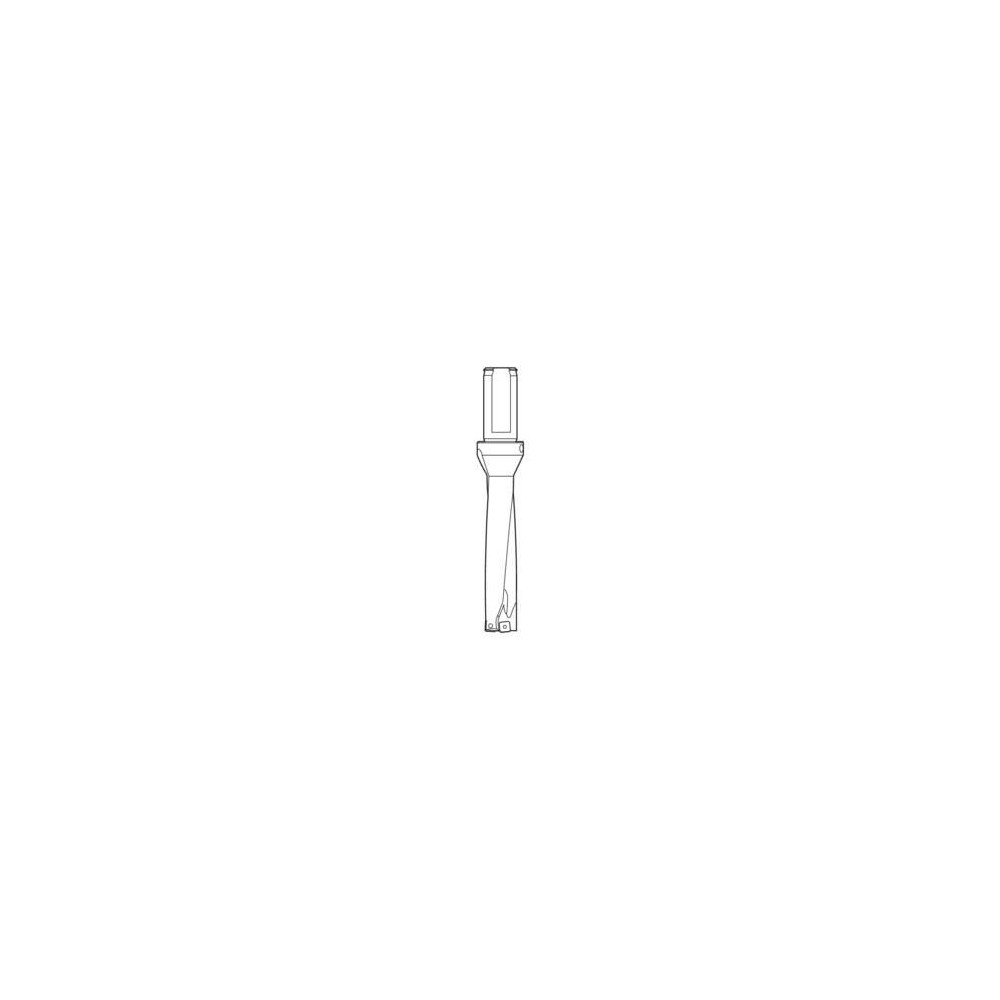

Weldon Flat & Flange Shank, Uses SPGX & SCGX 0602 & 060204 Inserts, Series SD524
| Compatible Drill Style | SD524 |
|---|---|
| Maximum Drill Diameter (mm) | 22.01 |
| Maximum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Depth (Decimal Inch) | 3.3100 |
| Maximum Drill Depth (mm) | 84.07 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 060204; 0602 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.7410 |
| Series | SD524 |
| Flute Length (Decimal Inch) | 3.5070 |
| Flute Length (mm) | 89.07 |
| Body Length (mm) | 114.07 |
| Body Length (Decimal Inch) | 4.4910 |
| Shank Length (Decimal Inch) | 2.2500 |
| Neck Diameter (Inch) | 1.3780 |
| Modular Connection Size | R7 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23291503 |

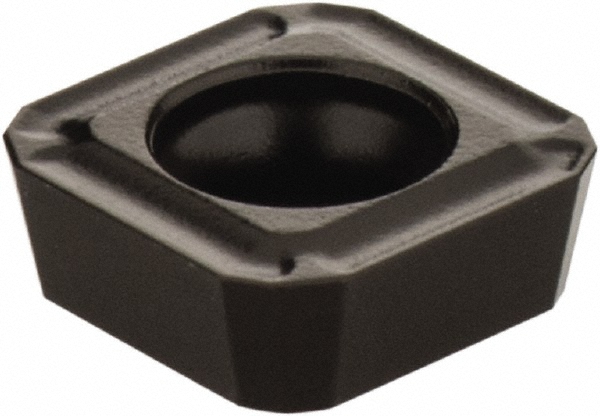

| Insert Compatibility | SCGX060204; SPGX0602 |
| Collar Diameter (Decimal Inch) | 1.3780 |
| Collar Diameter (mm) | 35.00 |
| Insert Lock Screw | C02205-T07P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 39343017 |
