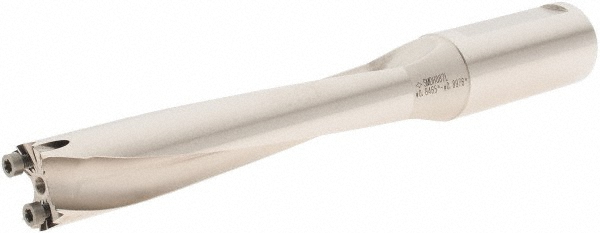

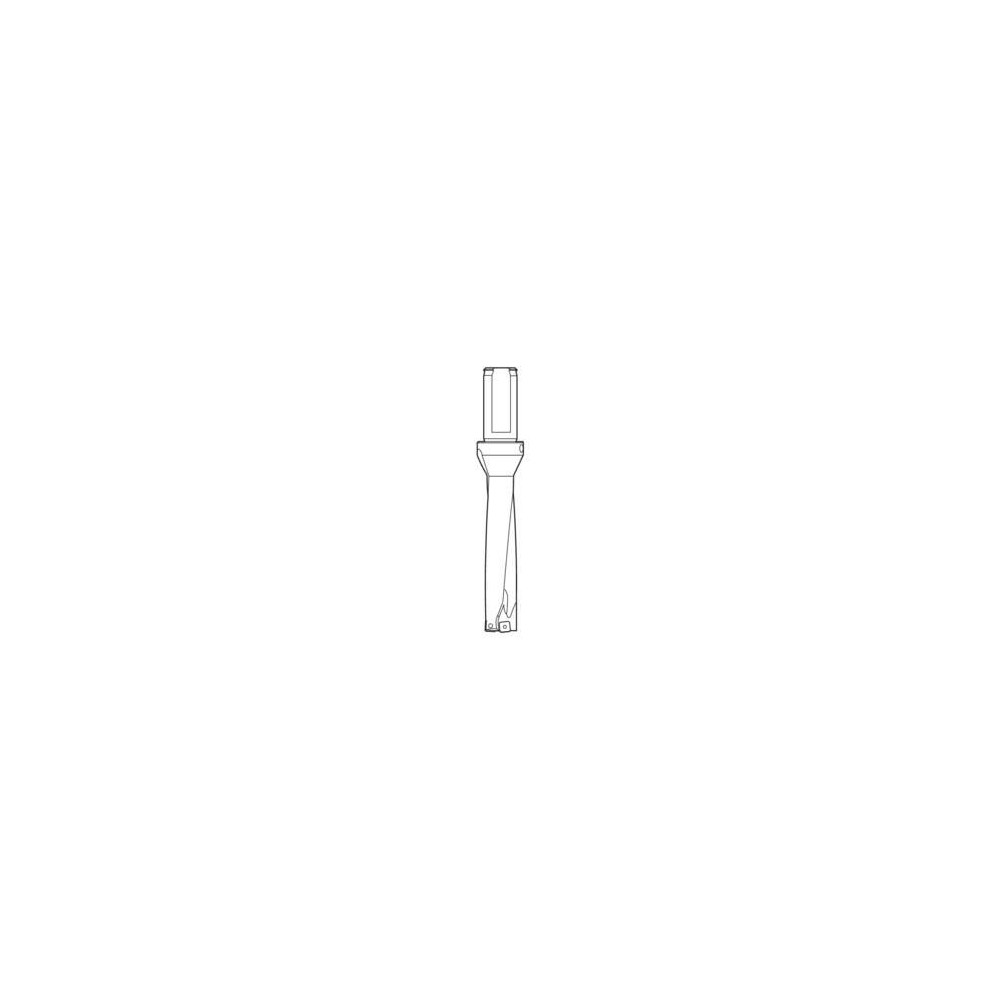

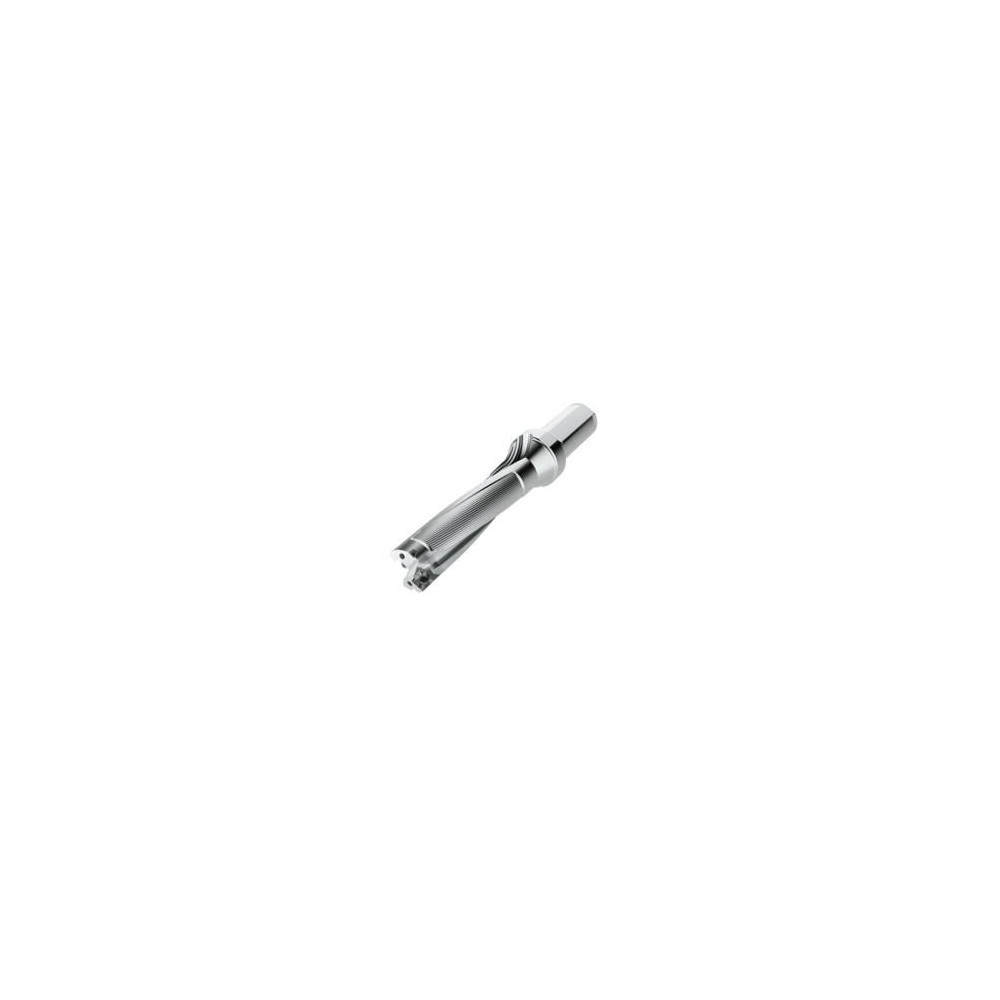

Weldon Flat & Flange Shank, Uses SPGX & SCGX 0703 & 070308 Inserts, Series SD524
| Compatible Drill Style | SD524 |
|---|---|
| Maximum Drill Diameter (mm) | 24.80 |
| Maximum Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (Inch) | 3-3/4 |
| Maximum Drill Depth (Decimal Inch) | 3.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |

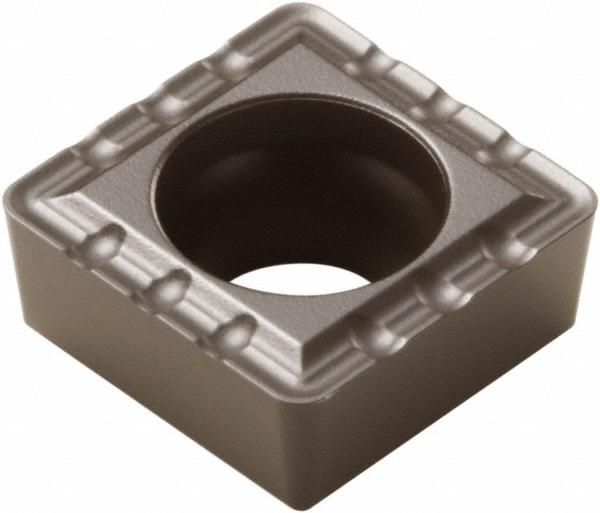

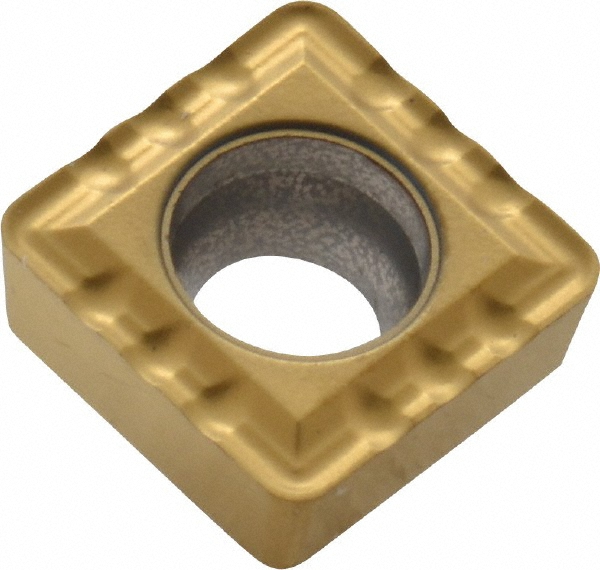

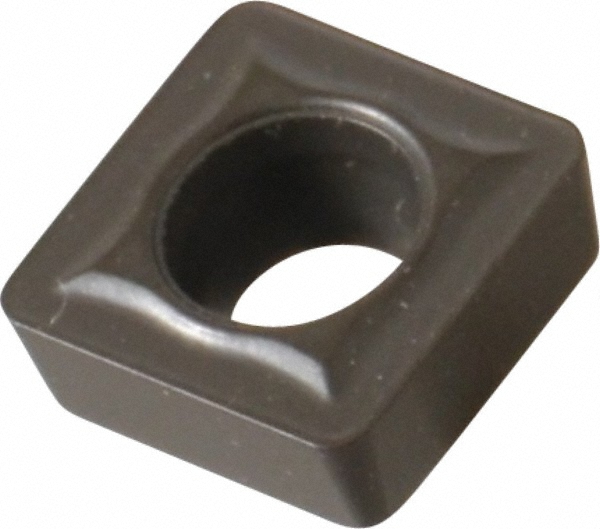

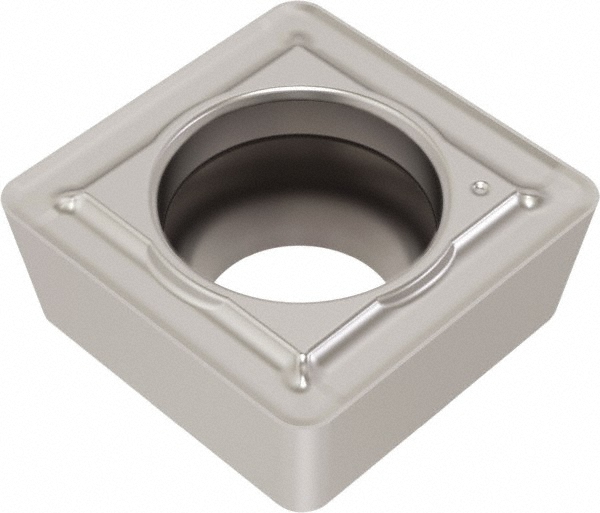

| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 070308; 0703 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

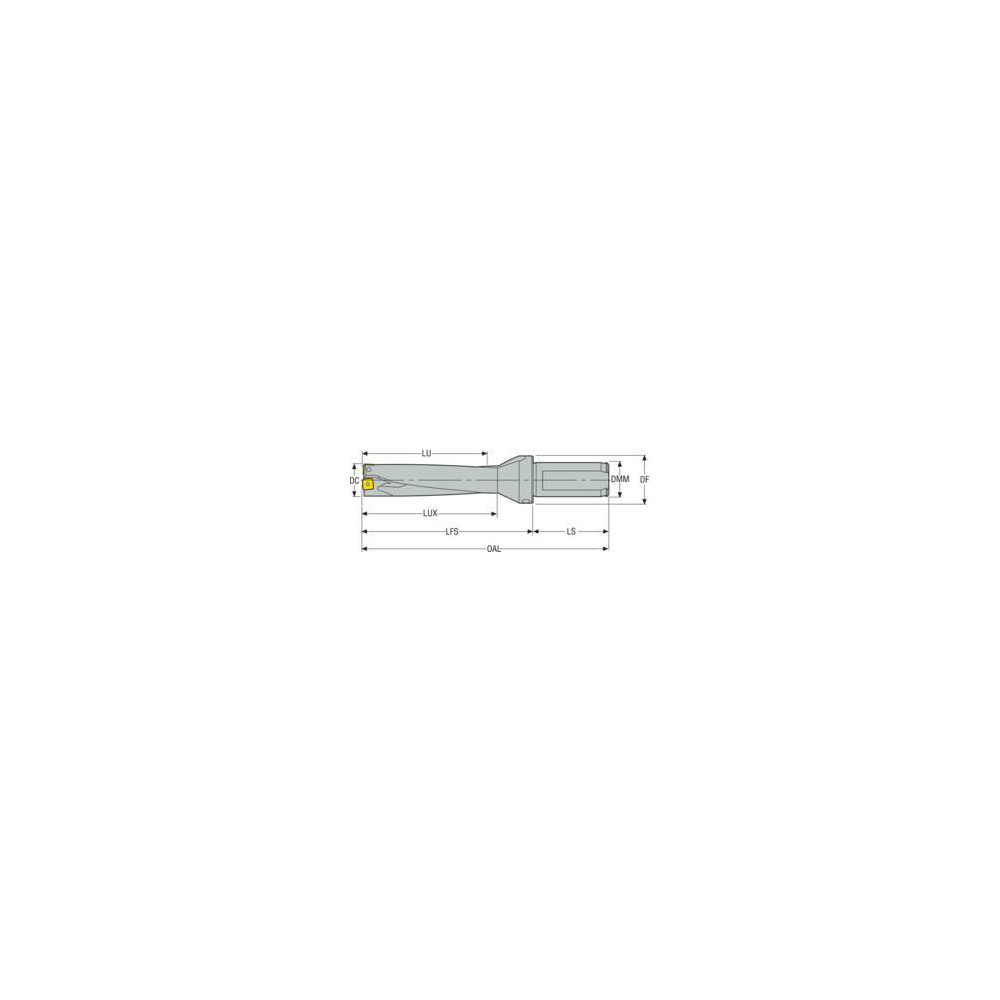

| Overall Length (Decimal Inch) | 7.1810 |
| Series | SD524 |
| Flute Length (Decimal Inch) | 3.9470 |
| Flute Length (mm) | 100.25 |
| Body Length (mm) | 125.25 |
| Body Length (Decimal Inch) | 4.9310 |
| Shank Length (Decimal Inch) | 2.2500 |
| Neck Diameter (Inch) | 1.3780 |
| Modular Connection Size | R7 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPGX0703; SCGX070308 |
| Collar Diameter (Decimal Inch) | 1.3780 |
| Collar Diameter (mm) | 35.00 |

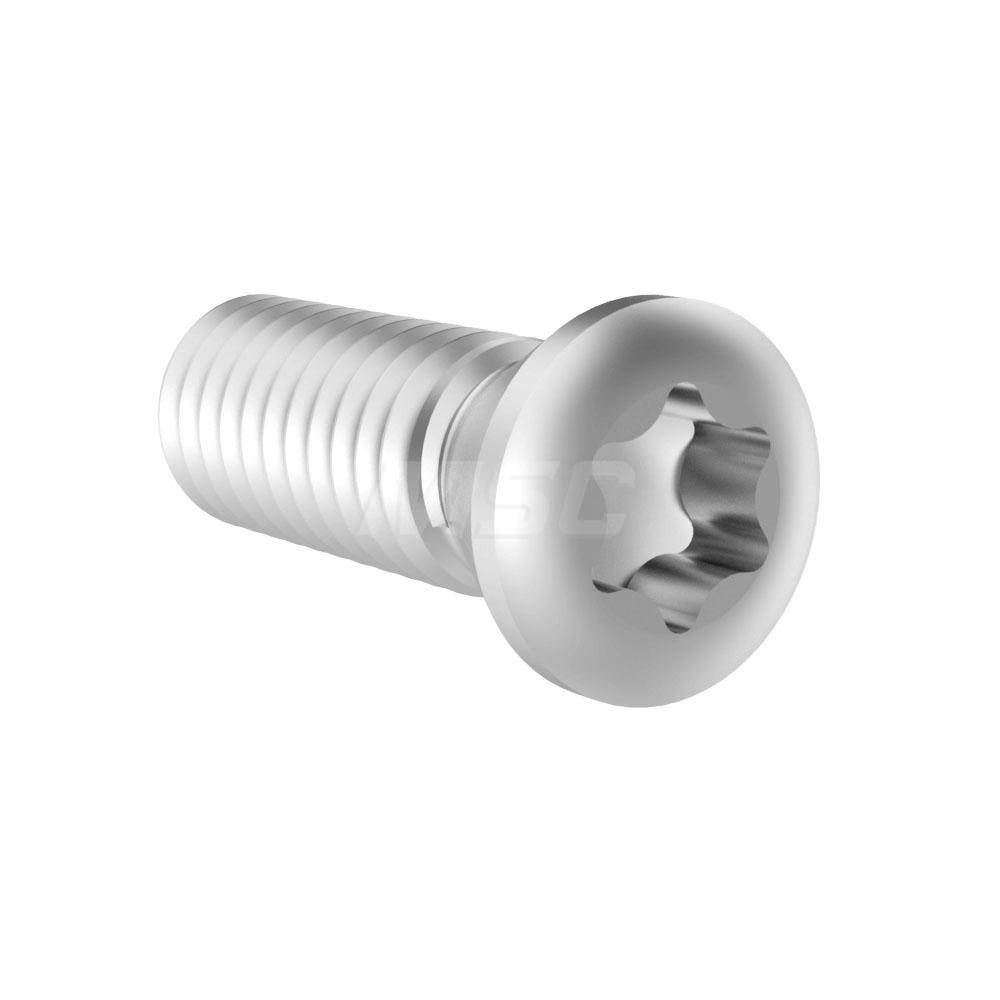

| Insert Lock Screw | C03007-T08P; C02507-T08P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
