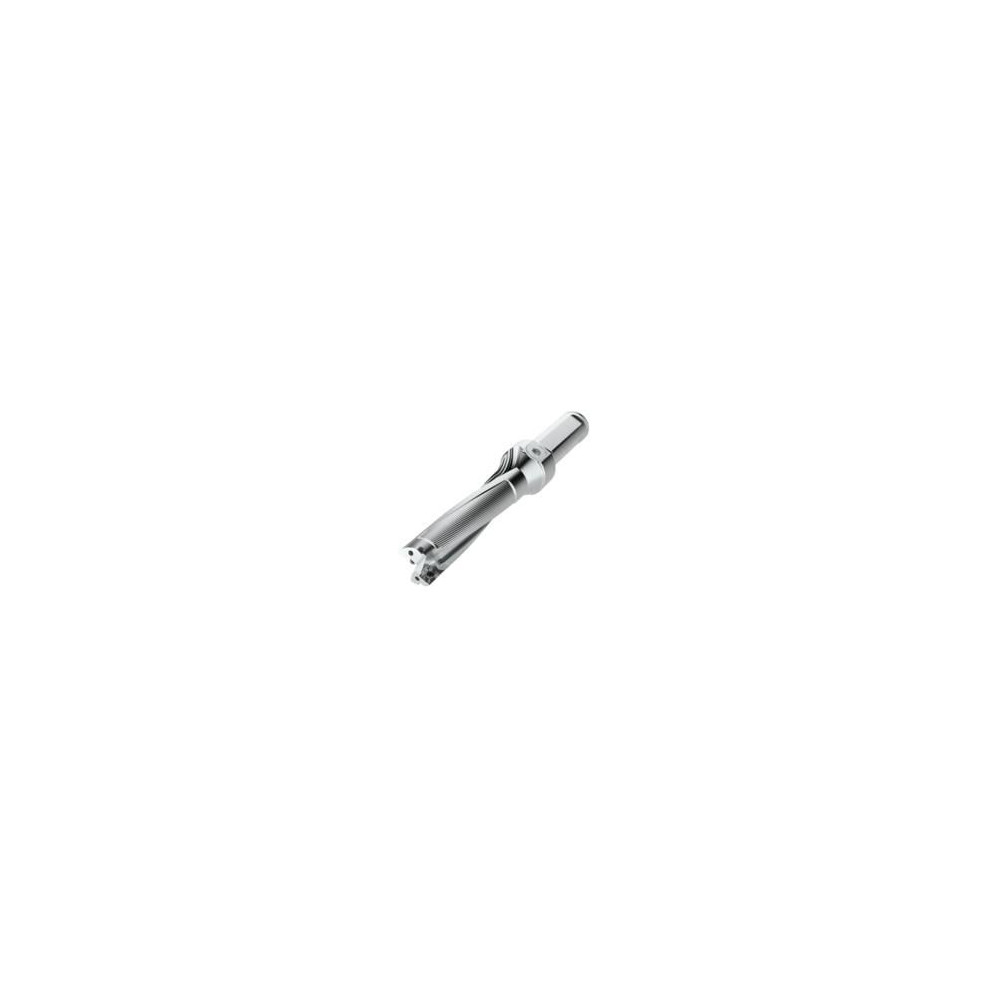

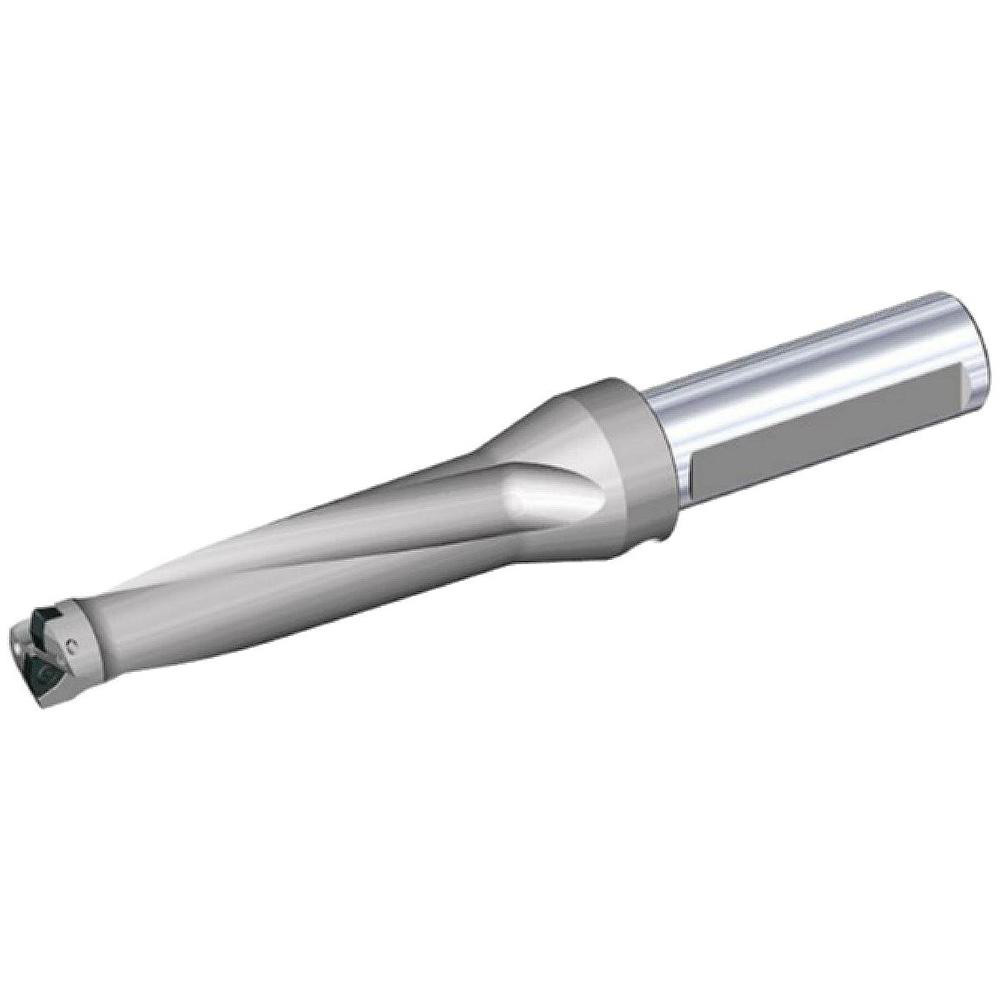

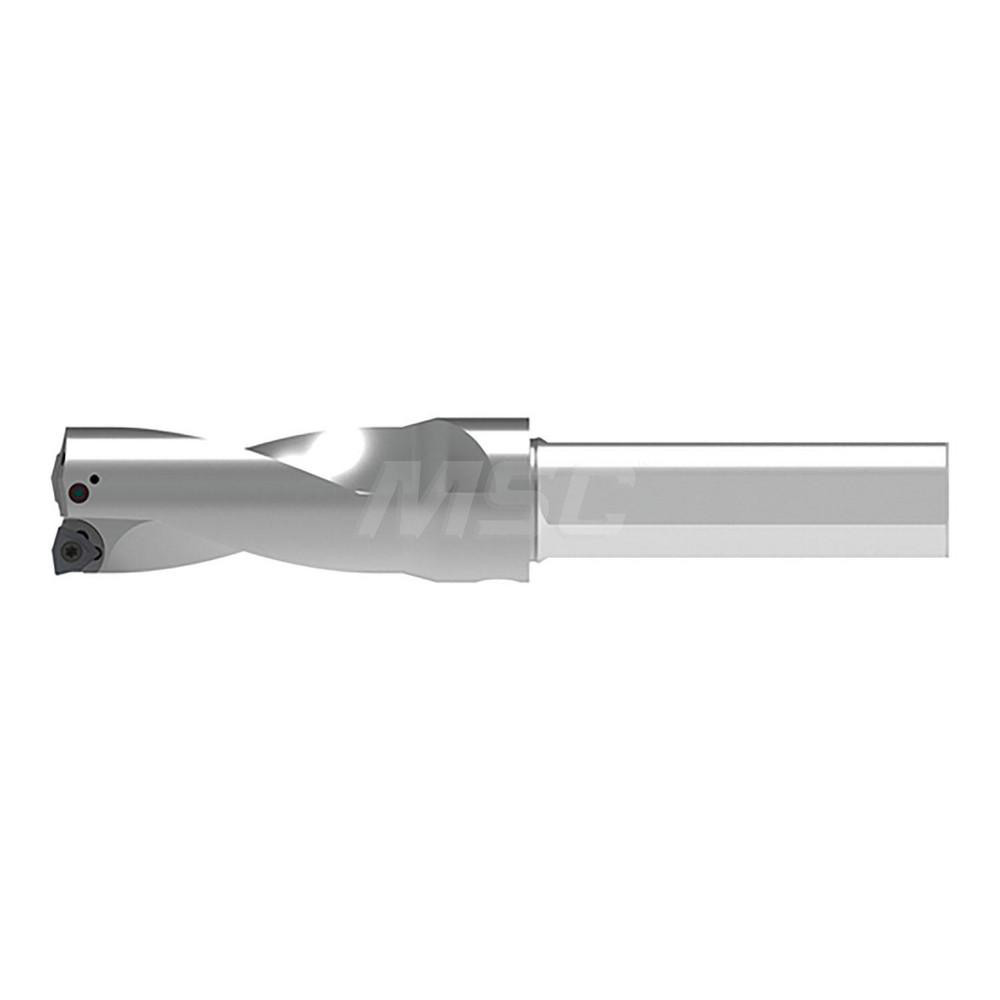

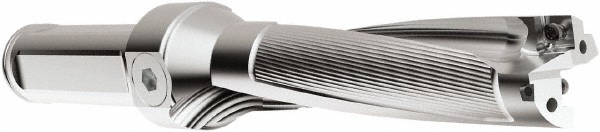

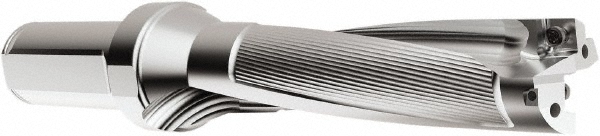

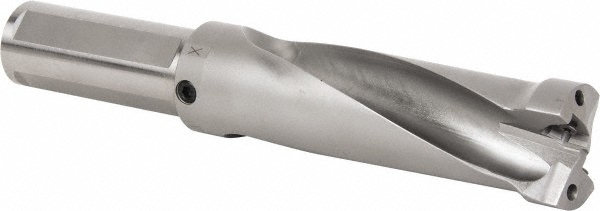

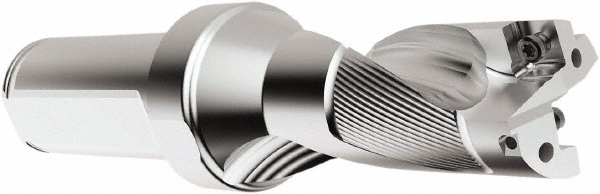

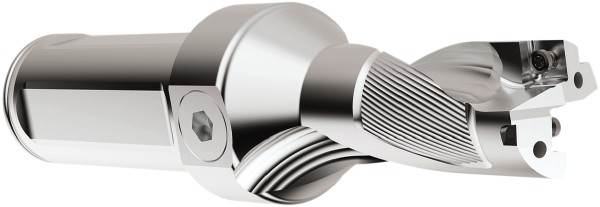

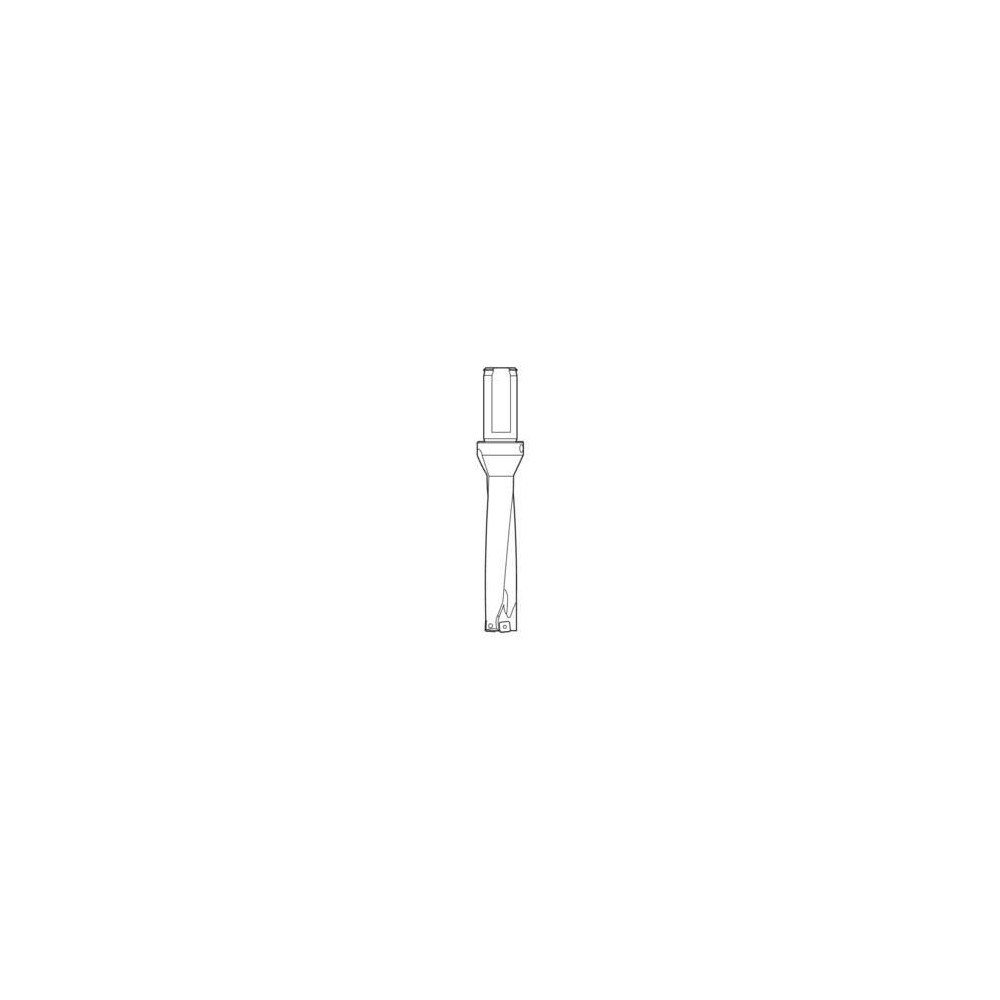

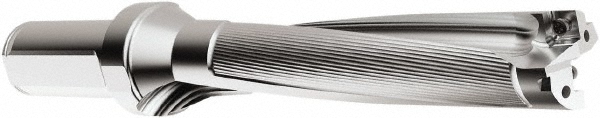

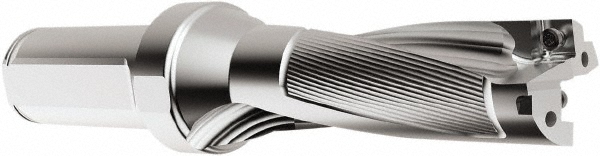

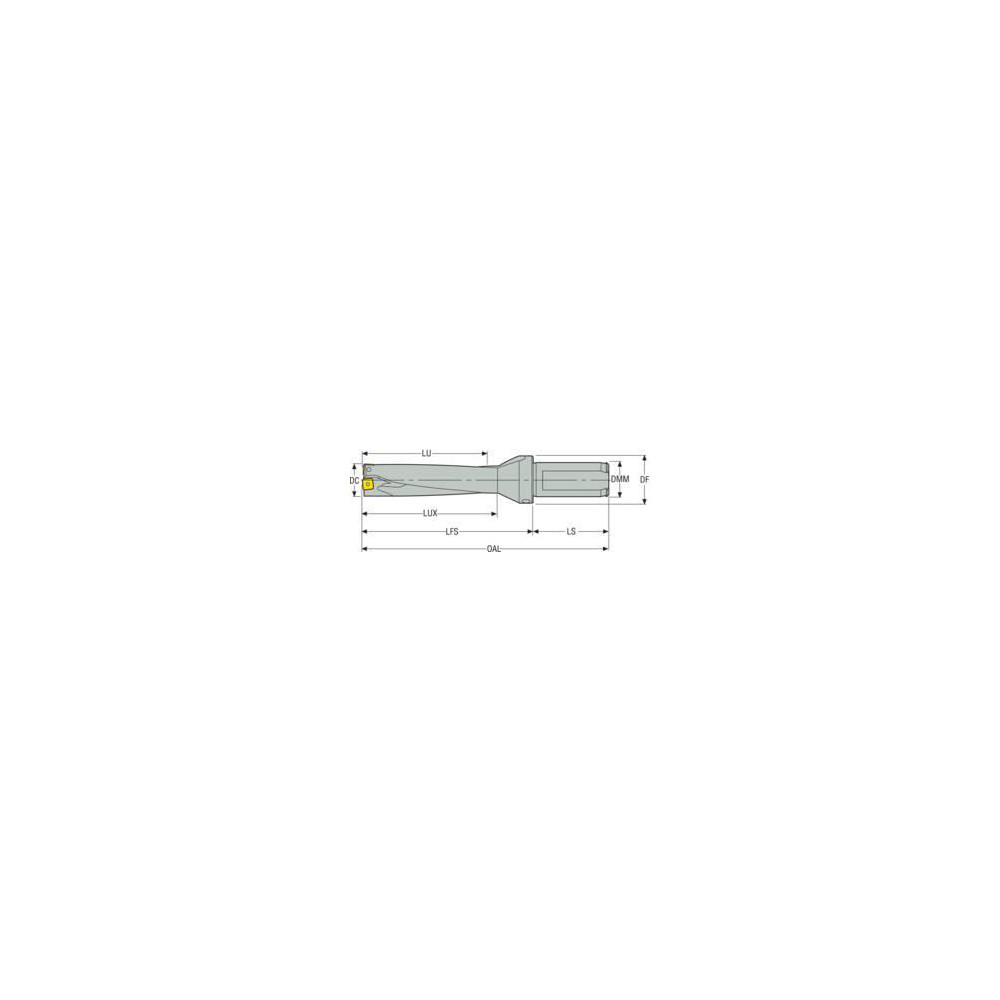

Flatted & Flange Shank, Uses SPGX & SCGX 11T3 & 09T308 Inserts, Series SD524
| Compatible Drill Style | SD524 |
|---|---|
| Maximum Drill Diameter (mm) | 32.31 |
| Maximum Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Diameter (Decimal Inch) | 1.2740 |
| Maximum Drill Depth (Inch) | 5 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Shank Type | Flange; Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 09T308; 11T3 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 9.1280 |
| Series | SD524 |
| Flute Length (Decimal Inch) | 5.1970 |
| Flute Length (mm) | 132.00 |
| Body Length (mm) | 162.00 |
| Body Length (Decimal Inch) | 6.3780 |
| Shank Length (Decimal Inch) | 2.7500 |
| Shank Length (mm) | 66.68 |
| Neck Diameter (Inch) | 1.9690 |
| Modular Connection Size | R7-C |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4530; 0.3750 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SCGX09T308; SPGX11T3 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Collar Diameter (mm) | 50.00 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |

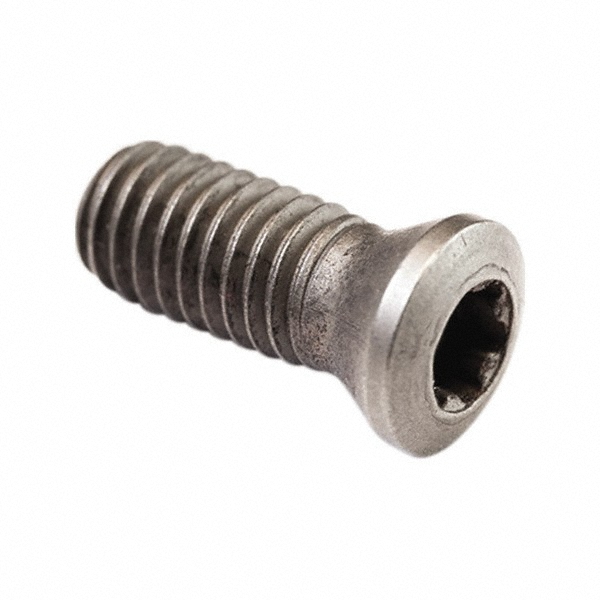

| Insert Lock Screw | C03508-T15P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 39342803 |
