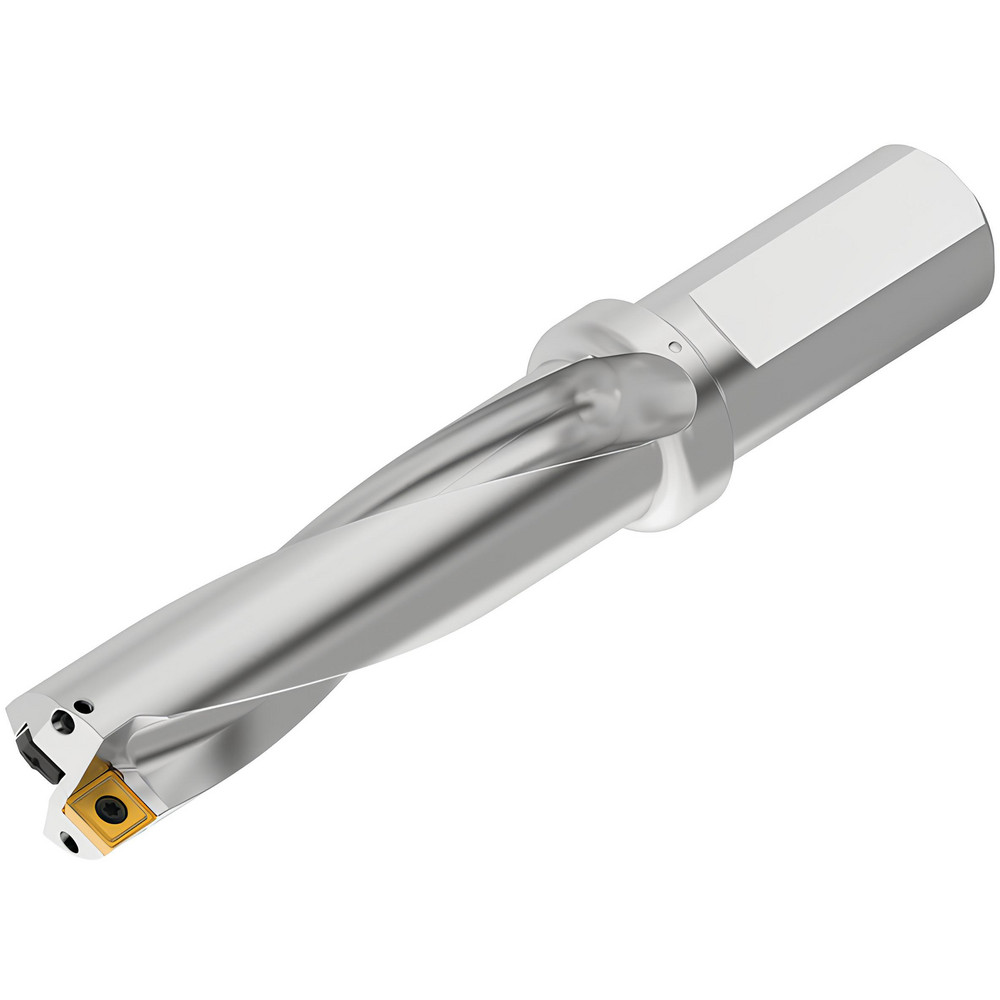

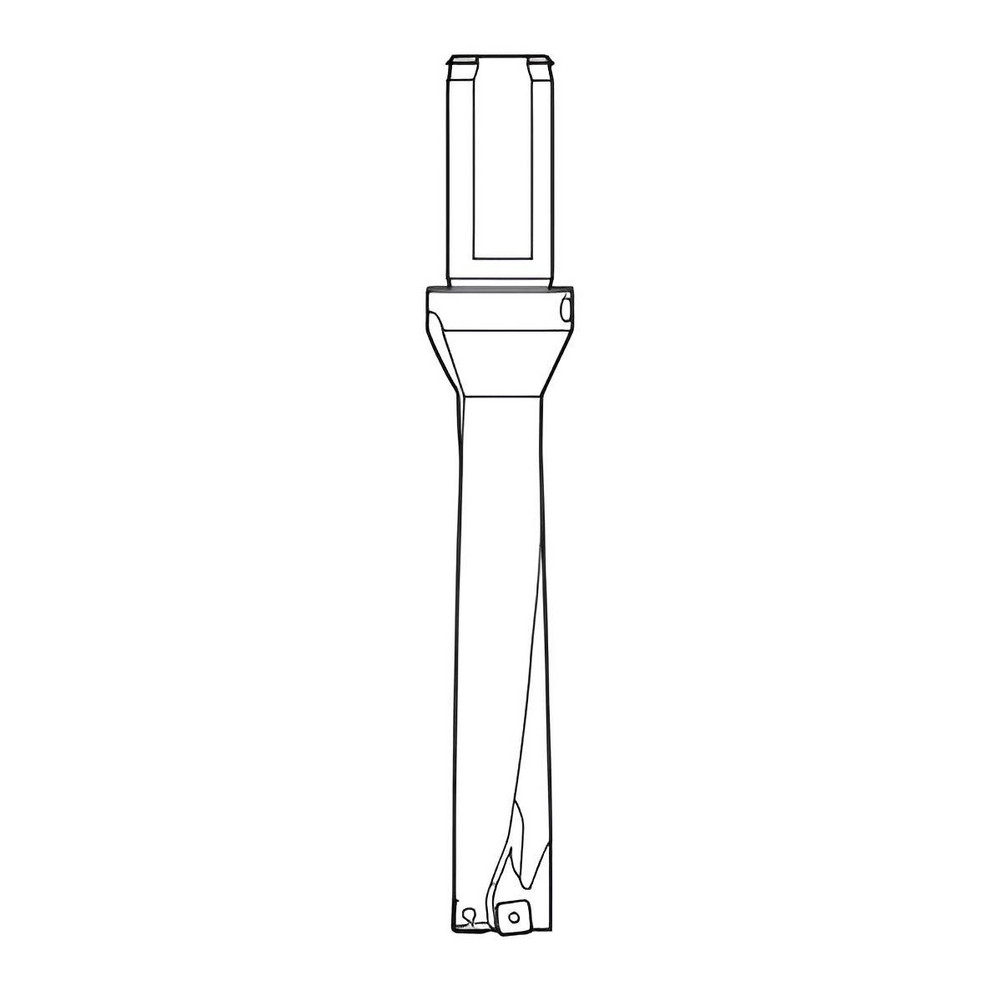

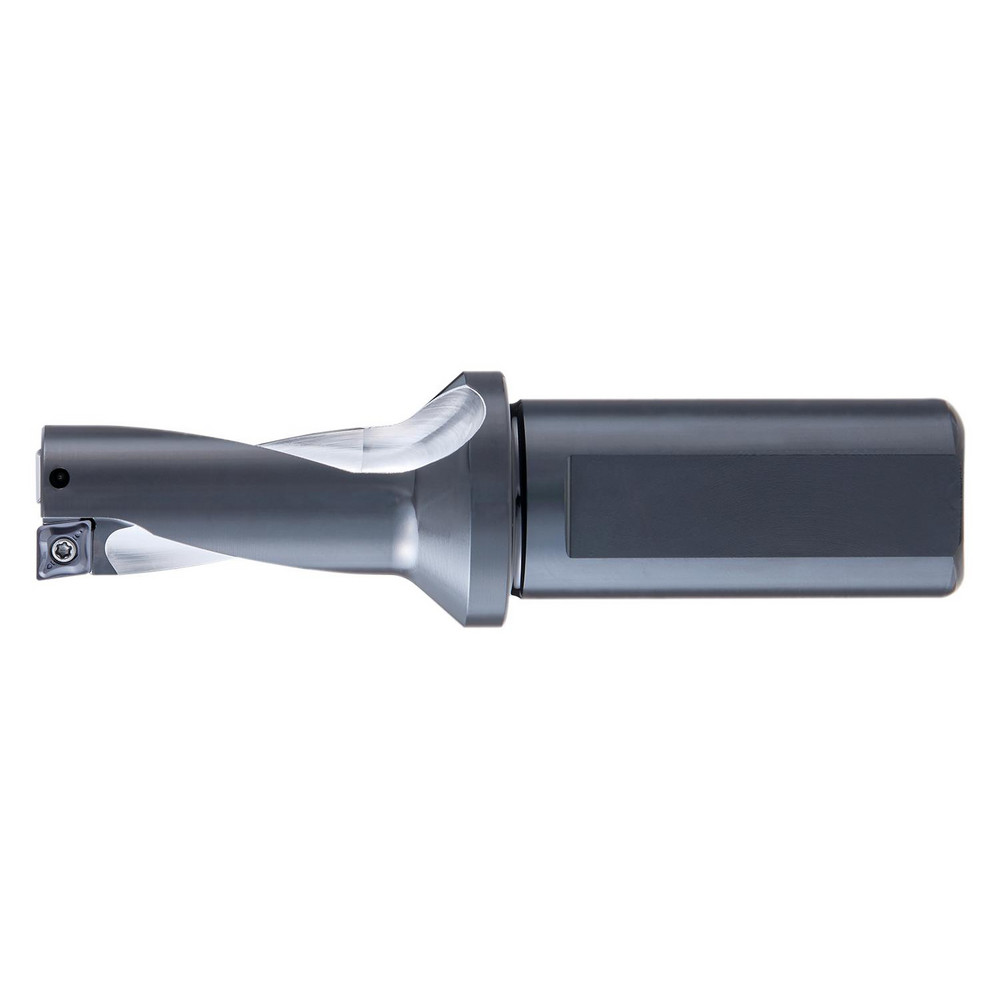

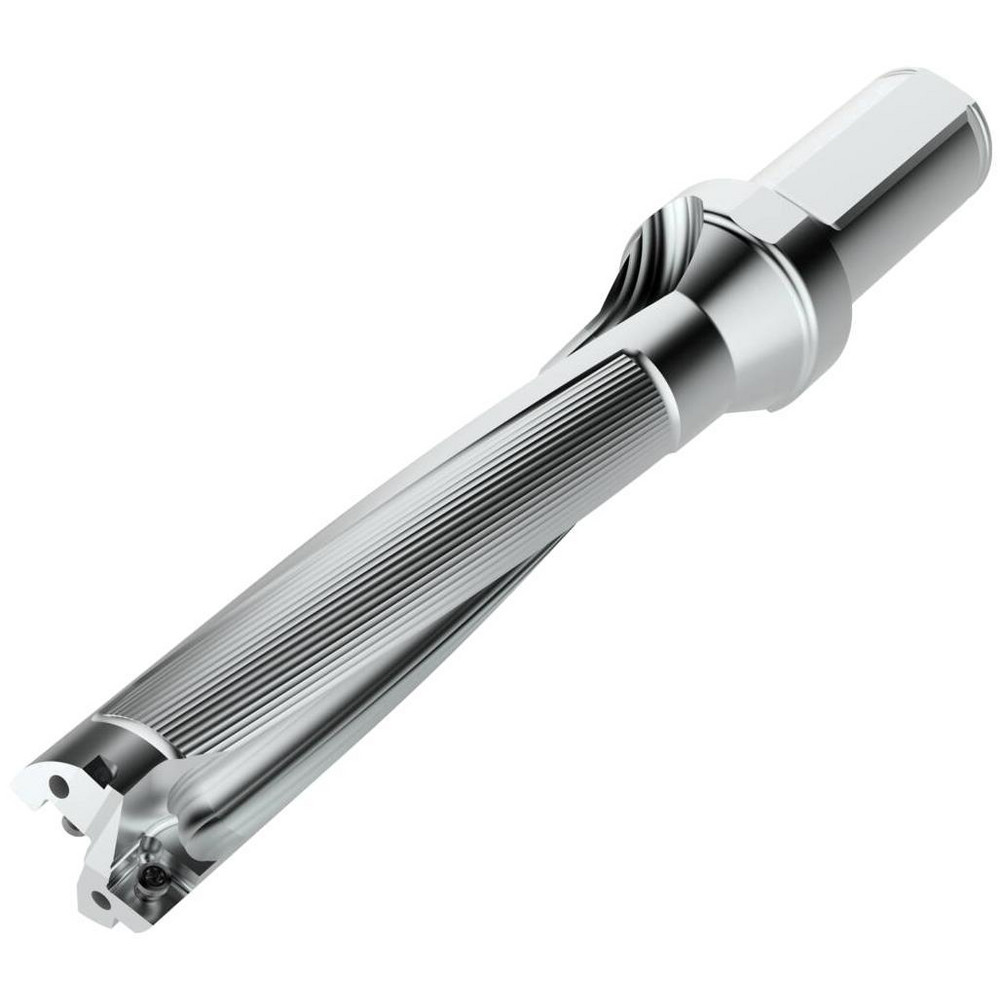

Weldon Flat & Flange Shank, Uses SPGX & SCGX 0903 & 070308 Inserts, Series SD525
| Compatible Drill Style | SD525 |
|---|---|
| Maximum Drill Diameter (mm) | 27.00 |
| Maximum Drill Depth (mm) | 135.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |

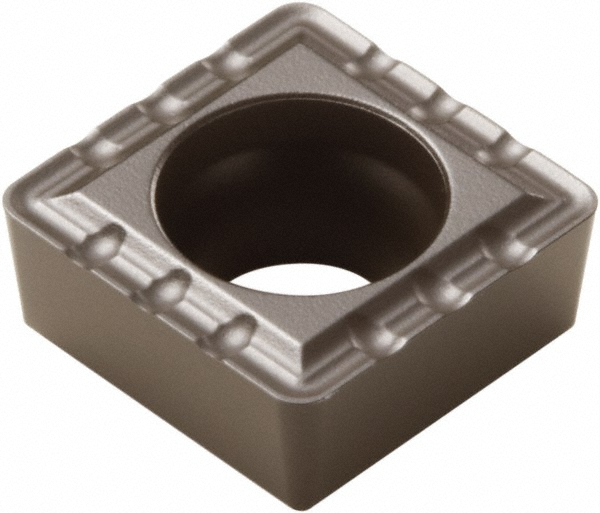

| Compatible Insert Style | SCGX; SPGX |
| Compatible Insert Size Code | 070308; 0903 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | SD525 |

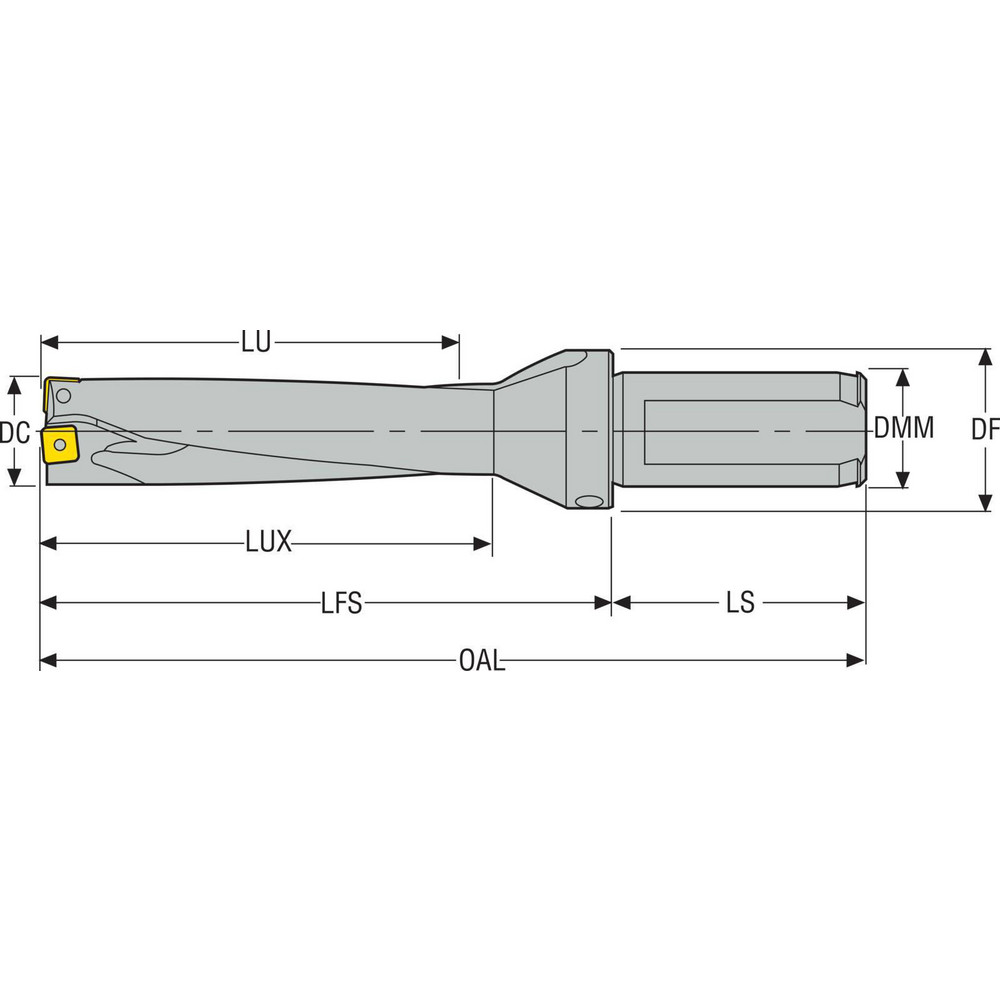

| Flute Length (mm) | 140.00 |
| Body Length (mm) | 165.00 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.53; 7.94 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPGX0903; SCGX070308 |
| Collar Diameter (mm) | 42.00 |

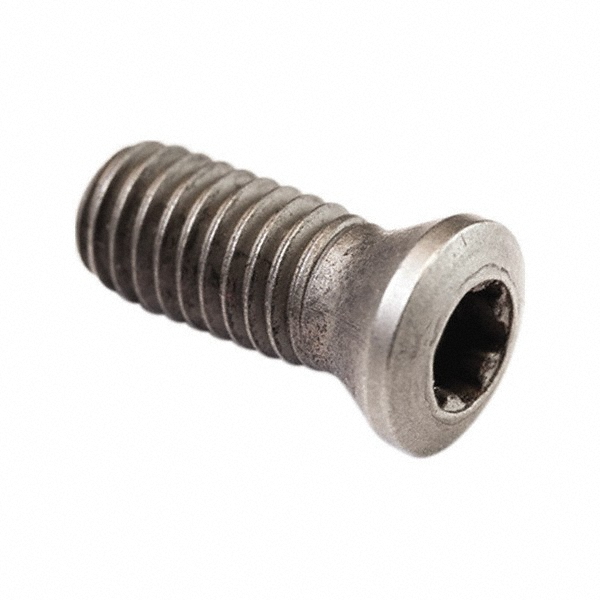

| Insert Lock Screw | C03007-T09P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 39331160 |
