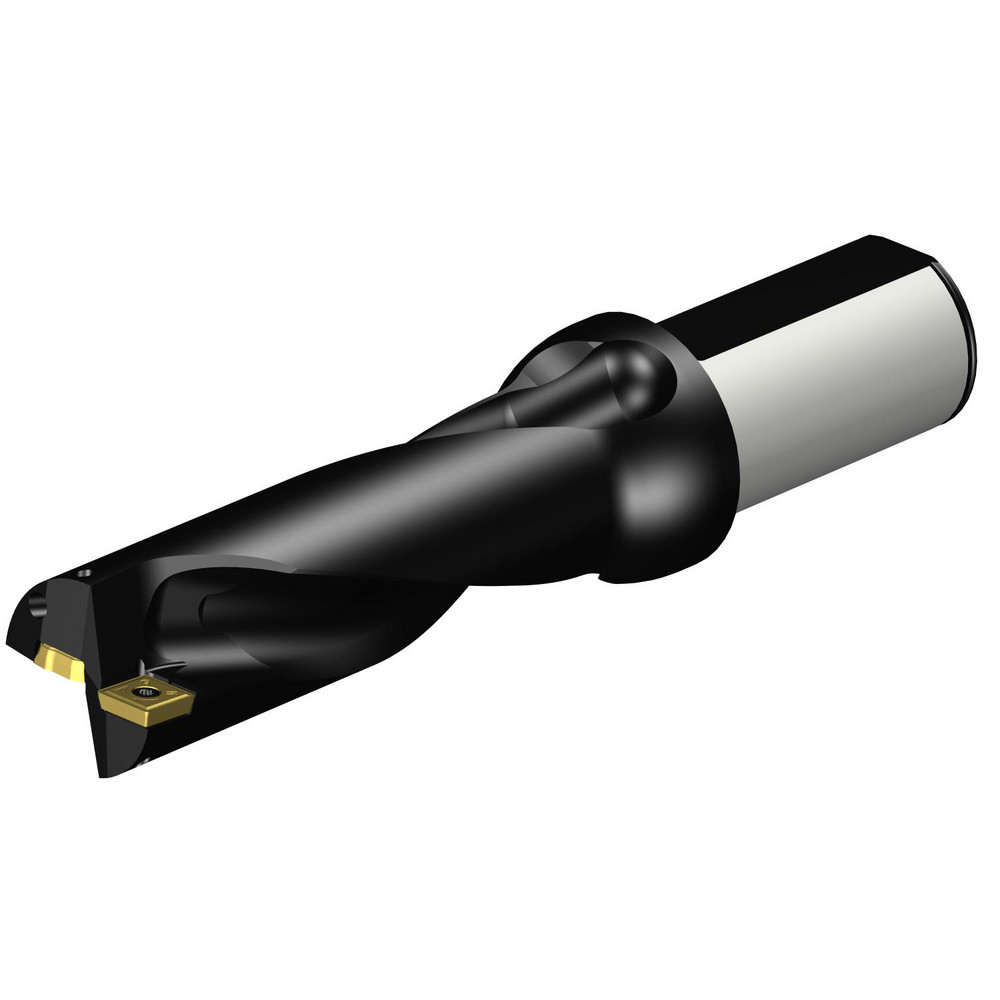

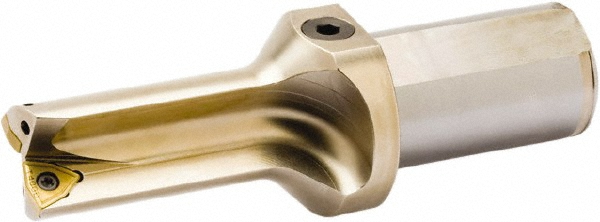

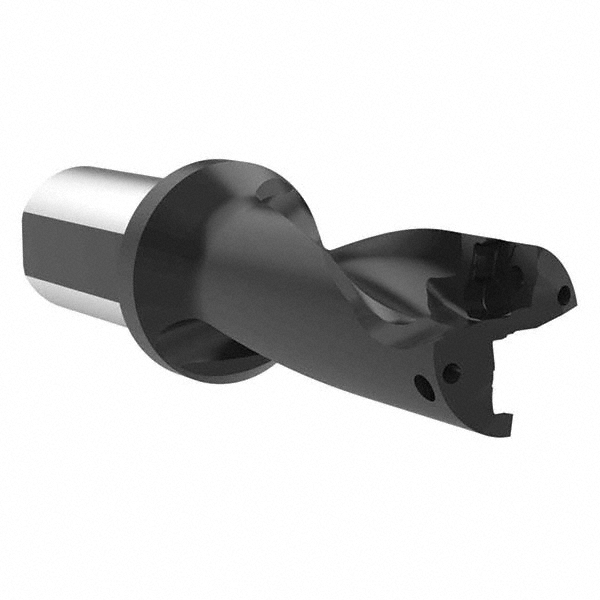

Weldon Flat & Flange Shank, Uses WCMX 080412 Inserts, Series SD572
| Compatible Drill Style | SD572 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.6140 |
| Maximum Drill Depth (Decimal Inch) | 3.2280 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WCMX |
| Compatible Insert Size Code | 080412 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |

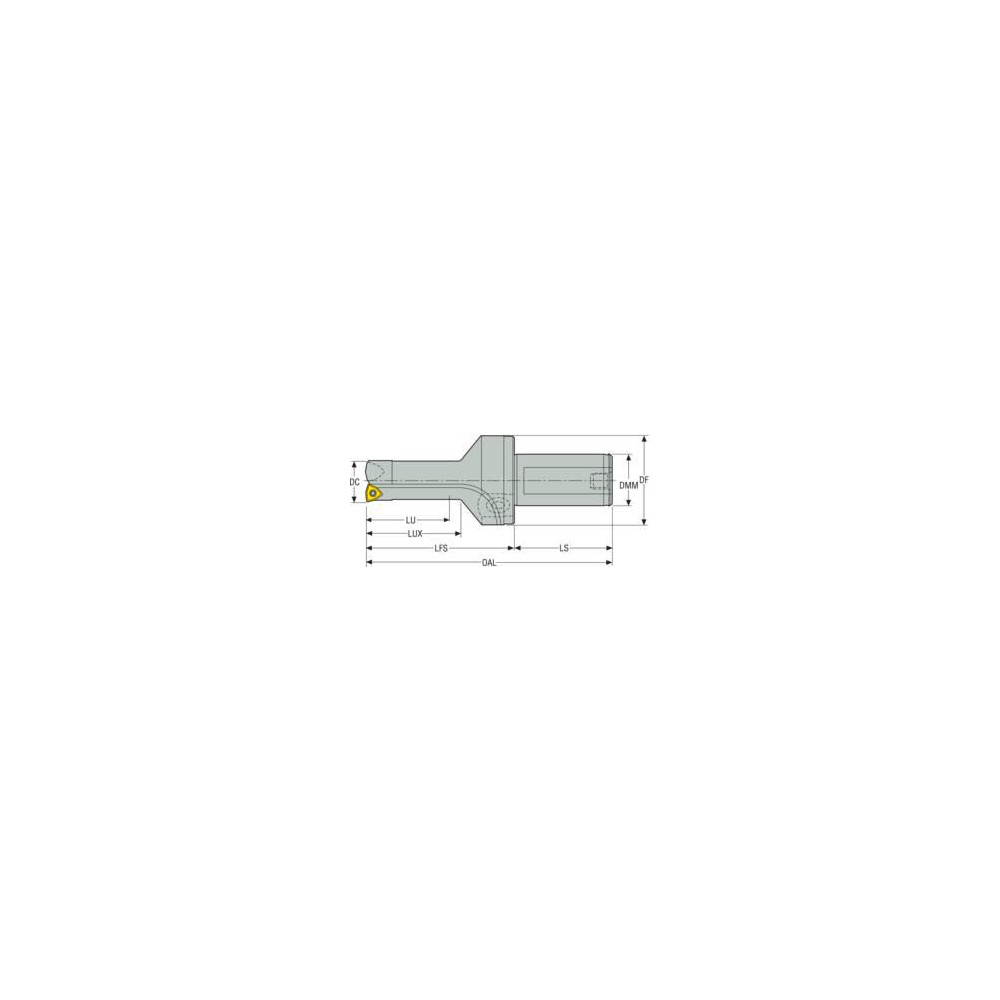

| Overall Length (Decimal Inch) | 7.5470 |
| Overall Length (Inch) | 7-35/64 |
| Series | SD572 |
| Flute Length (Decimal Inch) | 3.4250 |
| Body Length (Decimal Inch) | 4.6060 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 2.3030 |
| Modular Connection Size | R7 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WCMX080412; WCMX080412.. |
| Collar Diameter (Decimal Inch) | 2.3030 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | C04011-T15P |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 93583979 |
