Screw, Uses 7 Inserts, 15010-2 Inserts, 7 Tooth, Straight Teeth

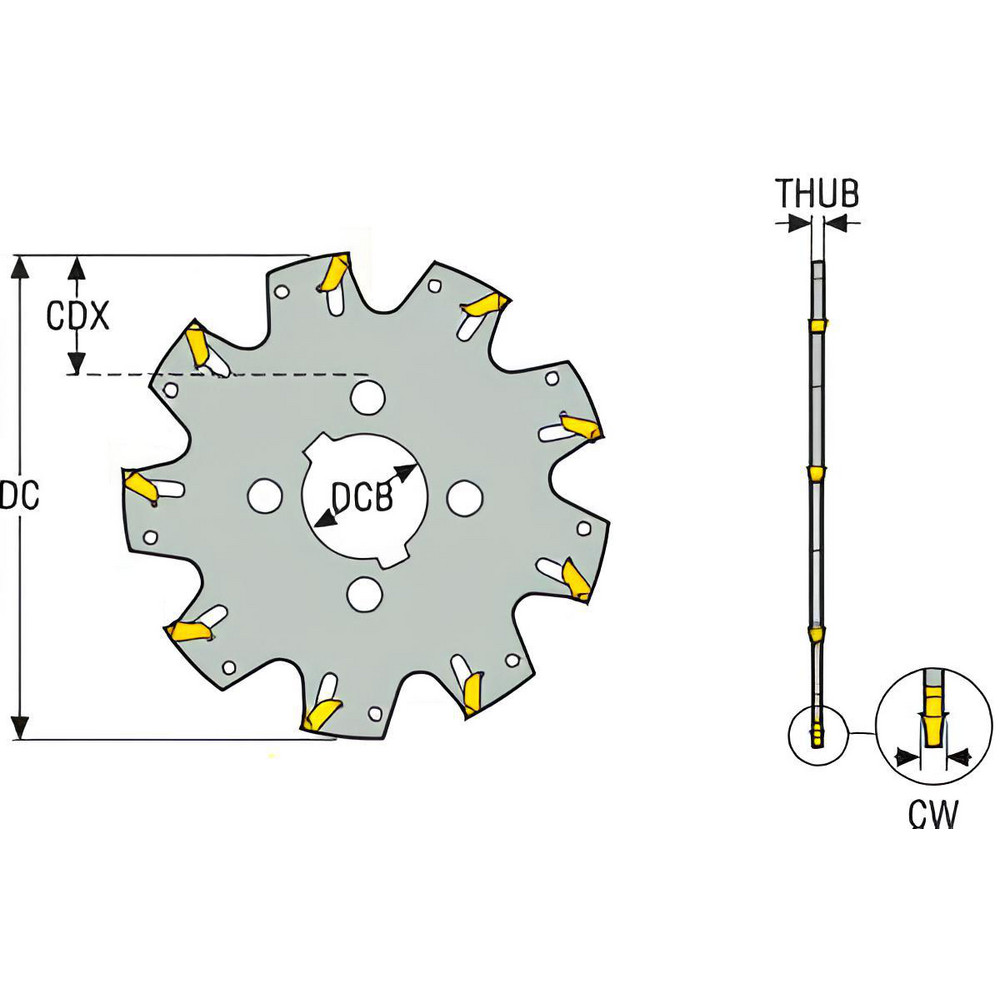

| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.0550 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 7 |
| Compatible Insert Style | 15010-2 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Hub Diameter (Decimal Inch) | 1.8900 |
| Maximum RPM | 3200 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Radius | No |
| UNSPSC Code | 23241629 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.10-04.00-2 |
| Number Of Teeth | 7 |
| Complete Insert Compatibility | 150.10-2.5N-12; 150.10-2.5N-14; 150.10-2.5N-16; 150.10-2.25N-16 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 57058448 |
