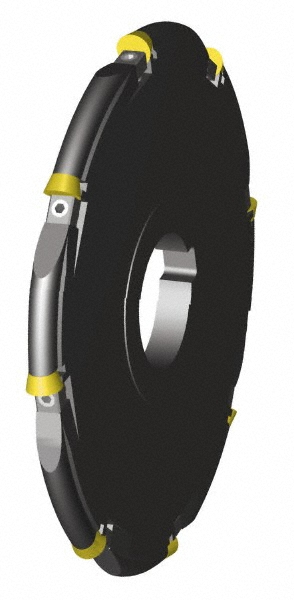

Screw, Uses 9 Inserts, 15010-2 Inserts, 9 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.3580 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 9 |
| Compatible Insert Style | 15010-2 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Hub Diameter (Decimal Inch) | 2.2800 |
| Maximum RPM | 2800 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Radius | No |
| UNSPSC Code | 23241629 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.10-05.00-2 |
| Number Of Teeth | 9 |
| Complete Insert Compatibility | 150.10-2.5N-12; 150.10-2.5N-14; 150.10-2.5N-16; 150.10-2.25N-16 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 57058620 |
