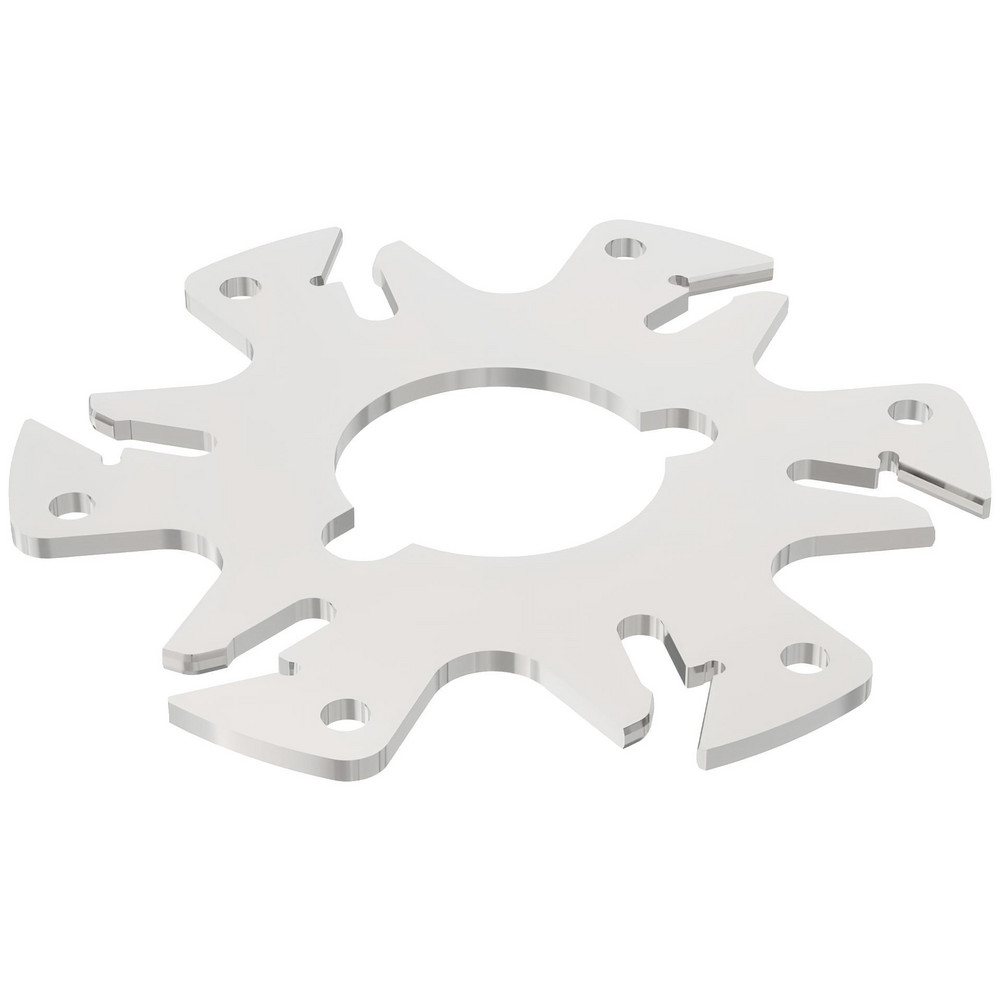

Screw, Uses 6 Inserts, 150.10-2.25N & 150.10-2.5N Inserts, 6 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Maximum Depth of Cut (mm) | 16.26 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Mm) ( - 0 Decimals) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Cutter Diameter (mm) | 76.20 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | 150.10-2.5N; 150.10-2.25N |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | 335.1 |
| Toolholder Style | 335.1 |
| Hub Diameter (Decimal Inch) | 1.9000 |
| Keyway Width (Inch) | 1/4 |
| Keyway Width (Decimal Inch) | 0.2500 |
| Maximum RPM | 3500 |
| Tool Application | Disc Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.10-03.00-2 |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Complete Insert Compatibility | 150.10-2.5N; 150.10-2.25N |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 57036030 |
