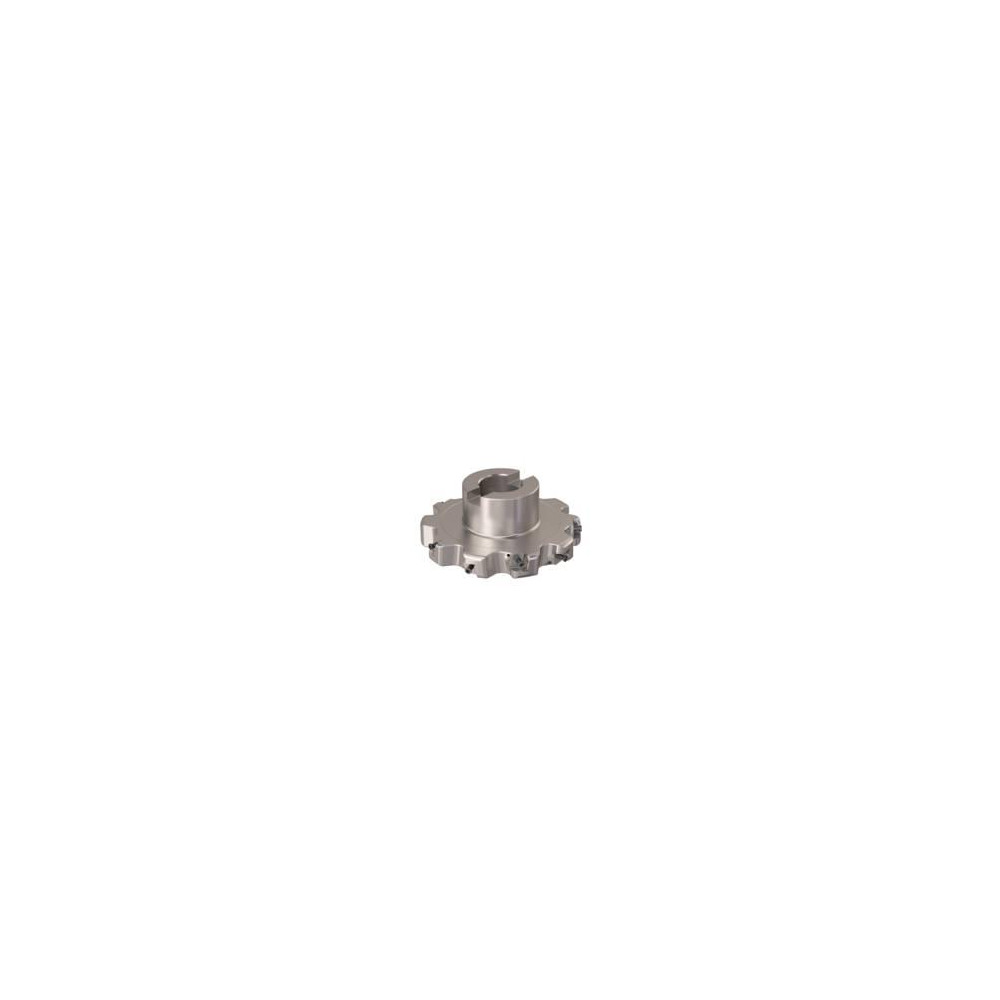

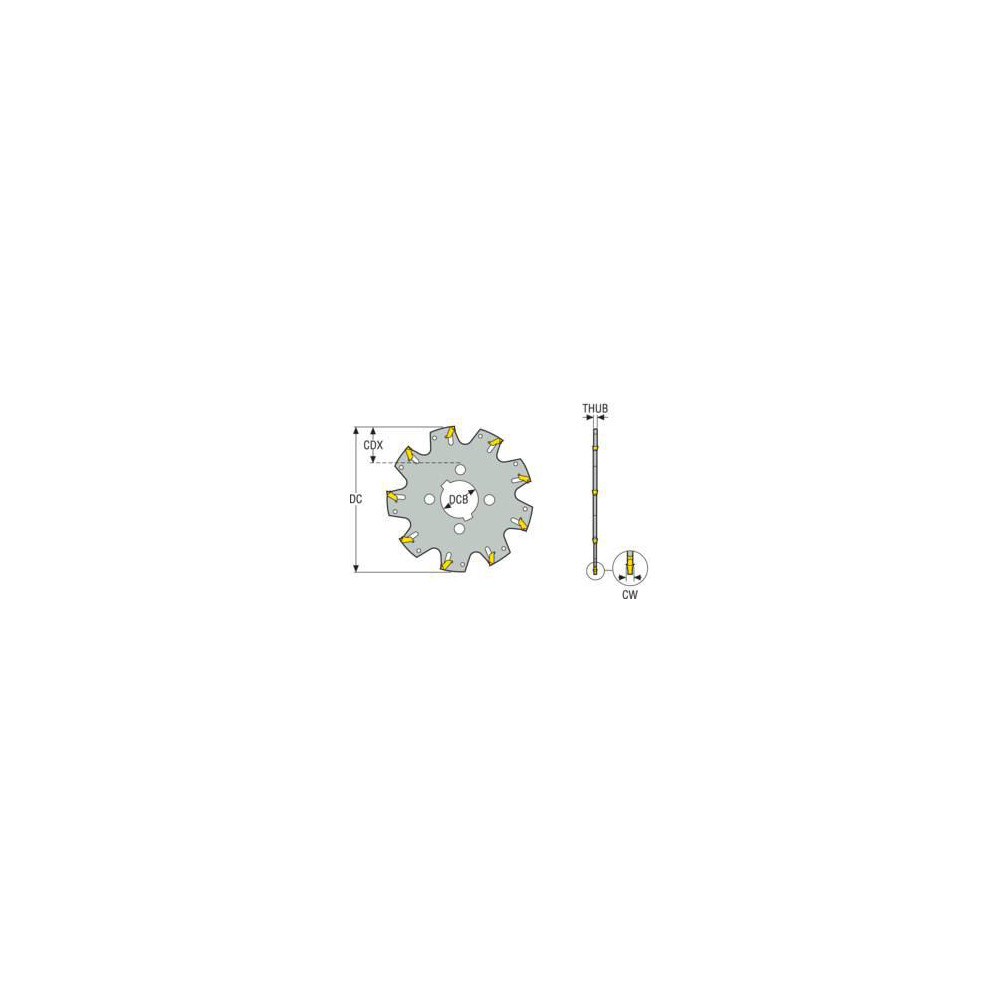

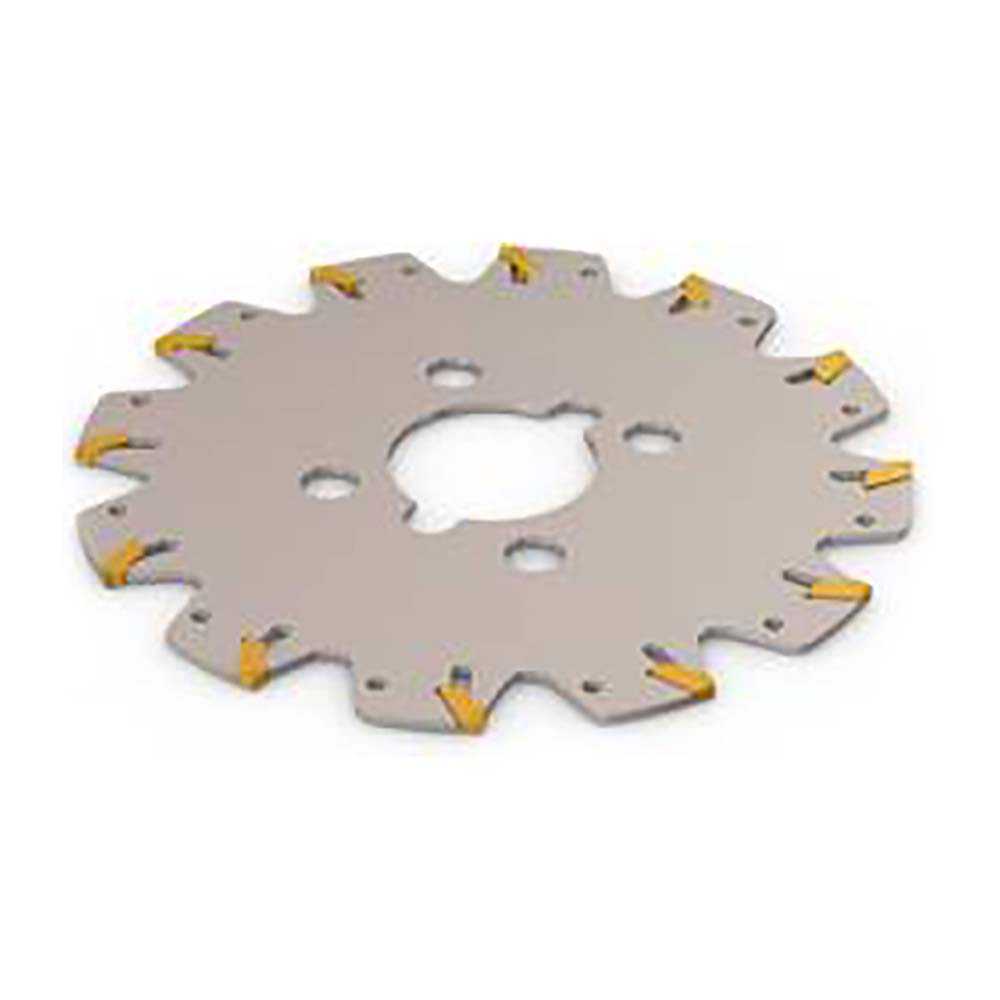

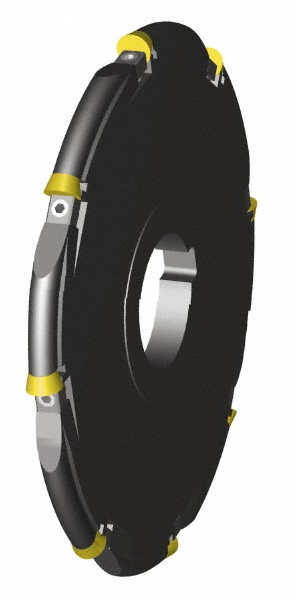

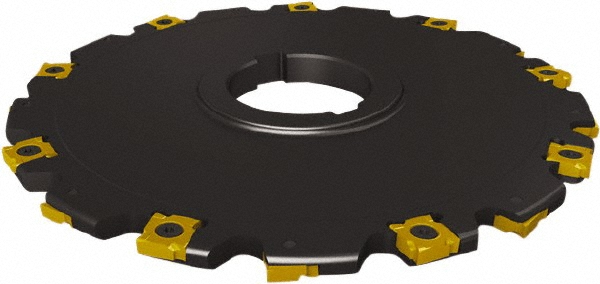

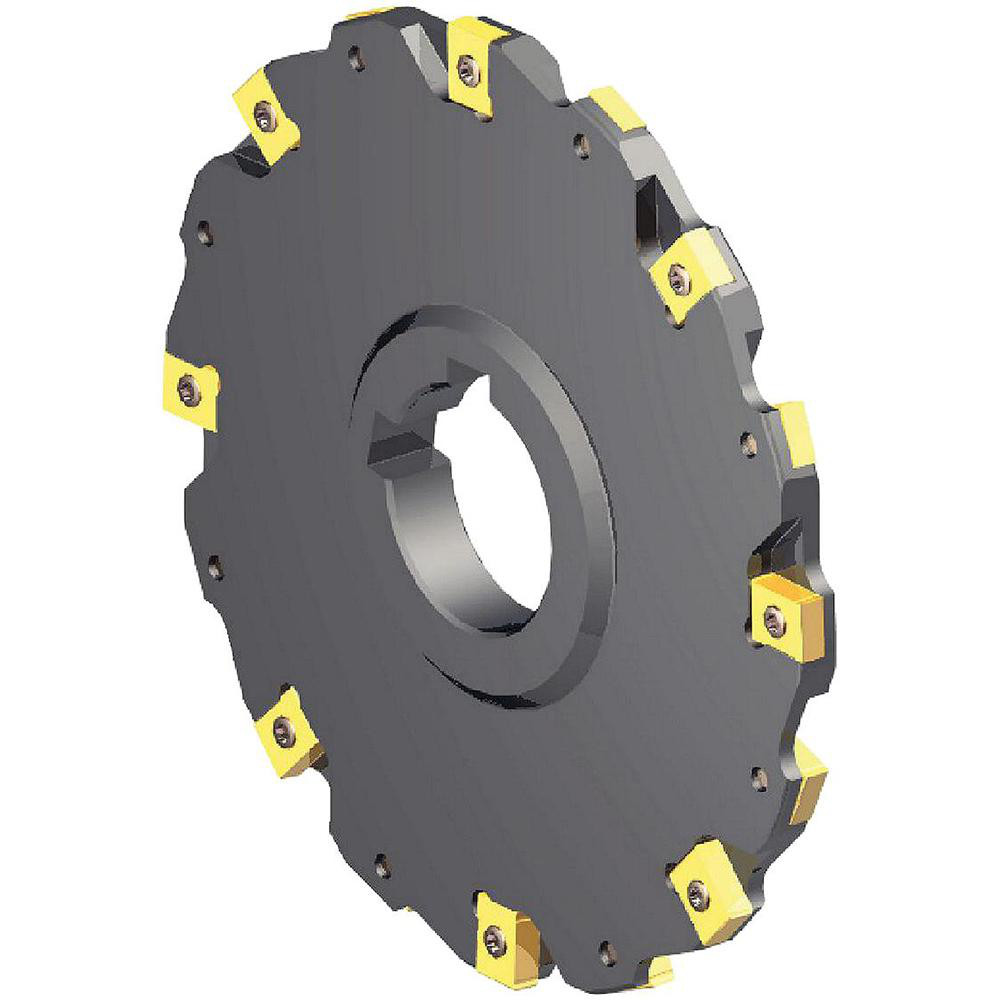

Screw, Uses 9 Inserts, 150.10-2.25N & 150.10-2.5N Inserts, 9 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.3980 |
| Maximum Depth of Cut (mm) | 34.04 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Mm) ( - 0 Decimals) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutter Diameter (mm) | 127.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 9 |
| Compatible Insert Style | 150.10-2.5N; 150.10-2.25N |
| Compatible Insert Size Code | 150.10-2.5N; 150.10-2.25N |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | 335.1 |
| Toolholder Style | 335.1 |
| Hub Diameter (Decimal Inch) | 1.9000 |
| Keyway Width (Inch) | 5/16 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Maximum RPM | 2800 |
| Tool Application | Disc Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.10-05.00-2 |
| Number Of Teeth | 9 |
| Coolant Through | No |
| Complete Insert Compatibility | 150.10-2.5N; 150.10-2.25N |
| Country of Origin | Sweden |
| MSC Number | MSC# 57036212 |
