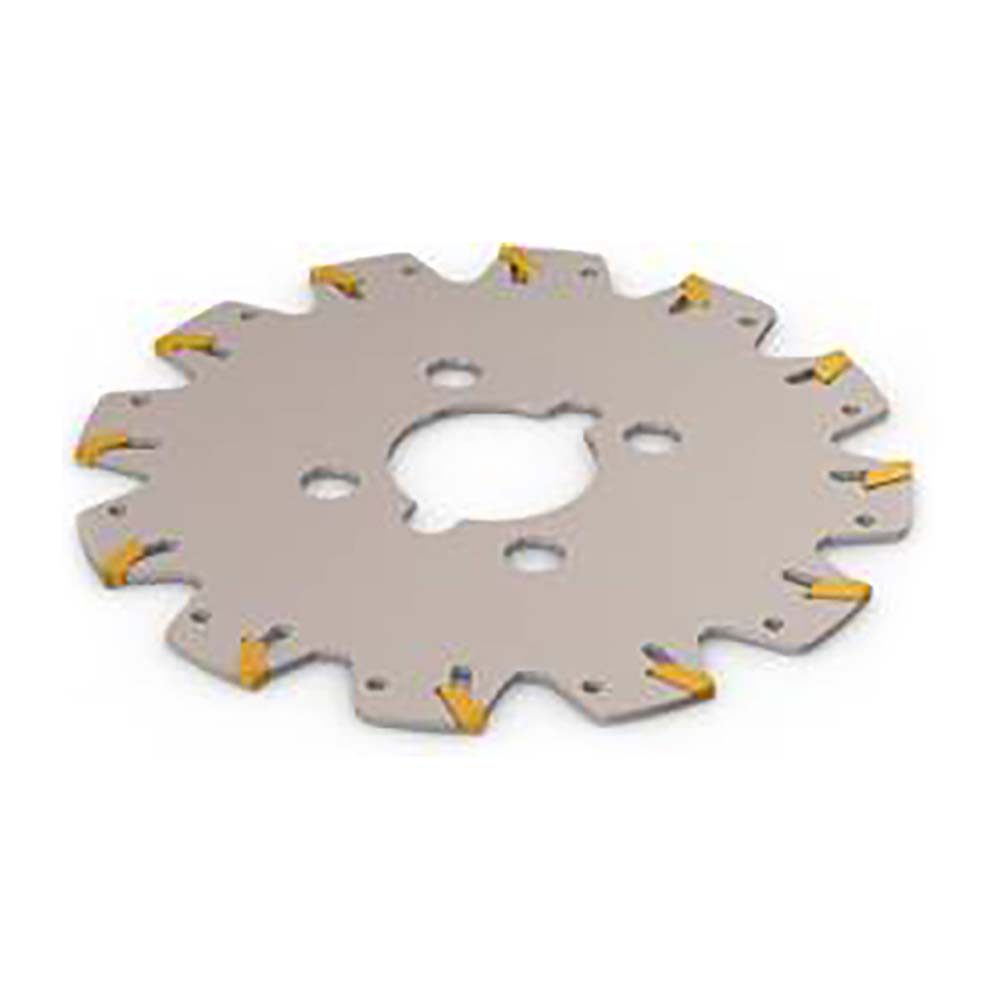

Uses 12 Inserts, 15010-2 Inserts, 12 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.5550 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Cutting Direction | Neutral |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | 15010-2 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | 335.1 |
| Toolholder Style | 335.1 |
| Keyway Width (Inch) | 5/16 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Maximum RPM | 2400 |
| Tool Application | Disc Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Manufacturers Catalog Number | 335.10-06.00-2 |
| Number Of Teeth | 12 |
| Coolant Through | No |
| Complete Insert Compatibility | 150.10-2.5N; 150.10-2.25N |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 57036303 |
