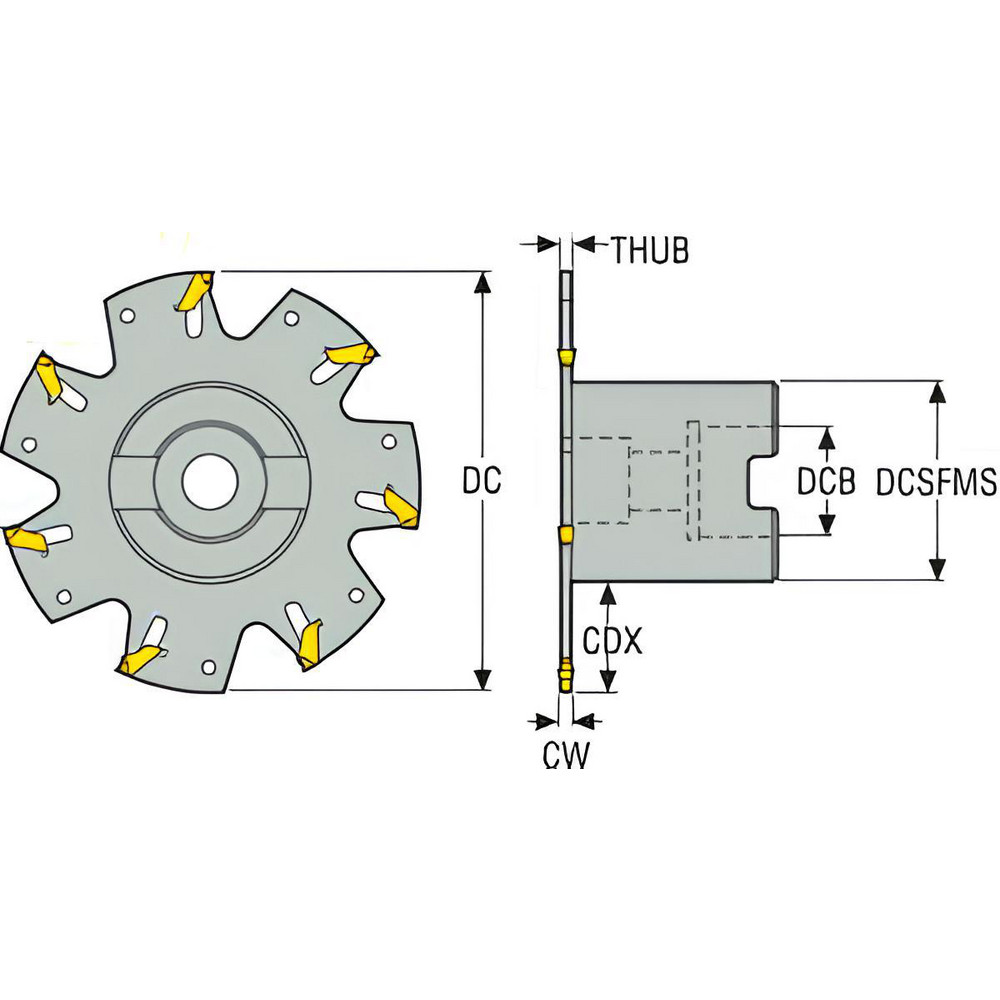

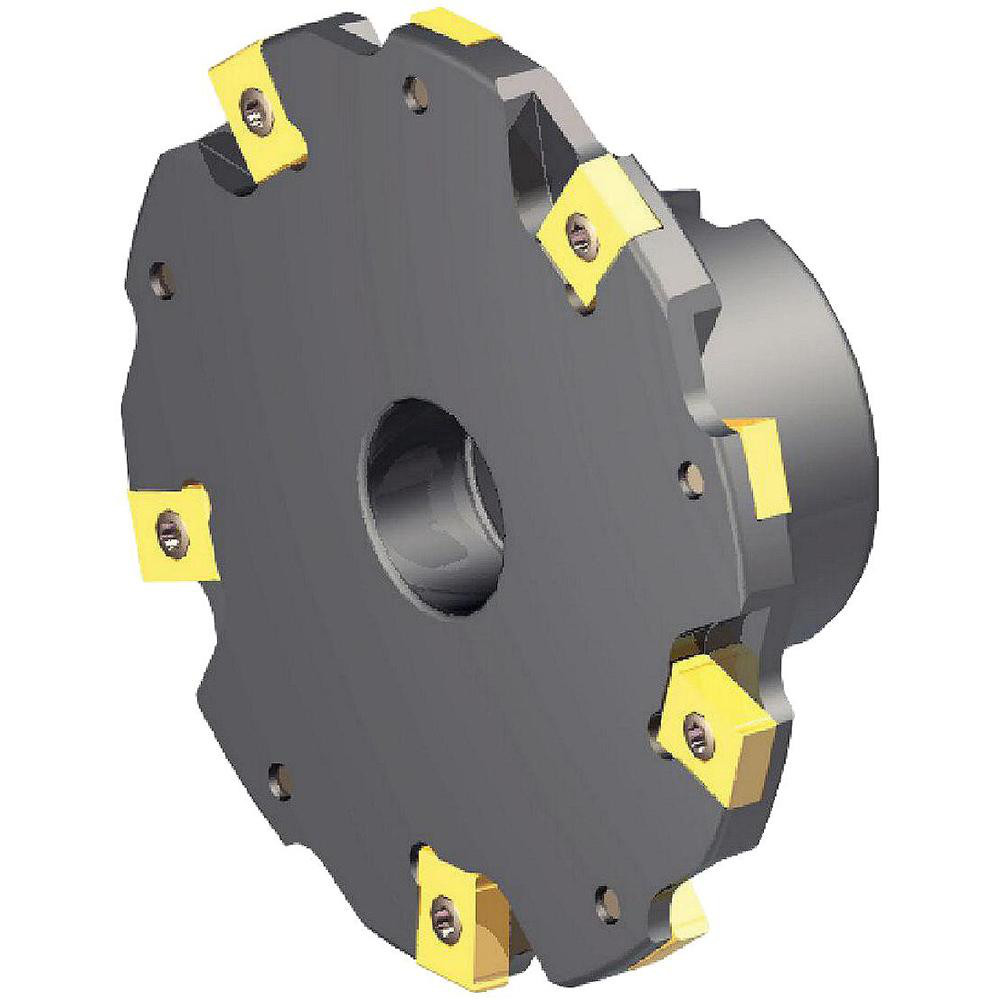

Self Clamping, Uses 7 Inserts, 150.10-3N Inserts, 7 Tooth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.0350 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 7 |
| Compatible Insert Style | 150.10-3N |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Hub Diameter (Decimal Inch) | 1.8900 |
| Hub Diameter (Inch) | 1-57/64 |
| Keyway Width (Decimal Inch) | 0.3820 |
| Maximum RPM | 3200 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.1220 |
| Maximum Cutting Width (Decimal Inch) | 0.1220 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.1220 |
| Manufacturers Catalog Number | R335.10-04.00-3B |
| Number Of Teeth | 7 |
| Coolant Through | No |
| Complete Insert Compatibility | 150.10-3N |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 57058539 |
