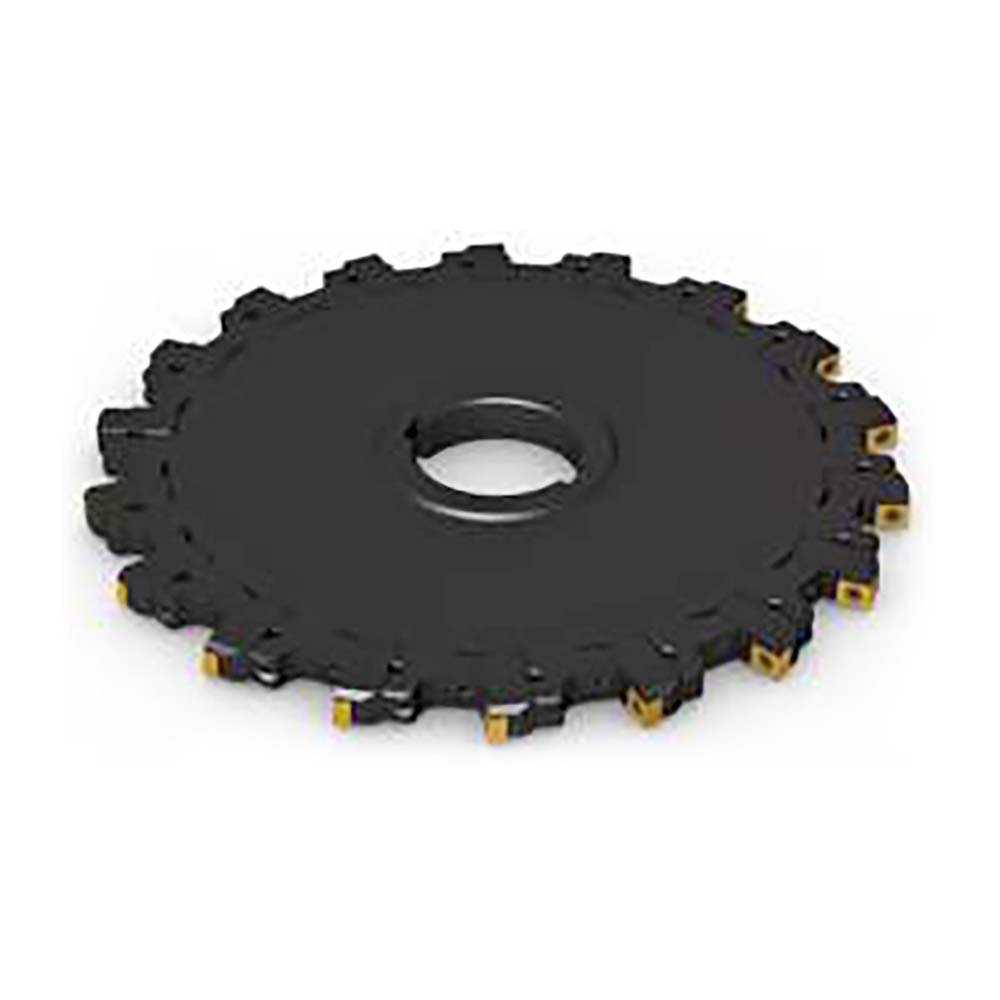

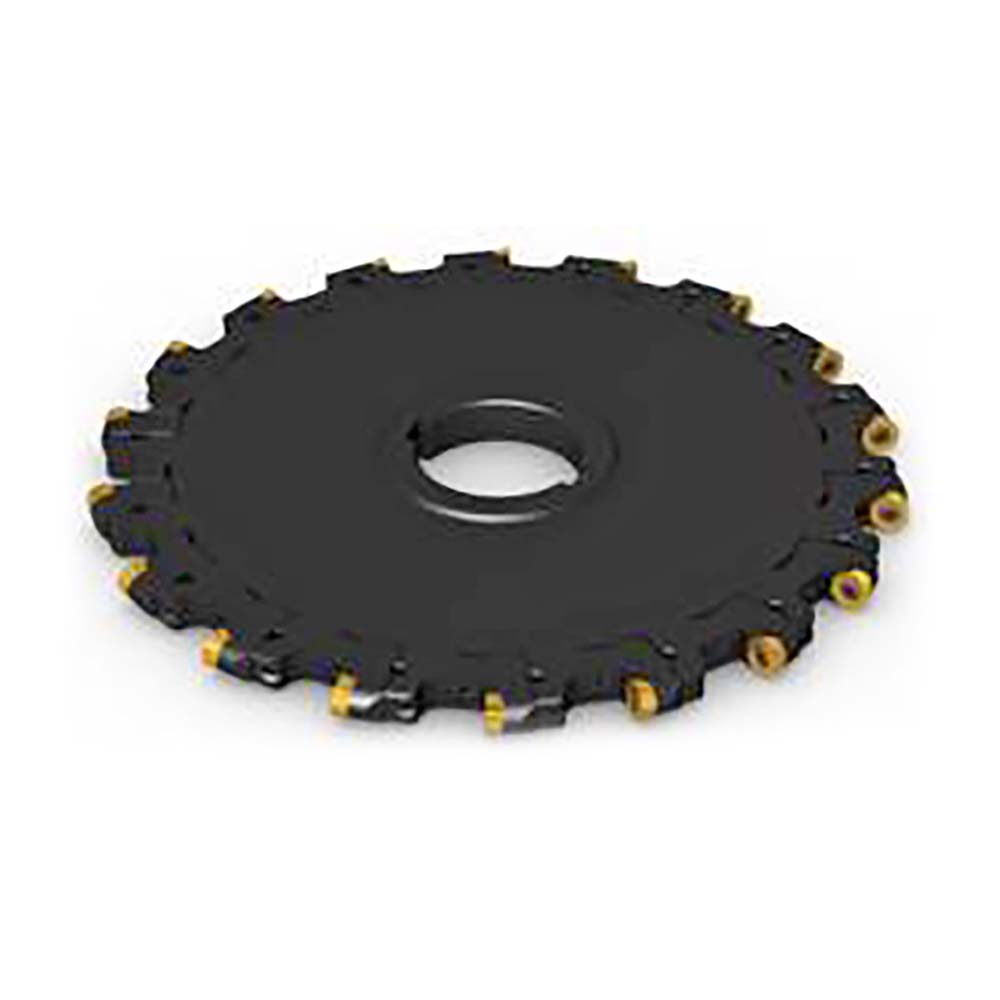

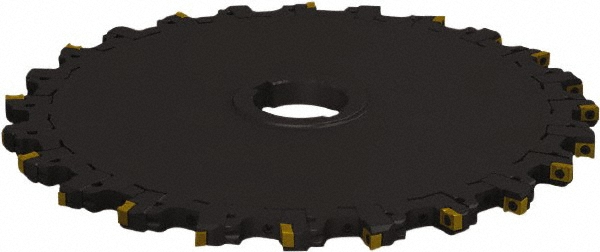

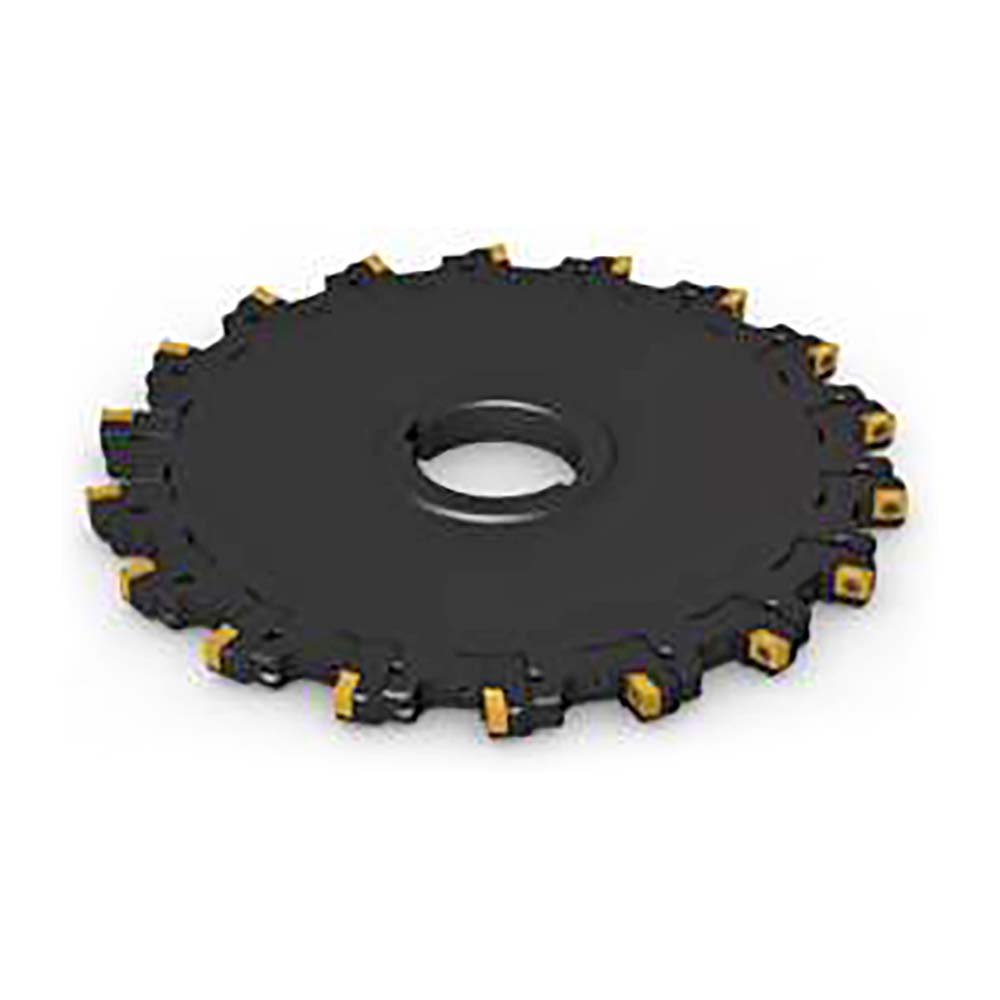

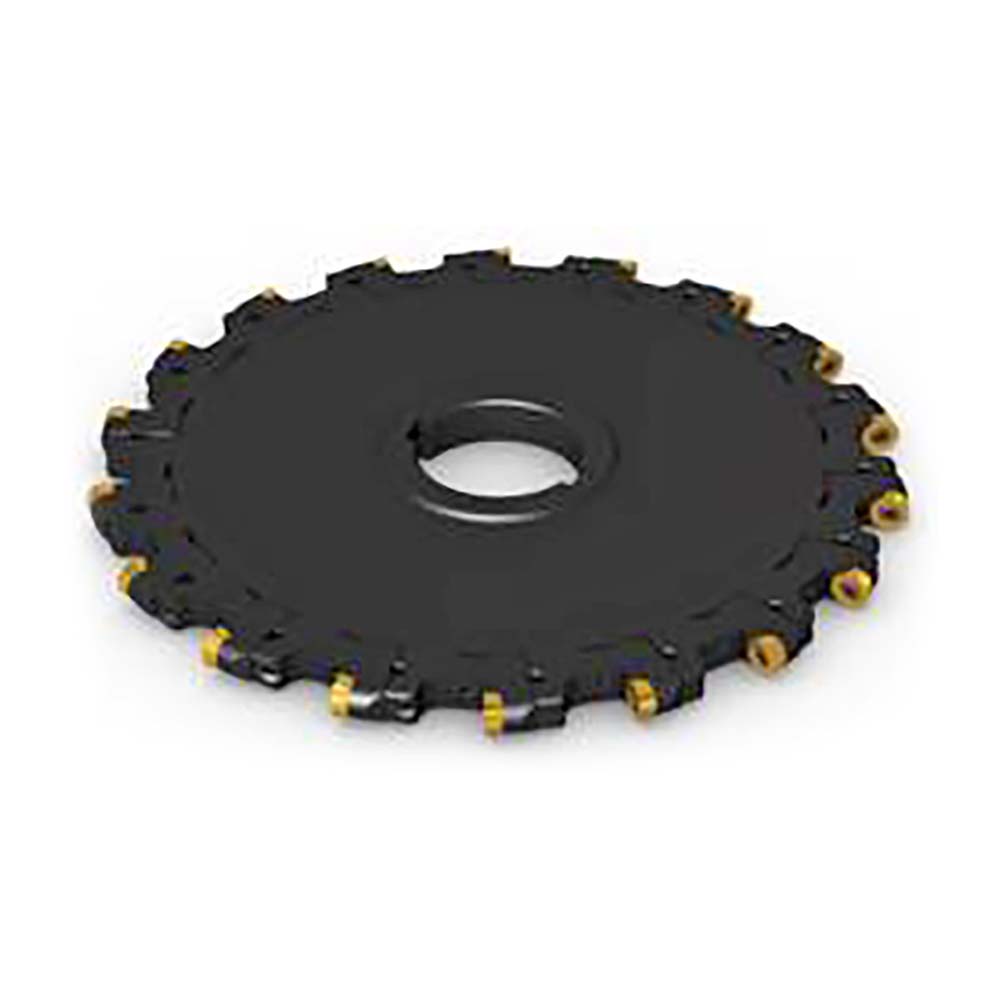

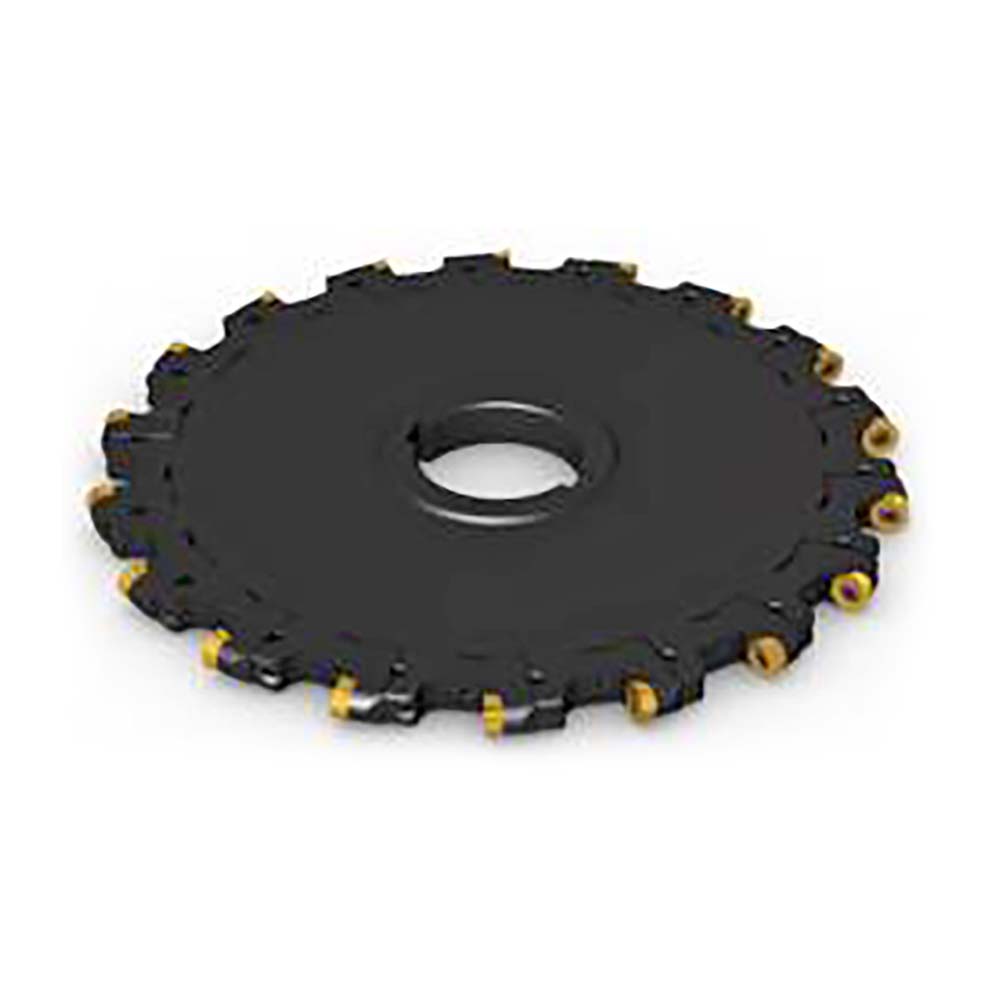

Screw, Uses 22 Inserts, LNK 05 Inserts, 22 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 4.3900 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Cutter Diameter (Inch) | 12 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 22 |
| Compatible Insert Style | LNK 05 |
| Compatible Insert Size Code | 0505.. |
| Tooth Type | Straight |
| Rake | Positive (Axial); Negative (Radial) |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Hub Diameter (Inch) | 3 |
| Keyway Width (Inch) | 1/2 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum RPM | 5300 |
| Tool Performance | General Purpose |
| Maximum Cutting Width (Decimal Inch) | 0.1960 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.6250 |
| Manufacturers Catalog Number | 335.18-12.00-XL0506R |
| Number Of Teeth | 22 |
| Coolant Through | No |
| Complete Insert Compatibility | LNK.0504.. |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 42716241 |
