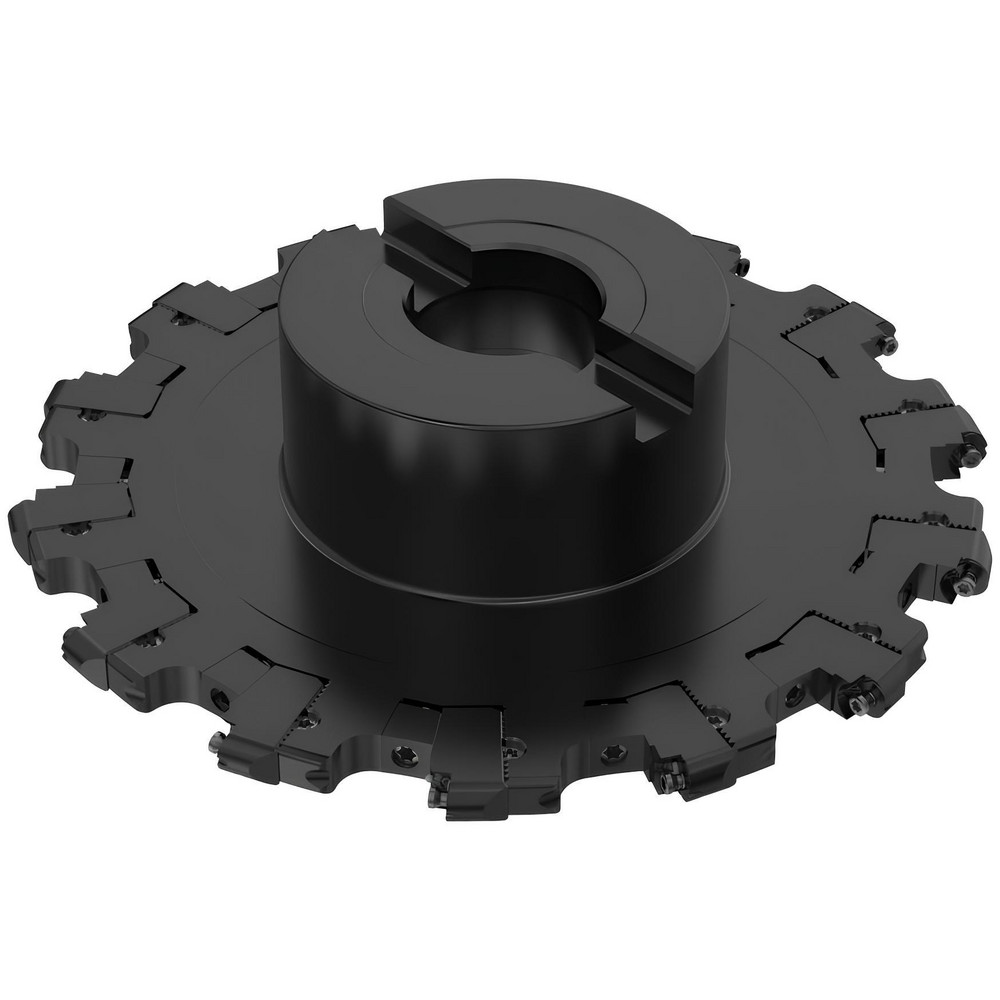

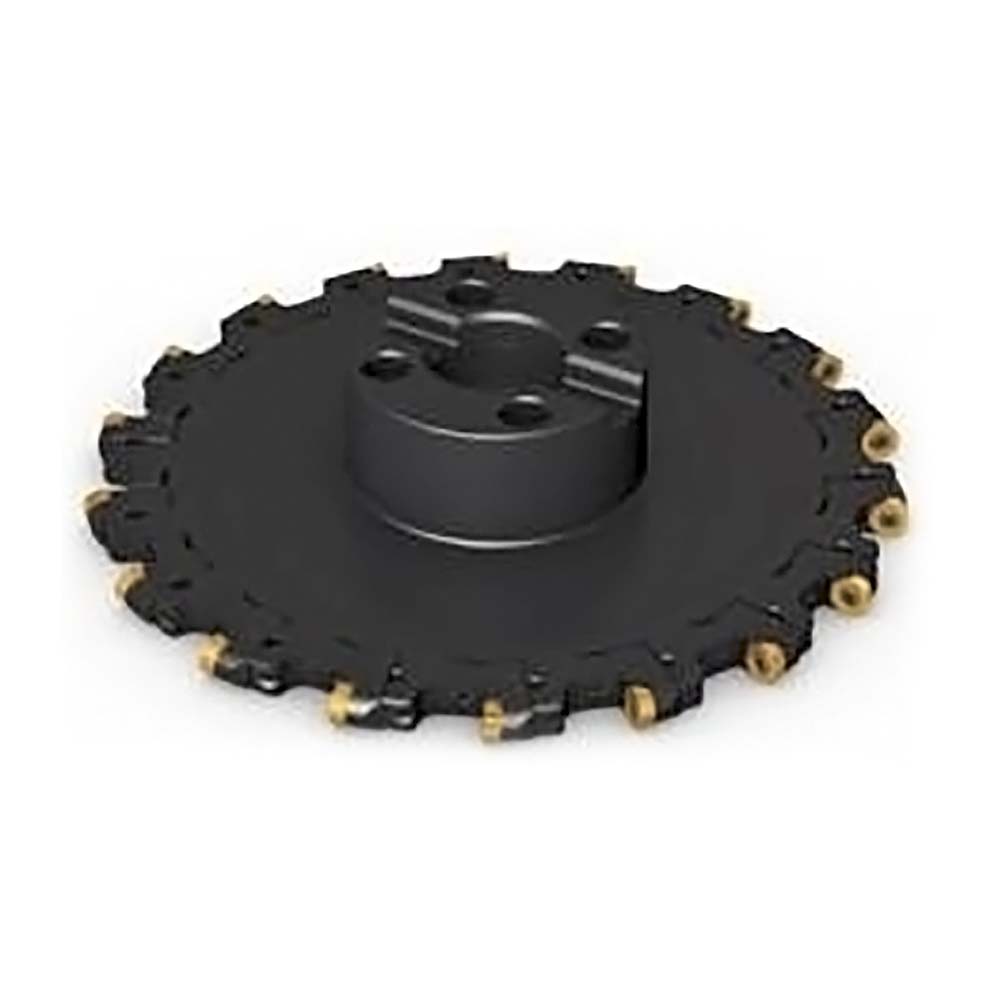

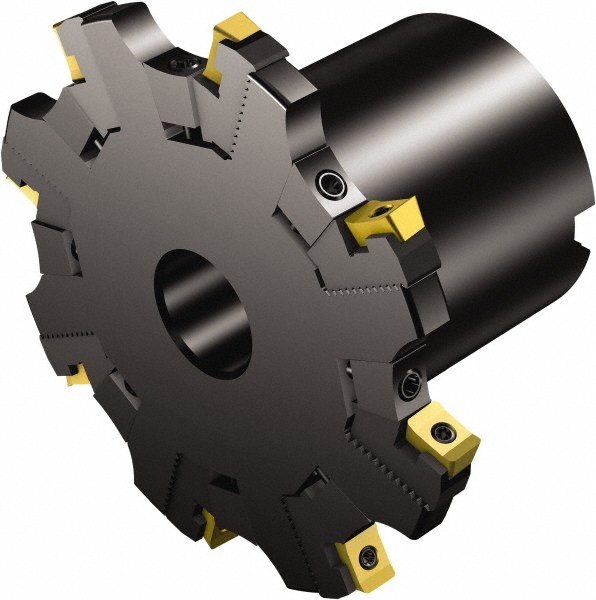

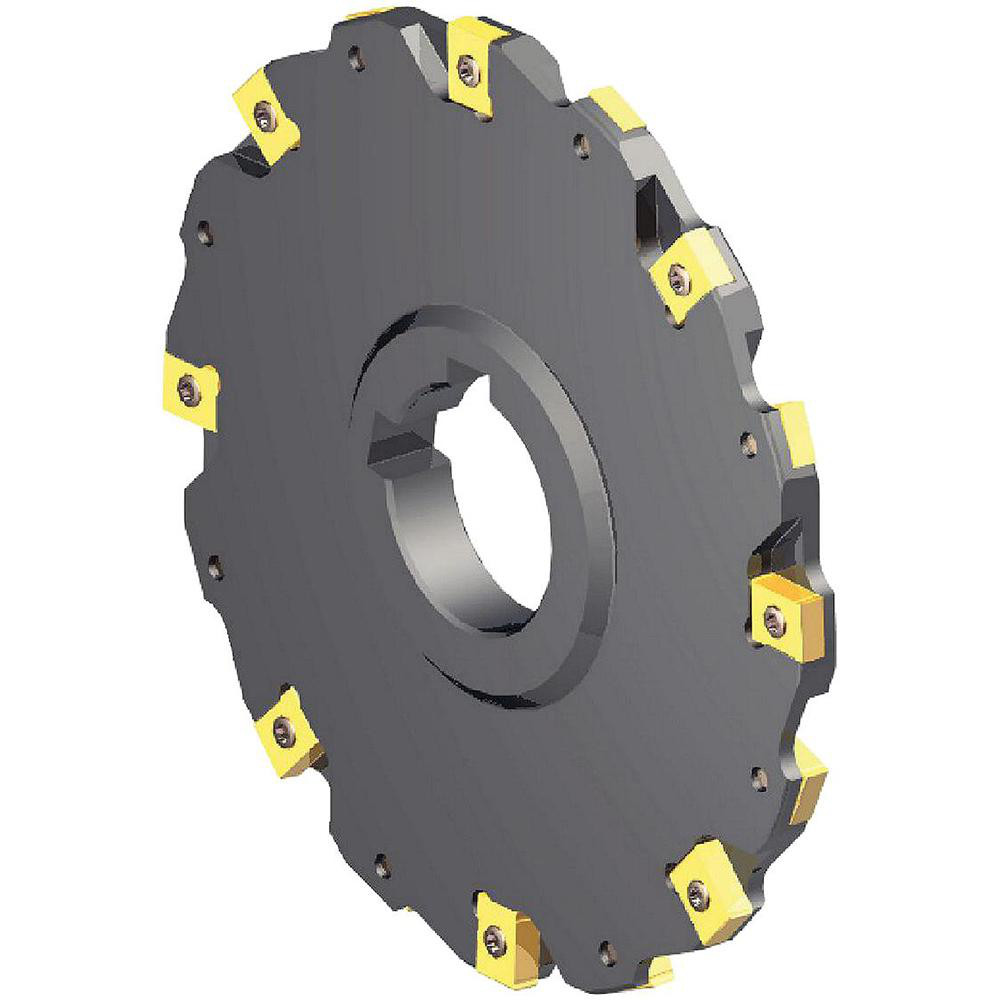

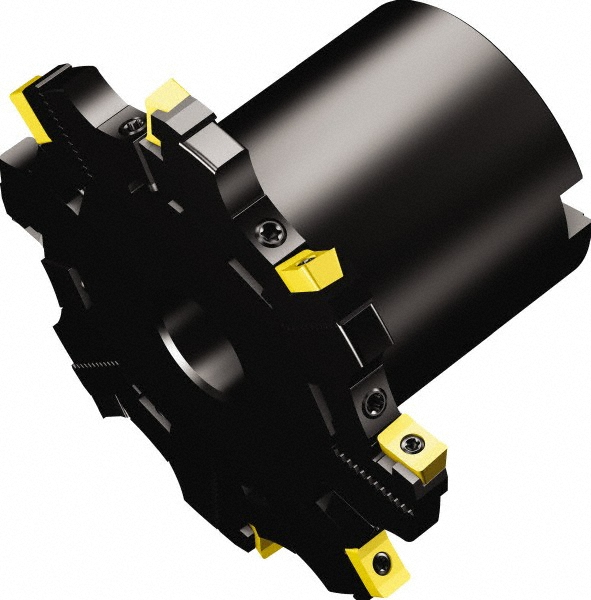

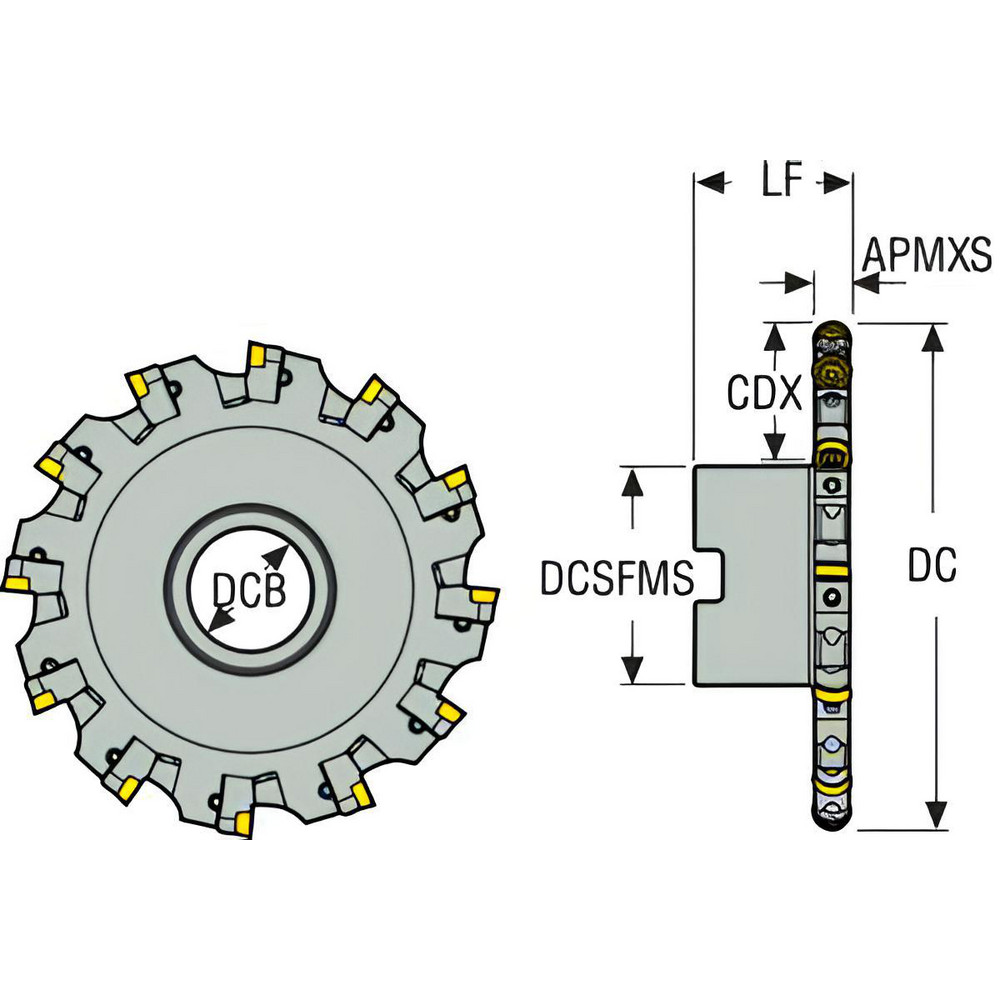

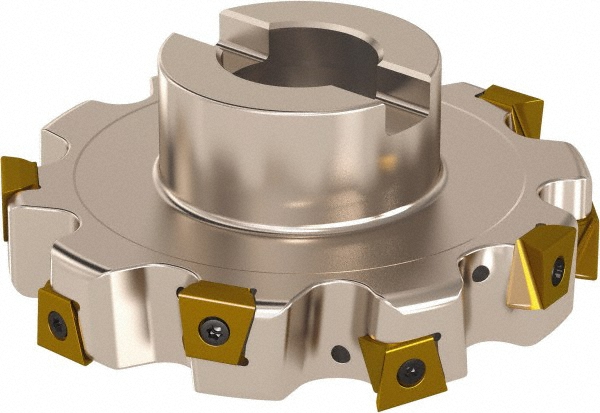

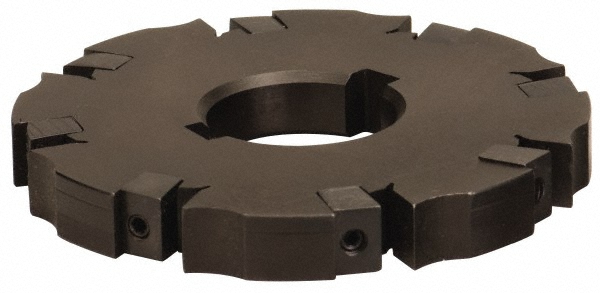

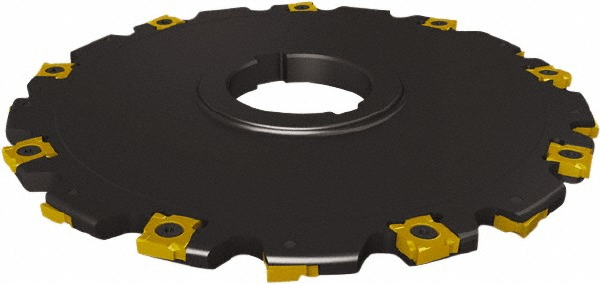

Screw, Uses 14 Inserts, RD 10T3 Inserts, 14 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 2.2640 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 14 |
| Compatible Insert Style | RD 10T3 |
| Compatible Insert Size Code | 10T3 |
| Tooth Type | Straight |
| Rake | Positive (Radial); Positive (Axial) |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 6700 |
| Tool Performance | General Purpose |
| Maximum Cutting Width (Decimal Inch) | 0.1960 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Manufacturers Catalog Number | R335.18-08.00-XL0708R-R5 |
| Number Of Teeth | 14 |
| Coolant Through | No |
| Complete Insert Compatibility | RD..10T3 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 42719112 |
