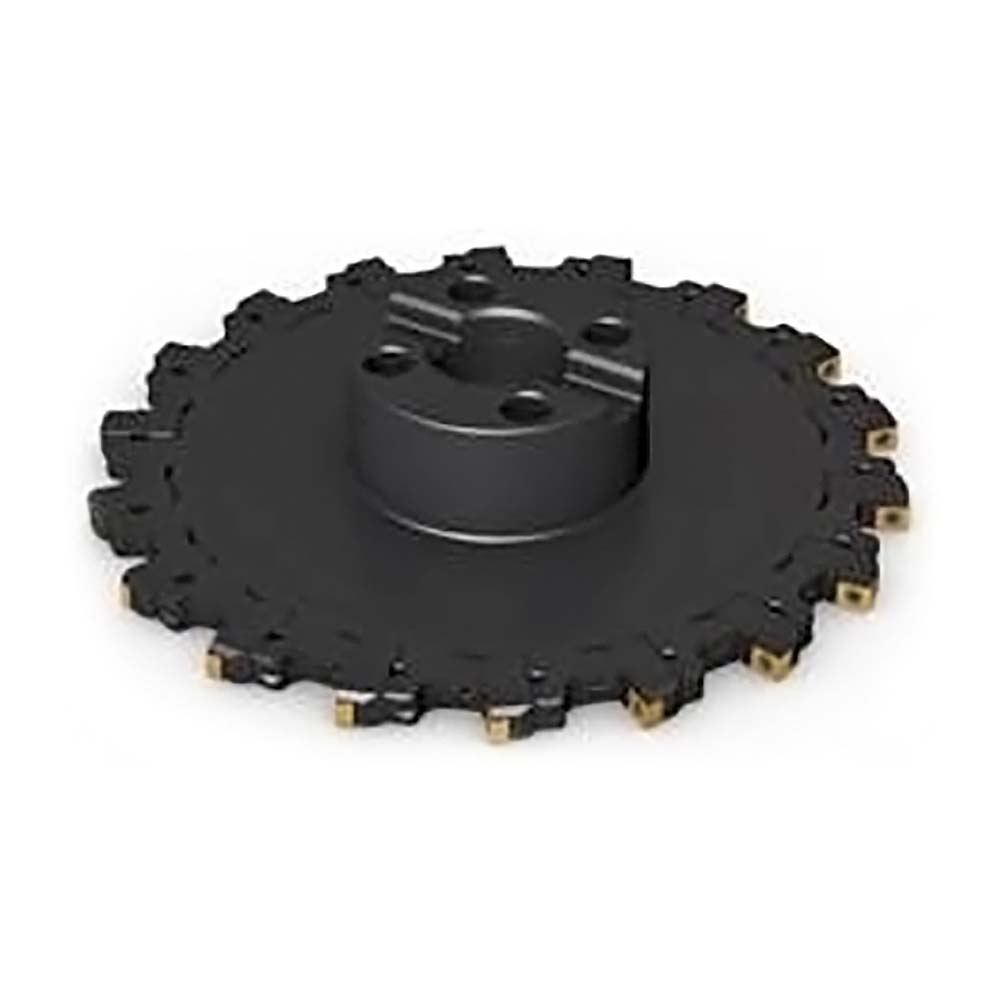

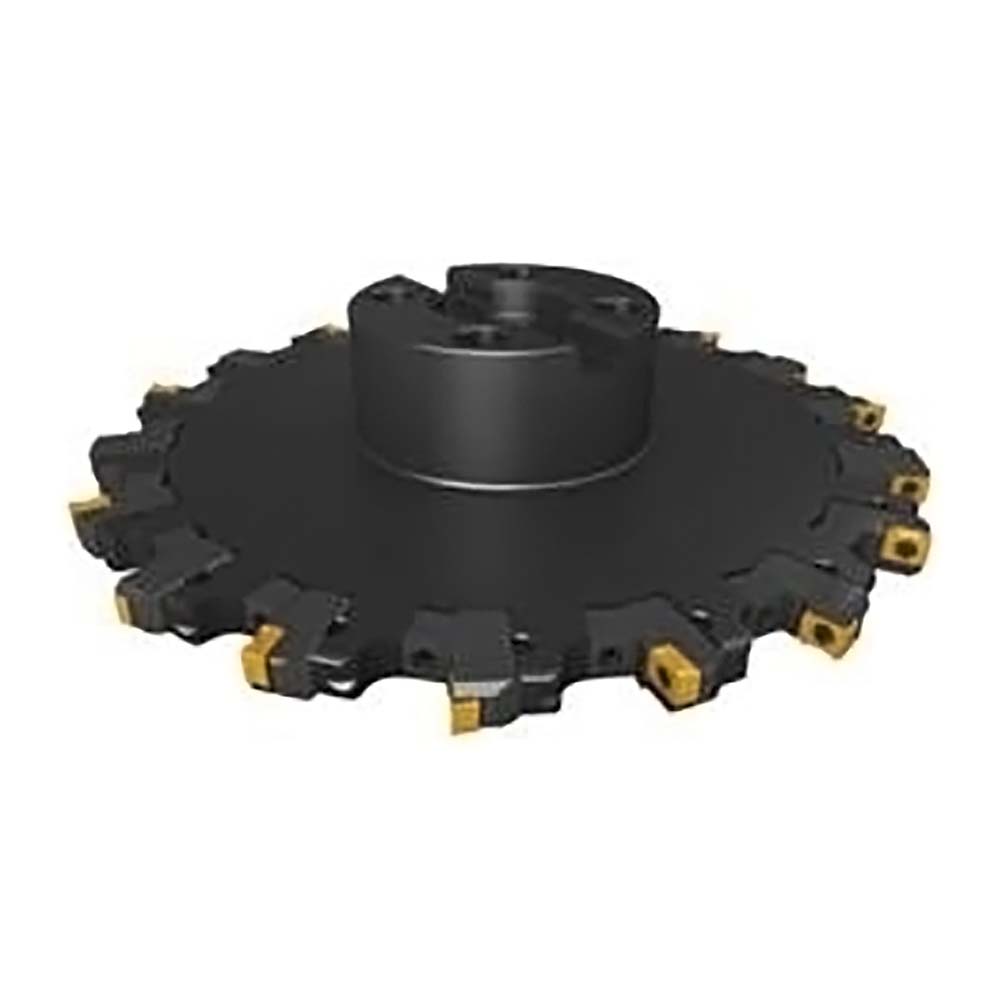

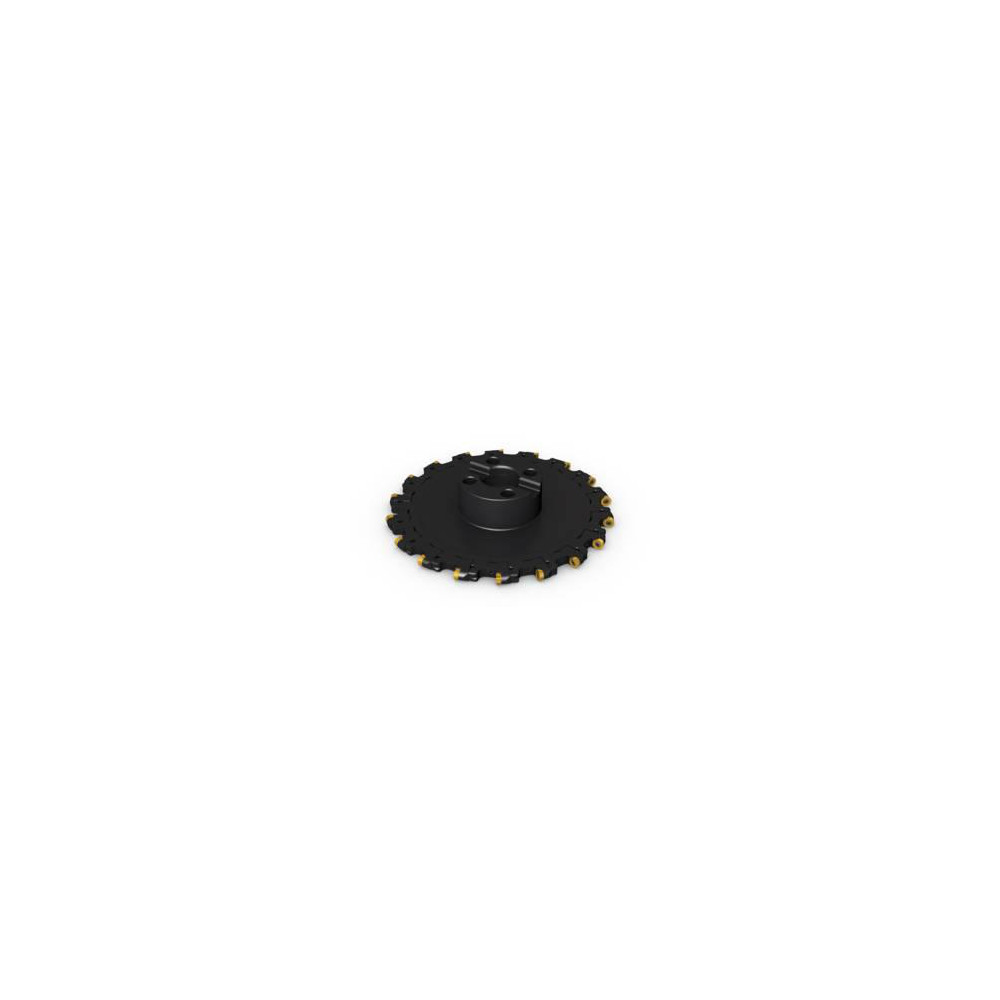

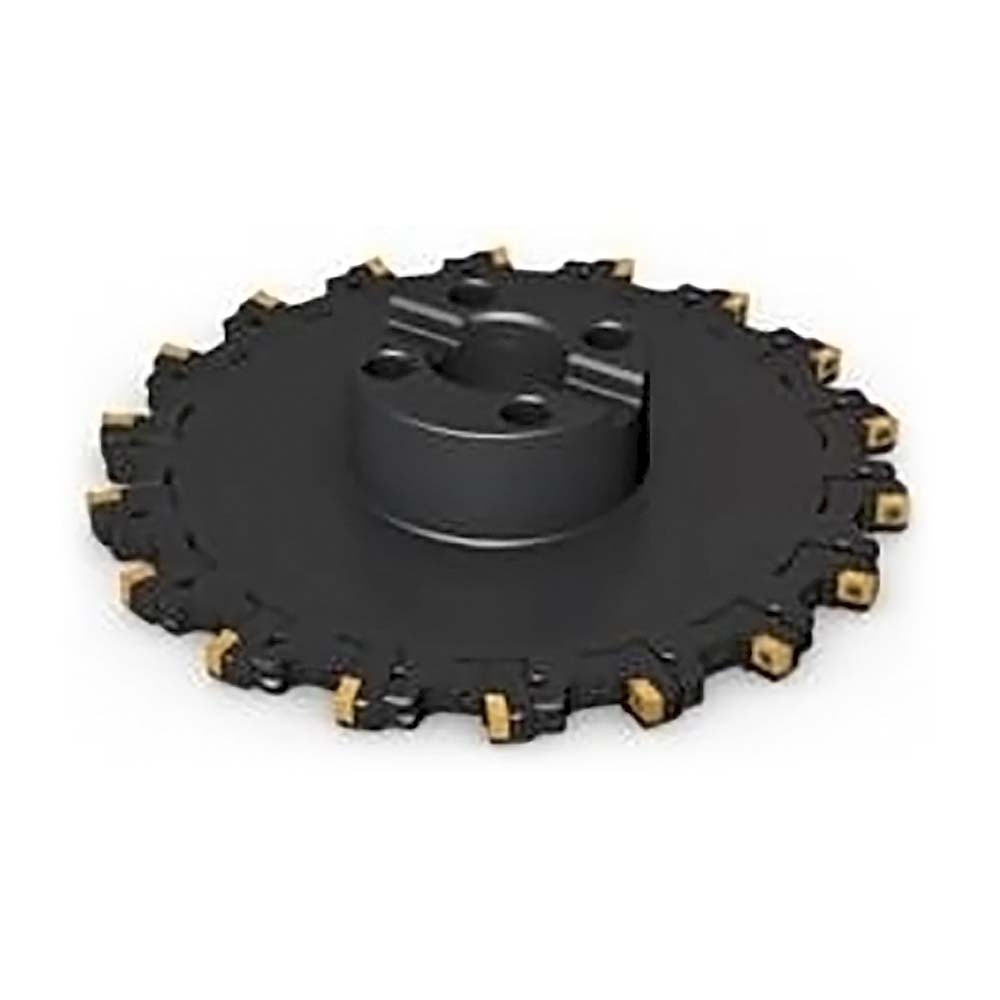

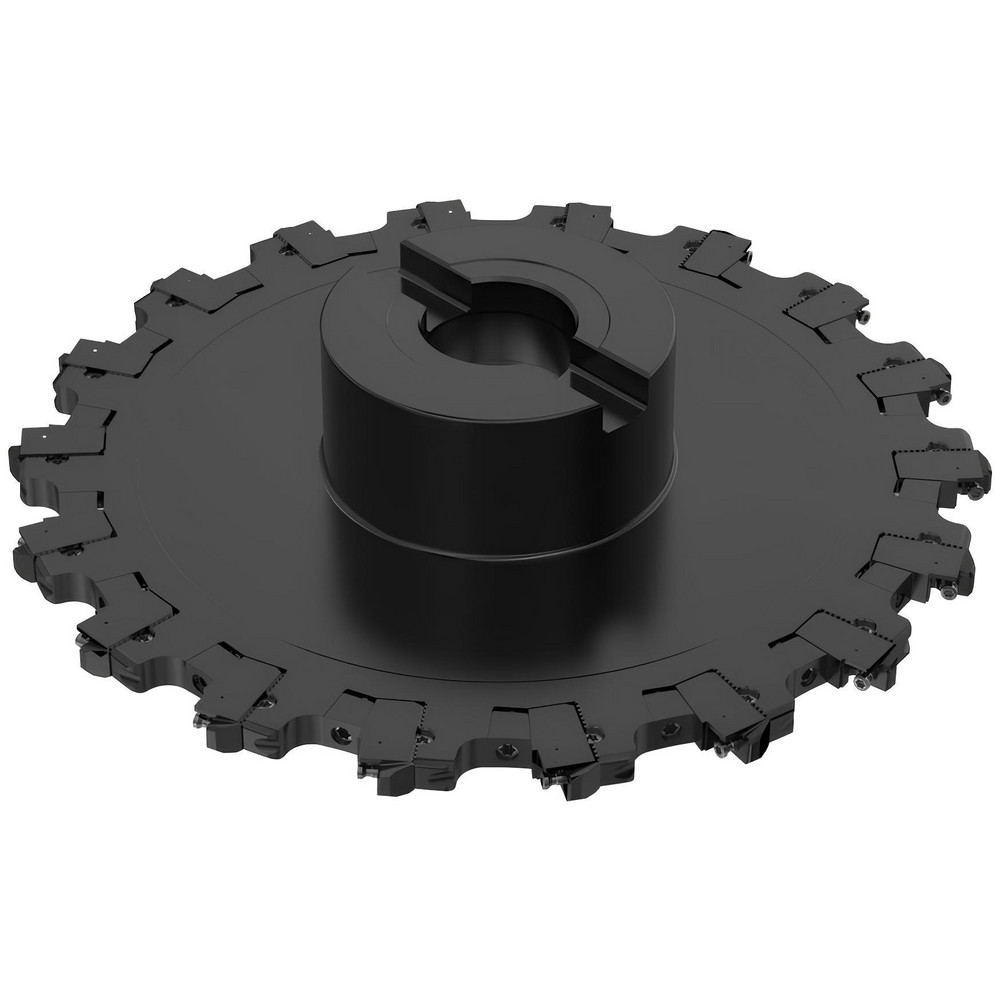

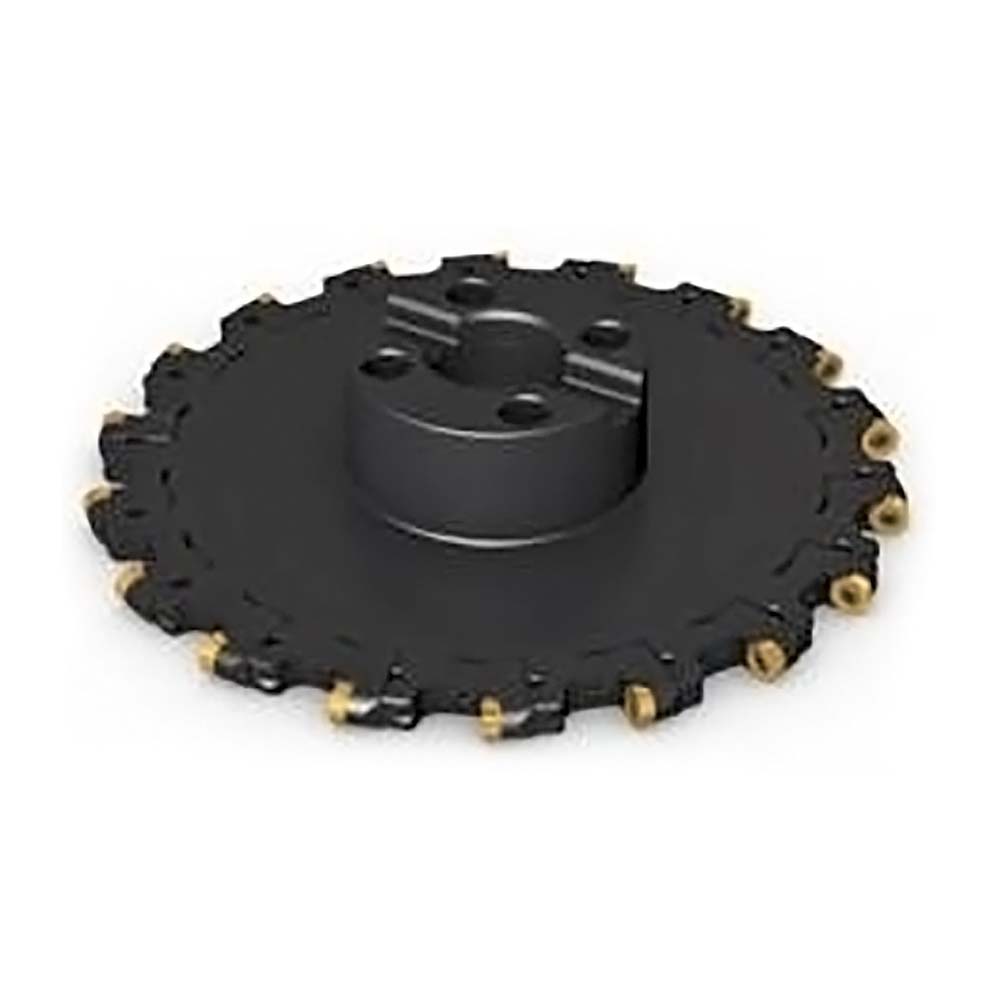

Screw, Uses 18 Inserts, LNK 06 Inserts, 18 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 3.2090 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 18 |
| Compatible Insert Style | LNK 06 |
| Compatible Insert Size Code | 0605..; 080524; 080520 |
| Tooth Type | Straight |
| Rake | Positive (Axial); Negative (Radial) |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 6000 |
| Tool Performance | General Purpose |
| Maximum Cutting Width (Decimal Inch) | 0.2360 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Manufacturers Catalog Number | R335.18-10.00-XL0708R |
| Number Of Teeth | 18 |
| Coolant Through | No |
| Complete Insert Compatibility | LNK.080520; LNK.0605..; LNK.080524 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 42719138 |
