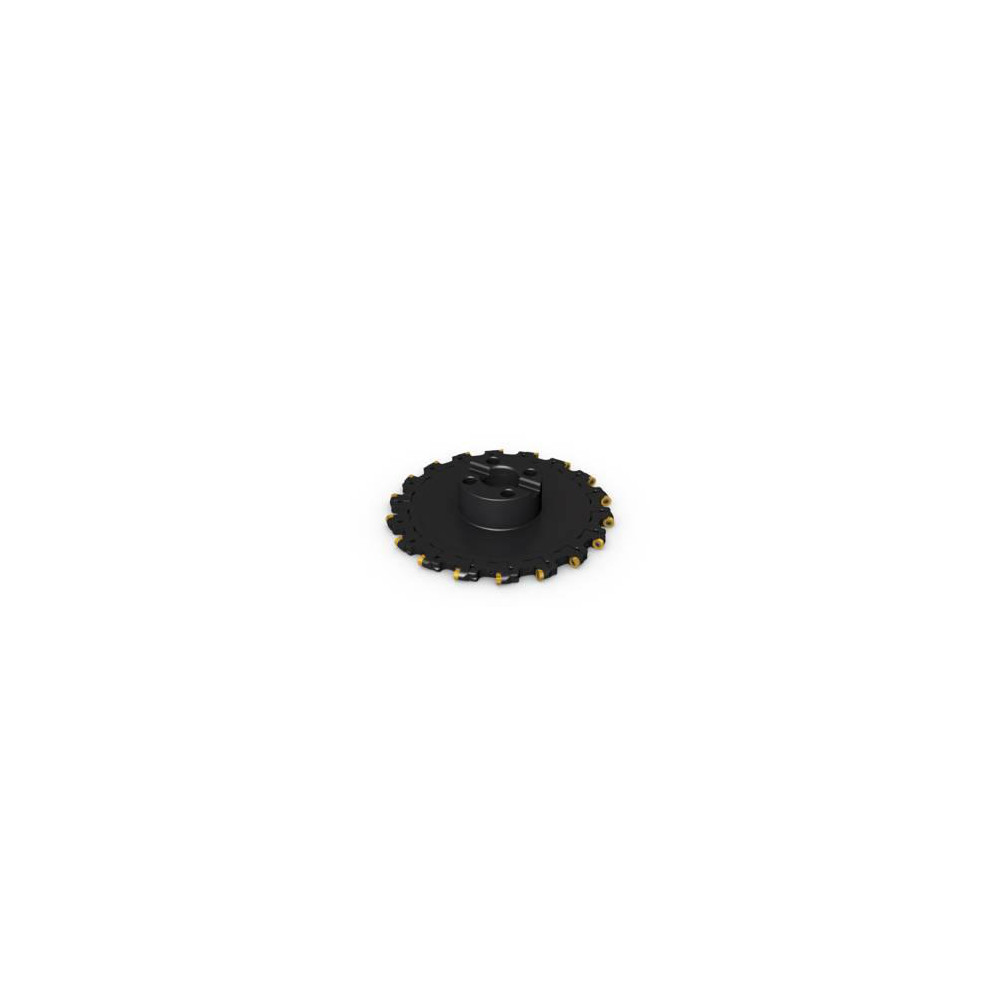

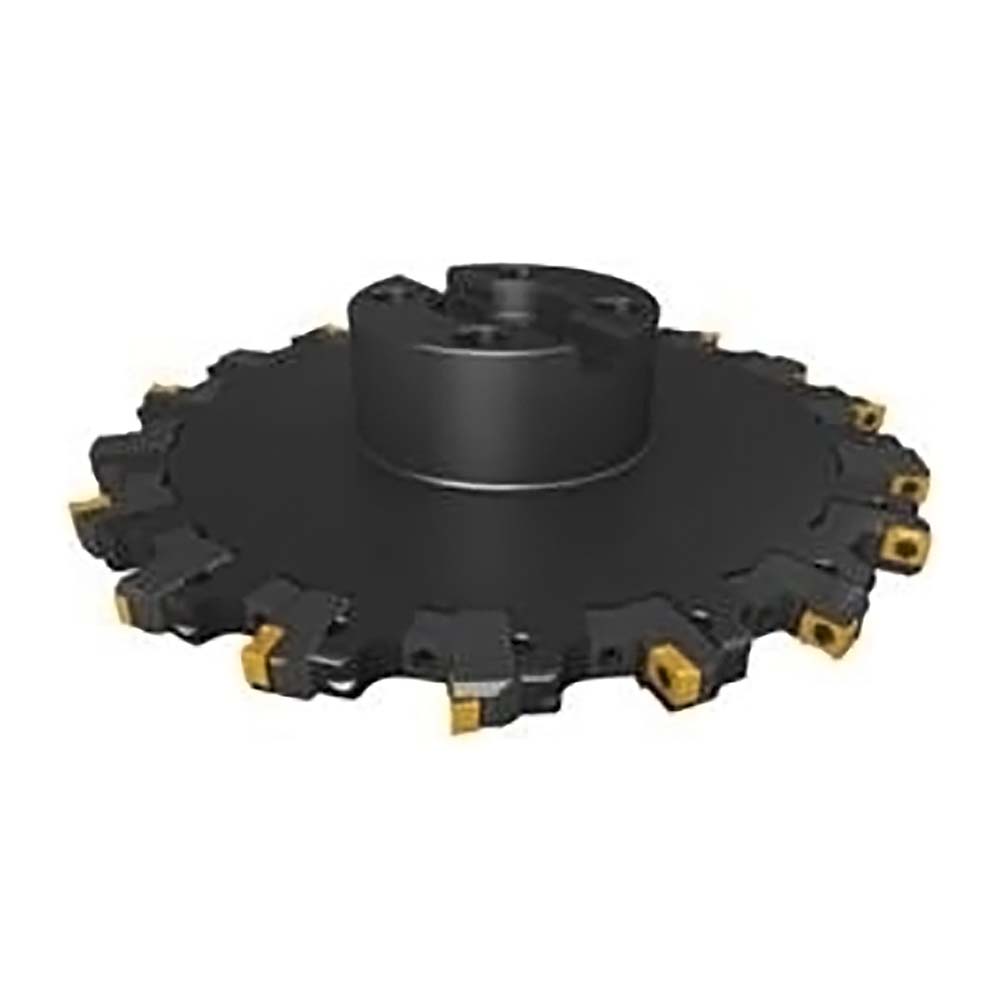

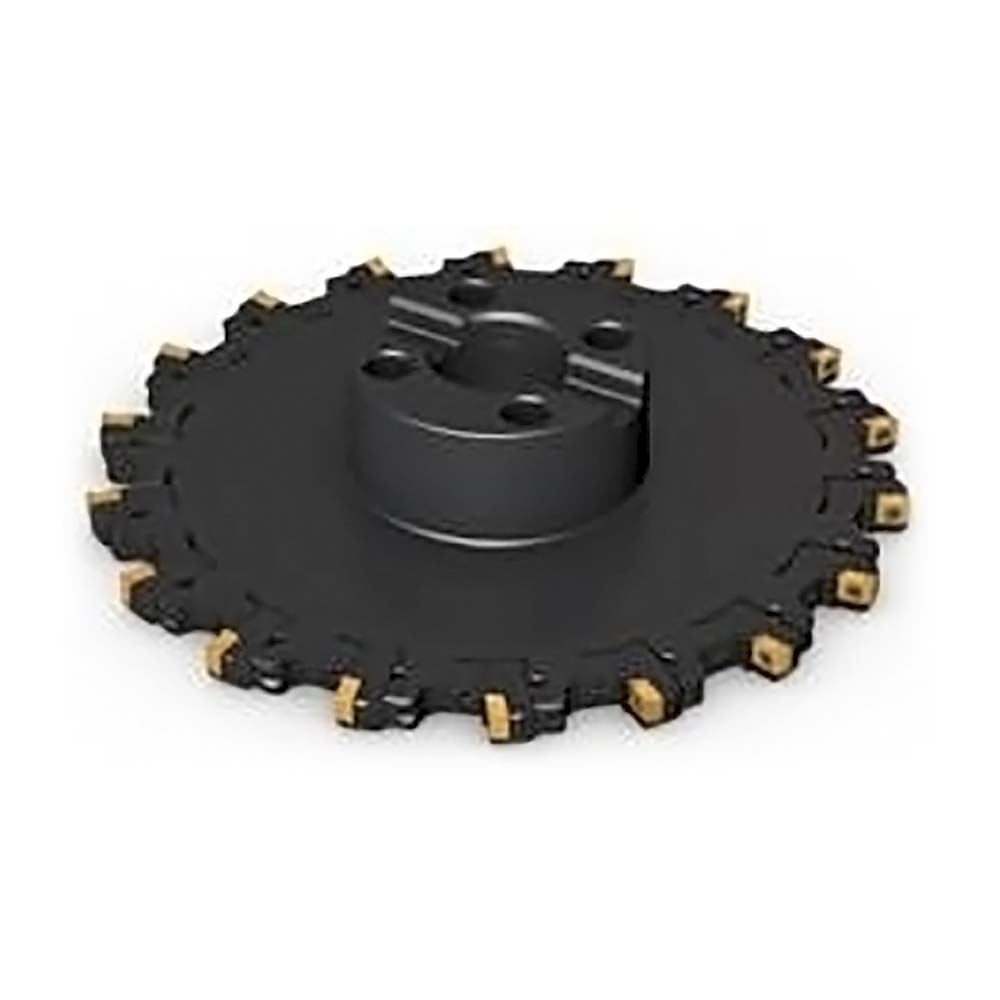

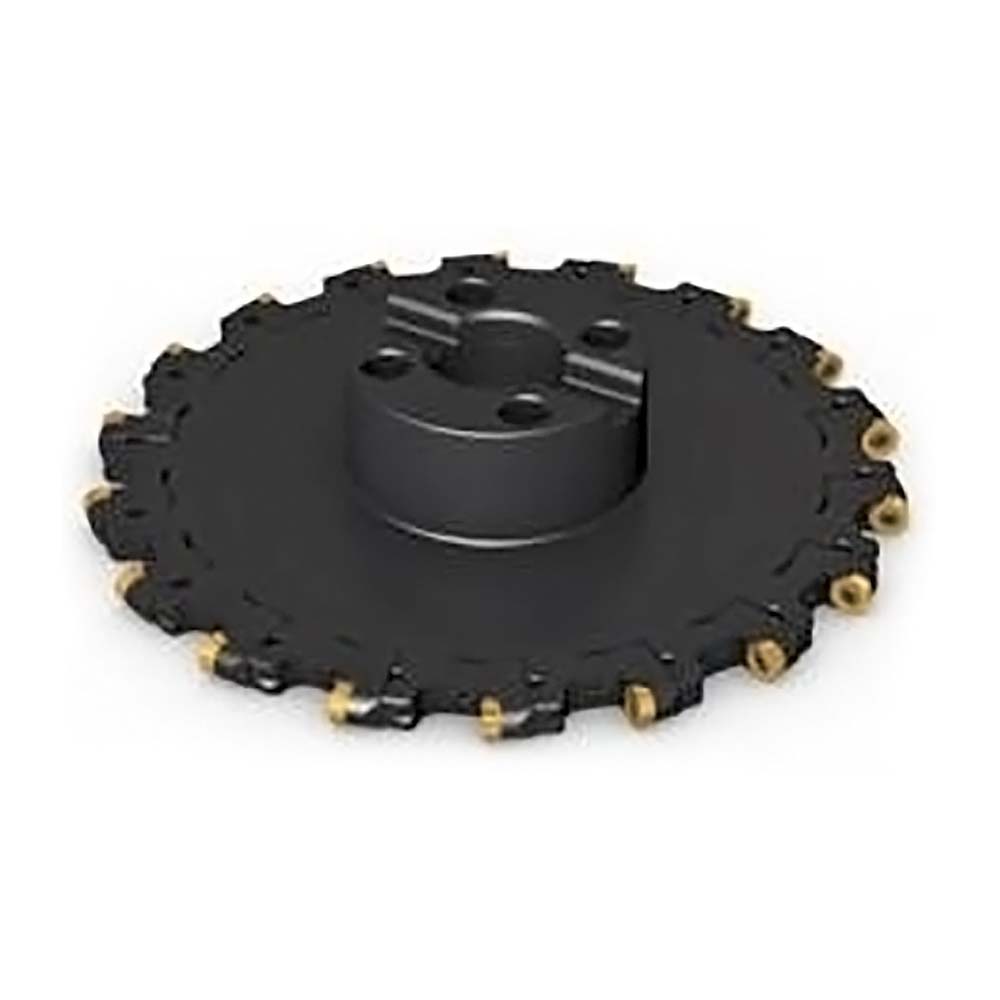

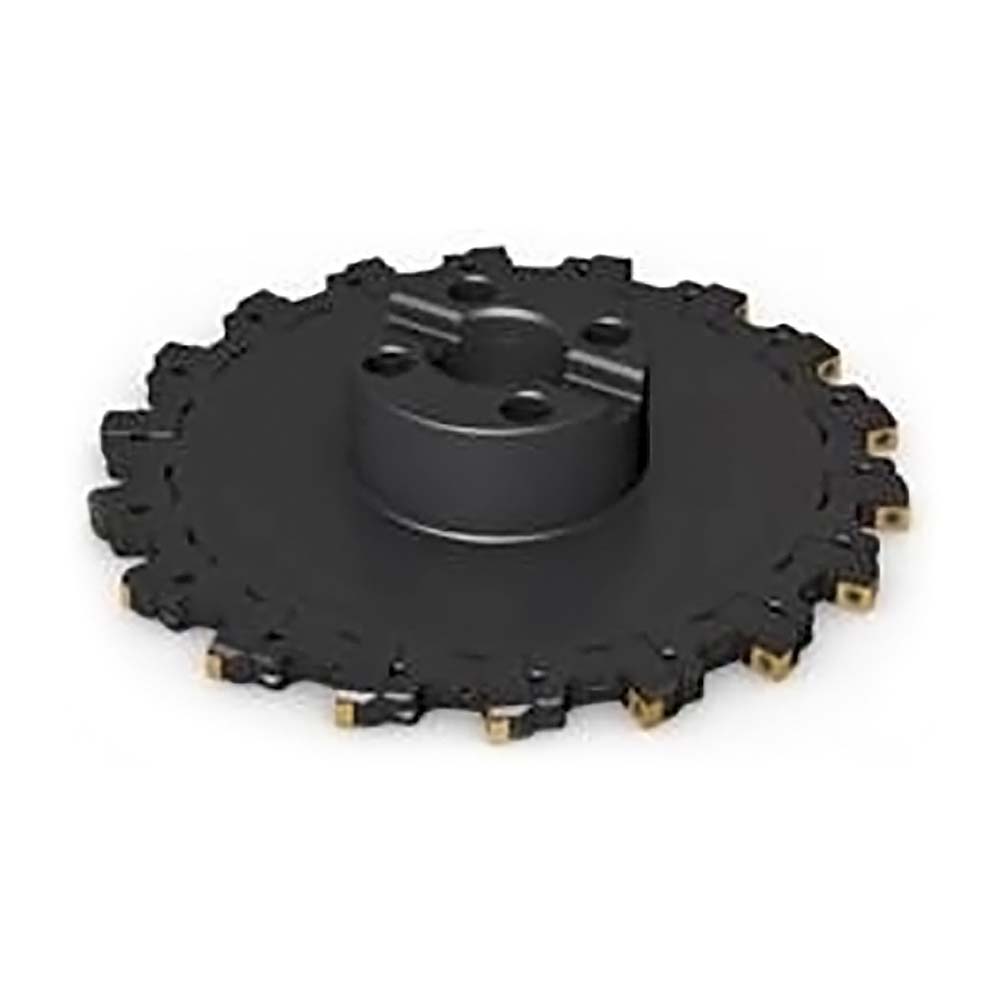

Screw, Uses 9 Inserts, LNK 05 Inserts, 18 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 3.2090 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 9 |
| Compatible Insert Style | LNK 05 |
| Compatible Insert Size Code | 0505.. |
| Tooth Type | Staggered |
| Rake | Positive (Axial); Negative (Radial) |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 6000 |
| Tool Application | Side Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Minimum Cutting Width (Inch) | 5/16 |
| Maximum Cutting Width (Decimal Inch) | 0.3940 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | R335.18-10.00-XL0506N |
| Number Of Teeth | 18 |
| Coolant Through | No |
| Complete Insert Compatibility | LNK.0504.. |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 42719237 |
